Aries 363006-2 Manuale utente
PAGE 1 • 363006-2-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

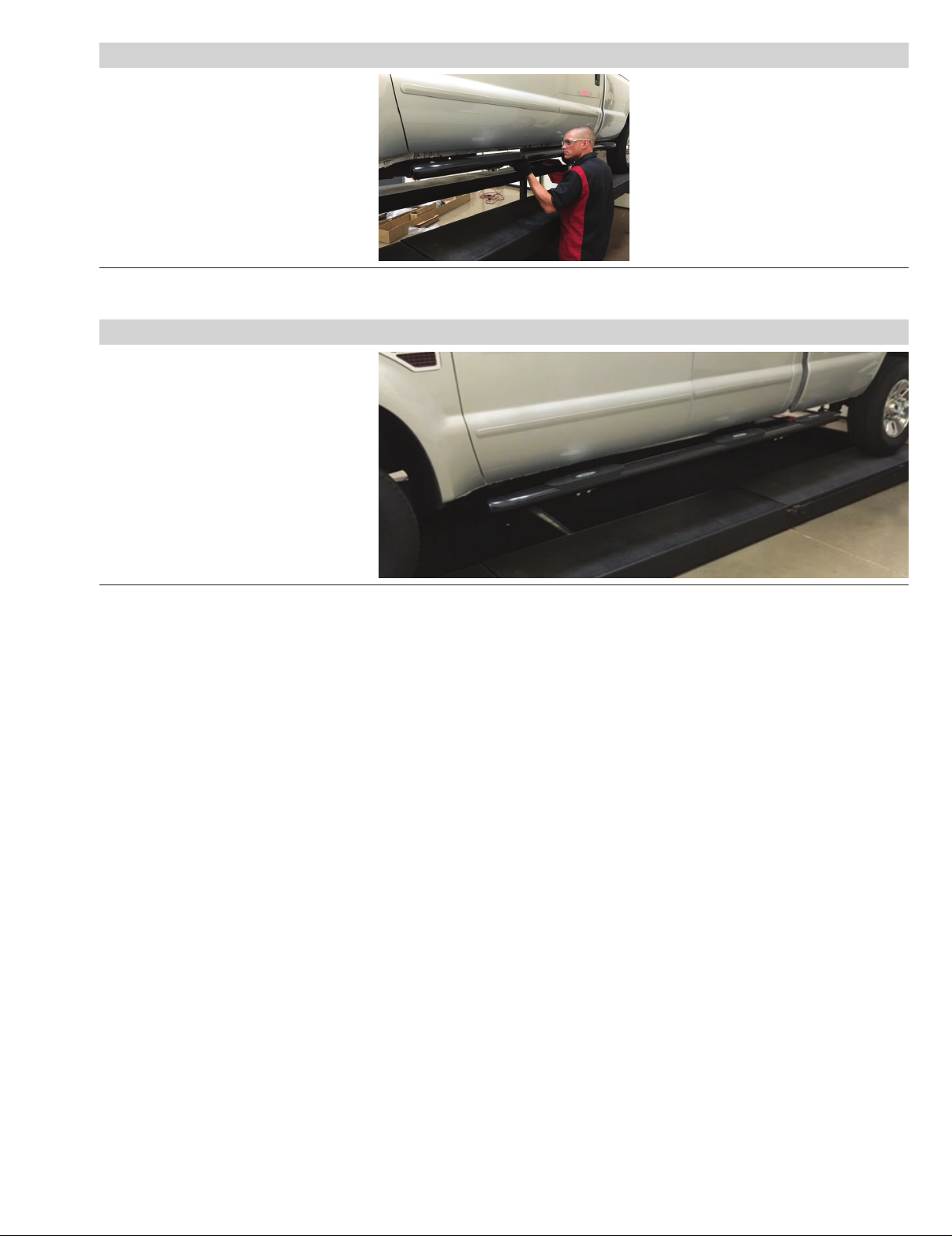

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For stainless steel and aluminum, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Level of Difficulty
Easy
Parts List
1Driver / left side bar
1Passenger / right side bar
2Mounting bracket, front
2Mounting bracket, rear
16 Clip nut, M8
16 Hex bolt, M8 - 1.25mm x 35mm
16 Flat washer, M8
16 Lock washer, M8
8Hex bolt, M10 - 1.5mm x 30mm
8Flat washer, M10
8Lock washer, M10
Tools Required
Torque wrench Socket, 16mm
Socket, 13mm
Scan
for helpful
install tips
Front
Rear
INSTALLATION MANUAL 363006-2
Torque Specifications
METRIC
M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
SAE
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.
ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 363006-2-INS-RA • PAGE 2

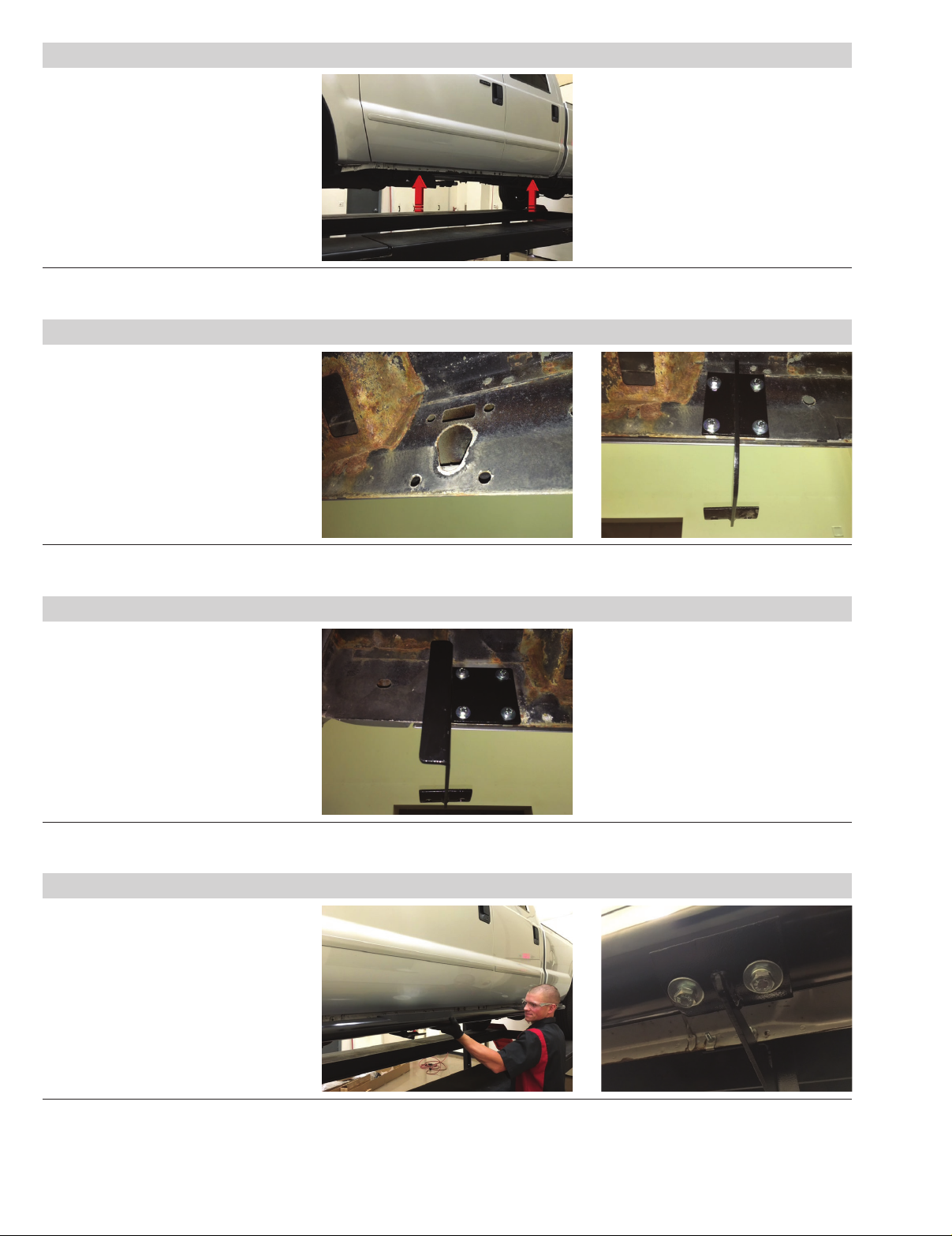

Step 1
Starting on the driver-side of
the vehicle, locate the mounting
tabs underneath the vehicle.
Step 2
Locate the front mounting point.
Slide an M8 clip nut over each
of the four mounting holes.
Secure the front mounting bracket
using four M8 flat washers, lock washers
and hex bolts.
Snug the hardware,
but do not fully tighten.
Step 3
Repeat step 2 to install the
rear mounting bracket.
Step 4
Carefully position the side bar onto
the mounting brackets and align the
mounting points. Ensure the rivet nuts
on the bottom of the side bar line up
with the brackets.
Secure the side bar to the brackets using
an M10 hex bolt, lock washer and flat
washer for each mounting point.
PAGE 3 • 363006-2-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM
Step 5
Adjust and level the side bar.
With the side bar in position, it is
recommended to tighten all brackets
to the vehicle first, followed by the
side bar connections.
Step 6
Repeat steps 1 through 5 on the
passenger side of the vehicle.
Congratulations on the installation
of your ARIES 4" wheel-to-wheel
oval side bars.
With the side bars installed, periodic
inspections should be performed to ensure
all mounting hardware remains tight.
To protect your investment, see the
'Notes and Maintenance' section on
the first page of this instruction manual.
