ASROCK A520M Pro4 Manuale utente

Version 1.0

Published July 2020

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement or refund for a major failure and

compensation for any other reasonably foreseeable loss or damage caused by our

goods. You are also entitled to have the goods repaired or replaced if the goods fail

to be of acceptable quality and the failure does not amount to a major failure. If

you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard

International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

English

A520M Pro4

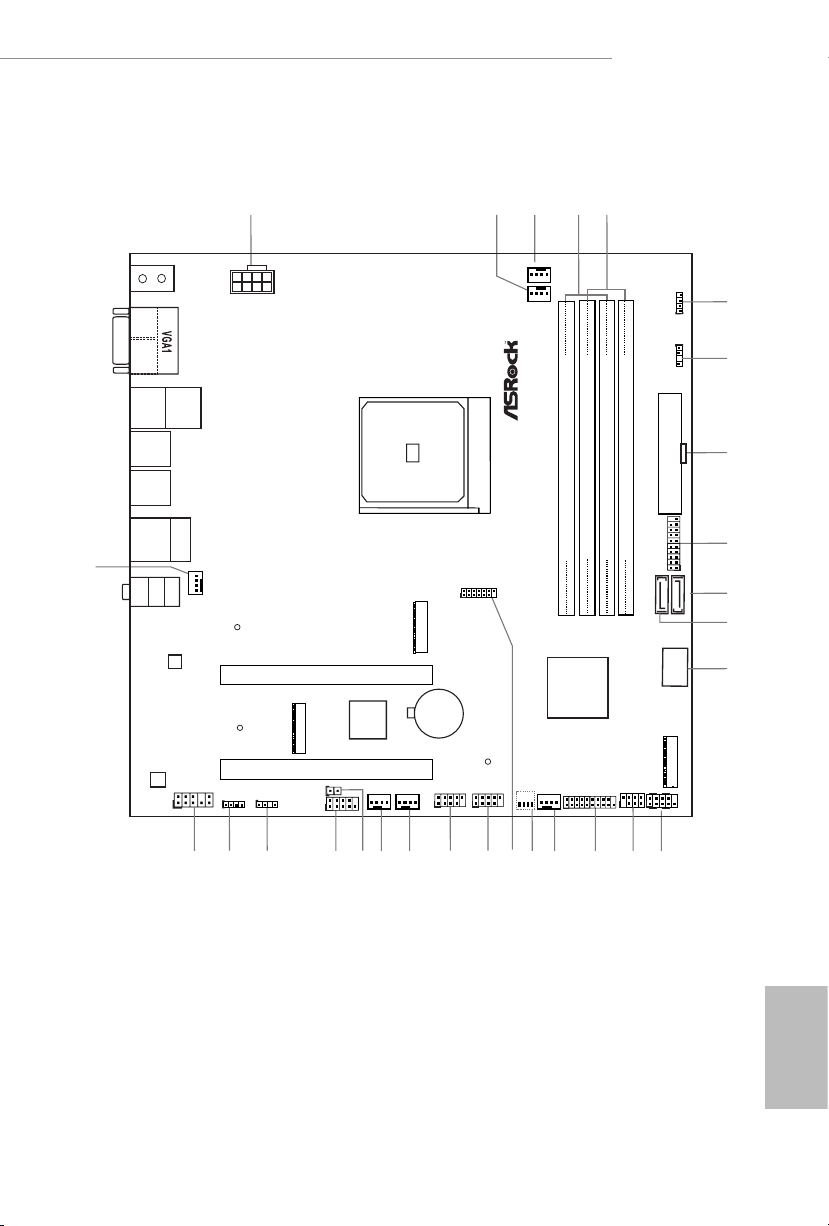

Motherboard Layout

16 13

19 14

ATXPWR1

Super

I/O

CLRCMOS1

HD_AUDIO1

CPU_FAN2/WP

SOCKETAM4

F_USB3_1_2

CHA_FAN1/WP

RoHS

SPK_PLED1

DDR4_A1 (64 bit, 288-pin module)

DDR4_A2 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

DDR4_B2 (64 bit, 288-pin module)

PCIE2

HDLED RESET

PLED PWRBTN

PANEL1

M2_2

M2_1

AMD

Promontory

A520

USB_3_4

SATA3_4

SATA3_3

CPU_FAN1

CHA_FAN4/WP

USB_5_6

ATX12V1

ADDR_LED1

RGB_LED1

SATA3_1

SATA3_2

SPI_TPM_J1

F_USB3_3_4

CHA_FAN2

/WP

CHA_FAN3

/WP

RGB_LED2

ADDR_LED2

CMOS

Battery

LAN

AUDIO

CODEC

24 18

PCIE1

CPU

DRAM

VGA

BOOT

M2_3

NUT1

COM1

A520M Pro4

Top:

LIN E IN

Center:

FRONT

Bottom:

MIC IN

RJ-45 LAN

USB 3.2 Gen1

T: USB3

B: USB4

USB 3.2 Gen1

T: USB1

B: USB2

USB 3.2 Gen1

T: USB31_TA_1

B: USB31_TC_1

USB 2.0

T: USB1

B: USB2

PS2

Keyboard/

Mouse

DISPLAY1

HDMI1

Ultra M.2

PCIe Gen3 x4

English

No. Description

1 8 pin 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

6 RGB LED Header (RGB_LED1)

7 Addressable LED Header (ADDR_LED1)

8 ATX Power Connector (ATXPWR1)

9 USB 3.2 Gen1 Header (F_USB3_1_2)

10 SATA3 Connector (SATA3_2)

11 SATA3 Connector (SATA3_1)

12 SATA3 Connector (SATA3_4) (Upper), SATA3 Connector (SATA3_3) (Lower)

13 System Panel Header (PANEL1)

14 Power LED and Speaker Header (SPK_PLED1)

15 USB 3.2 Gen1 Header (F_USB3_3_4)

16 Chassis/Water Pump Fan Connector (CHA_FAN4/WP)

17 Post Status Checker (PSC)

18 SPI TPM Header (SPI_TPM_J1)

19 USB 2.0 Header (USB_3_4)

20 USB 2.0 Header (USB_5_6)

21 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

22 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

23 Clear CMOS Jumper (CLRCMOS1)

24 COM Port Header (COM1)

25 Addressable LED Header (ADDR_LED2)

26 RGB LED Header (RGB_LED2)

27 Front Panel Audio Header (HD_AUDIO1)

28 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

English

A520M Pro4

1.4 I/O Panel

No. Description No. Description

1D-Sub Port 9 USB 3.2 Gen1 Type-A Port

2 USB 2.0 Ports (USB_12)* (USB3_TA_1)

3 LAN RJ-45 Port** 10 USB 3.2 Gen1 Type-C Port

4 Line In (Light Blue)*** (USB3_TC_1)

5 Front Speaker (Lime)*** 11 PS/2 Mouse/Keyboard Port

6Microphone (Pink)*** 12 DisplayPort 1.4

7 USB 3.2 Gen1 Ports (USB3_34) 13 HDMI Port

8 USB 3.2 Gen1 Ports (USB3_12) 14 Antenna Bracket

* Please note that the USB_2 consumes auxiliary power (+5VSB) while the other USB ports consume DUAL

Power (+5VDUAL). e USB_2 is optimal for connecting the USB Type speaker and headset.

** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

78913 12

1 2 3 5

14 6

English

*** Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

ank you for purchasing ASRock A520M Pro4 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock A520M Pro4 Motherboard (Micro ATX Form Factor)

• ASRock A520M Pro4 Quick Installation Guide

• ASRock A520M Pro4 Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 2 x Screws for M.2 Socket (Optional)

English

A520M Pro4

Chapter 1 Introduction

ank you for purchasing ASRock A520M Pro4 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock A520M Pro4 Motherboard (Micro ATX Form Factor)

• ASRock A520M Pro4 Quick Installation Guide

• ASRock A520M Pro4 Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 2 x Screws for M.2 Socket (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• Solid Capacitor design

• 2oz Copper PCB

CPU • Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™

Processors (3000 and 4000 Series Processors)*

* Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3

3200G.

• Digi Power design

• 8 Power Phase design

Chipset • AMD A520

Memory • Dual Channel DDR4 Memory Technology

• 4 x DDR4 DIMM Slots

• AMD Ryzen series CPUs (Matisse) support DDR4

4533+(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/

4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733

(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC

& non-ECC, un-buered memory*

• AMD Ryzen series APUs (Renoir) support DDR4 4733+

(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/

4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/

4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/

3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-

buered memory*

* Please refer to Memory Support List on ASRock’s website for

more information. (http://www.asrock.com/)

* Please refer to page 22 for DDR4 UDIMM maximum

frequency support.

• Max. capacity of system memory: 128GB

• Supports Extreme Memory Prole (XMP) memory modules

• 15μ Gold Contact in DIMM Slots

Expansion

Slot

• 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE3: x2

mode)*

* Supports NVMe SSD as boot disks

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT

module

English

A520M Pro4

Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen

Series APU*

* Actual support may vary by CPU

• DirectX 12, Pixel Shader 5.0

• Shared memory default 2GB. Max Shared memory supports

up to 16GB.

* e Max shared memory 16GB requires 32GB system

memory installed.

• ree graphics output options: D-Sub, HDMI and

DisplayPort 1.4

• Supports Triple Monitor

• Supports HDMI 2.1 with max. resolution up to 4K x 2K

(4096x2160) @ 60Hz

• Supports DisplayPort 1.4 with max. resolution up to 5K

(5120x2880)@120Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant

HDMI monitor is required)

• Supports HDR (High Dynamic Range) with HDMI 2.1

• Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4

Ports

• Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and

DisplayPort 1.4 Ports

• Supports Microso PlayReady®

Audio • 7.1 CH HD Audio with Content Protection (Realtek

ALC1200 Audio Codec)

• Premium Blu-ray Audio support

• Supports Surge Protection

• PCB Isolate Shielding

• Individual PCB Layers for R/L Audio Channel

• Nahimic Audio

English

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111H

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• Antenna Bracket

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection)

• 4 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1074 hub)

(Supports ESD Protection)

• 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*

* M2_2 and SATA3_3_4 share lanes. If either one of them is in

use, the other one will be disabled.

• 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2

PCI Express module up to Gen3 x4 (32 Gb/s)**

• 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2

SATA3 6.0 Gb/s module and M.2 PCI Express module up to

Gen3 x2 (16 Gb/s)**

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK P43ME Manuale utente

ASROCK

ASROCK K10N750SLI-WIFI Manuale utente

ASROCK

ASROCK Z690 AQUA Manuale utente

ASROCK

ASROCK P4VM900-SATA2 - V1.0 Manuale utente

ASROCK

ASROCK DN2800MT Manuale utente

ASROCK

ASROCK X99 WS Manuale utente

ASROCK

ASROCK X79 Extreme7 Manuale utente

ASROCK

ASROCK QC7000M Manuale utente

ASROCK

ASROCK IMB-A180-H Manuale utente

ASROCK

ASROCK Fatal1ty B450 Manuale utente

ASROCK

ASROCK Z68 Extreme3 Gen3 Manuale utente

ASROCK

ASROCK B760M-C R2.0 Manuale utente

ASROCK

ASROCK A55M-HVS Manuale utente

ASROCK

ASROCK H81TM-ITX Manuale utente

ASROCK

ASROCK 4COREDUAL-SATA2 - 11-2007 Manuale utente

ASROCK

ASROCK B365M Pro4 Manuale utente

ASROCK

ASROCK IMB-781 Manuale utente

ASROCK

ASROCK 960GM-VGS3 FX Manuale utente

ASROCK

ASROCK EP2C612D8 Manuale utente

ASROCK

ASROCK H55M-GE Manuale utente

ASROCK

ASROCK PHANTOM GAMING 4 B550 Manuale utente

ASROCK

ASROCK Z97M OC Formula Manuale utente

ASROCK

ASROCK H81M-DGS Manuale utente

ASROCK

ASROCK 775XFIRE-VSTA - V1.2 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
