ASROCK Athena A2 Kit Manuale utente

athena A2 Kit

User Manual

Version 1.0

Published August 2020

Version 1.0

Published September 2020

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock. assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock INC.’s Website: www.asrockind.com

e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

CAUTION:

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 4

1.4 I/O Panel 7

1.5 Expansion Slots (M.2 Slots) 8

1.6 Jumper Setup 9

1.7 Onboard Headers and Connectors 10

1.8 Power and Reset Switch 13

Chapter 2 Installation 14

2.1 Hardware Setup 14

2.2 Installing the Heatsink FAN 17

2.3 Connecting with the SATA Power and SATA Data Cables 18

Chapter 3 Software Settings 19

3.1 Settings for the Ubuntu operating system 19

3.2 IP Camera Settings 22

3.3 OpenVINO™ Toolkit 24

3.4 AWS Greengrass 26

athena A2 Kit

PB 1

English

Chapter 1 Introduction

ank you for purchasing ASRock Industrial athena A2 Kit, a reliable motherboard

produced under ASRock INC.’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock INC.’s commitment

to quality and endurance.

1.1 Package Contents

• 1 x athena A2 Motherboard

• 1 x Heatsink FAN

• 1 x IP Camera

• 1 x IP Camera Signal Cable

• 1 x IP Camera Power Cable

• 1 x SATA Data Cable

• 1 x SATA Power Cable

• 1 x M.2 (Key M, 2280) Myriad X/Keem Bay (Optional)

• 8 x Standos

• 1 x AC-in 100-240V, DC-out 12V Power Adapter

If any items are missing or appear damaged, contact your authorized dealer.

If you require technical support related to this motherboard, please visit our website for

specic information about the model you are using.

https://event.asrockind.com/tsd.asp

2 3

English

1.2 Specications

athena A2

Form Factor

Dimensions 6.5-in x 3.8-in

Processor System

CPU Intel® Atom Apollo Lake J3455 processor

Chipset SoC

BIOS AMI SPI 128 Mbit

Memory

Tech nolog y Onboard LPDDR4 2400 MHz

Capacity 4 GB, up to 8GB

Graphics

Controller SoC integrated graphics

HDMI HDMI 1.4b

Max resolution up to 3840x2160@30Hz

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless

SIM Socket 1 x micro SIM Socket connected to M.2 Key B 3042/3052

Ethernet

Controller/

Speed

LAN: 1 x Realtek RTL8111G with 10/100/1000 Mbps (PoE (PD)

with 25.5W)

LAN: 2 x Realtek RTL8111G with 10/100/1000 Mbps (IP

Camera Header)

Connector 1 x RJ-45

Rear I/O

HDMI 1 x HDMI 1.4b

Ethernet 1 x 1 Gigabit LAN, Optional PoE (PD) with 25.5W

USB 2 x USB 3.2 (Gen1)

others 1 x Micro SD connector

Internal Connector

USB 2 x USB 2.0 header

TPM TPM 2.0 onboard IC

SATA PWR

Output 1 x 4-pin SATA Power

IPCAM interface LAN signal 1x6 header

Power 1x2 header

40-pin GP-bus 40 pin General Purpose bus

Storage

M.2

1 x M.2 (Key B, 3042/3052) with PCIe x1 and USB 3.2 Gen1,

USB 2.0

1 x M.2 (Key M, 2280) with PCIe x2

SATA 1 x SATA3 (6Gb/s)

athena A2 Kit

2 3

English

* For detailed product information, please visit our website: http://www.asrockind.com

eMMC Onboard eMMC 32GB

Watchdog Timer

Output From Super I/O to drag RESETCON#

Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V DC-In (DC Jack)

PoE (PD) with 25.5W (LAN Port) (Optional)

Power On AT/ATX Supported

- AT : Directly PWR on as power input ready

- ATX : Press button to PWR on aer power input ready

Environment

Operating Temp 0ºC ~ 50ºC

Storage Temp -40° C – 85° C

Operating

Humidity 10% ~ 90%

Storage

Humidity 10% ~ 90%

Others

IP camera 2MP, 1080P@30fps, H.264

Movidius 1 x M.2 (Key M, 2280) Myriad X/Keem Bay (Optional)

Adapter 1 x AC-in 100~240V, DC-out 12V

OS Support Linux Ubuntu 16.04

Accessories

1 x IP Camera Signal Cable

1 X IP Camera Power Cable

1 x SATA Data Cable

1 x SATA Power Cable

1 x Heatsink Fan

8 x Standos

4 5

English

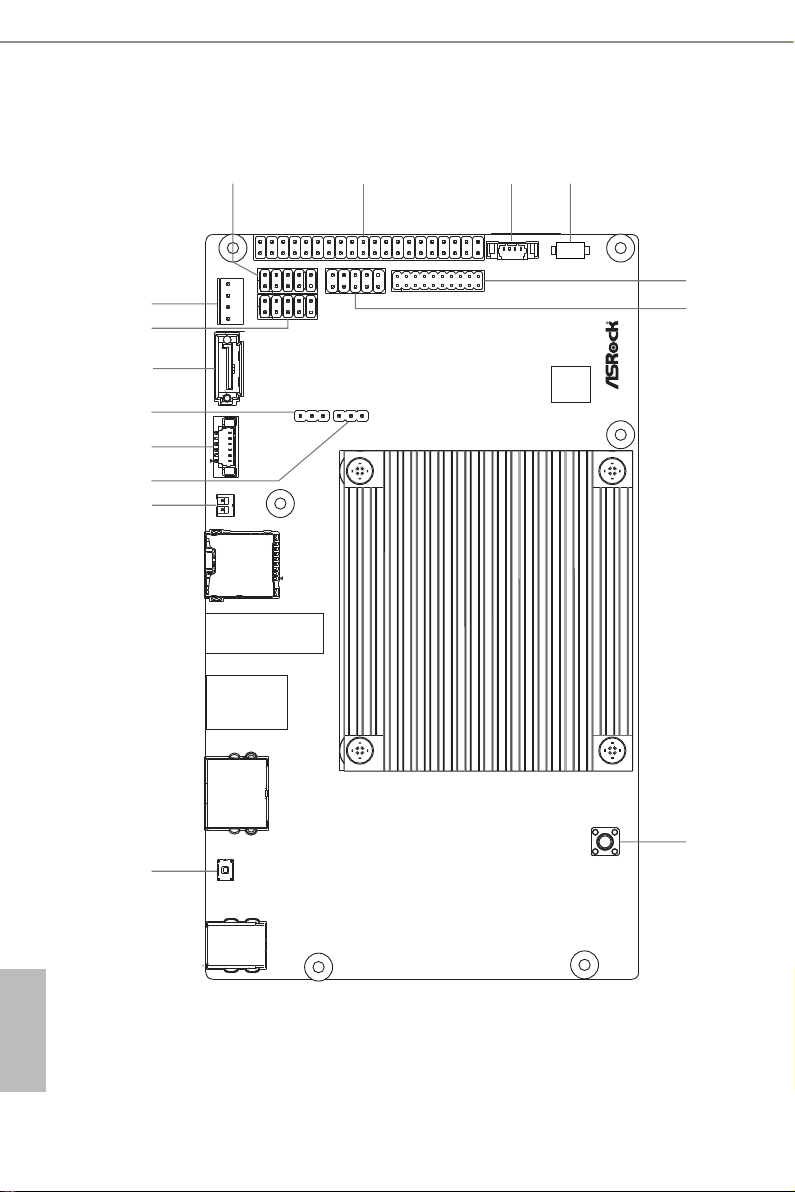

1.3 Motherboard Layout

BIOS

ROM

Industrial

CAM

CAM_PWR1

RESET1

1 2 3

SATA3_1

SATA_PWR1

USB2_4_5

USB2_2_3

PANEL1 LPC1

FAN1

BAT1

CLRMOS1PWR_JP1

PWR_BTN1

HDMI1

S 1D

USB 3.2 Gen1

T: USB3_1

B: USB3_0

ETH_PWR1

DC_JACK1

athena A2 Kit

4 5

English

No. Description

1 USB2.0 Connector (USB2_2_3)

2 40-pin General Purpose Bus Connector (PI1)

3 FAN Connector (FAN1)

4 Battery Connector (BAT1)

5 LPC Debug Header (LPC1)

6 System Panel Header (PANEL1)

7 Power Button (PWR_BTN1)

8 Reset Button (RESET1)

9 IP Camera Power Connector (CAM_PWR1)

10 ATX/AT Mode Jumper (PWR_JP1)

11 IP Camera Signal Connector (CAM1)

12 Clear CMOS Headers (CLRMOS1)

13 SATA3 Connector (SATA3_1)

14 USB2.0 Connector (USB2_4_5)

15 SATA Power Output Connector (SATA_PWR1)

6 7

English

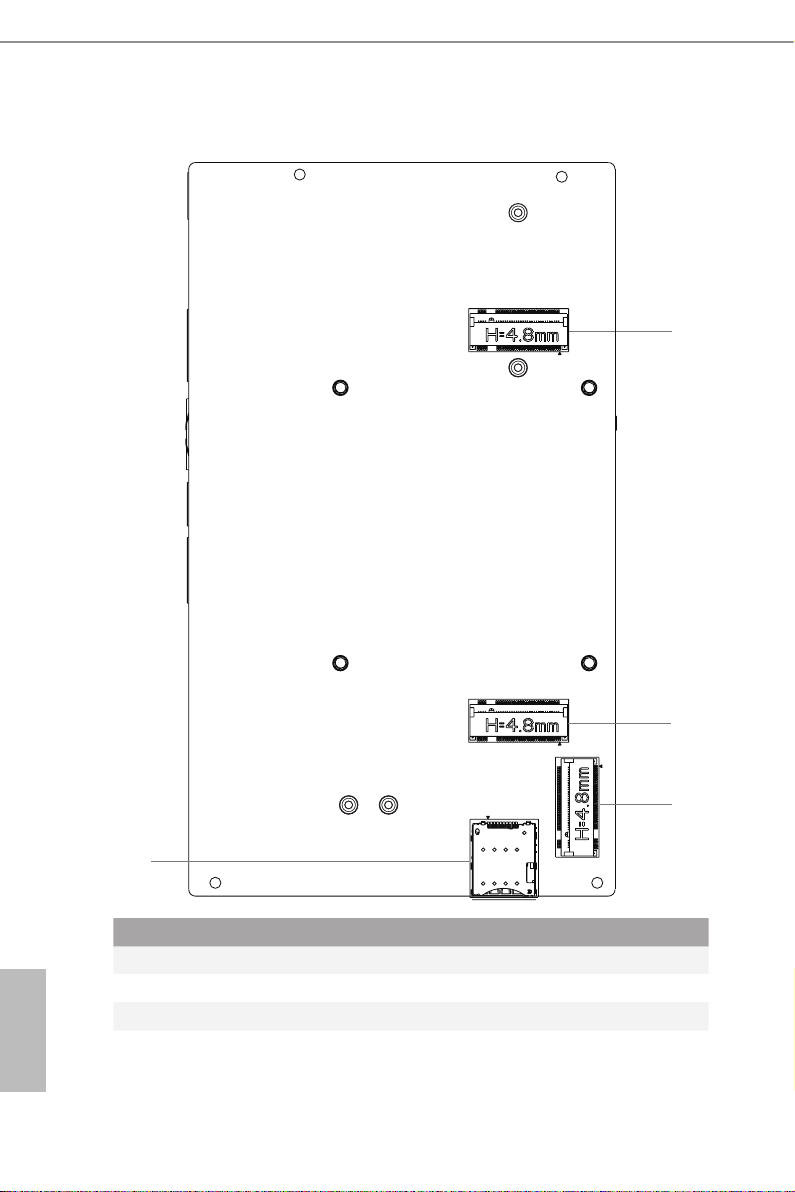

Back Side

M2_M1

M2_E1

SIM1

M2_B1

NUT_B2 NUT_B1

NUT6

NUT1

No. Description

16 M.2 Socket (Key E, Type 2230)

17 M.2 Socket (Key M, Type 2280)

18 M.2 Socket (Key B, Type 3042 / 3052)

19 micro SIM Socket (SIM1)
