ASROCK H110M-GL/D3 Manuale utente

Version 1.1

Published September 2015

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

English

H110M-GL/D3

Intel

H110

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

CMOS

Battery

Super

I/O

ATXPWR1

Top:

RJ-45

USB 3.0

T: USB0

B: USB1

CLRCMOS1

HDLED RESET

PLED PWRBTN

PANEL1

USB0_1

COM2

HD_AUDIO1

H110M-GL/D3

CHA_FAN1

RoHS

CPU_FAN1

BIOS

ROM

Audio

CODEC

PCIE1

PCI Express 3.0

TPMS1

USB3_2_3

PCIE3

USB 2.0

T: USB2

B: USB3

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

ATX12V1

USB 2. 0

T: USB0

B: USB 1

PS2

Keyboard

/Mou se

SPK_CI1

PCIE2

Front USB 3.0

SATA3 _0 SATA 3_2

SATA3 _1 SATA 3_3

PARALLEL PORT

COM1 VGA1

USB 4_ 5

CHA_FAN2

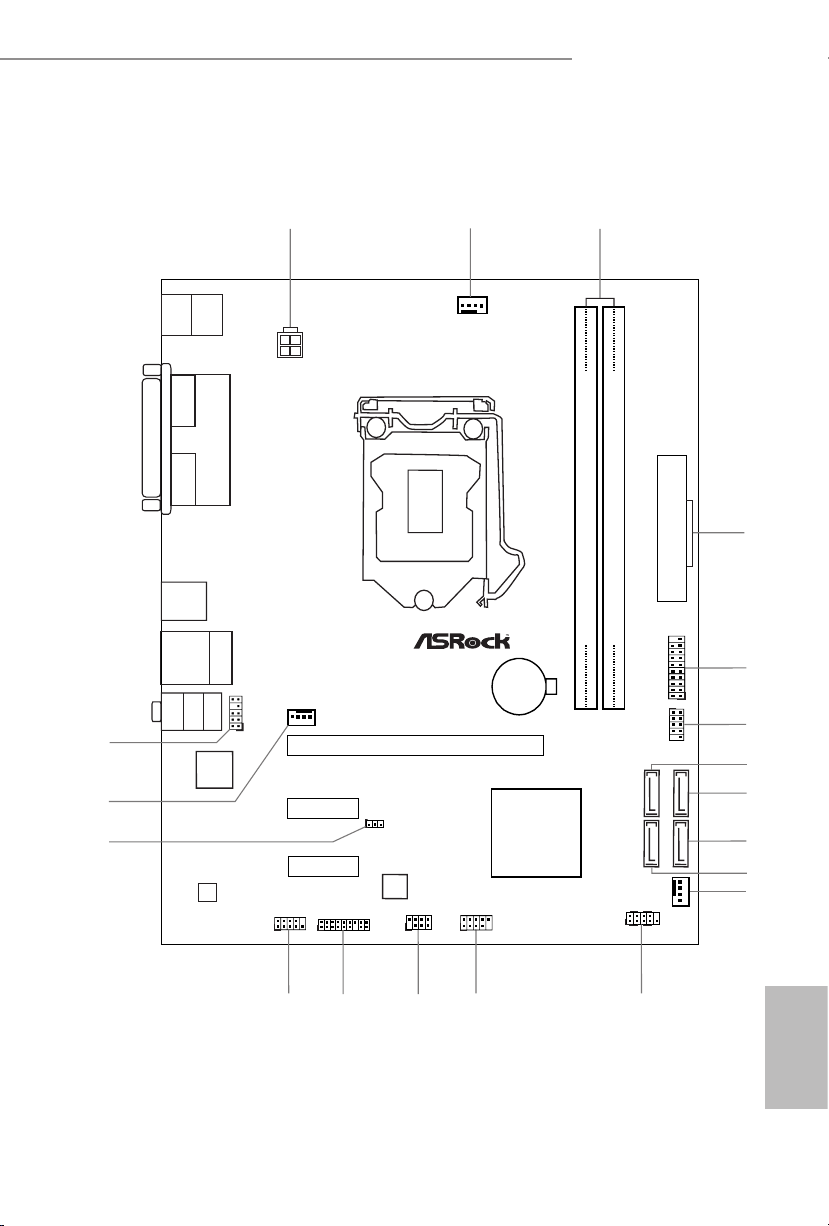

Motherboard Layout

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 240-pin DDR3/DDR3L DIMM Slots (DDR3_A1, DDR3_B1)

4 ATX Power Connector (ATXPWR1)

5 USB 3.0 Header (USB3_2_3)

6 USB 2.0 Header (USB4_5)

7 SATA3 Connector (SATA3_2)

8 SATA3 Connector (SATA3_3)

9 SATA3 Connector (SATA3_1)

10 SATA3 Connector (SATA3_0)

11 Chassis Fan Connector (CHA_FAN2)

12 System Panel Header (PANEL1)

13 USB 2.0 Header (USB0_1)

14 Chassis Intrusion and Speaker Header (SPK_CI1)

15 TPM Header (TPMS1)

16 COM Port Header (COM2)

17 Clear CMOS Jumper (CLRMOS1)

18 Chassis Fan Connector (CHA_FAN1)

19 Front Panel Audio Header (HD_AUDIO1)

English

H110M-GL/D3

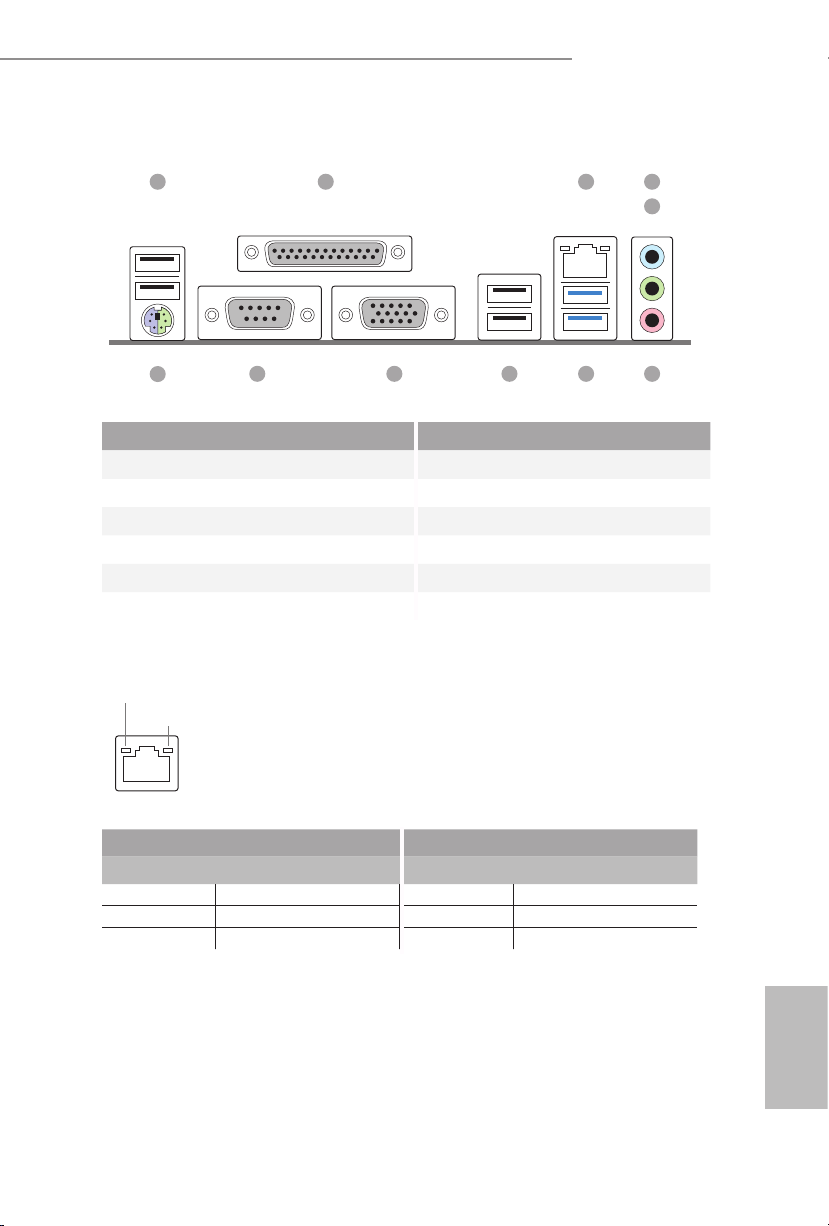

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 7 USB 3.0 Ports (USB3_01)

2Parallel Port 8 USB 2.0 Ports (USB23)

3 LAN RJ-45 Port* 9 D-Sub Port

4 Line In (Light Blue)** 10 COM Port

5 Front Speaker (Lime)** 11 PS/2 Mouse/Keyboard Port

6 Microphone (Pink)**

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

English

** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-

channel audio feature through the audio driver.

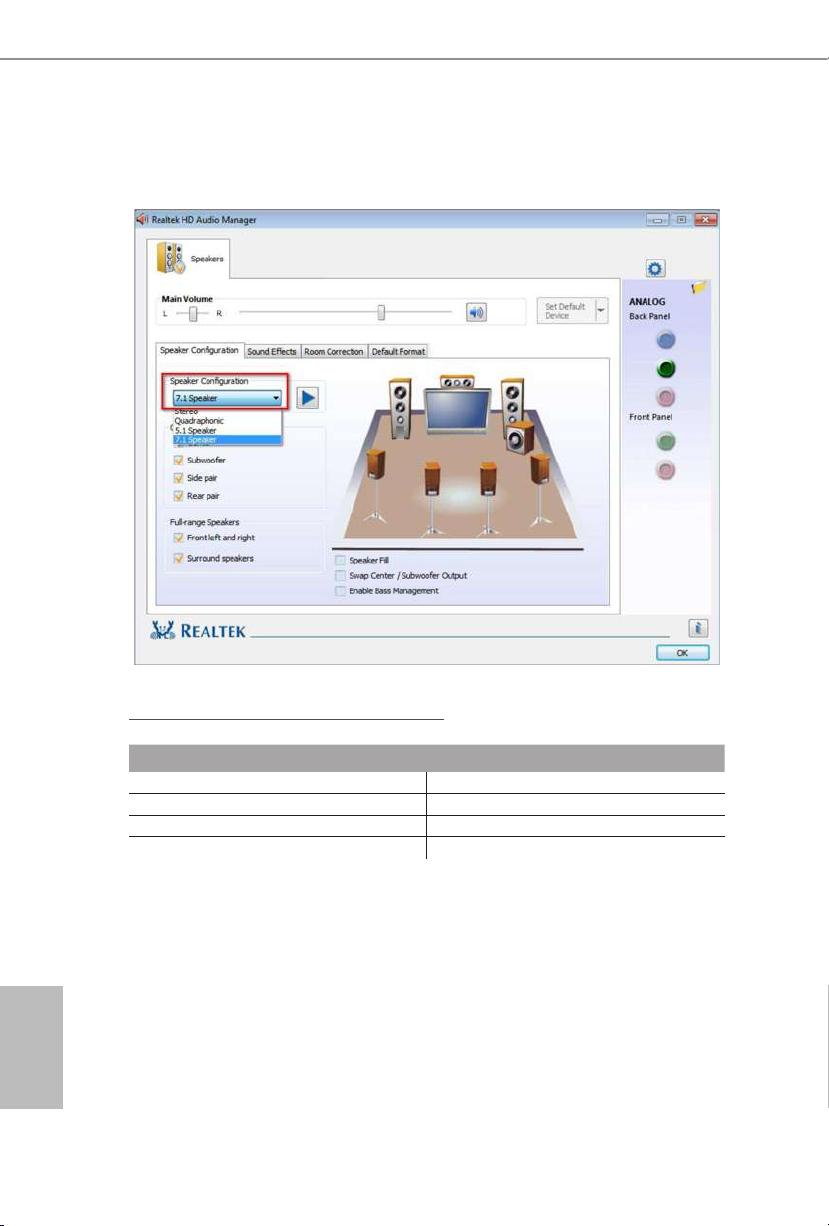

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.

Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

English

H110M-GL/D3

1 Introduction

ank you for purchasing ASRock H110M-GL/D3 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

•ASRock H110M-GL/D3 Motherboard (Micro ATX Form Factor)

•ASRock H110M-GL/D3 Quick Installation Guide

•ASRock H110M-GL/D3 Support CD

•2 x Serial ATA (SATA) Data Cables (Optional)

•1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

1.2 Specications

Platform •Micro ATX Form Factor

•Solid Capacitor design

CPU •Supports 6th Generation Intel® CoreTM i7/i5/i3/Pentium®/

Celeron® Processors (Socket 1151)

•Supports Intel® Turbo Boost 2.0 Technology

Chipset •Intel® H110

Memory •Dual Channel DDR3/DDR3L Memory Technology

•2 x DDR3/DDR3L DIMM Slots

•Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-

buered memory

•Max. capacity of system memory: 32GB

•Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

Expansion

Slot

•1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

•2 x PCI Express 2.0 x1 Slots

Graphics * Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

•Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 510/530

•Pixel Shader 5.0, DirectX 12

•Max. shared memory 1792MB

•Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

•Supports Accelerated Media Codecs: HEVC, VP8, VP9

Audio •7.1 CH HD Audio (Realtek ALC887 Audio Codec)

* To congure 7.1 CH HD Audio, it is required to use an HD

front panel audio module and enable the multi-channel audio

feature through the audio driver.

•Supports Surge Protection (ASRock Full Spike Protection)

•ELNA Audio Caps

English

H110M-GL/D3

LAN •PCIE x1 Gigabit LAN 10/100/1000 Mb/s

•Realtek RTL8111E

•Supports Wake-On-LAN

•Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

•Supports LAN Cable Detection

•Supports Energy Ecient Ethernet 802.3az

•Supports PXE

Rear Panel

I/O

•1 x PS/2 Mouse/Keyboard Port

•1 x Parallel Port (ECP/EPP Support)

•1 x Serial Port: COM1

•1 x D-Sub Port

•4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

•2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

•1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

•HD Audio Jacks: Line in / Front Speaker / Microphone

Storage 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot

Plug

Connector •1 x COM Port Header

•1 x TPM Header

•1 x Chassis Intrusion and Speaker Header

•1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)

•2 x Chassis Fan Connector (4-pin) (Smart Fan Speed Con-

trol)

•1 x 24 pin ATX Power Connector

•1 x 4 pin 12V Power Connector

•1 x Front Panel Audio Connector

•2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

ESD Protection (ASRock Full Spike Protection))

•1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports

ESD Protection (ASRock Full Spike Protection))

*USB3_2_3 is shared with USB4_5.

English

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using third-party

overclocking tools. Overclocking may aect your system’s stability, or even cause damage to

the components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

BIOS

Feature

•AMI UEFI Legal BIOS with multilingual GUI support

•ACPI 1.1 Compliant wake up events

•SMBIOS 2.3.1 Support

•CPU, GT_CPU, DRAM, PCH 1.0V, VCCSA Voltage Multi-

adjustment

Hardware

Monitor

•CPU/Chassis temperature sensing

•CPU/Chassis Fan Tachometer

•CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

•CPU/Chassis Fan multi-speed control

•CASE OPEN detection

•Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS •Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-

bit

* To install Windows® 7 OS, a modied installation disk with

xHCI drivers packed into the ISO le is required. Please refer to

page 51 for more detailed instructions.

* For the updated Windows® 10 driver, please visit ASRock's

website for details: http://www.asrock.com

Certica-

tions

•FCC, CE, WHQL

•ErP/EuP ready (ErP/EuP ready power supply is required)

English

H110M-GL/D3

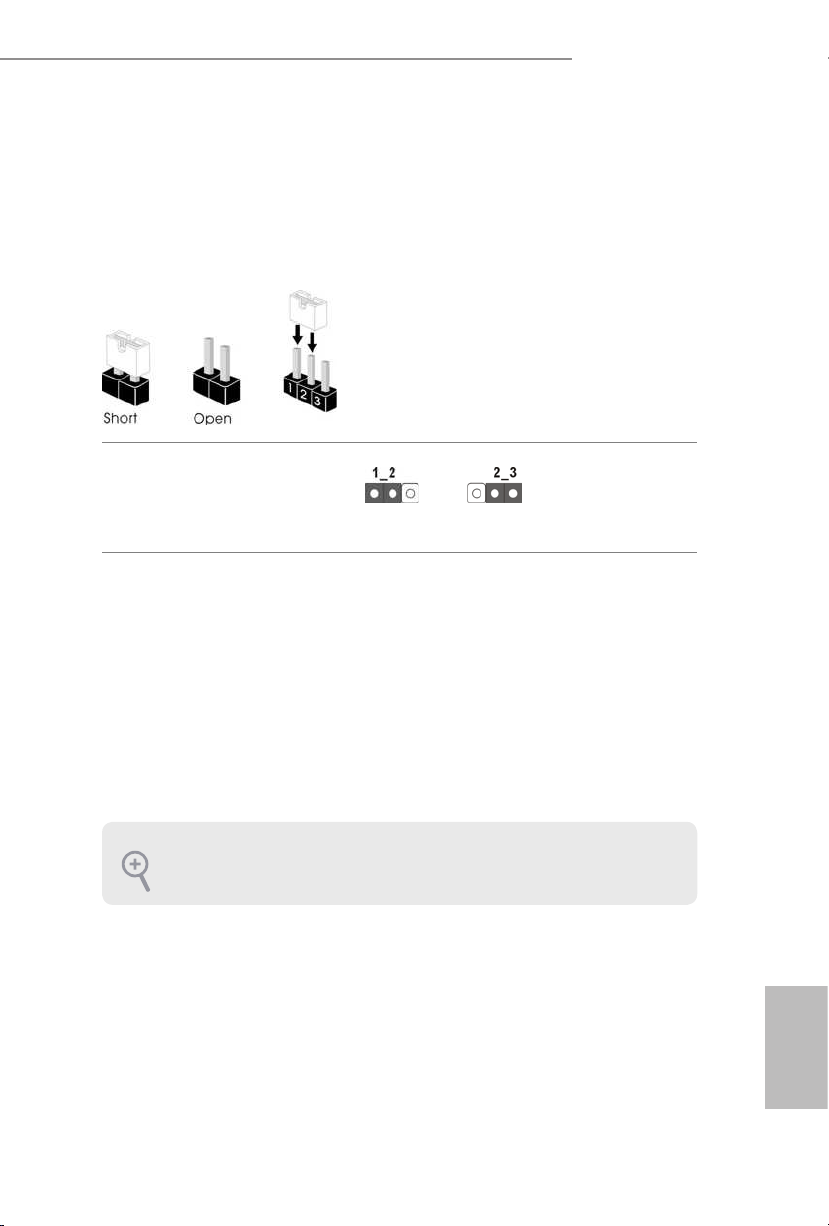

1.3 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper

is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”

when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper

(CLRMOS1)

(see p.1, No. 17)

CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system

parameters to default setup, please turn o the computer and unplug the power

cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to

short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the

CMOS right aer you update the BIOS. If you need to clear the CMOS when you

just nish updating the BIOS, you must boot up the system rst, and then shut it

down before you do the clear-CMOS action. Please be noted that the password,

date, time, and user default prole will be cleared only if the CMOS battery is

removed.

Clear CMOSDefault

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear

Status” to clear the record of previous chassis intrusion status.

Indice

Lingue:

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK 770iCafe Manuale utente

ASROCK

ASROCK P43R1600TWINS Manuale utente

ASROCK

ASROCK IMB-1224P Istruzioni operative e di manutenzione

ASROCK

ASROCK M3A785GM-LE - V1.0 Manuale utente

ASROCK

ASROCK IMB-110 Manuale utente

ASROCK

ASROCK IMB-V1000 Manuale utente

ASROCK

ASROCK AD510PV Manuale utente

ASROCK

ASROCK AB350 Pro4 Manuale utente

ASROCK

ASROCK B85M BTC Manuale utente

ASROCK

ASROCK A520M-HDVP Manuale utente

ASROCK

ASROCK P43DE3L Manuale utente

ASROCK

ASROCK H61DEL Manuale utente

ASROCK

ASROCK ROMED8QM-2T Manuale utente

ASROCK

ASROCK H610M-ITX/eDP Manuale utente

ASROCK

ASROCK K8NF4G-VSTA Manuale utente

ASROCK

ASROCK ALIVEN570SLI-ESATA2 Manuale utente

ASROCK

ASROCK B450M-HDV R4.0 Manuale utente

ASROCK

ASROCK H110M-DGS/D3 Manuale utente

ASROCK

ASROCK WOLFDALE1333-GLAN-M - V1.0 Manuale utente

ASROCK

ASROCK B85M Pro4 Manuale utente

ASROCK

ASROCK 785GM-S3 Manuale utente

ASROCK

ASROCK FM2A55M-DGS R2.0 Manuale utente

ASROCK

ASROCK B560M-HDV R2.0 Manuale utente

ASROCK

ASROCK 890GM Pro3 R2.0 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
