ASROCK K7S8X - VERSION 3.1 Manuale utente

K7S8X

K7S8XE

User Manual

Version 3.1

Published July 2003

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

ASRock Website: http://www.asrock.com

Contents

1 Introduction.................................................... 4

1.1 Package Contents ........................................................... 4

1.2 Specifications ................................................................. 5

1.3 Motherboard Layout (K7S8X) ........................................ 7

1.4 Motherboard Layout (K7S8XE) ...................................... 8

1.5 ASRock I/OTM (K7S8X / K7S8XE) ................................... 9

2 Installation ...................................................... 10

2.1 Screw Holes ................................................................... 10

2.2 Pre-installation Precautions ............................................ 10

2.3 CPU Installation ............................................................... 11

2.4 Installation of Heatsink and CPU fan .............................. 11

2.5 Installation of Memory Modules (DIMM) .......................... 12

2.6 Expansion Slots .............................................................. 12

2.7 Jumpers Setup ................................................................ 13

2.8 Connectors ..................................................................... 15

3 BIOS Setup ...................................................... 17

3.1 BIOS Setup Utility ............................................................ 17

3.1.1 BIOS Menu Bar ..................................................... 17

3.1.2 Legend Bar ........................................................... 17

3.2 Main Menu ....................................................................... 18

3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 20

4 Software Support ........................................... 21

4.1 Installing Operating System ............................................ 21

4.2 Support CD Information ................................................... 21

4.2.1 Running Support CD ............................................. 21

4.2.2 Drivers Menu ........................................................ 21

4.2.3 Utilities Menu ......................................................... 21

4.2.4 ASRock “PC-DIY Live Demo” Program ................. 21

4.2.5 Contact Information............................................... 21

Appendix ........................................................... 22

1. Advanced Menu ............................................................. 22

2. Security Menu ................................................................. 26

3. Power Menu ................................................................... 27

4. Boot Menu ....................................................................... 28

5. Exit Menu ......................................................................... 29

Chapter 1 Introduction

Thank you for purchasing ASRock K7S8X / K7S8XE motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide for new DIY system builders. Chapter 3 and 4 contain basic

BIOS setup and support CD information. For advanced users’ reference, the Appen-

dix appearing on page 22 offers more advanced BIOS setup information.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice. You may find the latest memory and CPU

support lists on ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock K7S8X or K7S8XE motherboard

(ATX form factor: 12.0" x 7.5", 30.5 x 19.0 cm)

ASRock K7S8X / K7S8XE Quick Installation Guide

ASRock AMD-SiS Series Support CD

1 cable for IDE devices (1 x ATA 66/100/133)

1 cable for floppy drive (1 x ribbon cable)

1 ASRock I/O shield

1.2 Specifications

Platform: ATX form factor (12.0" x 7.5", 30.5 x 19.0 cm)

CPU: Supports Socket A (462 pins) for

AMDAthlonTM / AthlonTM XP/ DuronTM processor

Chipsets: North Bridge (K7S8X):

SiS 746FX, FSB @ 333MHz, AGP 8X / 4X (see CAUTION 1);

North Bridge (K7S8XE):

SiS 748, FSB @ 400MHz, AGP 8X / 4X (see CAUTION 1);

South Bridge: SiS 963L, supports USB 2.0, ATA 133

Memory: 3 DDR DIMM slots: DDR1, DDR2, and DDR3

PC1600 (DDR200) / PC2100 (DDR266)

for 3 DDR DIMM slots, Max. 3GB;

PC2700 (DDR333) for 2 DDR DIMM slots, Max. 2GB;

PC3200 (DDR400) for 1 DDR DIMM slot, Max. 1GB

IDE: IDE1: ATA 133 / Ultra DMA Mode 6;

IDE2: ATA 133 / Ultra DMA Mode 6;

Can connect up to 4 IDE devices

Floppy Port: Supports 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing;

Chassis temperature sensing;

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 2);

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 5 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X / 4X AGP card (see CAUTION 3)

USB 2.0: 4 default USB 2.0 ports and 1 extra set of header for two

additional USB 2.0 ports upgrade (see CAUTION 4)

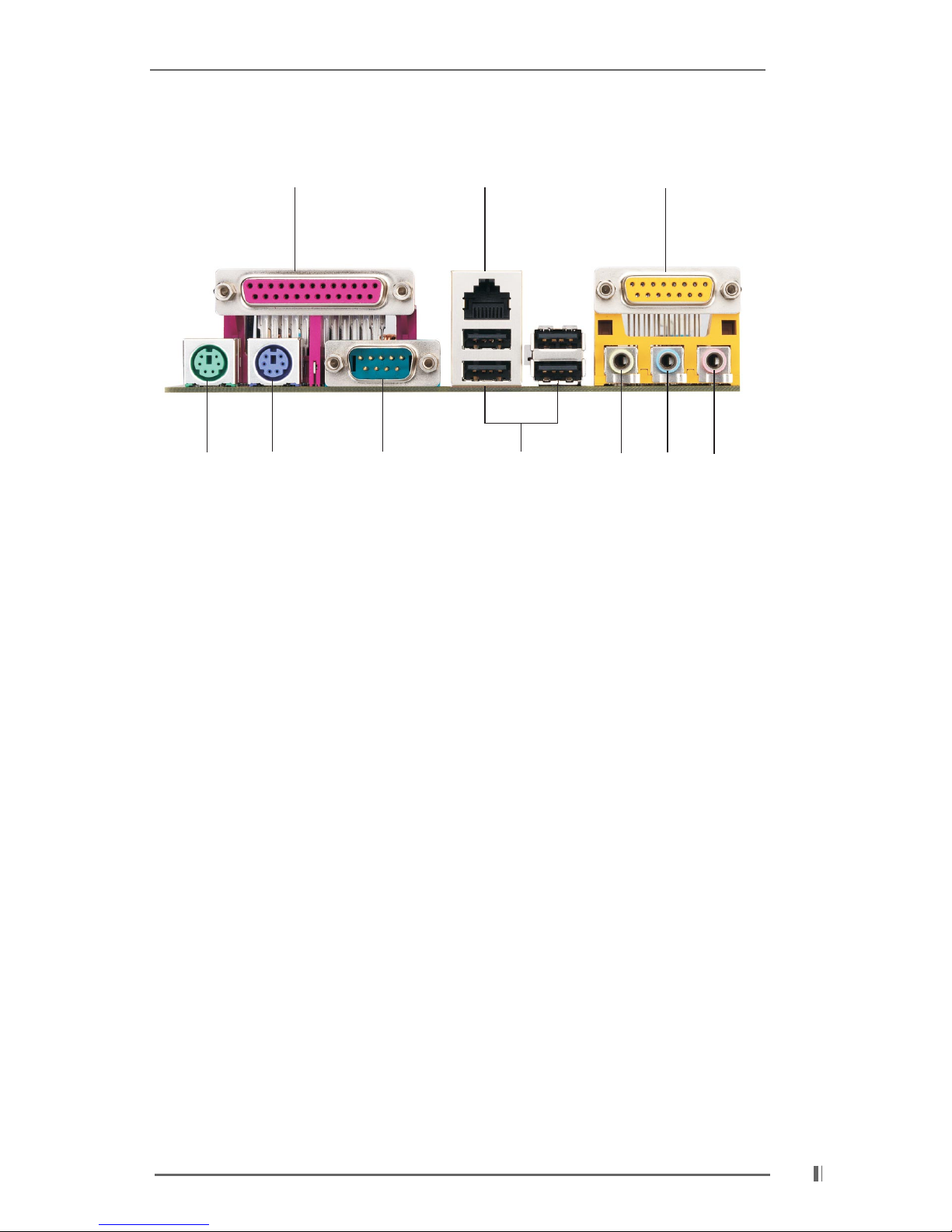

ASRock I/OTM:PS/2: 1 keyboard port / 1 mouse port;

1 RJ 45 port; 4 rear default USB 2.0 ports;

1 serial port: COM 1; 1 parallel port: ECP/EPP support;

Audio Jack: Line Out/ Line In/ Microphone + Game port

BIOS: AMI legal BIOS; Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 5)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. According to SiS official document, SiS 746FX and SiS 748

chipsets have limitation as below:

SiS 746FX:

CPU at FSB 200MHz mode, it will not support DDR400;

CPU at FSB 333MHz mode, it will not support DDR200.

SiS 748:

CPU at FSB 200MHz mode, it will not support DDR400;

CPU at FSB 333MHz mode, it will not support DDR200;

CPU at FSB 400MHz mode, it will not support DDR200 / DDR266

2. While CPU overheat is detected, the system will automati-

cally shutdown. Please check if the CPU fan on the

motherboard functions properly before you resume the

system. To improve heat dissipation, remember to spray

thermal grease between the CPU and the heatsink when you

install the PC system.

3. Do NOT insert a 3.3V AGP card into the AGP slot of K7S8X or

K7S8XE motherboard! It may cause permanent damage!

4. Power Management for USB 2.0 works fine under Microsoft®

Windows®XP. It may not work properly under Microsoft®

Windows®98/ME/2000. Please refer to Microsoft®official

document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

5. Although K7S8X / K7S8XE offers stepless control, it is not

recommended to perform over clocking. When the CPU

frequency of K7S8X / K7S8XE is set to perform over clocking,

other clocks, such as PCI clock, AGP clock, and Memory

clock will also be overclocked proportionally. Frequencies

other than the recommended CPU bus frequencies may

cause the instability of the system or damage the CPU.

PCI 2

PCI 3

PCI 4

PCI 5

PCI 1

2MB

BIOS

USB45

IR1

K7S8X

SPEAKER1

FLOPPY1

CHA_FAN1

ATXPWR1

IDE2 IDE1

ATA133

USB 2.05.1CH

REV. 3.01

Super

I/O

AUDIO

CODEC

LAN

PHY

AGP1

AGP 8X

DDR 400

CPU_FAN1

AUDIO1

Mic

GAME AUDIO1

USB 2.0

Ports

LAN

Mic in

Line out

GAME AUDIO1

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

COM1

Line

Line in

USB 2.0

Ports

FSB_SEL0

FSB_SEL1

SiS

963L

SiS

746FX

Chipset

PS2_USB_PWR1

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

DDR3 (64/72 bit, 184-pin module)

CLRCMOS2

CMOS

Battery

HDLED RST

PLED PWRBTN

PANEL 1

JR1 JL1

19.0cm (7.5 in)

30.5cm (12.0 in)

12 4 56

1617

FID0

FID1

FID2

FID3

FID4

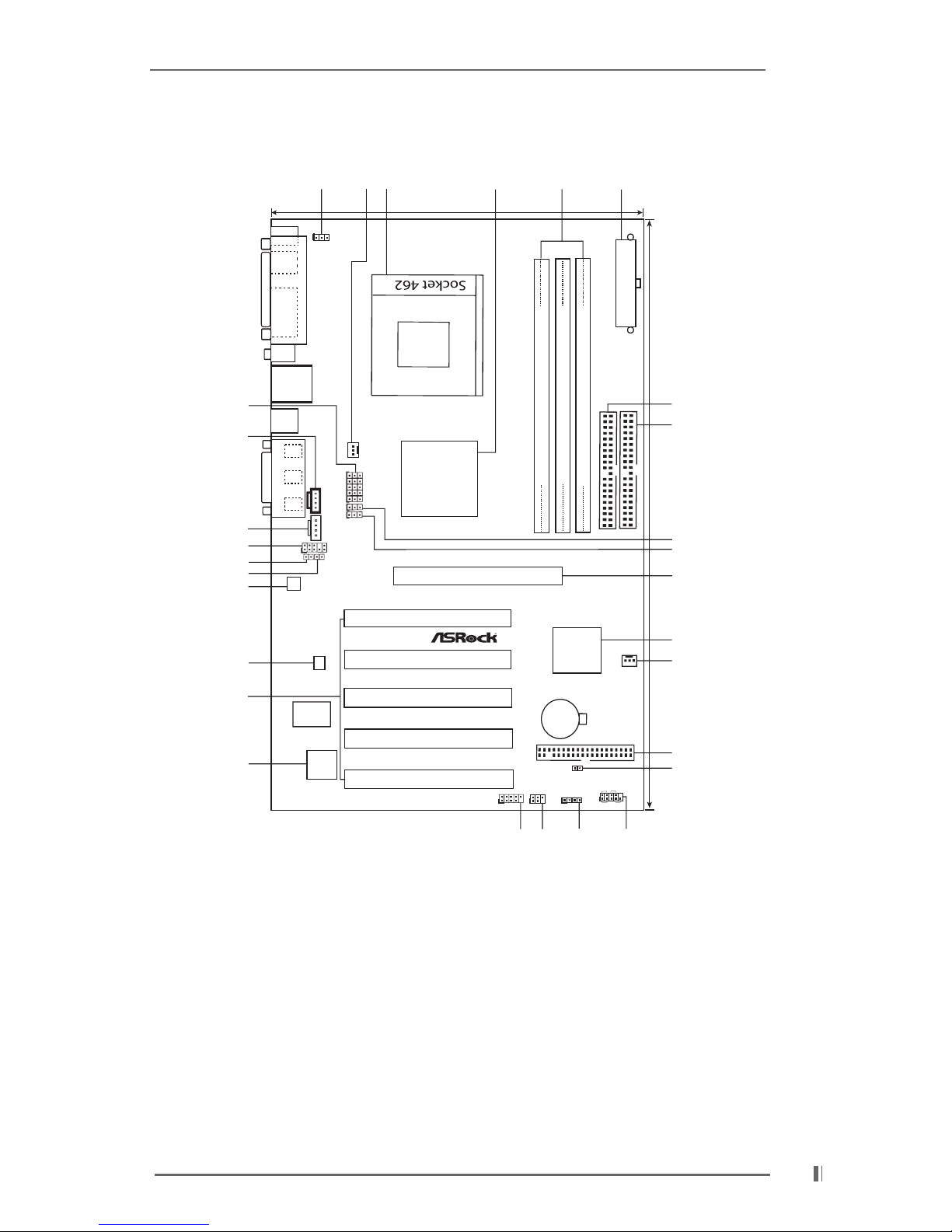

1.3 Motherboard Layout (K7S8X)

1 PS2_USB_PWR1 jumper 2 CPU fan connector (CPU_FAN1)

3 CPU socket 4 North Bridge controller

5 184-pin DDR DIMM slots (DDR 1- 3) 6 ATX power connector (ATXPWR1)

7 Secondary IDE connector (IDE2, Black) 8 Primary IDE connector (IDE1, Blue)

9 FSB select jumpers (FSB_SEL0) 10 FSB select jumpers (FSB_SEL1)

11 AGP slot (AGP1) 12 South Bridge controller

13 Chassis fan connector (CHA_FAN1) 14 Floppy connector (FLOPPY1)

15 Clear CMOS (CLRCMOS2, 2-pin jumper) 16 System panel connector (PANEL1)

17 External speaker connector (SPEAKER 1) 18 Infrared module connector (IR1)

19 USB 2.0 header (USB45, Blue) 20 Flash Memory

21 PCI slots (PCI 1- 5) 22 LAN PHY

23 AUDIO CODEC 24 JL1 jumper

25 JR1 jumper 26 Front panel audio connector (AUDIO1)

27 Internal audio connector: AUX1 (White) 28 Internal audio connector: CD1 (Black)

29 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

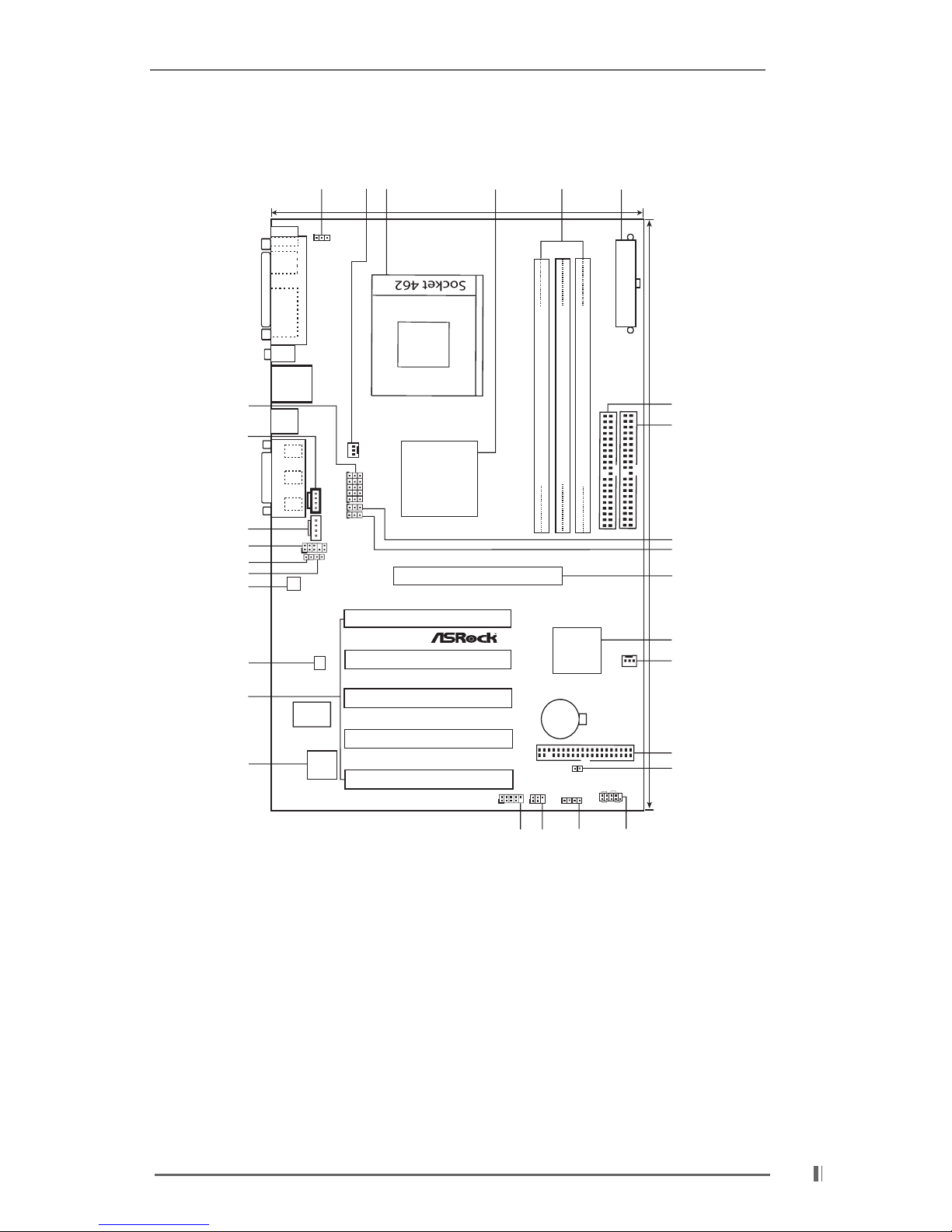

1.4 Motherboard Layout (K7S8XE)

1 PS2_USB_PWR1 jumper 2 CPU fan connector (CPU_FAN1)

3 CPU socket 4 North Bridge controller

5 184-pin DDR DIMM slots (DDR 1- 3) 6 ATX power connector (ATXPWR1)

7 Secondary IDE connector (IDE2, Black) 8 Primary IDE connector (IDE1, Blue)

9 FSB select jumpers (FSB_SEL0) 10 FSB select jumpers (FSB_SEL1)

11 AGP slot (AGP1) 12 South Bridge controller

13 Chassis fan connector (CHA_FAN1) 14 Floppy connector (FLOPPY1)

15 Clear CMOS (CLRCMOS2, 2-pin jumper) 16 System panel connector (PANEL1)

17 External speaker connector (SPEAKER 1) 18 Infrared module connector (IR1)

19 USB 2.0 header (USB45, Blue) 20 Flash Memory

21 PCI slots (PCI 1- 5) 22 LAN PHY

23 AUDIO CODEC 24 JL1 jumper

25 JR1 jumper 26 Front panel audio connector (AUDIO1)

27 Internal audio connector: AUX1 (White) 28 Internal audio connector: CD1 (Black)

29 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

PCI 2

PCI 3

PCI 4

PCI 5

PCI 1

2MB

BIOS

USB45

IR1

K7S8XE

SPEAKER1

FLOPPY1

CHA_FAN1

ATXPWR1

IDE2 IDE1

ATA133

USB 2.05.1CH

REV. 3.01

Super

I/O

AUDIO

CODEC

LAN

PHY

AGP1

AGP 8X

DDR 400

CPU_FAN1

AUDIO1

Mic

GAME AUDIO1

USB 2.0

Ports

LAN

Mic in

Line out

GAME AUDIO1

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

COM1

Line

Line in

USB 2.0

Ports

FSB_SEL0

FSB_SEL1

SiS

963L

SiS

748

Chipset

PS2_USB_PWR1

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

DDR3 (64/72 bit, 184-pin module)

CLRCMOS2

CMOS

Battery

HDLED RST

PLED PWRBTN

PANEL 1

JR1 JL1

19.0cm (7.5 in)

30.5cm (12.0 in)

12 4 56

1617

FID0

FID1

FID2

FID3

FID4

1.5 ASRock I/OTM (K7S8X / K7S8XE)

1 Parallel port 2 RJ-45 port

3 Game port 4 Microphone (Pink)

5 Line In (Light Blue) 6 Line Out (Lime)

7 USB 2.0 ports 8 Serial port (COM1)

9 PS/2 keyboard port (Purple) 10 PS/2 mouse port (Green)

4567

910

Chapter 2 Installation

K7S8X / K7S8XE is an ATX form factor (12.0" x 7.5", 30.5 x 19.0 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Make sure to unplug the power cord before installing or

removing the motherboard. Failure to do so may cause physical

injuries to you and damages to motherboard components.

2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws! Doing so may damage the

motherboard.

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power

is switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK AB350M PRO4/DASH Manuale utente

ASROCK

ASROCK B450D4U-V1L Manuale utente

ASROCK

ASROCK E350M1 - Manuale utente

ASROCK

ASROCK 2Core1333DVI-2.66G Manuale utente

ASROCK

ASROCK A75 Pro4-M Manuale utente

ASROCK

ASROCK P67 TRANSFORMER - Manuale utente

ASROCK

ASROCK Z97 Pro3 Manuale utente

ASROCK

ASROCK H61DE-S3 Manuale utente

ASROCK

ASROCK IMB-R1000 Manuale di servizio

ASROCK

ASROCK P55M PRO - Manuale utente

ASROCK

ASROCK CONROE945PL-GLAN Manuale utente

ASROCK

ASROCK Z270M PRO4 Manuale utente

ASROCK

ASROCK H61M-DPS Manuale utente

ASROCK

ASROCK H91M-XT PLUS Manuale utente

ASROCK

ASROCK IMB-1216 Manuale utente

ASROCK

ASROCK Z97 Extreme4 Manuale utente

ASROCK

ASROCK QC5000-ITX/WiFi Manuale utente

ASROCK

ASROCK IMB-151N Manuale utente

ASROCK

ASROCK 939NF4G-VSTA Manuale utente

ASROCK

ASROCK IMB-195-D Manuale utente

ASROCK

ASROCK Fatality H97 Killer series Manuale utente

ASROCK

ASROCK 4CORE1600-DVI - V1.0 Manuale utente

ASROCK

ASROCK AM2V890-VSTA Manuale utente

ASROCK

ASROCK CONROEXFIRE-ESATA2 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
