2ASRock K7VM3 Motherboard

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

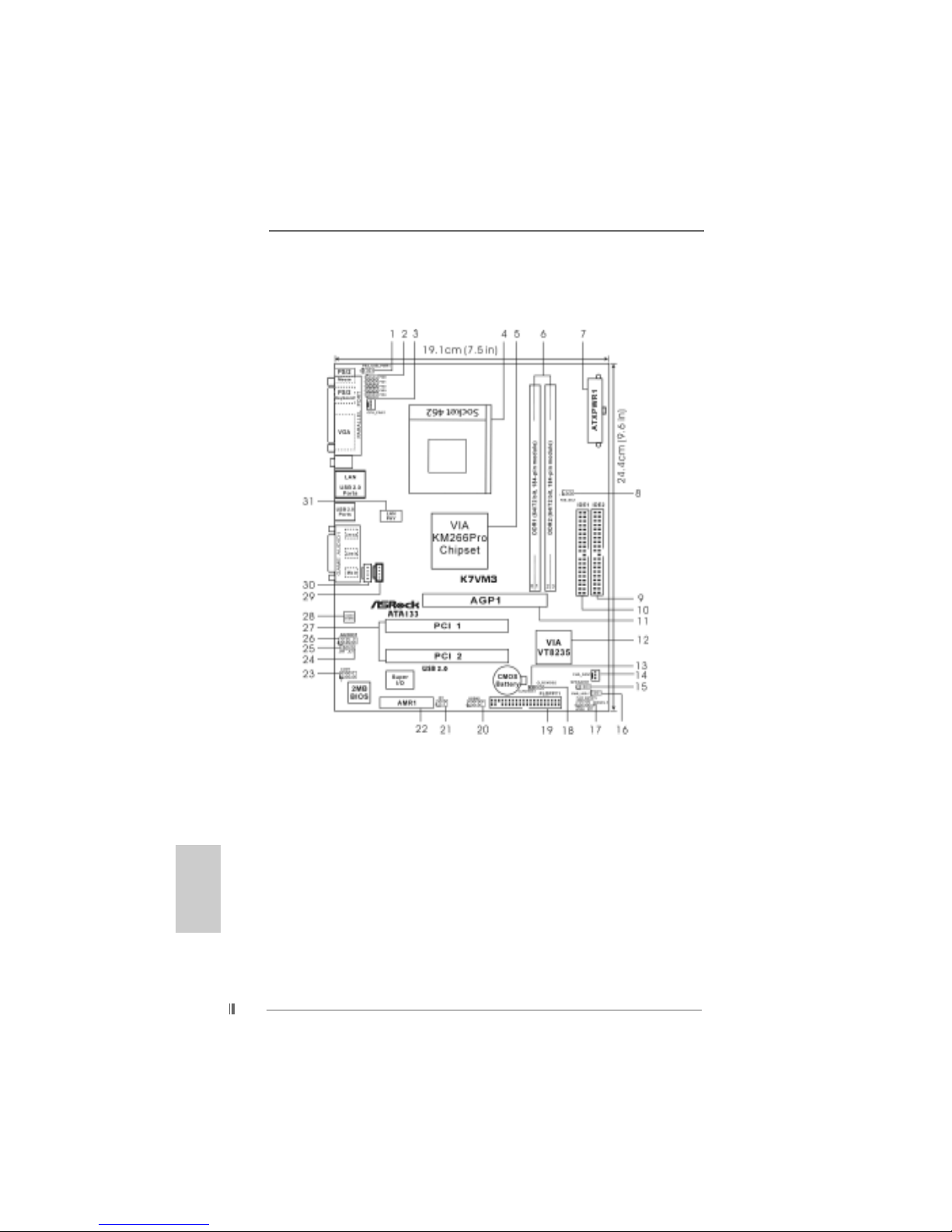

1 PS2_USB_PWR1 jumper 2 FID Jumpers(FID0,FID1,FID2,FID3,FID4)

3 CPU fan connector (CPU_FAN1) 4 CPU socket

5 North Bridge controller 6 184-pin DDR DIMM slots (DDR 1- 2)

7 ATX power connector (ATXPWR1) 8 FSB select jumpers (FSB_SEL1)

9 Secondary IDE connector (IDE2, Black) 10 Primary IDE connector (IDE1,Blue)

11 AGP slot (AGP1) 12 South Bridge controller

13 Clear CMOS (CLRCMOS1, solder points) 14 Chassis fan connector (CHA_FAN1)

15 External speaker connector (SPEAKER 1) 16 Power LED Connector (PWR_LED1)

17 System panel connector (PANEL1) 18 Clear CMOS (CLRCMOS2, 2-pin jumper)

19 Floppy connector (FLOPPY1) 20 USB 2.0 header (USB45, Blue)

21 Infrared module connector (IR1) 22 AMR slot (AMR1)

23 Serial port connector (COM1) 24 JL1 jumper

25 JR1 jumper 26 Front panel audio connector (AUDIO1)

27 PCI slots (PCI 1- 2) 28 AUDIO CODEC

29 Internal audio connector: CD1 (Black) 30 Internal audio connector: AUX1 (White)

31 LAN PHY

EnglishEnglish

English

ASRock K7VM3 Motherboard

ASRock I/OASRock I/O

ASRock I/OTMTM

TMTM

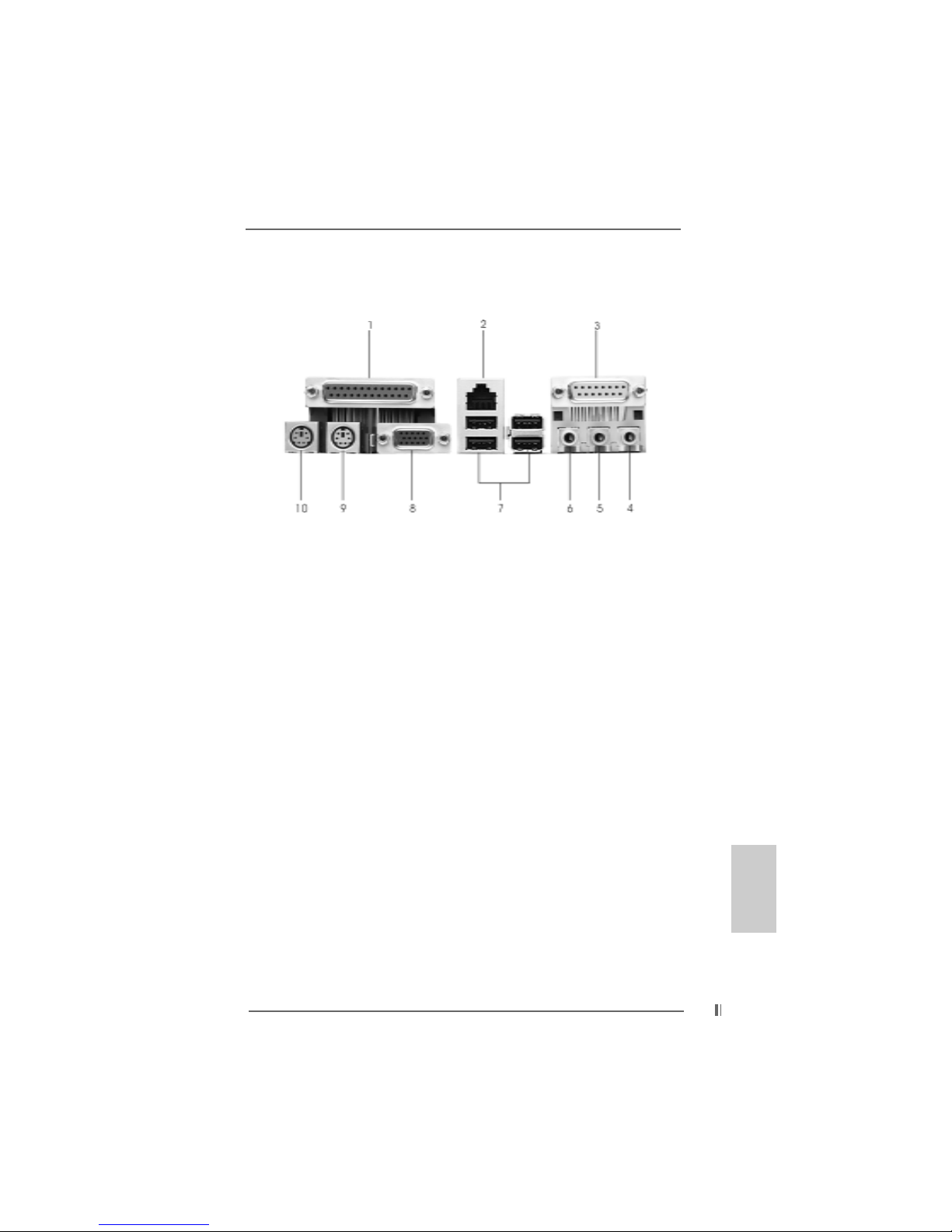

1 Parallel port 2 RJ-45 port

3 Game port 4 Microphone (Pink)

5 Line In (Light Blue) 6 Line Out (Lime)

7 USB 2.0 ports 8 VGA port

9 PS/2 keyboard port (Purple) 10 PS/2 mouse port (Green)

EnglishEnglish

English

4ASRock K7VM3 Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock K7VM3 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide for new DIY system builders. More detailed information of the

motherboard can be found in the user manual enclosed in the product CD-ROM.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice.

You may find the latest memory and CPU support lists on ASRock

website as well.

ASRock website http://www.asrock.com

SpecificationsSpecifications

Specifications

Platform: Micro ATX form factor (9.6" x 7.5", 24.4 x 19.1 cm)

CPU: Supports Socket A (462 pins) for

AMDAthlonTM / AthlonTM XP/ DuronTM processor

Chipsets: North Bridge: VIA KM266Pro, FSB@200/266/333 MHz

South Bridge: VIAVT8235, supports USB 2.0, ATA 133

Memory: 2DDRDIMM slots:DDR1andDDR2

PC2100 (DDR266) / PC2700 (DDR333), Max. 2GB

IDE: IDE1:ATA133 / UltraDMAMode 6;

IDE2:ATA133 / UltraDMAMode 6;

Can connect up to 4 IDE devices

Floppy Port: Supports 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing;

Chassis temperature sensing;

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 1);

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 2 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 4X AGP card (see CAUTION 2)

AMR slot: 1 slot, supports AMR modem card

EnglishEnglish

English

ASRock K7VM3 Motherboard

USB 2.0: 4 default USB 2.0 ports and 1 extra set of header for two

additional USB 2.0 ports upgrade (see CAUTION 3)

ASRock I/OTM:PS/2: 1 keyboard port / 1 mouse port;

1 RJ 45 port; 4 rear default USB 2.0 ports;

1 VGA port; 1 parallel port: ECP/EPP support;

Audio Jack: Line Out / Line In / Microphone + Game port

BIOS: AMI legal BIOS; Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. While CPU overheat is detected, the system will automatically shutdown.

Please check if the CPU fan on the motherboard functions properly before

you resume the system. To improve heat dissipation, remember to spray

thermal grease between the CPU and the heatsink when you install the PC

system.

2. Do NOT use a 3.3V AGP card on K7VM3’s AGP slot!

It may cause permanent damage!

3. Power Management for USB 2.0 works fine under Microsoft®Windows®XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows®98/

ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

4. Although K7VM3 offers stepless control, it is not recommended to perform

over clocking. When the CPU frequency of K7VM3 is set to perform over

clocking, other clocks, such as PCI clock, AGP clock, and Memory clock

will also be overclocked proportionally. Frequencies other than the

recommended CPU bus frequencies may cause the instability of the

system or damage the CPU.

EnglishEnglish

English

6ASRock K7VM3 Motherboard

2. Installation2. Installation

2. Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

Failure to do so may cause severe damage to the motherboard, peripherals,

and/or components.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

2.1 CPU Installation2.1 CPU Installation

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90° angle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

Step 5. Install CPU fan and heatsink. For proper installation, please kindly refer to

the instruction manuals of your CPU fan and heatsink vendors.

EnglishEnglish

English

ASRock K7VM3 Motherboard

2.2 Installation of Memory Modules (DIMM)2.2 Installation of Memory Modules (DIMM)

2.2 Installation of Memory Modules (DIMM)

This motherboard provides two 184-pinDDR (Double Data Rate) DIMM slots.

Installing a DIMMInstalling a DIMM

Installing a DIMM

Step 1. Unlock aDIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on theDIMM matches the

break on the slot.

Step 3. Firmly insert theDIMM into the slot until the retaining clip snap back in

place and the DIMM is properly seated.

2.3 Expansion Slots (PCI, AMR, and AGP Slots)2.3 Expansion Slots (PCI, AMR, and AGP Slots)

2.3 Expansion Slots (PCI, AMR, and AGP Slots)

There are 2 PCI slots, 1 AMR slot, and 1 AGP slot on this motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

AMR slot: AMR slot is used to insert AMR modem card with v.92 Modem

functionality.

AGP slot: The AGP slot is used to install a graphics card.

The ASRock AGP slot has a special locking mechanism which

can securely fasten the graphics card inserted.

DO NOT use 3.3V AGP card on K7VM3’s AGP slot!

It may cause permanent damage!

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Step 1. Before installing the expansion card, read the documentation of the

expansion card and make necessary hardware settings for the card.

Step 2. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 3. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 4. Fasten the card to the chassis with screws.

EnglishEnglish

English

8ASRock K7VM3 Motherboard

Short Open

2.4 Jumpers Setup2.4 Jumpers Setup

2.4 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “SHORT”. If no jumper cap

is placed on the pins, the jumper is “OPEN”.

The illustration shows a 3-pin jumper whose

pin1 and pin2 are “SHORT” when jumper cap

is placed on these 2 pins.

Jumper Setting

FSB_SEL1

(see p.2 item 8)

Note: The setting of the CPU front side bus frequency of this motherboard is by

means of the adjustment of jumper-setting. Please follow the figures above

to set the CPU front side bus frequency.

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.2 item 1) +5VSB (standby) for PS/2 or

USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided by

power supply.

JR1(see p.2 item25)

JL1(see p.2 item 24)

Note: If the jumpers JL1 and JR1 are short , both front panel and

rear panel audio connectors can work.

EnglishEnglish

English

ASRock K7VM3 Motherboard

FIDJumpers

(FID0, FID1, FID2, FID3, FID4)

(see p.2 item 2)

Note: The set of FID jumpers are designed to adjust the multiplier of CPU. For detailed

information, please refer to page 14 of user Manual in the Support CD.

Clear CMOS

CLRCMOS1 CLRCMOS2

(see p.2 item 13) (see p.2 item 18)

Note: CLRCMOS1 and CLRCMOS2 allow you to clear the data in CMOS. The data in

CMOS includes system setup information such as system password, date,

time, and system setup parameters. There are 2 ways for you to clear and

reset the system parameters to the default setup. Please turn off the com-

puter and unplug the power cord, then you may either short the solder points

on CLRCMOS1 by using metal material, e.g., a paper clip, for 3 seconds;

or you may use a jumper cap to short the pin on CLRCMOS2 for 3 seconds.

Please remember to remove the paper clip or the jumper cap after clearing

the CMOS.

2-pin jumper

solder points

EnglishEnglish

English

1010

10 ASRock K7VM3 Motherboard

2.5 Connectors2.5 Connectors

2.5 Connectors

Connectors are NOT jumpers. DO NOT place jumper caps over these

connectors.

Connector Figure Description

FDD connector

(33-pinFLOPPY1)

(see p.2 item 19)

Note: Match the red marking on the floppy ribbon cable with Pin1.

Primary IDE connector (Blue) Secondary IDE connector (Black)

(39-pin IDE1, see p.2 item 10) (39-pin IDE2, see p.2 item 9)

Connector this BLUE end Connect this BLACK end

to the motherboard to the IDE devices

Note:To optimize compatibility and performance, please connect your hard disk

drive to the primary IDE connector (IDE1, blue) and CD-ROM to the

secondary IDE connector (IDE2, black).

USB 2.0 header ASRock I/OTM already

(9-pinUSB45) provided 4 default USB 2.0

(see p.2 item 20) ports. If the 4 USB 2.0 ports

on the rear panel are not

sufficient, this USB 2.0 header

is available to support 2

additional USB 2.0 ports.

Infrared module connector This connector supports an

(5-pin IR1) optional wireless transmitting

(see p.2 item 21) and receiving infrared module.

Internal audio connectors These connectors allow you

(4-pin CD1, 4-pin AUX1) to receive stereo audio input

(CD1: see p.2 item 29) from sound sources such as

(AUX1:see p.2 item 30) a CD-ROM,DVD-ROM,TV

tuner card, or MPEG card.

80-Pin ATA 100/133 cable

red marking

CD1AUX1

EnglishEnglish

English

Altri manuali per K7VM3

Indice

Lingue:

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK H55 PRO - V1.0 Manuale utente

ASROCK

ASROCK Z87M OC Formula Manuale utente

ASROCK

ASROCK A75M-HVS Manuale utente

ASROCK

ASROCK B550 EXTREME4 Manuale utente

ASROCK

ASROCK AM1H-ITX Manuale utente

ASROCK

ASROCK IMB-V2000 Manuale utente

ASROCK

ASROCK 4CORE1600-GLAN/M Manuale utente

ASROCK

ASROCK Thunderbolt 3 AIC Manuale utente

ASROCK

ASROCK 890FX Deluxe5 Manuale utente

ASROCK

ASROCK P43C-ME Manuale utente

ASROCK

ASROCK X38TURBOTWINS Manuale utente

ASROCK

ASROCK 4Core1333-FullHD Manuale utente

ASROCK

ASROCK K8A780LM Manuale utente

ASROCK

ASROCK ROMED4ID-2T Manuale utente

ASROCK

ASROCK J4005DC-ITX Manuale utente

ASROCK

ASROCK 775V88 Manuale utente

ASROCK

ASROCK 4CORE1333-FULLHD - V1.1 Manuale utente

ASROCK

ASROCK M3A780GXH/128M Manuale utente

ASROCK

ASROCK H67M-GE/HT Manuale utente

ASROCK

ASROCK B450 Steel Legend Manuale utente

ASROCK

ASROCK 775i915PL-M Manuale utente

ASROCK

ASROCK Z270 SUPERCARRIER Manuale utente

ASROCK

ASROCK B85M-DGS Manuale utente

ASROCK

ASROCK X79 Extreme9 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
