ASROCK UTX-111 Manuale utente
1
UTX-110
UTX-111
User Manual
Version 1.0
Published December 2014
Copyright©2014 ASRock INC. All rights reserved.
2
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
3
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11
2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slots (mini-PCIe and mini-PCIe/mini-SATA
Slots).............................................................................. 13
2.5 Jumpers Setup............................................................... 14
2.6 Onboard Headers and Connectors................................ 16
3 UEFI SETUP UTILITY......................................... 19
3.1 Introduction .................................................................... 19
3.1.1 UEFI Menu Bar .................................................... 19
3.1.2 Navigation Keys ................................................... 20
3.2 Main Screen................................................................... 20
3.3 Advanced Screen........................................................... 21
3.3.1 CPU Conguration ............................................... 22
3.3.2 Chipset Conguration........................................... 23
3.3.3 Storage Conguration .......................................... 24
3.3.4 Super IO Conguration ........................................ 25
3.3.5 ACPI Conguration............................................... 26
3.3.6 USB Conguration ............................................... 27
3.4 Hardware Health Event Monitoring Screen ................... 28
3.5 Security Screen ............................................................. 29
3.6 Boot Screen ................................................................... 30
3.7 Exit Screen .................................................................... 32
4
4 Software Support .............................................. 33
4.1 Install Operating System................................................ 33
4.2 Support CD Information ................................................. 33
4.2.1 Running Support CD............................................ 33
4.2.2 Drivers Menu........................................................ 33
4.2.3 Utilities Menu........................................................ 33
4.2.4 Contact Information.............................................. 33
5
Chapter 1: Introduction
Thank you for purchasing ASRock UTX-110 / UTX-111 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control. It
delivers excellent performance with robust design conforming to ASRock’s commit-
ment to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock UTX-110 / UTX-111 Motherboard (111.76 x 116.84 mm (10 layer))
ASRock UTX-110 / UTX-111 Driver CD
ASRock UTX-110 / UTX-111 Jumper setting instruction
6
1.2 Specications
Form
Factor Dimensions 111.76 x 116.84 mm (10 layer)
Processor
System
CPU
(UTX-110)
Intel®new AtomTM Baytrail-I
Supports Hyper-Threading Technology
Default E3826 Dual Core Processor
Optional E3845/3815 Quad/Single Core
Processor
CPU
(UTX-111)
Intel®new AtomTM Baytrail-I
Supports Hyper-Threading Technology
Default J1900 Quad Core Processor
Optional N2930/2807 Quad/Dual Core
Processor
Core
Number (By CPU, Max 4)
Max Speed (By CPU)
L2 Cache (By CPU)
Chipset (By CPU)
BIOS UEFI
Expansion
Slot
PCI 0
Mini-PCIe 1 x Full Size co-lay with mSATA
mSATA 1 (Full Size)
PCIe 0
SIM 1
CFast Card
Socket 0
Memory
Technology Single Channel DDR3L 1066/1333 MHz SDRAM
Max. 4/8GB
Socket 1 x SO-DIMM
Graphics
Controller Intel®Gen7 Intel®Graphics DX 11, OGL3.2
VRAM Shared Memory
VGA Supports max. resolution 1920 x 1200
LVDS Dual channel 24-bit, max resolution 1920 x 1200
@60Hz
HDMI Supports HDMI 1.4a, max resolution 1920 x
1200
DVI N/A
DisplayPort N/A
Multi Display Yes (Dual Display)
7
Ethernet
Ethernet 10/100/1000 Mbps
Controller 2 x Intel®210
Connector 2 x RJ-45
SATA
Max Data
Transfer
Rate
SATA2 (3.0Gb/s)
Rear I/O
VGA 0
DVI 0
HDMI 2 (1 x HDMI, 1 x Micro HDMI)
DisplayPort 0
Ethernet 2
USB
1 x USB 3.0 Compliant, 1 x USB2.0
Compliant 1 x micro USB 2.0 SMT type
connector
Audio 1 (Line out/Mic out)
Serial 0
eSATA 0
PS/2 0
Internal
Connector
USB 0
LVDS/
Inverter 1/1
VGA 1 (Pin heater 2.0 mm Pitch)
Serial
(RS-232/422/485 x 1. RS232 x 1) Pin
heater 2.0 mm pitch COM1 Pin9 (+5V &
+12V)
SATA 1 x SATA2 (3.0Gb/s)
mPCIe 2 (1 x Full/1 x Half Size)
Parallel 0
mSATA 1
IrDA 0
GPIO 8-bit 4 x GPI + 4 x GPO Pin heater 2.0 mm pitch
SATA PWR
Output Con 1
Speaker
Header 1
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec/min
Power
Requirements
Input PWR 12V DC Jack
Power On
AT/ATX Supported
AT: Directly PWR on as power input ready
ATX: Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC
8

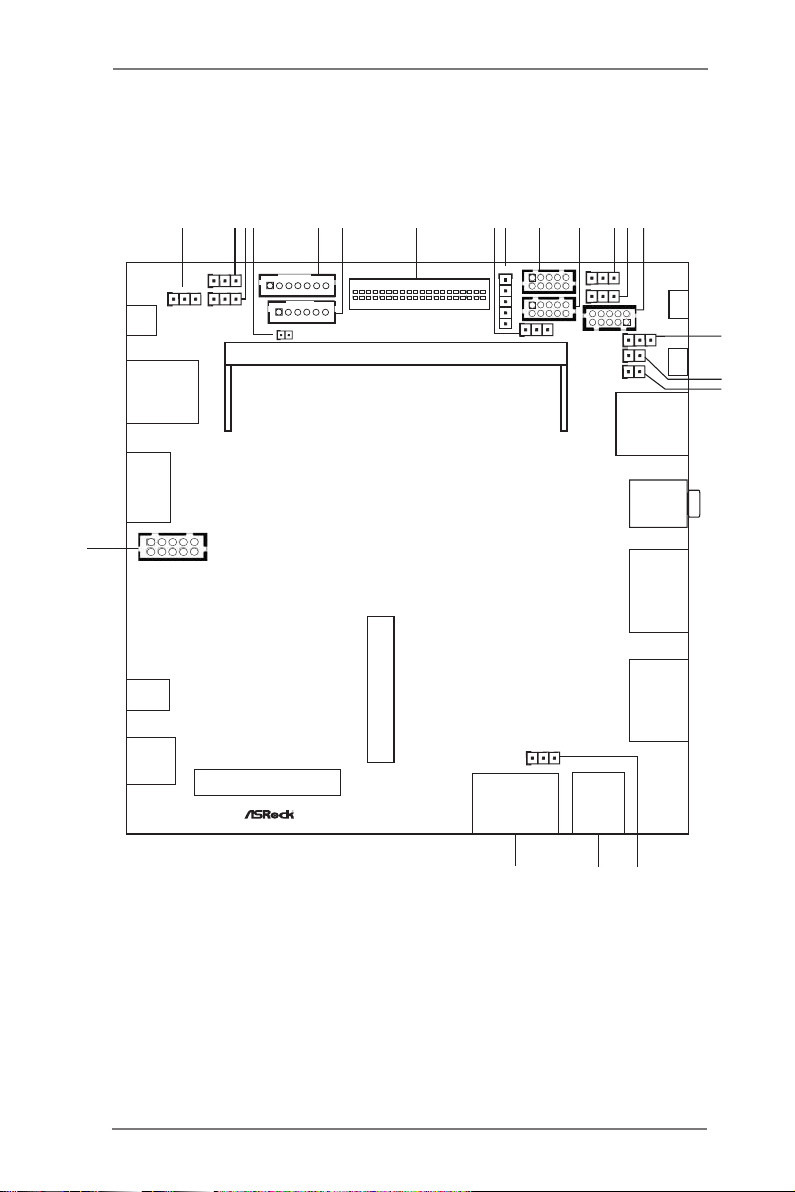

1.3 Motherboard Layout
18
21
19
20
12345678 9 10 11 1213 14
15
16
17
mini-PCIe
LAN1
AUDIO1
HDMI1
mini-PCIe / mini-SATA
LVDS 1
1
Industrial
USB2_2
DDR3 (Support DDR3L Only)
SATAII_1
SATA_PWR1
MSATA_ SEL 1
1
LAN2
USB2_1
1
BLT_VOL1
1
BLT_PWR1
USB3_1
HDMI2
DC_JACK1
VGA1
1
CLRMOS1
1
BKT_PWR1
1
SET_CM1
1
BUZZ1
1
PNL_PWR1
1
COM2
1
COM1
1
PWRBTN1
BLT_PWM1
1
PWR_JP1
1
JGPIO_PWR1
1
JGPIO1
1
JGPIO_SET1
1
CI1
1
CI2
1
RESET1
9
1 : Backlight Control Level (BLT_PWM1)
2 : Clear CMOS Header
3
: Backlight Power Select
(LCD_BLT_VCC)
(BKT_PWR1)
4 : 2-Pin Buzzer Header
5 : Backlight & Amp Volume Control
(BLT_VOL1)
6 : Inverter Power Control Wafer (BLT_PWR1)
7 : LVDS Panel Connector
8 : COM1 Pin9 PWR Setting
9 : Panel Power Select (LCD_VCC) (PNL_PWR1)
10 : COM Port Header (COM2)
11 : COM Port Header (COM1)
12 : ATX/AT Mode Select
13 : Digital Input / Output Power Select
14 : Digital Input / Output Pin Header
1
5 : GPIO Default Setting
16 :
Chassis Intrusion Header (
CI1)
17 :
Chassis Intrusion Header (
CI2)
18 :
mSATA Select
19 : SATA Power Output Connector
20 : SATA2 Connector (SATAII_1)
21 :
VGA Connector
10
1.4 I/O Panel
1 LAN RJ-45 Port (LAN1)
2 LAN RJ-45 Port (LAN2)
3 3.5mm Audio Jack (CTIA Standard)
4 USB 2.0 Port (USB2_1)
5 Reset Button
6 Power Button
124
356
124
35
1 Micro USB 2.0 Port (USB2_2)
2 USB 3.0 Port (USB3_1)
3 HDMI Port (HDMI1)
4 Micro HDMI Port (HDMI2)
5 DC Jack Port (+12V Only)
MIC
GND
HP-R
HP-L
Questo manuale è adatto per i seguenti modelli
3
Indice
Altri manuali ASROCK Scheda madre
ASROCK
ASROCK G41M-S3 Manuale utente
ASROCK
ASROCK ConRoe945GZ-DVI Manuale utente
ASROCK
ASROCK X299 GAMING i9 Manuale utente
ASROCK
ASROCK A780LM Manuale utente
ASROCK
ASROCK FM2A75 Pro4 Manuale utente
ASROCK
ASROCK 939N68PV-GLAN Manuale utente
ASROCK
ASROCK FM2A58 Pro+ Manuale utente
ASROCK
ASROCK Z77 Extreme11 Manuale utente
ASROCK
ASROCK TRX40 CREATOR Manuale utente
ASROCK
ASROCK B550M-HDV Manuale utente
ASROCK
ASROCK D2123D4I4 Manuale utente
ASROCK
ASROCK 760GM-HD Manuale utente
ASROCK
ASROCK Z77 Pro4-M Manuale utente
ASROCK
ASROCK 939A790GMH Manuale utente
ASROCK
ASROCK PV530A-ITX Manuale utente
ASROCK
ASROCK Z87M Pro4 Manuale utente
ASROCK
ASROCK P4I65G Manuale utente
ASROCK
ASROCK SBC-230-WT Manuale di servizio
ASROCK
ASROCK J3710-ITX Manuale utente
ASROCK
ASROCK 90-MXB150-A0UAYZ Manuale utente
Manuali Scheda madre popolari di altre marche
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
Biostar
Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione
