AUDAC Ateo 4D Guida

Ateo 4D/6D

User & Installation

Manual

www.audac.eu

Introduction

2-Way speaker with Clevermount™

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install in

indoor applications, ranging from modern residential applications to the most demanding

designer applications in evironments such as retail stores, pubs, restaurants or even

clubs.

It features a stunningly designed and elegant looking ABS housing which is fitted with

High-Quality components. What makes this loudspeaker range so exceptional is the

specially designed mounting bracket using the Clevermount™ technology, making the

loudspeakers cabinet flow together with the mounting bracket providing a great ease

for installing the loudspeaker in one good-looking entity.

The mounting and connection of the loudspeaker simply happens by attaching the

included metal wall-plate to the desired location. Next, the wires can be connected to

the corresponding terminals with link-through possibility. After this is done, only five

seconds of work is left for clipping the loudspeaker onto the wall-plate, tightening the

safety screw and you’re ready to rock!

This way, it’s really child’s play to install a large number of loudspeakers in no-time.

Even if you’re working all alone while people are watching your fingers or when installing

the speakers up high, when you’re standing on a ladder.

All Ateo series speakers are available in Black (/B) or White (/W).

Precautions

READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY

• ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM

AWAY

• ALWAYS HANDLE THIS UNIT WITH CARE

• CLEAN ONLY WITH DRY CLOTH

• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS

• NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING

LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE

• DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR

OTHER APPARATUS THAT PRODUCE HEAT

• DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH LEVEL OF DUST, HEAT,

MOISTURE OR VIBRATION

• THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS

• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER.

• ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN STRUCTURALLY SUPPORT THE

WEIGHT OF THE SPEAKER. IGNORING THIS CAN BRING THE SPEAKER DOWN.

• DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO MOUNT THE SPEAKER. IF

EXTREME FORCE IS APPLIED TO THE SPEAKER, IT COULD FALL DOWN

• ATTACH A SAFETY WIRE TO THE SPEAKER WHEN IT IS MOUNTED HIGH UP.

ONLY USE INDUSTRY-ACCEPTED RIGGING TOOLS AND METHODS

• CAREFULLY CHECK THE UNIT’S CONDITION AFTER UNPACKING.

IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT ITSELF, INFORM YOUR

VENDOR IMMEDIATELY.

• ALWAYS FOLLOW THE LOCAL REGULATIONS AND REQUIREMENTS REGARDING

INSTALLATION, SUSPENSION AND CONNECTION OF THIS LOUDSPEAKER. EVEN WHEN

OTHERWISE SPECIFIED IN THIS DOCUMENT.

• THE INSTALLATION OF THIS LOUDSPEAKER SHALL BE DONE BY QUALIFIED

PERSONNEL ONLY.

CAUTION

• USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER

• USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND

MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM.

• ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE.

EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.

AVOID EXPLOSIONS: DO NOT USE THE SPEAKER AROUND GASOLINE,

THINNER OR OTHER COMBUSTIBLES

• AVOID ELECTRIC SHOCKS: SWITCH OFF THE AMPLIFIER WHEN CONNECTING

THE LOUDSPEAKER

• DO NOT USE THE LOUDSPEAKER FOR AN EXTENDED PERIOD OF TIME AT

DISTORTED SOUND. THIS COULD CAUSE PERMANENT DAMAGE.

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing

to qualified service personnel. Do not perform any servicing

(unless you are qualified to do so.)

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and further

relevant specifications described in following directives: 2014/30/

EU (EMC) and 2014/35/EU (LVD)

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The WEEE marking indicates that this product should not be

disposed with regular houshold waste at the end of its product

life. This regulation is created to protect both the environment

and human health.

This product is developed and manufactured with high quality

materials and components which can be recycled and/or reused.

Please dispose this product to your local collection point or

recycling centre for electrical and electronic waste. This will

make to sure that it will be recycled on an environmentally friendly

manner, and will help to protect the environment in which we all

live.

Installing the ATEO

Clevermount™ Technology

Every Ateo speaker uses the unique Clevermount™technology, making the loudspeakers

cabinet flow together with the mounting bracket and providing a great ease for installing

the loudspeaker in one good-looking entity.

Using this technology, the speaker can be installed at any location in both a horizontal and

vertical way, providing the possibility for pointing the speaker into the desired direction,

even after the speaker is already mounted and connected.

The horizontal installation method provides an additional advantage when the installation

height on the wall or ceiling is limited, while the directional capabilities make it easy to

determine and adjust the distribution of sound throughout the area.

The installation of the loudspeaker should be done according to a simple 5-step

procedure, which is described below:

Optional step: Cable adapter plate

In most cases, the speaker cable will be provided through the wall, making the cable

completely invisible from the outer side. In case the cabling is not provided through the

wall, the included cable adapter plate can be used. After breaking out one of the four cable

slots provided with thinner material, the plate can be mounted onto the wall. Now the

clevermount can be mounted onto the cable adapter plate using the four included bolts.



100

ATEO4

ATEO 4D

Clevermount™

ATEO 6D

16 Ω

COM

16 Ω

COM

The optional WMA40/60 30° incline angle extension mount is also available and offers

horizontal and vertical angles up to 60°. This way the sound experience can be optimized

in every environement.

Step 1: Attach the Wall Plate

The first step which should be taken is the mounting of the supplied wall plate to the

desired location on the wall or the cable adapter plate. The wall plate has to be fixed by

four screws in a quadrangular shape. The mutual distance is 30 mm horizontally and 55

mm vertically for the ATEO4 and 50 mm horizontally and 50 mm vertically for the ATEO6

as indicated in the following drawing. The used fasteners should be chosen depending

to the mounting surface (brick, concrete, wood, ... )



140

14,2

ATEO6

Step 2: Make the connections

After the wall plate is installed, the connections can be made. The Ateo speaker can

be connected in low impedance systems and provide link-through possibility.

The wires coming from the amplifier have to be connected to the corresponding ter-

minals of the special 6-pin Terminal block connector on the wall plate. The common

(‘COM’ or ‘-’) output of the amplifier should always be connected to the ‘COM’ ter-

minal of the connector, while the positive (‘Sig’ or ‘+’) should be connected to 16 Ohm

terminal.

Link-through is possible by connecting the next speaker to the 16 Ohm and the COM

terminals. This way the speakers will be connected in parallel. Up to four speakers

can be connected in parallel on a single 4 Ohm amplifier channel.

Mind the polarity markings when wiring the loudspeaker cables.

ATEO 4D

Clevermount™

16 Ω

COM

Step 3: Attach the speaker

After the wall plate is mounted and the wires are connected, the loudspeaker can be

fixed to the wall plate. This should be done by sliding the hooks of the wall plate into

the slots on the back side of the speaker, followed by a downwards movement of the

loudspeaker (about 1 cm). Now, the loudspeaker is fixed and connected.

To prevent the loudspeaker from falling down under any circumstance, the security screw

on top of the circular bracket should be tightened.

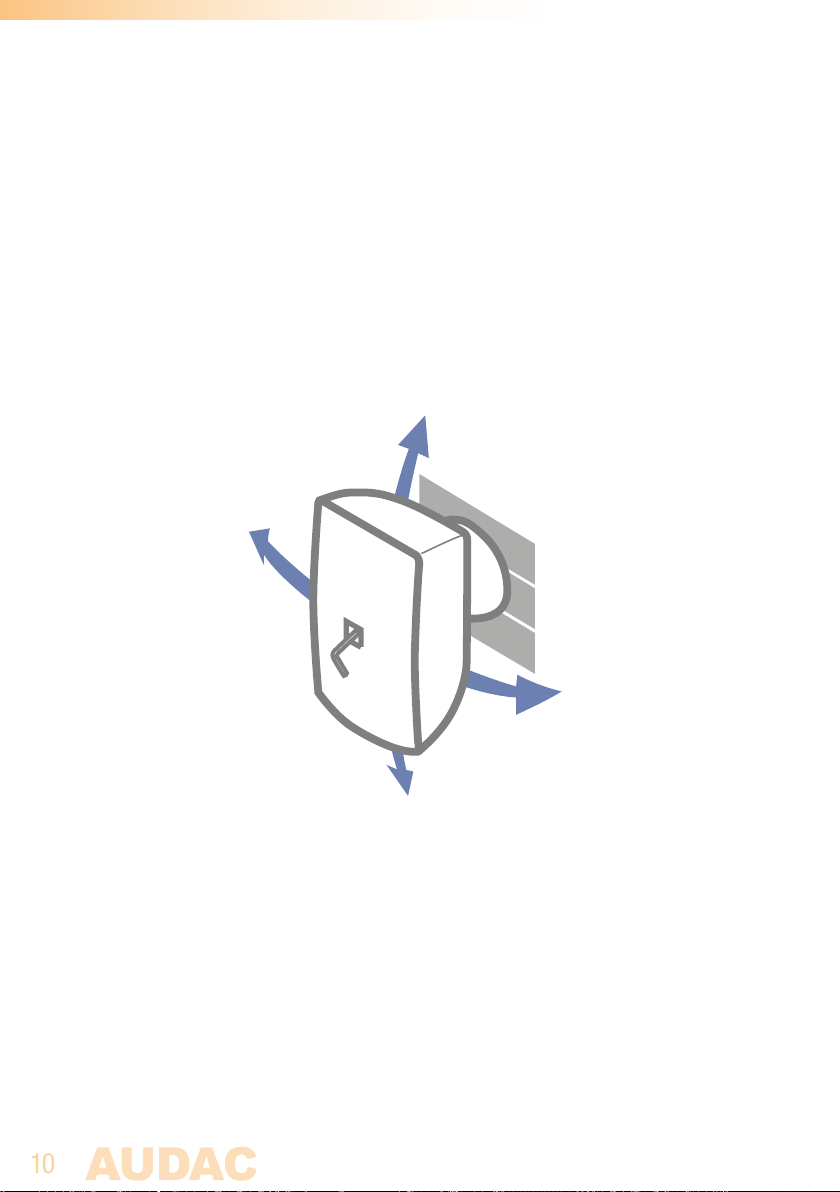

Step 4: Position the loudspeaker

The last step in the mounting procedure of the speaker is pointing it into the desired

direction. This can be done after (carefully) removing the logo in the center of the front

grill and untightening the allen-key bolt which is located behind it. After this bolt is

untightened by a few turns, the speaker will be in a free state, making it possible to move

it into the left (30°), right (30°), up (5°) and down (30°) position. It can also be rotated

from vertical to horizontal position (rotate counter-clockwise).

Once the speaker is placed in position and pointing into the right direction, it can be

locked by tightening the allen-key bolt. Subsequently the logo should be placed again

in front of the allen-key bolt.

Step 5: Enjoy the music!

After the Ateo loudspeakers have been installed correctly, you deserve to have a short

break, relax and enjoy the sound of the Ateo speakers!
