Audiovox Pursuit OE3-FT3 Istruzioni operative
TRANSMITTER PROGRAMMING GUIDE
Model: OE3-FT3
Thetransmittersincludedwiththesecuritysystemhavebeenpre-programmedatthe
factory, with each button pre-assigned to control a specific function of the security
system. Although the security system in the vehicle has either a 3, 4 or 5 channel
receiver, depending on the model, the transmitters included with the system are
capableoftransmitting7distinct signals. Thisallowsyou toprogrameach transmitter
to more than one vehicle in two car families, and also allows you to change which
button(s) control certain functions of the system.
(Example:Transmitterchannel5canbeprogrammedtoactivateReceiverchannel2.)
Refer to the chart below for access to each of the transmitter channels, and for the
standard factory button assignments.
Some of the more common accessories for these additional channels are;
AS 9554 Remote Garage Door Interface
AS 9075 Remote car starter
AS 9153 Remote window roll up
AS 9256 Remote trunk release relay

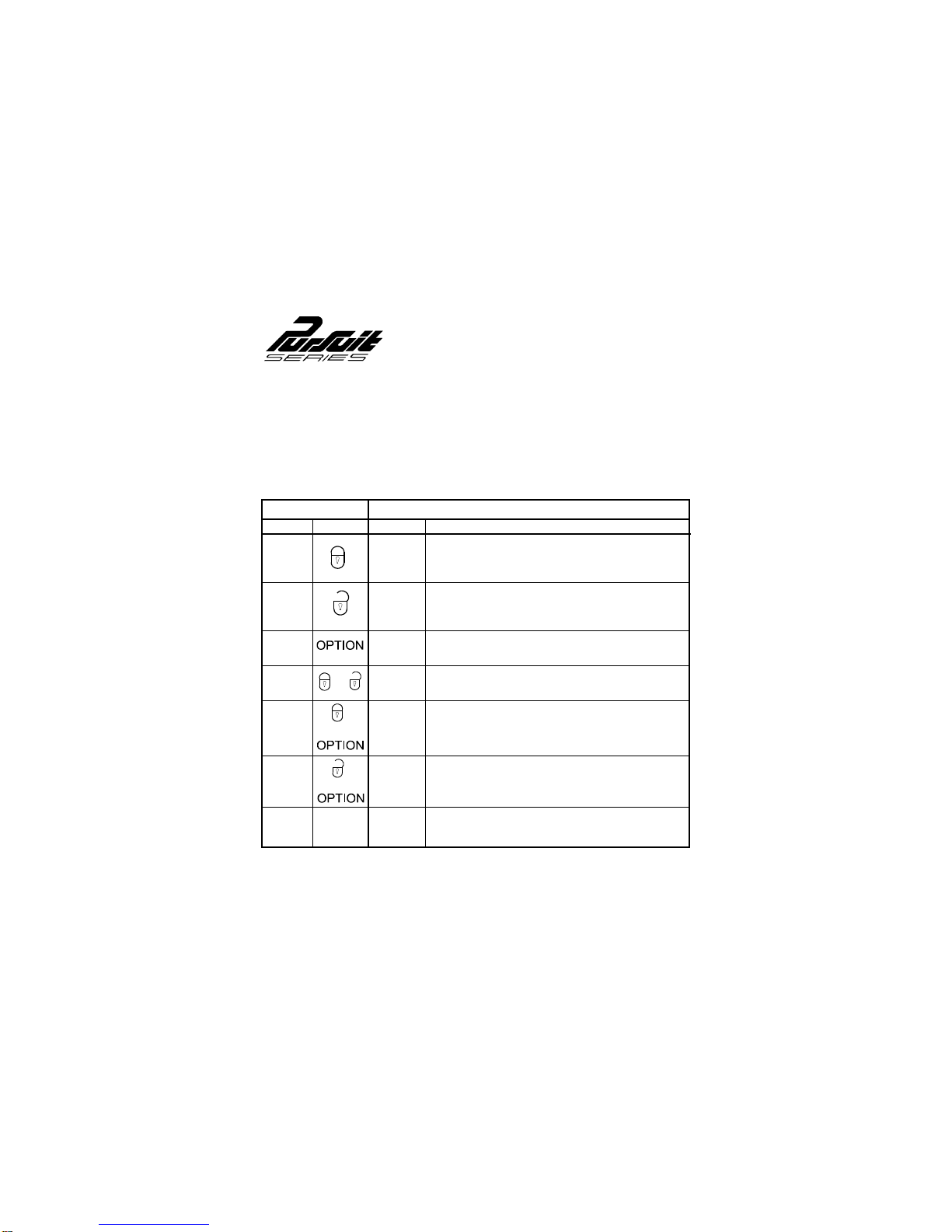

TRANSMITTER SYSTEM RECEIVER
CHANNEL BUTTON CHANNEL FUNCTION
Remote Arm
1 1 Remote Emergency Panic
Remote Door Lock
Remote Disarm
2 2 Remote Emergency Panic
Remote Door Unlock/Unlock 2
33
4& 4
5& 5
6 & 6 RF Channel For Options
7 7 RF Channel For Options
All 3
Buttons
Single Push Pulsed Output for Optional Accessory
Or Double Push For Additional Optional Accessory
Single Push Pulsed Output for Optional Accessory
Or Push And Hold For Extended Output
Single Push Pulsed Output for Optional Accessory
Or Push And Hold For Extended Output
PROGRAMMING THE TRANSMITTERS
Itisimportanttorememberthatduringprogramming, each individual step of the
procedure must be executed within 15 seconds of the previous step.
Whenthe15secondtimelimit is allowed to expire,thesystemwillautomatically
terminatetheprogrammingmode.Thisisindicatedbyalongchirpfromthesiren.
Additionally, the system will store codes from up to four different transmitters.
If a 5th transmitter is programmed to any receiver channel, then the first
transmitter programmed to that channel will be erased from the system's
memory.
To Program replacement or additional transmitters:
1. Enter the vehicle, and turn the ignition key to the "on" position.
2. Press and release the valet push-button switch 3 times.
3. The dash LED will flash one time, and the sounding device will beep one
time, indicating the system is ready to accept programming for receiver's
Lock channel 1.
4. Press and hold the Lock transmitter button until the sounding device emits
a long beep, indicating the signal has been stored into memory.
5. If you have additional transmitters (up to 4) that need to be programmed,
repeat step 4 for each transmitter.
6. Press and release the valet push-button switch once.
7. The dash LED will flash two times, and the sounding device will beep two
times, indicating the system is ready to accept programming for receiver's
Unlock channel 2.
8. PressandholdtheUnlocktransmitterbuttonuntilthesoundingdeviceemits
a long beep, indicating the signal has been stored into memory.
9. If you have additional transmitters (up to 4) that need to be programmed,
repeat step 8 for each transmitter.
10. Press and release the valet push-button switch once.
11. ThedashLEDwillflashthreetimes,andthesoundingdevicewillbeepthree
times, indicating the system is ready to accept programming for receiver's
channel 3.
12. Press and hold the selected Option transmitter button until the sounding
deviceemitsalongbeep,indicatingthesignalhasbeenstoredintomemory.
13. If you have additional transmitters (up to 4) that need to be programmed,
repeat step 12 for each transmitter.
14. Press and release the valet push-button switch once.
15. The dash LED will flash four times, and the sounding device will beep four
times, indicating the system is ready to accept programming for receiver's
channel 4.
16. Press and hold any button combination as shown on the front cover of this
guideuntilthesounding device emits alongbeep,indicatingthesignalhas
been stored into memory.
17. If you have additional transmitters (up to 4) that need to be programmed,
repeat step 16 for each transmitter.
18. Press and release the valet push-button switch once.
19. The dash LED will flash four times, and the sounding device will beep four
times, indicating the system is ready to accept programming for receiver's
channel 5.
20. Pressandholdanyunusedbuttoncombinationasshownonthefrontcover
of this guide until the sounding device emits a long beep, indicating the
signal has been stored into memory.
21. If you have additional transmitters (up to 4) that need to be programmed,
repeat step 20 for each transmitter.
22. Turn the ignition key off. The sounding device will emit one short beep
followed by one long beep indicating the system has terminated the
program mode.
TRANSMITTERBATTERY REPLACEMENT
You will notice a decrease in transmitter range as the battery condition
deteriorates.Transmitterbatteryreplacementisrecommendedatleastevery10
to 12 months, depending upon how frequently the transmitter is used.
The transmitter has a small red LED visible through the case. This LED can be
usedtoindicatebatterycondition.IftheLEDdoesnotilluminate,thenthebattery
is discharged, and must be replaced.

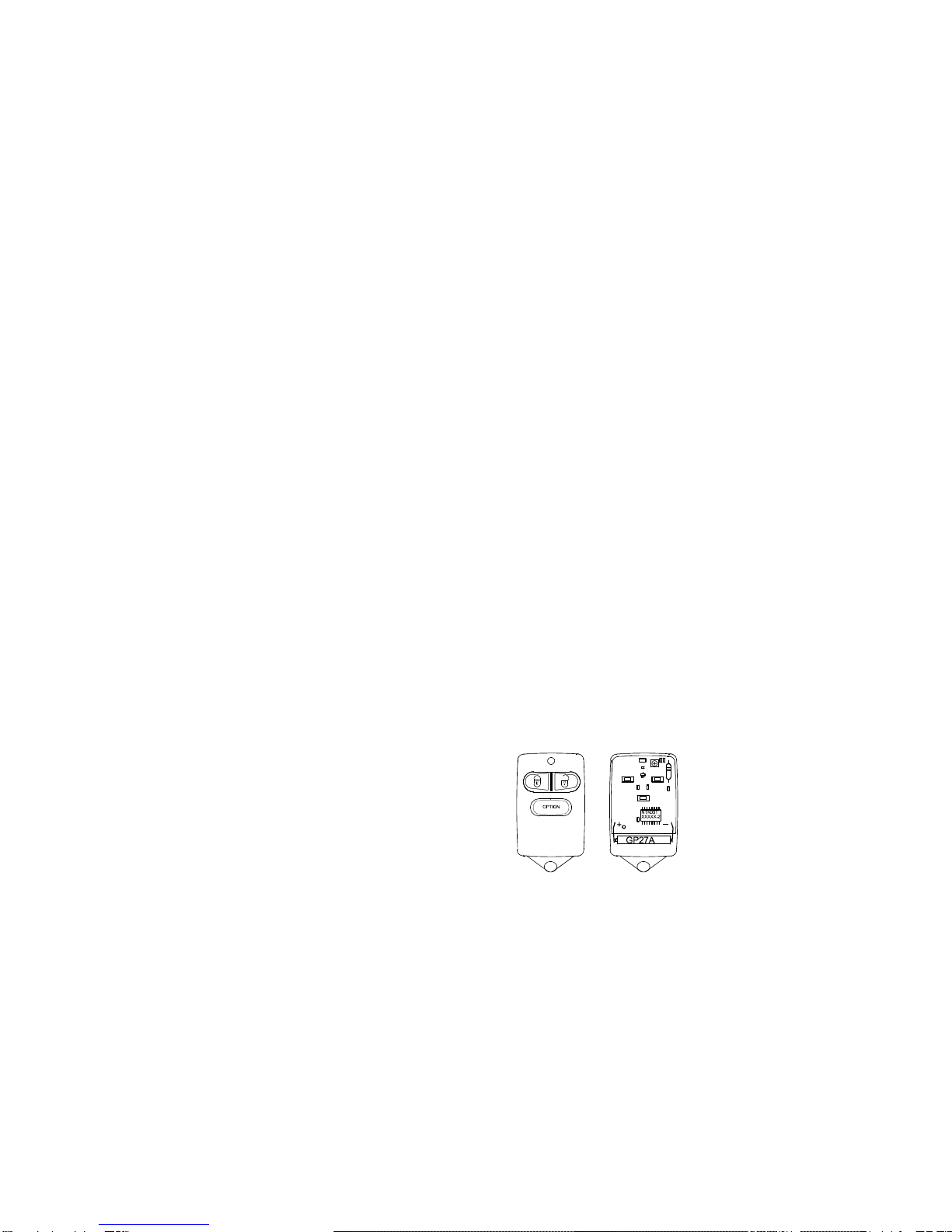

To replace the transmitter battery,
1. Remove the small phillips head screws from the bottom cover of the
transmitter.
2. Carefully unsnap the top cover of the transmitter from the bottom cover.
3. Remove the discharged battery, making
note of the location of the + and - contacts,
andreplacewithanewtypeGP27A12volt
battery.
4. Replace the transmitter cover, taking care
not to damage the LED or switches on the
circuit board, and secure with the small
phillips head screw.
ORDER FORM FOR 3 BUTTON TRANSMITTER
MODEL NO. PRO-OE3FT3
IMPORTANT:Tohelpusexpediteyourorder,pleaseprintalloftheinformation
legibly, and mail this form and your payment according to the instructions
below.
Note: Order Pad # 17 if your unit has red colored Lock/Unlock pads.
Order Pad # 18 if your unit has blue colored Lock/Unlock pads.
1. Name : ____________________________________________________
Address: _____________________________________________________
City : _____________________ State : _______ Zip Code : ____________
2.TelephoneNumber:(_______)_________________________________
3. Enter the total number of transmitters required here : ________________
4. List model number of your actual transmitter pad as shown on page
4 of this manual:
5. The cost per transmitter is $ 65.00.
6. Enter the total amount enclosed here : ____________________________
( New York state residents must include the appropriate sales tax.)
7. Method of payment; check one of the boxes below.
qMastercard qVisa qCheck or money order * ( do not send cash )
* Make checks payable to Audiovox Corporation
8. Credit Card Number : ________________________________________
9. Credit Card Expiration Date : _____________________
Credit card purchasers can order additional or replacement
transmittersbyphone.Simplydial1-800-645 - 4994, and follow
the instructions from the operator interface.
10. Mail this form, and your check, to ;
(
128-5759
Audiovox Electronics Corp., 150 Marcus Blvd. Hauppauge, N.Y., 11788
Attn.:TRANSMITTERDEPARTMENT
