TRANSMITTERPROGRAMMINGGUIDE

Model:PRO-OE3B4

The transmitters included with the security system have been pre-programmed

at the factory, with each button pre-assigned to control a specific function of the

security system. Although the security system in the vehicle has either a 3 or 4

channel receiver, depending on the model, the transmitters included with the

system are capable of transmitting 7 distinct signals. This allows you to program

each transmitter to more than one vehicle in two car families, and also allows you

to change which button(s) control certain functions of the system.

(Example: Transmitter channel 5 can be programmed to activate Receiver

channel 2.) Refer to the chart below for access to each of the transmitter channels,

and for the standard factory button assignments.

Released 8-9-01.

Some of the more common accessories for these additional channels are;

AS 9554 Remote Garage Door Interface

AS 9075 Remote car starter

AS 9153 Remote window roll up

AS 9256 Remote trunk release relay

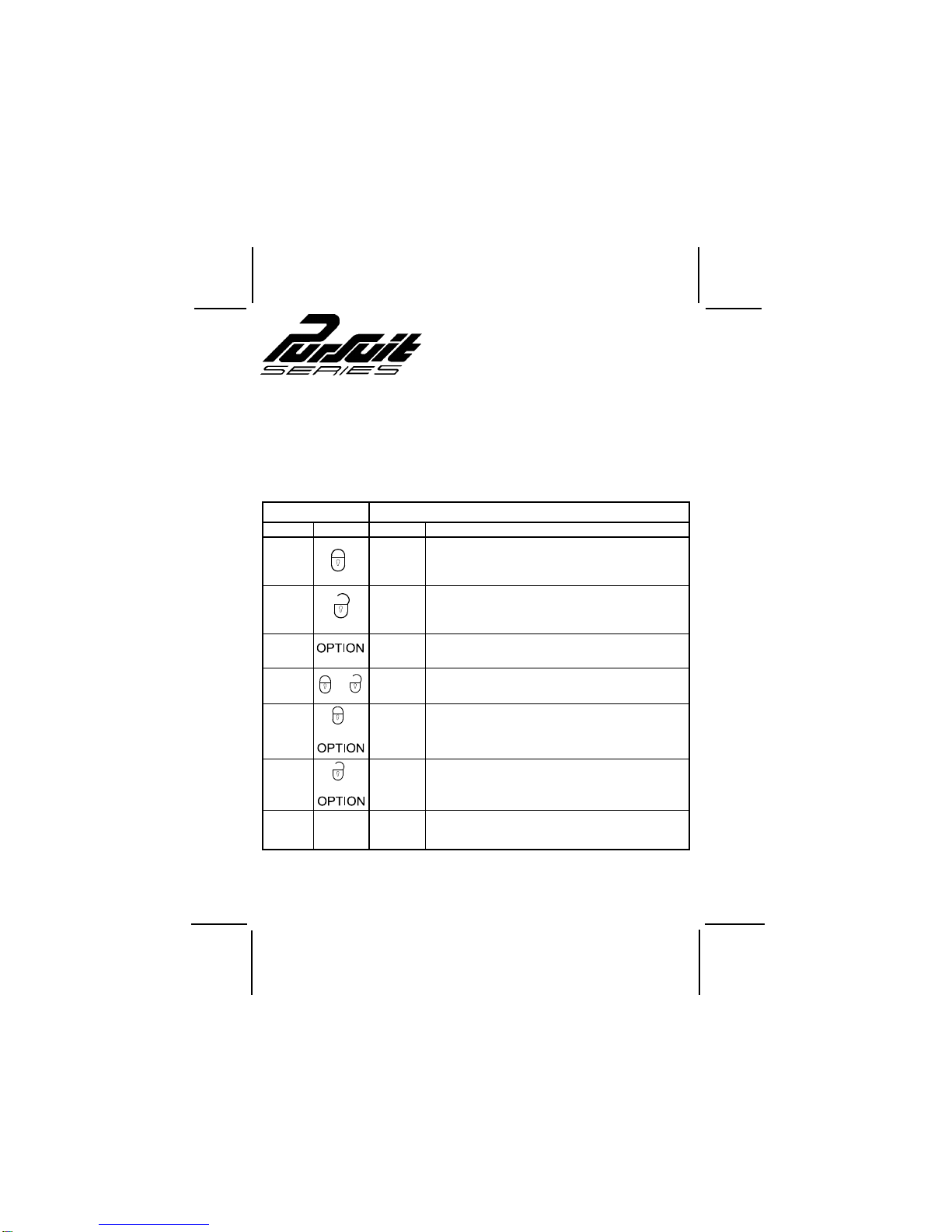

TRANSMITTER SYSTEM RECEIVER

CHANNEL BUTTON CHANNEL FUNCTION

Remote Arm

1 1 Remote Emergency Panic

Remote Door Lock

Remote Disarm

2 2 Remote Emergency Panic

Remote Door Unlock/Unlock 2

4& 4

5& 5

6 & 6 RF Channel For Options

7 7 RF Channel For Options

All 3

Buttons

Single Push Pulsed Output for Optional Accessory

Or Double Push For Additional Optional Accessory

Single Push Pulsed Output for Optional Accessory

Or Push And Hold For Extended Output

Single Push Pulsed Output for Optional Accessory

Or Push And Hold For Extended Output

128-6122

2 of 4

PROGRAMMINGTHETRANSMITTERS

Itisimportanttorememberthatduringprogramming,eachindividualstepofthe

procedure must be executed within 15 seconds of the previous step.

Whenthe15secondtimelimitisallowedtoexpire,thesystemwillautomatically

terminatetheprogrammingmode.Thisisindicatedbyalongchirpfromthesiren.

NOTE: Some keyless entry systems will flash the interior light to indicate a

stored code. Substitute the words light flash below where indicated

sounding device will beep.

Additionally, the system will store codes from up to four different transmitters.

If a 5th transmitter is programmed to any receiver channel, then the first

transmitter programmed to that channel will be erased from the system's

memory.

To Program replacement or additional transmitters:

1. Enter the vehicle, and turn the ignition key to the "on" position.

2. Press and release the valet push-button switch 3 times.

3. The dash LED will flash one time, and the sounding device will beep one

time, indicating the system is ready to accept programming for receiver's

Lock channel 1.

4. Press and hold the Lock transmitter button until the sounding device emits

a long beep, indicating the signal has been stored into memory.

5. If you have additional transmitters (up to 4) that need to be programmed,

repeat step 4 for each transmitter.

6. Press and release the valet push-button switch once.

7. The dash LED will flash two times, and the sounding device will beep two

times, indicating the system is ready to accept programming for receiver's

Unlock channel 2.

8. PressandholdtheUnlocktransmitterbuttonuntilthesoundingdeviceemits

a long beep, indicating the signal has been stored into memory.

9. If you have additional transmitters (up to 4) that need to be programmed,

repeat step 8 for each transmitter.

10. Press and release the valet push-button switch once.

11. ThedashLEDwillflashthreetimes,andthesoundingdevicewillbeepthree

times, indicating the system is ready to accept programming for receiver's

channel 3.

12. Press and hold the selected Option transmitter button until the sounding

deviceemitsalongbeep,indicatingthesignalhasbeenstoredintomemory.

13. If you have additional transmitters ( up to 4 ) that need to be programmed,

repeat step 12 for each transmitter.

128-6122

3 of 4

14. Press and release the valet push-button switch once.

15. The dash LED will flash four times, and the sounding device will beep four

times, indicating the system is ready to accept programming for receiver's

channel 4.

16. Press and hold any button combination as shown on the front cover of this

guide until the sounding device emits a long beep, indicating the signal has

been stored into memory.

17. If you have additional transmitters (up to 4) that need to be programmed,

repeat step 16 for each transmitter.

18. Press and release the valet push-button switch once.

19. The dash LED will flash four times, and the sounding device will beep four

times, indicating the system is ready to accept programming for receiver's

channel 5.

20. Press andholdanyunusedbutton combinationasshownon thefrontcover

ofthisguideuntilthesoundingdeviceemitsalongbeep,indicatingthesignal

has been stored into memory.

21. If you have additional transmitters (up to 4) that need to be programmed,

repeat step 20 for each transmitter.

22. Turn the ignition key off. The sounding device will emit one short beep

followedbyonelongbeepindicatingthesystemhasterminatedtheprogram

mode. TRANSMITTERBATTERYREPLACEMENT

You will notice a decrease in transmitter range as the battery condition

deteriorates. Transmitter battery replacement is recommended at least every

10 to 12 months, depending upon how frequently the transmitter is used.

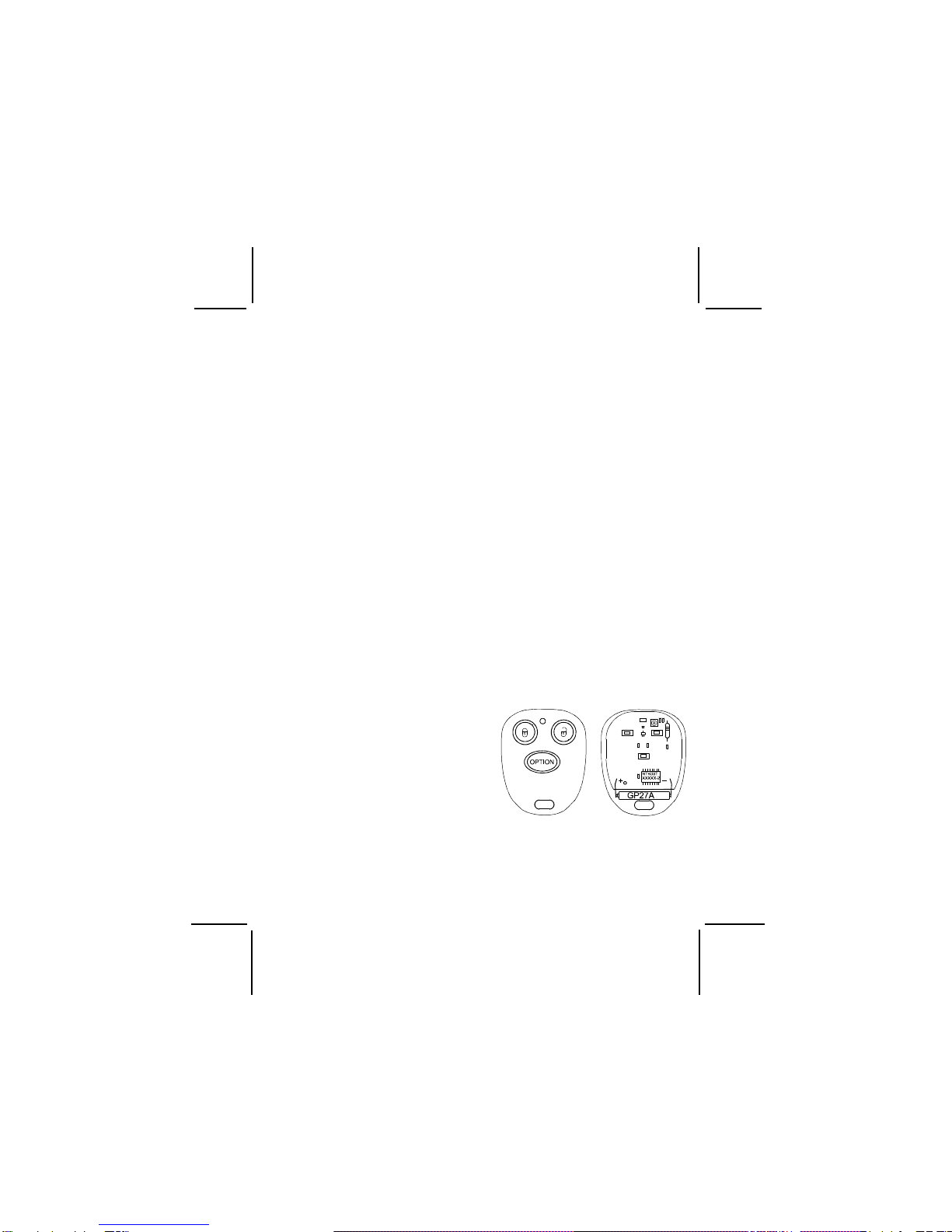

The transmitter has a small LED visible

through the case. This LED can be used

to indicate battery condition. If the LED

does not illuminate, then the battery is

discharged, and must be replaced.

To replace the transmitter battery,

1. Remove the small phillips head screws

from the bottom cover of the transmitter.

2. Carefully unsnap the top cover of the transmitter from the bottom cover.

3. Remove the discharged battery, making note of the location of the + and -

contacts, and replace with a new type GP 27A 12 volt battery.

4. Replacethetransmittercover,takingcarenottodamagetheLEDorswitches

on the circuit board, and secure with the small phillips head screw.

128-6122

4 of 4

ORDER FORM FOR 3 BUTTON TRANSMITTER

MODEL NO. PRO-OE3B4

IMPORTANT: To help us expedite your order, please print all of the information legibly,

and mail this form and your payment according to the instructions below.

Note: Order Pad # 70 if your Lock & Unlock Icons are White

Order Pad # 71 if your Lock & Unlock Icons are Red.

Note: Transmitter model number found on back of case. ___________

1. Name : ____________________________________________________

Address: _____________________________________________________

City : _____________________ State : _______ Zip Code : ____________

2. Telephone Number : ( _______ ) _______________________________

3. Enter the total number of transmitters required here : ________________

4.List model number ofyour actual transmitter pad as shown on page 4 of this

manual: _________________________

5. The cost per transmitter is $ 65.00.

6. Enter the total amount enclosed here : ____________________________

(New York State residents must include the appropriate sales tax.)

7. Method of payment; check one of the boxes below.

!Mastercard !Visa !Check or money order * ( do not send cash )

* Make checks payable to Audiovox Corporation

8. Credit Card Number : ________________________________________

9. Credit Card Expiration Date : _____________________

Credit card purchasers can order additional or replacement

transmittersbyphone. Simplydial1-800-645-4994andfollow

the instructions from the operator interface.

10. Mail this form, and your check, to :

Audiovox Electronics Corp., 150 Marcus Blvd. Hauppauge, N.Y., 11788

Attn.:TRANSMITTERDEPARTMENT
