ECM-US15WP

3.5" Intel® Atom™ processor Z510P / Z530P Micro Module

Quick Installation Guide

1st Ed – 11 September 2009

ECM-US15WP Quick Installation Guide

2 ECM-US15WP Quick Installation Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time.

For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

A Message to the customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Quick Installation Guide

ECM-US15WP Quick Installation Guide

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Headquarters and Branch

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei, Taiwan

Tel: +886-2-8226-2345 Fax: +886-2-8226-2777

Information: [email protected] Service:[email protected]

Avalue USA Avalue Europe

Avalue Technology Inc.

200 Tornillo Way, Suite 210, Tinton Falls,

NJ 07712

Tel: +1-732-578-0200

Fax: +1-732-578-0250

Information: [email protected]

Service: [email protected]

Avalue Europe A/S

Moelledalen 22C, 3140

Aalsgaarde, Denmark

Tel: +45-7025-0310

Fax:+45-4975-5026

Information: [email protected]

Service: [email protected]

BCM Advanced Research Avalue China

BCM Advanced Research

an Avalue Company

7 Marconi, Irvine, CA92618

Tel: +1-949-470-1888

Fax: +1-949-470-0971

Information: BCMSales@bcmcom.com

Web: www.bcmcom.com

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,

Caohejing Development Area,

Xuhui District, Shanghai

Tel: +86-21-5169-3609

Fax:+86-21-5445-3266

Information: sales.china@avalue.com.cn

Service: [email protected]

ECM-US15WP Quick Installation Guide

4 ECM-US15WP Quick Installation Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Always note that improper disassembling action could cause damage to the

motherboard. We suggest not removing the heatsink without correct

instructions in any circumstance. If you really have to do this, please contact

us for further support.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following materials have been shipped:

z1 x Intel® US15WP Micro Module

z1 x Quick Installation Guide for ECM-US15WP

z1 x SDVO to VGA daughter board

z1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

— Ethernet driver and utilities

— VGA drivers and utilities

— Audio drivers and utilities

z1 x Cable set contains the followings:

— 1 x VGA cable (DB 15P(F) – 10P/2.0mm)

— 1 x IDE cable (44-pin, pitch 2.0mm)

— 1 x Serial ATA cables (7-pin, standard)

— 1 x PS/2 Keyboard & mouse Y cable (7-pin, Mini-DIN)

Quick Installation Guide

ECM-US15WP Quick Installation Guide

2. Hardware

Configuration

ECM-US15WP Quick Installation Guide

6 ECM-US15WP Quick Installation Guide

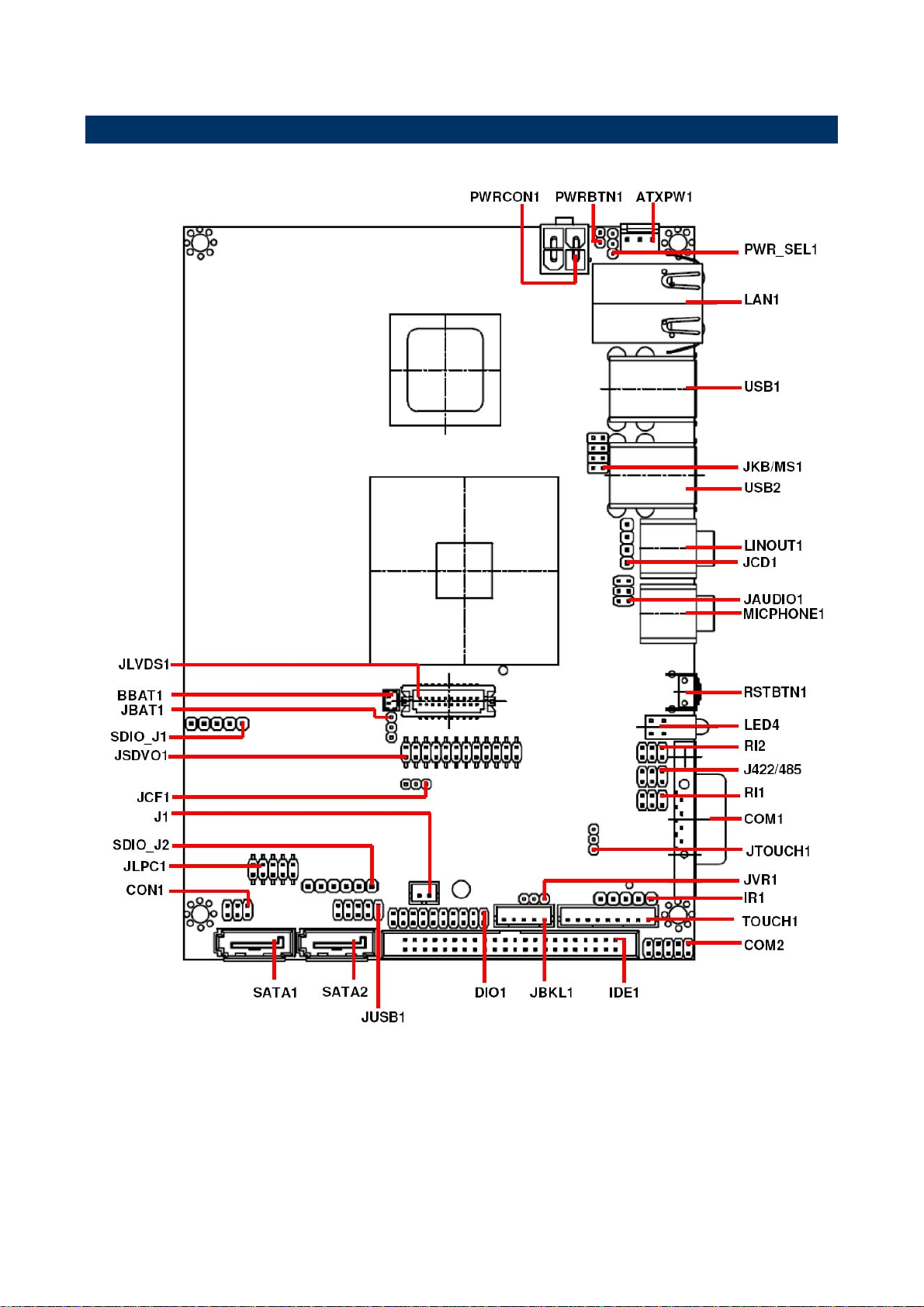

2.1 Product Overview

Quick Installation Guide

ECM-US15WP Quick Installation Guide

2.2 Jumper and Connector List

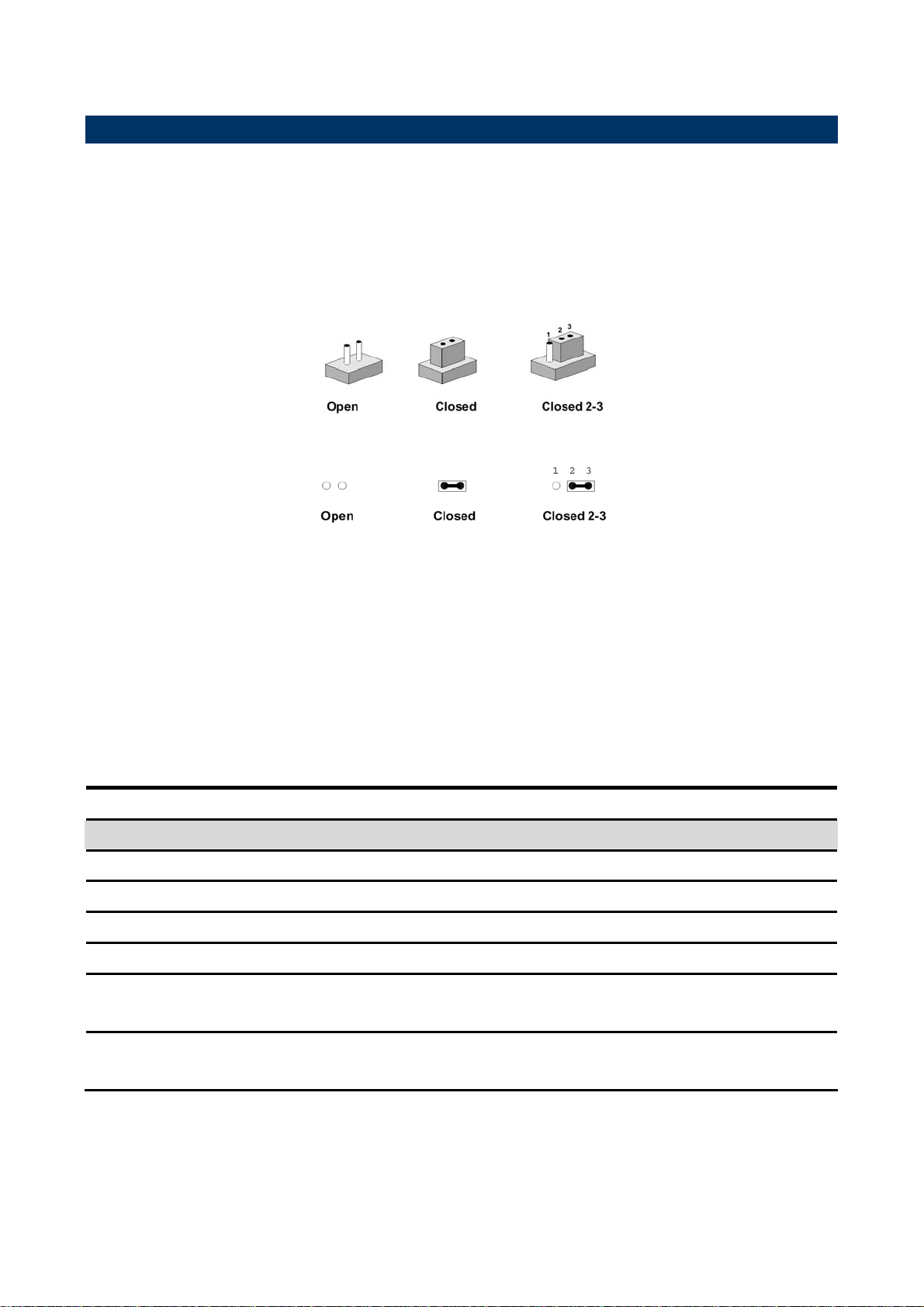

You can configure your board to match the needs of your application by setting jumpers. A

jumper is the simplest kind of electric switch.

It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.

Connectors on the board are linked to external devices such as hard disk drives, a

keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to

configure your system to suit your application.

If you have any doubts about the best hardware configuration for your application, contact

your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board’s jumpers and connectors.

Jumpers

Label Function Note

JBAT1 Clear CMOS 3 x 1 header, pitch 2.0mm

JCF1 CF card mode select 3 x 1 header, pitch 2.0mm

JTOUCH1 Touch panel mode select 3 x 1 header, pitch 2.0mm

PWR_SEL1 AT/ATX power mode select 3 x 1 header, pitch 2.0mm

RI1 Serial port 1 – Ring, +5V, +12V power

select 3 x 1 header, pitch 2.0mm

RI2 Serial port 2 – Ring, +5V, +12V power

select 3 x 1 header, pitch 2.0mm

ECM-US15WP Quick Installation Guide

8 ECM-US15WP Quick Installation Guide

Connectors

Label Function Note

ATXPW1 ATX power connector 3 x 1 wafer, pitch 2.54mm

BBAT1 Battery connector 2 x 1 wafer, pitch 1.25mm

COM1 Serial port1 connector D-sub 9-pin, male

COM2 Serial port 2 connector 5 x 2 header, pitch 2.0mm

DIO1 Digital Input/ Output connector 10 x 2 header, pitch 2.0mm

IDE1 Primary IDE connector 22 x 2 header, pitch 2.0mm

IR1 IrDA connector 5 x 1 header, pitch 2.54mm

J1 LCD inventer power connector 2 x 1 wafer, pitch 2.54mm

J422/485 Serial port 2 in RS-422/485 mode

connector 3 x 2 header, pitch 2.0mm

JAUDIO1 Audio connector 3 x 2 header, pitch 2.0mm

JBKL1 LCD inverter connector 5 x 1 wafer, pitch 2.0mm

JCD1 CD-ROM audio input connector 4 x 1 header, pitch 2.54mm

JKB/MS1 PS/2 Keyboard & Mouse connector 4 x 2 header, pitch 2.0mm

JLPC1 (Reserved for BIOS programming) 3 x 2 header, pitch 2.0mm

JLVDS1 LVDS connector HIROSE DF13-200P-1.25C

JSDVO1 SDVD port connector 12 x 2 header, pitch 2.0mm

CON1 (Reserved for BIOS programming) 5 x 2 header, pitch 2.0mm

JUSB1 USB 5&6 connector 5 x 2 header, pitch 2.0mm

JVR1 LCD backlight brightness adjustment 3 x 1 header, pitch 2.0mm

LAN1 RJ-45 Ethernet connector

LED4 Power & HDD indicator

LINEOUT1 Audio out connector

MICPHONE1 MIC connector

PWRBTN1 Power button connector 2 x 1 header, pitch 2.0mm

PWRCON1 Power connector 2 x 2 wafer, pitch 4.2mm

RSTBTN1 Reset button

SATA1 SATA 1 connector

SATA2 SATA 2 connector

SDIO_J1 SDIO connector 5 x 1 header, pitch 2.54mm

SDIO_J2 SDIO connector 6 x 1 header, pitch 2.54mm

USB1 USB 2&3 connector Double deck

USB2 USB 0&1 connector Double deck

Quick Installation Guide

ECM-US15WP Quick Installation Guide

2.3 Setting Jumpers & Connectors

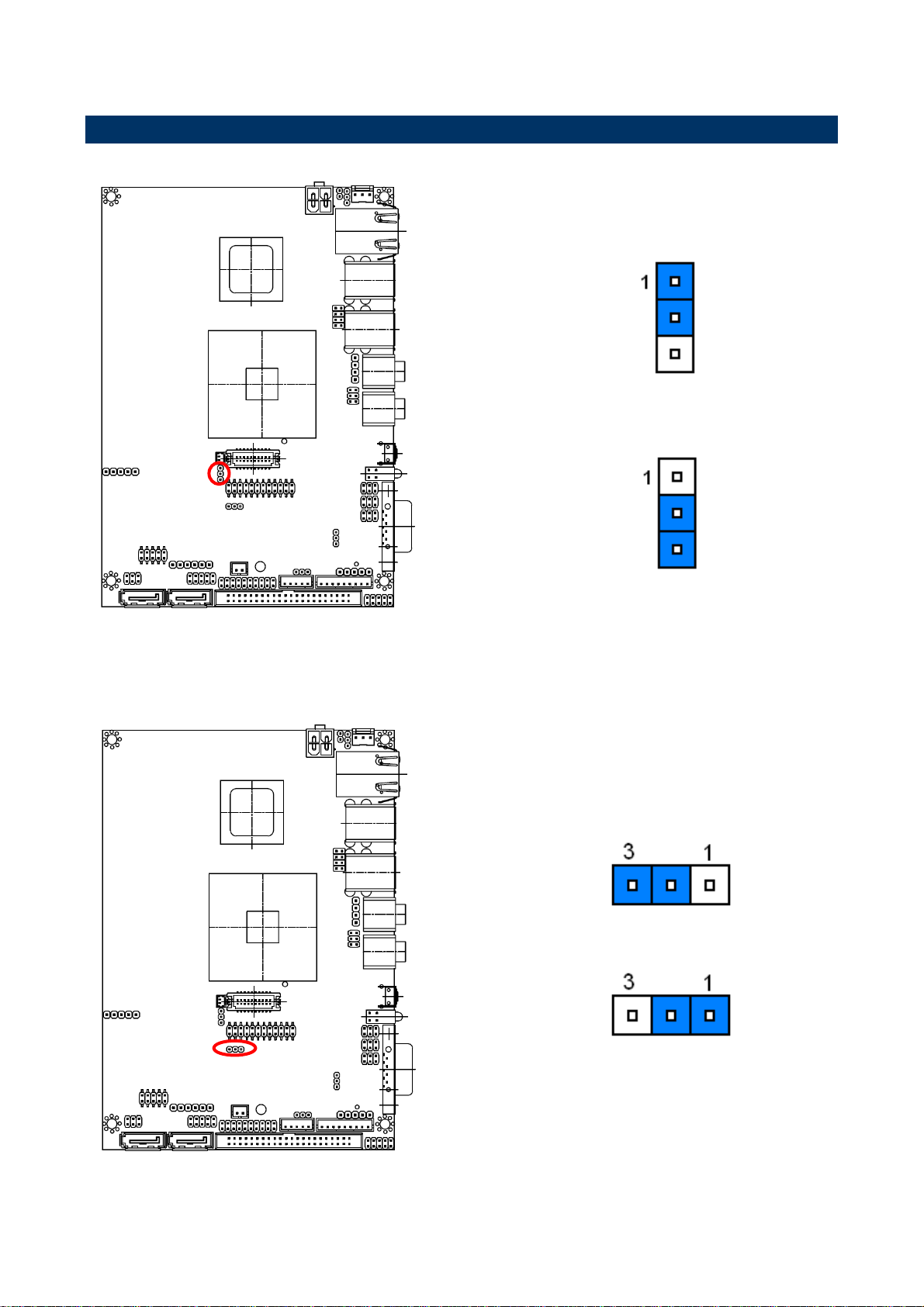

2.3.1 Clear CMOS (JABT1)

* Default

Protect*

Clear CMOS

2.3.2 CF Card mode select (JCF1)

* Default

Master *

Slave

ECM-US15WP Quick Installation Guide

10 ECM-US15WP Quick Installation Guide

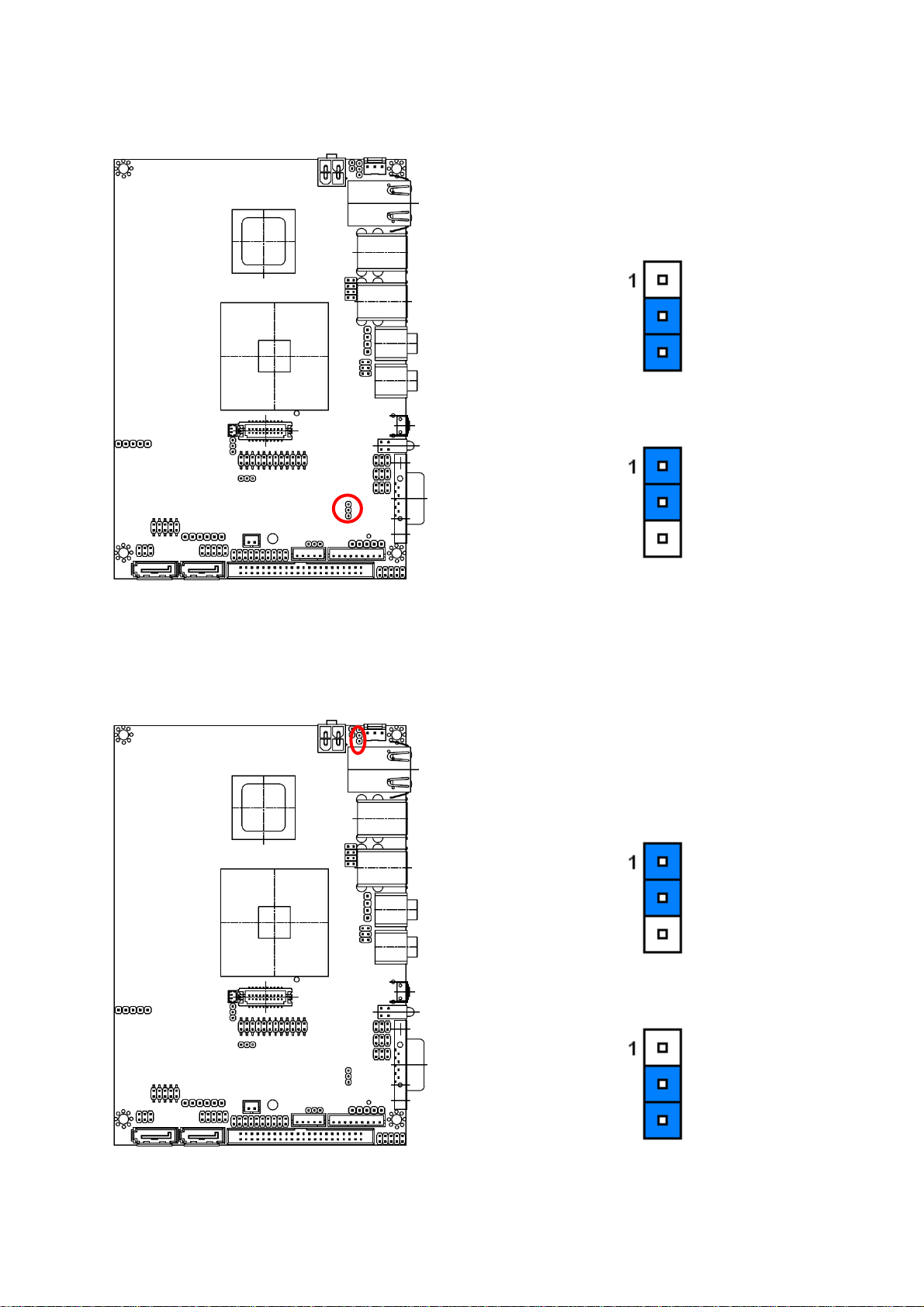

2.3.3 Touch Panel mode select (JTOUCH1)

* Default

4/8-Wire*

5-Wire

2.3.4 AT/ATX power mode select (PWR_SEL1)

* Default

AT *

ATX
