Avalue Technology EMX-A55E Manuale utente

Part No. E2017XA5500R

EMX-A55E

AMD G-Series™APU with A55E Controller Hub(FCH)

Mini-ITX Motherboard

Quick Installation Guide

1st Ed –29 June , 2011

EMX-A55E

2 EMX-A55E Quick Installation Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

Quick Installation Guide

EMX-A55E Quick Installation Guide 3

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

If you still cannot find the answer, gather all the information or questions that apply to your

problem, and with the product close at hand, call your dealer. Our dealers are well trained

and ready to give you the support you need to get the most from your Avalue’s products. In

fact, most problems reported are minor and are able to be easily solved over the phone.

In addition, free technical support is available from Avalue’s engineers every business day.

We are always ready to give advice on application requirements or specific information on

the installation and operation of any of our products. Please do not hesitate to call or e-mail

us.

Headquarters and Branch

Avalue USA

Avalue Technology Inc.

7F, 228, Lian-cheng Road, Chung Ho City, Taipei,

Taiwan

Tel:+886-2-8226-2345

Fax: +886-2-8226-2777

Information:sales@avalue.com.tw

Service: service@avalue.com.tw

Avalue Technology Inc.

9 Timber Lane, Marlboro, NJ 07746-1443

Tel: (732) 414-6500

Fax: (732) 414-6501

Information: sales@avalue-usa.com

Service: support@avalue-usa.com

BCM Advanced Research

Avalue Europe

BCM Advanced Research

an Avalue Company

7 Marconi, Irvine, CA92618

Tel: +1-949-470-1888

Fax: +1-949-470-0971

Information: BCMSales@bcmcom.com

Web: www.bcmcom.com

Avalue Europe A/S

Moelledalen 22C, 3140

Aalsgaarde, Denmark

Tel: +45-7025-0310

Fax:+45-4975-5026

Information: sales.e[email protected].tw

Service: service.europ[email protected].tw

Avalue China

Avalue Japan

Avalue Technology Inc.

Room 805, Building 9,No.99 Tianzhou Rd.,

Caohejing Development Area,

Xuhui District, Shanghai

Tel: +86-21-5169-3609

Fax:+86-21-5445-3266

Information: sales.chi[email protected].cn

Service: service@avalue.com.tw

Avalue Technology Inc.

2F keduka-Bldg, 2-27-3 Taito,

Taito-Ku, Tokyo 110-0016 Japan

Tel: +81-3-5807-2321

Fax: +81-3-5807-2322

Information: sales.japa[email protected].tw

Service: service@avalue.com.tw

EMX-A55E

4 EMX-A55E Quick Installation Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surge. Only experienced electronics personnel should open

the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Always note that improper disassembling could damage to the

motherboard. We suggest not to, in any circumstance remove the heatsink

without the correct instructions. If you really have to do it, please contact us

for further support.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following items have been shipped:

1 x EMX-A55E Mini ITX Main board

1 x CD-ROM contains OS drivers

1 x CPU Cooler

1 x SATA cable

1 x I/O Shield

1 x Startup Manual

Quick Installation Guide

EMX-A55E Quick Installation Guide 5

2. Hardware

Configuration

EMX-A55E

6 EMX-A55E Quick Installation Guide

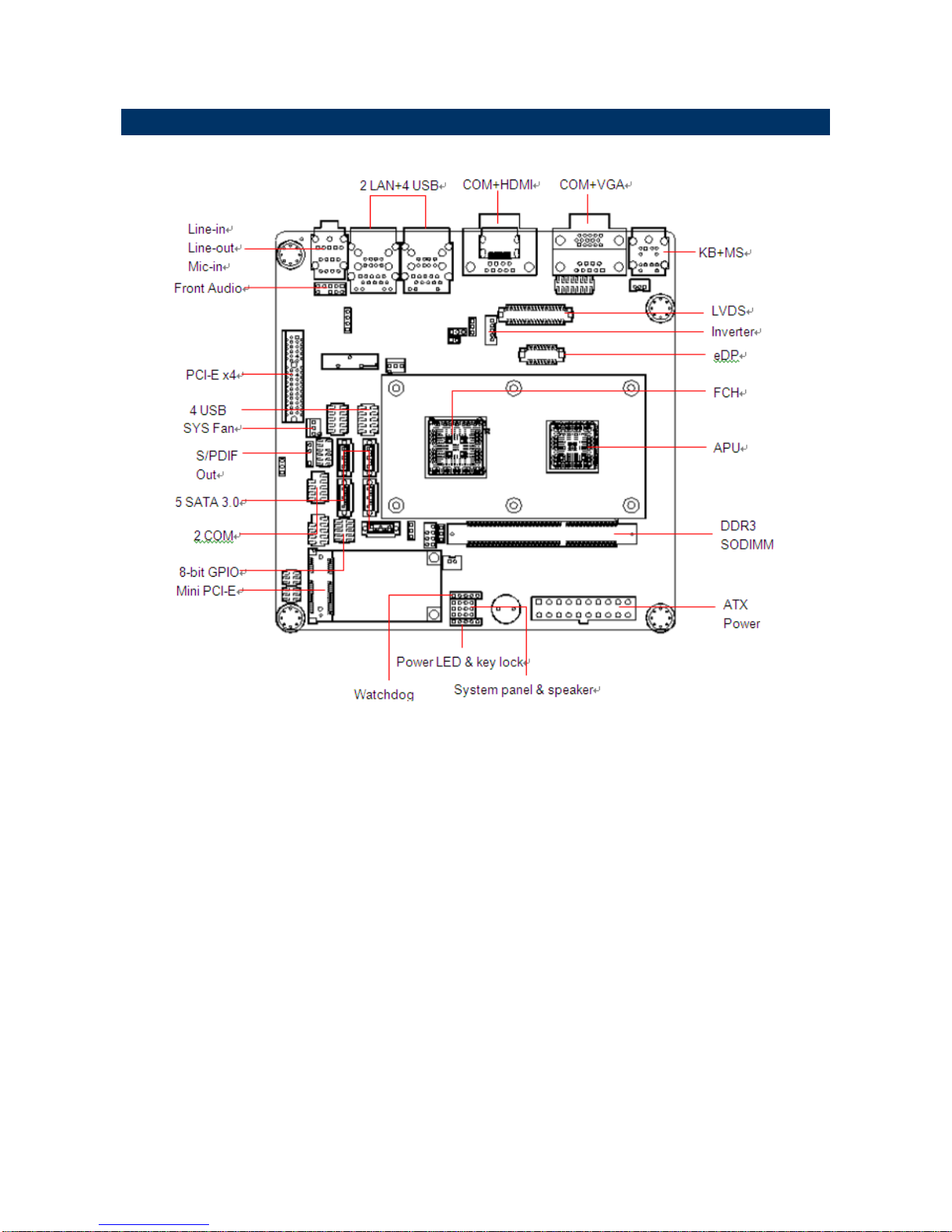

2.1 Product Overview

Quick Installation Guide

EMX-A55E Quick Installation Guide 7

2.1 Specifications

APU

G-Series

APU Type

AMD G-Series T56N 1.6GHz DC /T40N 1.0GHz DC

Processor Family

AMD G-Series

Long Life Processor List

TDP 5~18W, T shutdown 125℃

Package

FT1 (BGA) 413 balls p=0.8mm, 19x19 mm

L2 Cache

L1: 32KB+32KB per core, L2: 512KB cache per core

UMI

4-Lane(x4) PCIe gen2

Power Management

C6 supported

PCIE

4-Lane(x4) PCIe gen2

CPU Process

40 nm

System Memory

Memory Type

One DDR3 1066 SODIMM

DIMM #

1x SODIMM 204Pin/ Single Channel

Max. Capacity

4 GB

Chipset

FCH

Fusion Controller Hub

AMD A55E Controller Hub (Hudson-E1)

PCIe

x4 Gen 2

USB

8 USB 2.0 (4 Rear, 4 Internal)

SMBus

Yes

LPC

Yes

SATA

5 SATA 3.0 (One support SATADOM)

PCI

N/A

HD Audio

support 4 channel, Power Saving, 4 codec

Clock Gen.

Integrated

Package

FCBGA 23x23mm, 605 balls

Environment

TDP 2.7~5.7W, T case 105℃

Display

Integrated Graphic Controller

ATI Radeon™ HD 6320 (T56N)/ HD 6290 (T40N) Graphics Engine

supports

HW decoder

H.264, VC-1, MPEG-2 and DivX decode

3D feature

DirectX 11, OpenGL 4.0, dedicated hardware (UVD 3.0)

LVDS

1, 18bpp (Single link LVDS up to 1400 x 1050)

VGA

T56N (18W) supports up to 2560 x 1600

T40N (9W) supports up to 1920 x 1200

EMX-A55E

8 EMX-A55E Quick Installation Guide

HDMI

1 support HDMI 1.3a & 1080p up to 1920 x 1080

Dual Display

VGA+LVDS, VGA+HDMI, HDMI+LVDS

Gigabit Ethernet

Chipset

LAN1 RTL 8111DL Gigabit LAN

LAN2 RTL 8111DL Gigabit LAN

LAN LED

Left: Link (Off)/ Active (Flash Yellow)

Right: 1Gbps(Green) / 100Mbps (Orange) / 10Mbps (Off)

Disable LAN through BIOS

Yes

WOL

Yes

Boot from LAN

Yes

ASF

N/A

Audio

Codec

7.1 Channel HD Audio

Chipset

Realtek ALC892

Audio output header

Yes, Front Audio Pin Header

Front IO Connector

Stack Phone Jack (Mic In, Line-out, Line-in)

SPDI/F

Yes

Amplifier

TI TPA3005

RS232 COM

LPC to COM

2 COM for Rear I/O D-Sub

2 COM with headers

Super I/O

Chipset

Winbond W83627DHG-P

Fan speed monitor & control

FAN Speed Control by Thermal Sensor

Temperature

Yes

Voltage

3.3V, +5V, 5Vsb, +12V, -12V

Buzzer

Onboard buzzer

Yes

WDT

Watchdog Timer

Programmable 1~255 sec/min

TPM

Onboard TPM1.1/1.2 By Infineon SLB9635 (Optional)

BIOS

BIOS Core

AMI EFI

BIOS Flash

16Mb SPI

Quick Installation Guide

EMX-A55E Quick Installation Guide 9

SW RAID

None

Bootup Device

Serial ATA

Yes (CFast)

IDE device

N/A

USB device

Yes

Boot from LAN

Yes

Power Management

ACPI

ACPI 3.0

APM

Sleep State

S3, S4, S5

Other Feature

PC Health

YES

CMOS backup

BIOS CMOS automatic backup and restore setup data

SmartFAN

CPU, SYS FAN, Smart Fan III+

Graphics memory mode

Shared Memory up to 2GB

Power Play

380, 200MHz, configure Power to 2.7~5.7W

SATA

Support SATA III(6Gbps)

Internal Connector

Debug Port

CPU

HDT header

SPI

Display

LVDS

eDP

1, (optional)

Inverter

LVDS INV

3.3 V

Audio

Front Panel

Amplifier

SPDI/F

USB

Serial

COM

IDE

EMX-A55E

10 EMX-A55E Quick Installation Guide

SATA

5 (SATA III 6 Gb/s)

SATA power

Fan connector

System fan connector

1 system fan(3pin for system with smart fan control)

CPU fan connector

1 CPU fan(3pin for system with smart fan control)

GPIO

General

8bit

Front I/O

Display

HDMI

VGA

1, co-layout with header

DVI

Ethernet

RJ-45

2, stack with USB

USB

4 (USB 2.0 port)

COM

Serial port

2* RS-232

PS/2

KB/MS

2, co-lay single DIN

Audio

Phone Jack

1 Line-in

1 Line-out

1 MIC

co-lay 1 jack connector

Power Connector

Power Type

AT/ATX

Power Requirement

+3.3V, +5V, +12V, -12V, 5Vsb

LED Indicator

LED

HDD Status

4; alive, green; dead, red

4; access, flash yellow

Power on rear IO

1; Blue

Expansion Slot

Mini-PCI Express

PCIex 4

Altri manuali per EMX-A55E

Indice

Altri manuali Avalue Technology Scheda madre

Avalue Technology

Avalue Technology RSC-IMX61 Manuale utente

Avalue Technology

Avalue Technology ACP-IMX6POS-B1 Manuale utente

Avalue Technology

Avalue Technology EMX-CDD Manuale utente

Avalue Technology

Avalue Technology EAX-Q67 Manuale utente

Avalue Technology

Avalue Technology EMX-CDV Manuale utente

Avalue Technology

Avalue Technology EAX-C246P-B1 Manuale utente

Avalue Technology

Avalue Technology EAX-915GV Manuale utente

Avalue Technology

Avalue Technology BBM-BSW A2 Manuale utente

Avalue Technology

Avalue Technology ECM-PNV Manuale utente

Avalue Technology

Avalue Technology EMX-H61 Manuale utente

Avalue Technology

Avalue Technology EAX-C236KP Manuale utente

Avalue Technology

Avalue Technology EMX-C246P-B1 Manuale utente

Avalue Technology

Avalue Technology EAX-H110KP Manuale utente

Avalue Technology

Avalue Technology EAX-C246P Manuale utente

Avalue Technology

Avalue Technology EMX-CDT Manuale utente

Avalue Technology

Avalue Technology EMX-Q170KP-B1R Manuale utente

Avalue Technology

Avalue Technology ERX-G41 Manuale utente

Avalue Technology

Avalue Technology EAX-Q170P Manuale utente

Avalue Technology

Avalue Technology EMX-A55E Manuale utente

Avalue Technology

Avalue Technology EAX-Q87R Manuale utente

Avalue Technology

Avalue Technology ERX-H61 Manuale utente

Avalue Technology

Avalue Technology EPI-QM87R Manuale utente

Avalue Technology

Avalue Technology ERX-H110KP Manuale utente

Avalue Technology

Avalue Technology ECM-US15WP Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
