Operator's Handbook

28028 28028

0 0

TC9415MCDOH Rev. AH 7/09

Monarch 9415™

Food Freshness System

Each product and program carries a respective written warranty, the

only warranty on which the customer can rely. Avery Dennison

reserves the right to make changes in the product, the programs,

and their availability at any time and without notice. Although Avery

Dennison has made every effort to provide complete and accurate

information in this manual, Avery Dennison shall not be liable for

any omissions or inaccuracies. Any update will be incorporated in a

later edition of this manual.

this publication may be reproduced, transmitted, stored in a retrieval

system, or translated into any language in any form by any means,

without the prior written permission of Avery Dennison.

WARNING

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own

expense.

CANADIAN D.O.C. WARNING

This digital apparatus does not exceed the Class A limits for

radio noise emissions from digital apparatus set out in the

Radio Interference Regulations of the Canadian Department of

Communications. Le présent appareil numérique n’émet pas

de bruits radioélectriques dépassant les limites applicables

aux appareils numériques de la classe A prescrites dans le

Réglement sur le brouillage radioélectrique édicte par le

ministère des Communications du Canada.

Trademarks

Monarch® and 9415 are trademarks of Avery Dennison Retail

Information Services LLC.

Avery Dennison® is a trademark of Avery Dennison Corp.

McDonald’s® is a trademark of McDonald’s Corp.

Avery Dennison Printer Systems Division

170 Monarch Lane

Miamisburg, OH 45342

TABLE OF CONTENTS

GETTING STARTED .......................................................... 1-1

Using This Manual ....................................................... 1-1

Audience .................................................................... 1-1

Unpacking the Freshness System .................................. 1-2

Installing the System.................................................... 1-3

Connecting the System’s Power Supply.......................... 1-4

Loading Labels ............................................................ 1-5

PRINTING LABELS ........................................................... 2-1

About the System ........................................................ 2-2

Calibrating the Touch Screen ........................................ 2-3

Printing Freshness Labels ............................................ 2-4

Printing Use First Labels .............................................. 2-6

Sleep Mode................................................................. 2-6

Configuring the System ................................................ 2-7

USING EDIT MODE ........................................................... 3-1

Entering Edit Mode ...................................................... 3-2

Adding and Removing Products..................................... 3-3

To add a product: ..................................................... 3-4

To remove a product: ................................................ 3-5

Editing Product Descriptions ......................................... 3-6

Editing Home Keys....................................................... 3-7

Saving Product Changes .............................................. 3-8

Exiting Edit Mode......................................................... 3-9

CHANGING PRINTER SETTINGS ........................................4-1

Setting the Time and Date.............................................4-2

Adjusting the Touch Screen...........................................4-4

Selecting a Language ...................................................4-5

Changing the Password ................................................4-6

Adjusting the Distance to Tear Bar.................................4-7

Adjusting the Print Position ...........................................4-8

USING THE EDIT UTILITY..................................................5-1

Installing the Edit Utility................................................5-2

Configuring the Network Settings...................................5-3

On the printer: ..........................................................5-3

On your computer: ....................................................5-5

Uploading the Data File ................................................5-6

Editing the Data File.....................................................5-7

To edit product buttons:.............................................5-7

To edit home keys:....................................................5-8

Updating with USB .......................................................5-9

Killing Data Files........................................................5-11

Reading Data Files.....................................................5-13

Updating with Ethernet ...............................................5-14

Updating the Data File.............................................5-14

Updating the Application..........................................5-14

CARE & MAINTENANCE ....................................................6-1

Clearing Label Jams.....................................................6-2

Cleaning the Printhead .................................................6-3

Cleaning the Touch Screen Display................................6-4

Cleaning the System.....................................................6-4

iii

TROUBLESHOOTING ........................................................ 7-1

Technical Support........................................................ 7-3

SPECIFICATIONS .............................................................A-1

System Specifications ..................................................A-1

Getting Started 1-1

GETTING STARTED

Use the Monarch9415™ Food Freshness

System (M0TPMCD) for product freshness and to

label inventory.

Information in this document supercedes information

in previous versions. Check our Web site for the latest

documentation and release information.

Using This Manual

Following is a summary of the contents of this manual.

Chapter Contents

1 Getting Started Unpacking and installing the

printer and loading supplies.

2 Printing Labels Printing labels and configuring

the printer.

3 Using Edit Mode Making changes to the product

menu.

4 Changing Printer

Settings

Setting time and date, language,

password, print position, etc.

5 Using the Edit

Utility

Installing and using the Edit

Utility, and updating the printer

with USB.

6 Care &

Maintenance

Clearing supply jams and

cleaning the printer.

7 Troubleshooting Common problems and their

solutions.

A Specifications Printer specifications.

Audience

The Operator's Handbook is for the person who prints

and applies labels, and configures and updates the

Food Freshness System.

1-2Operator’s Handbook

Unpacking the Freshness System

After you unpack the system, you should have the

following:

♦ 9415 system

♦ power supply

♦ 4 wall anchors

♦ wall mount template

Keep all packaging material in case you need to move

or return the system.

Caution: Do not touch the electrical connectors

while setting up the system. Static

electricity can damage or destroy the

electronic components.

Getting Started 1-3

Installing the System

To install the system on the wall:

1. Select a suitable location for the system on a wall.

Leave enough room on the left side to connect a

USB drive for updating.

2. Tape the wall mount template to the wall in the

selected location.

Caution: The template must be level or the system

will not install correctly.

3. Install the four wall anchors according to the four

outside holes indicated on the template.

4. Remove the template.

5. Lower the supply door on the system so you can

see the mounting holes on the back.

6. Attach the system to the wall anchors using the

corresponding holes on the back of the system.

7. Press down firmly on the system to lock it in

place.

8. Close the supply door.

1-4Operator’s Handbook

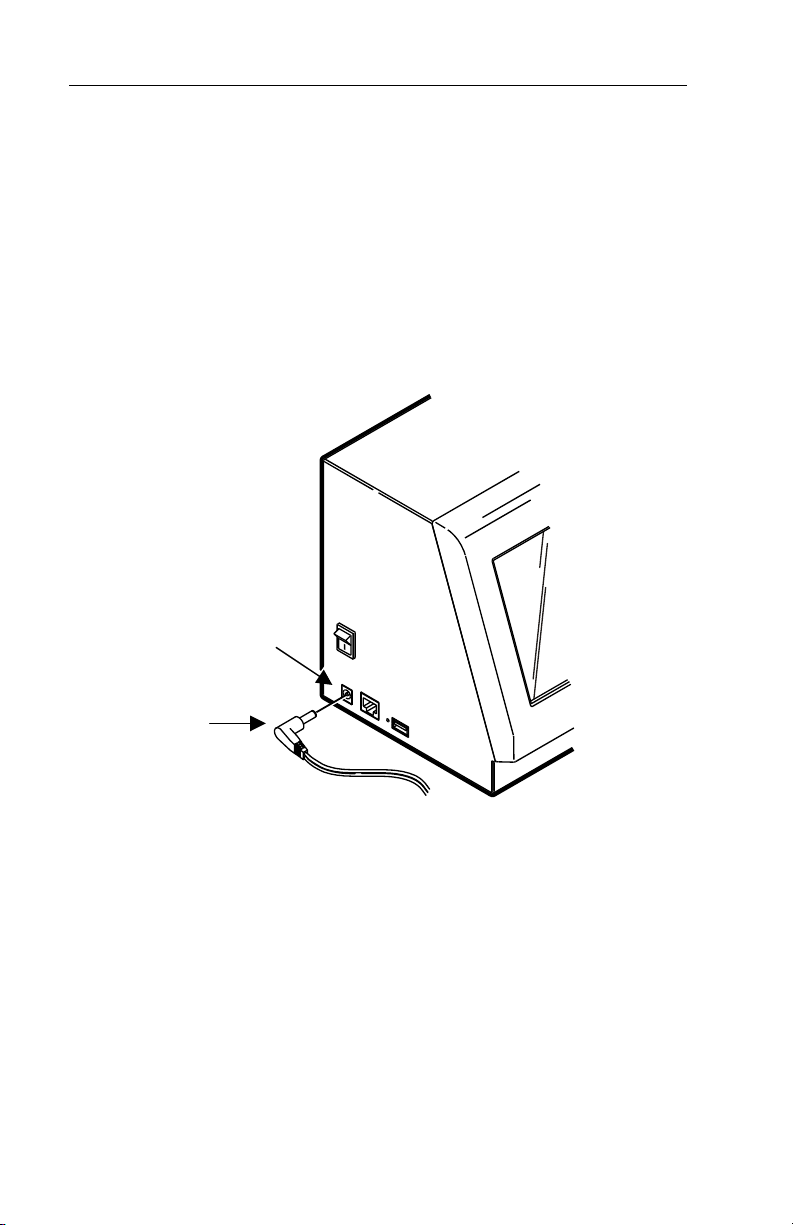

Connecting the System’s Power Supply

To connect the power supply to the system:

1. Turn off the system. Press the power switch on

the side of the system to the off (O) position.

2. Place the power supply in a suitable location,

preferably on a table, near an electrical outlet.

3. Plug the three-hole end of the AC adapter cable

into the three-pronged outlet in the system’s

power supply.

4. Plug the L-shaped end of the power supply cable

into the socket on the side of the system.

5. Plug the three-pronged end of the AC adapter

cord into a grounded electrical outlet.

Warning: The system and power supply should

never be operated in a location where

either one can get wet. Personal injury

could result.

Power socket

L-Shaped

Connector
