Avery Dennison AP5.4 Manuale utente

05/10 Version 5.05-00 USER MANUAL

AP5.4 – AP5.6

Commissioning and Operation

Installation ..................................................... 2

Unpacking and setting up the printer ........ 2

Checking the shipment ..............................3

Product description ....................................... 5

Operating controls on

AP5.4/5.6 “basic” and “peripheral” ............ 5

Operating controls on

AP5.4/5.6 dispenser ................................. 7

Functionality of AP5.4/5.6 dispenser ........ 9

Ports and connections ............................. 10

Warning signs on printer ......................... 12

Operation panel ....................................... 13

Operating modes ..................................... 14

Main operating steps ...................................16

Connecting the printer .............................16

Configuring the data interface ..................17

(De)activating the internal rewinder .........17

(De)activating the dispensing edge .........19

Setting the dispenser ...............................19

Operating in offline mode .........................20

Online operation ......................................21

Creating a print job ..................................22

Transferring a print job .............................23

Using SD cards ........................................25

Setting the real-time clock .......................26

05/10 Version 5.05-00 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Installation

Unpacking and setting up the printer

[1] AP5.4 in the original packaging.

1. Remove all loose objects from the shipping box.

2. Carefully lift the printer out of the box together with the styrofoam packag-

ing.

¯Have a second person hold the box tightly.

3. Remove the styrofoam and plastic film from the printer.

¯Store the original packaging for possible shipping at a later date!

4. Place the printer on a flat surface.

¯To carry the printer, reach below the baseplate at the front and rear.

5. Open the front cover. Remove the styrofoam shipping lock from the print-

head.

6. Check that the shipment is complete, see Checking the shipment on

page 3.

WARNING!

Lethal hazard from mains power!

«Only use the device in enclosed rooms under normal ambient conditions

(office atmosphere)!

CAUTION!

To avoid damage to the printer, observe the following:

«Do not lift the printer using the plastic components on the front and rear.

«To lift the printer, do not reach below the front hood.

05/10 Version 5.05-00 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Checking the shipment

AP5.4/5.6 “basic”

AP5.4/5.6 “peripheral” Delivery:

•Printer AP5.4/5.6 including 2 pairs of core adapters [2B] and one paper

core [2A] for rewinding thermotransfer ribbon.

•Mains power cable

•Documentation CD

Contains detailed operating manual for printer as well as Windows drivers

and Servicing manual.

•Short operating manual (multilingual)

•Torx screwdriver [2C] size 10 (fastened to baseplate using adhesive tape)

•Support hooks [2D] for optional cutter (fastened to baseplate using adhe-

sive tape)

[2] AP5.6 “peripheral” in delivered state.

05/10 Version 5.05-00 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

AP5.4/5.6 “peripheral”

with cutter If you have ordered a AP5.4/5.6 “peripheral” printer with an optional cutter [3],

the cutter will be provided in a special carrier at the top of the box.

[3] The cutter, if ordered, can be found in a special carrier at the top of the printer box.

For instructions on how to assemble the cutter, see Manual Cutter 2000 ,

“Fastening, Setting Up, Servicing”.

¯The support hook needed to assemble the cutter is taped to the printer

baseplate.

AP5.4/5.6

“basic” dispenser,

AP5.4/5.6

“peripheral” dispenser

If you have ordered a AP5.4/5.6 “basic” or “peripheral” dispenser, the follow-

ing parts are delivered separately:

•Housing front part, bottom side with screw [4A]

•Flange cover with screws [4B]

•Baffle plate [4C]

The baffle plate can be installed instead of the dispensing edge. With this

option, the printer is able to internally wind up the printed material.

¯We recommend installing all of the housing parts when the printer is to be

used in the standard way without dispensing or rewinding functionality.

[4] Components delivered separately with the AP5.4/5.6 dispenser.

05/10 Version 5.05-00 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Product description

Operating controls on AP5.4/5.6 “basic” and “peripheral”

[5] Outside view of AP5.4/5.6 “peripheral”.

AControl panel

LCD screen; 4 buttons; displays operating status of printer; allows param-

eter menu settings.

BConnection for additional devices:

(Only to AP5.4/5.6 “peripheral”). This is where the optional cutter or re-

winder (AP5.4 only) is connected.

CFront cover:

Open this to insert material and the ribbon.

05/10 Version 5.05-00 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

[6] Operating controls of AP5.4/5.6.

ARibbon unwinding mandrel:

Holds the new ribbon roll

BRibbon winding mandrel

Holds the cardboard core that rewinds the spent ribbon.

CConnection flange for additional devices

You can fasten either a cutter or rewinder (AP5.4 only) here. To do this,

you first have to remove the plastic cover.

DPressure lever

Opening the pressure lever lifts the printhead. You do this to insert materi-

al/ribbon or to clean the printhead/print roller.

EMaterial unwinder

This is where you install the roll with the label material.

FMaterial strain relief

Allows the label material to unroll evenly.

GGuiding disk

Prevents material roll from sliding out sideways.

HAdapter rings

For adapting unwinder to core diameter of material roll.

05/10 Version 5.05-00 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Operating controls on AP5.4/5.6 dispenser

AP5.4/5.6 “basic” or

“peripheral” dispenser

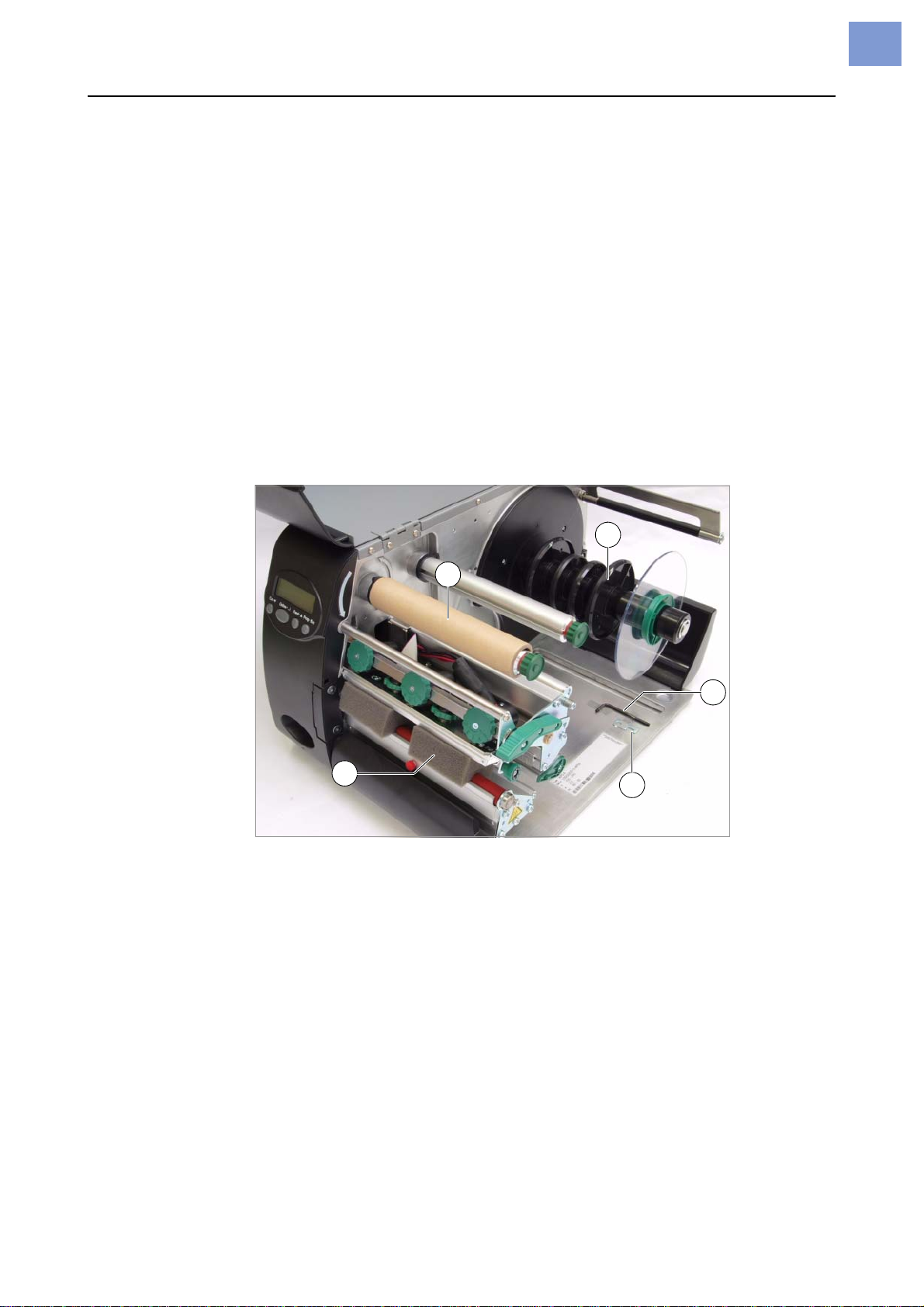

[7] Additional operating controls on AP5.4/5.6 dispenser.

ADispensing edge:

This is where the labels are separated from the backing paper.

BPlugs:

Connector for dispensing edge sensor.

CDispensing roll:

This holds the material ribbon taut over the dispensing edge.

DButton for dispensing roll:

Press the red button to remove the dispensing roll.

EDeflecting shaft:

This deflects the backing paper.

FRewinder:

This rewinds the backing paper.

05/10 Version 5.05-00 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

AP5.4/5.6 “basic” or

“peripheral”dispenser

in rewinder mode

[8] Additional operating controls of AP5.4/5.6 dispenser in rewinding mode.

ABaffle plate:

Deflects the printed labels without dispensing any of them.

BDeflecting shaft:

This deflects the labels.

CRewinder

Rewinds the label web.

05/10 Version 5.05-00 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Functionality of AP5.4/5.6 dispenser

The AP5.4/5.6 dispenser allows freshly printed labels tobe dispensed (via the

dispensing edge) or rewound in the printer enclosure (via the defelector).

•When used as a dispenser, the label material is drawn around the dispens-

ing edge and only the backing paper is rewound.

•When used as a rewinder, the printed label is guided across a baffle plate

and rewound together with the backing paper.

The electronic components in the rewinder control the tensile force on the re-

lease paper so that the same force is applied for all winding diameters. This is

controlled independently of the material width and printing speed. The control-

ler can be set automatically or manually depending on the settings in the pa-

rameter menu.

¯The manual setting is only necessary in special cases and may only be per-

formed by qualified, authorised service personnel.

After switching on the printer, the rewinder is initialised and the backing paper

is tightened.

Onceaprintjob isreceived, theprintersearchesfor thefirst labelstartmarking

at reduced printing speed. To do this, the label material is moved by at least

the distance between the label sensor and the printhead (70mm). This dis-

tance is used by the rewinder controller to calculate the diameter of the previ-

ously wound backing paper. To allow the controller to calculate the diameter

even with endless material, in this case printing also does not start until the

material has moved 70mm. The print job is carried out at the speed that has

been set in the parameter menu or as specified by the print job.

If a fault occurs during operation, the rewinder shuts off automatically.

Once the maximum diameter of the backing paper has been reached, a mes-

sage appears on the display and the rewinder shuts off automatically.

Dispenser operating

modes The following operating modes are available for the dispenser:

•Dispenser mode with dispenser sensor:

The material feed ends at the dispensing edge, i.e., the label to be dis-

pensed remains hanging on the dispensing edge(set dispensing position).

The printer waits until the label is removed before moving the next empty

label beneath the printhead and then printing and dispensing it.

•Dispenser mode with foot switch:

Pressing the foot switch releases the label for printing and dispensing. Af-

terwards, the next empty label is positioned beneath the printhead.

See (De)activating the dispensing edge auf Seite 19.

05/10 Version 5.05-00 USER MANUAL Commissioning and Operation

AP5.4 – AP5.6

Ports and connections

For instructions on how to use the network connections, see topic section “Ad-

vanced Applications”, chapter Data Transmission with Ethernet on page 18.

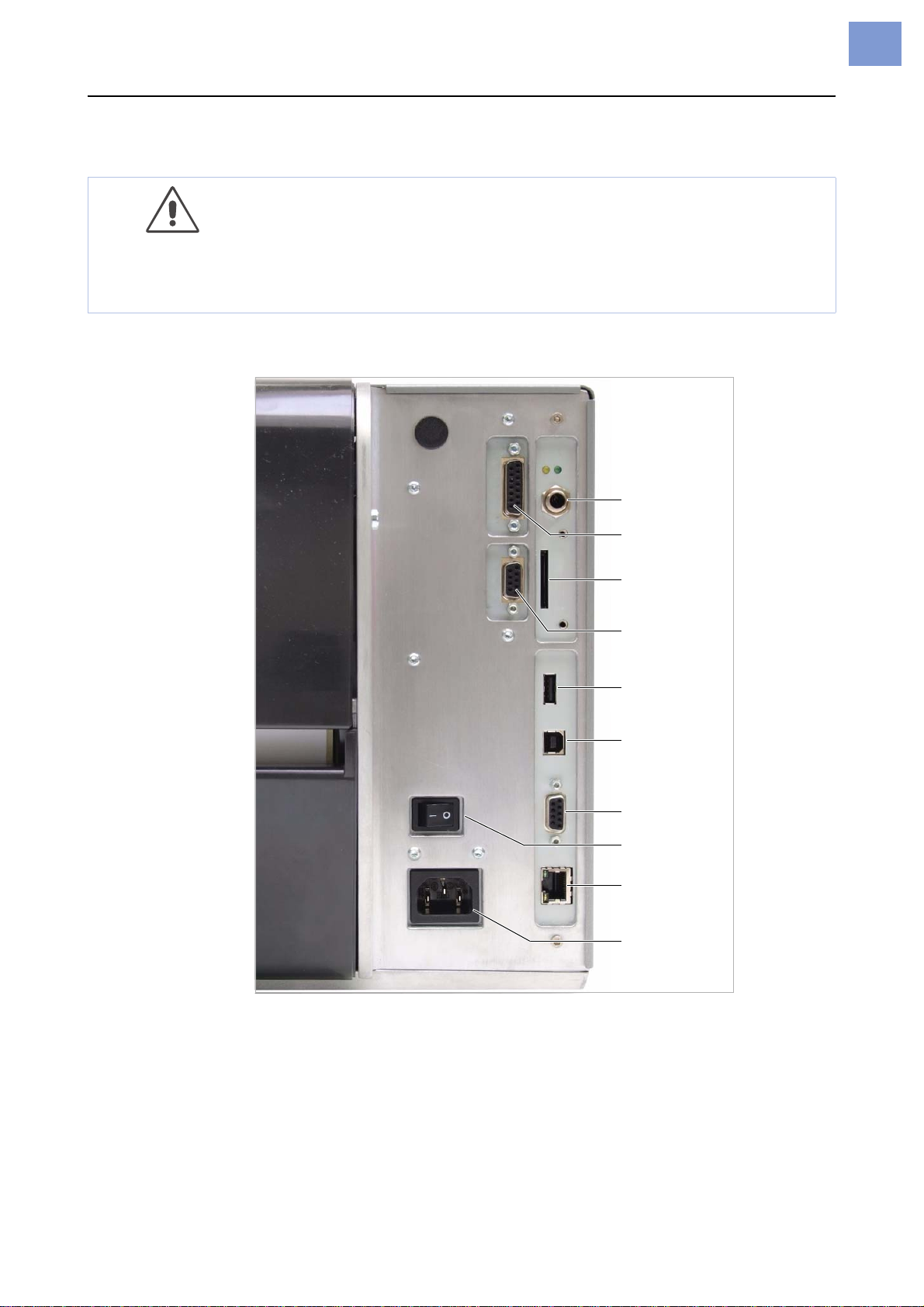

[9] The rear side of the AP5.4/5.6 with I/O board (option) installed.

AStart/stop signal input

Connections for a foot switch (signal starts printer) or stacker (signal stops

printer)

BSignal port (option)

4 inputs / 3 outputs on optionally available I/O board

CAUTION!

Using poor quality auxiliary equipment can damage the printer.

«Only connect the printer to devices that fulfil the SELV (safety extra-low

voltage) circuit requirements in accordance with EN60950.

«Only connect original accessories.

Altri manuali per AP5.4

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Avery Dennison Stampante

Avery Dennison

Avery Dennison MONARCH 9416 XL Istruzioni per l'installazione e il funzionamento

Avery Dennison

Avery Dennison Monarch 2 Manuale operativo e di manutenzione

Avery Dennison

Avery Dennison Monarch 9460 SNP Manuale di servizio

Avery Dennison

Avery Dennison Monarch 9419 Manuale utente

Avery Dennison

Avery Dennison Monarch Pathfinder Ultra Platinum 9462 Manuale utente

Avery Dennison

Avery Dennison TrafficJet Manuale utente

Avery Dennison

Avery Dennison Pathfinder 6059 Manuale di servizio

Avery Dennison

Avery Dennison Monarch SIERRA SPORT4 9493 Manuale di servizio

Avery Dennison

Avery Dennison MONARCH 9416 XL Documento tecnico

Avery Dennison

Avery Dennison FreshMarx 9417 Manuale utente

Avery Dennison

Avery Dennison Monarch ADTP1 Manuale utente

Avery Dennison

Avery Dennison Monarch Tabletop Printer 2 Manuale utente

Avery Dennison

Avery Dennison Monarch 9433 Sierra Sport3 Manuale di servizio

Avery Dennison

Avery Dennison Monarch 9493 SNP Manuale di servizio

Avery Dennison

Avery Dennison 9688 Manuale utente

Avery Dennison

Avery Dennison Monarch 9855 RFID Manuale di servizio

Avery Dennison

Avery Dennison LOKPRINT 676 Manuale utente

Avery Dennison

Avery Dennison Monarch ADTP1 Manuale utente

Avery Dennison

Avery Dennison TrafficJet Manuale utente

Avery Dennison

Avery Dennison MONARCH 9416 XL Manuale utente

Avery Dennison

Avery Dennison MONARCH 9416 XL Manuale utente

Avery Dennison

Avery Dennison Monarch Pathfinder Ultra Silver Manuale utente

Avery Dennison

Avery Dennison FRESHMARX 9415 Manuale di servizio

Avery Dennison

Avery Dennison AP7.t Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
