Avocent SWITCHVIEW PC Manuale utente

The following instructions will help you

connect your SwitchView unit.

Should you require further assistance, please

contact Avocent Technical Support.

(Optional) Powering the

SwitchView unit

Power down all computers that will be attached to your

SwitchView unit. If necessary, plug one end of the power

supply (sold separately) into the power socket on the

rear of the SwitchView unit. Plug the other end into an

appropriate AC power source.

Connecting the peripheral devices

Plug your VGA monitor into the port labeled CONSOLE

on the back of the SwitchView. Plug your keyboard and

mouse into the labeled ports on the front of the unit.

Connecting the first computer

Locate an Avocent SVPS2C-6A or SVPS2C-9A cable

(sold separately). Attach one end to the corresponding

connectors on the first computer to be attached to the

SwitchView. Route the other end of the cable to the

SwitchView and attach the remaining connectors to

an available port set. The port sets are labeled to

correspond with the channels on the unit.

Connecting the remaining computers

Repeat step 3 to connect additional computers.

Powering attached computers

Next to each port is a blue LED. A blinking LED indicates

that the attached computer is not powered.

Power the first attached computer. Wait until it has

completely booted before switching to the next

computer and repeating the process.

Avocent, the Avocent logo, The Power of Being There and SwitchView are trademarks or registered trademarks of Avocent Corporation or its affiliates. All other marks are the property of their respective owners. ©2003 Avocent Corporation. All rights reserved. 590-367-113B

Quick Installation Guide

SwitchView PC

The Power of Being There

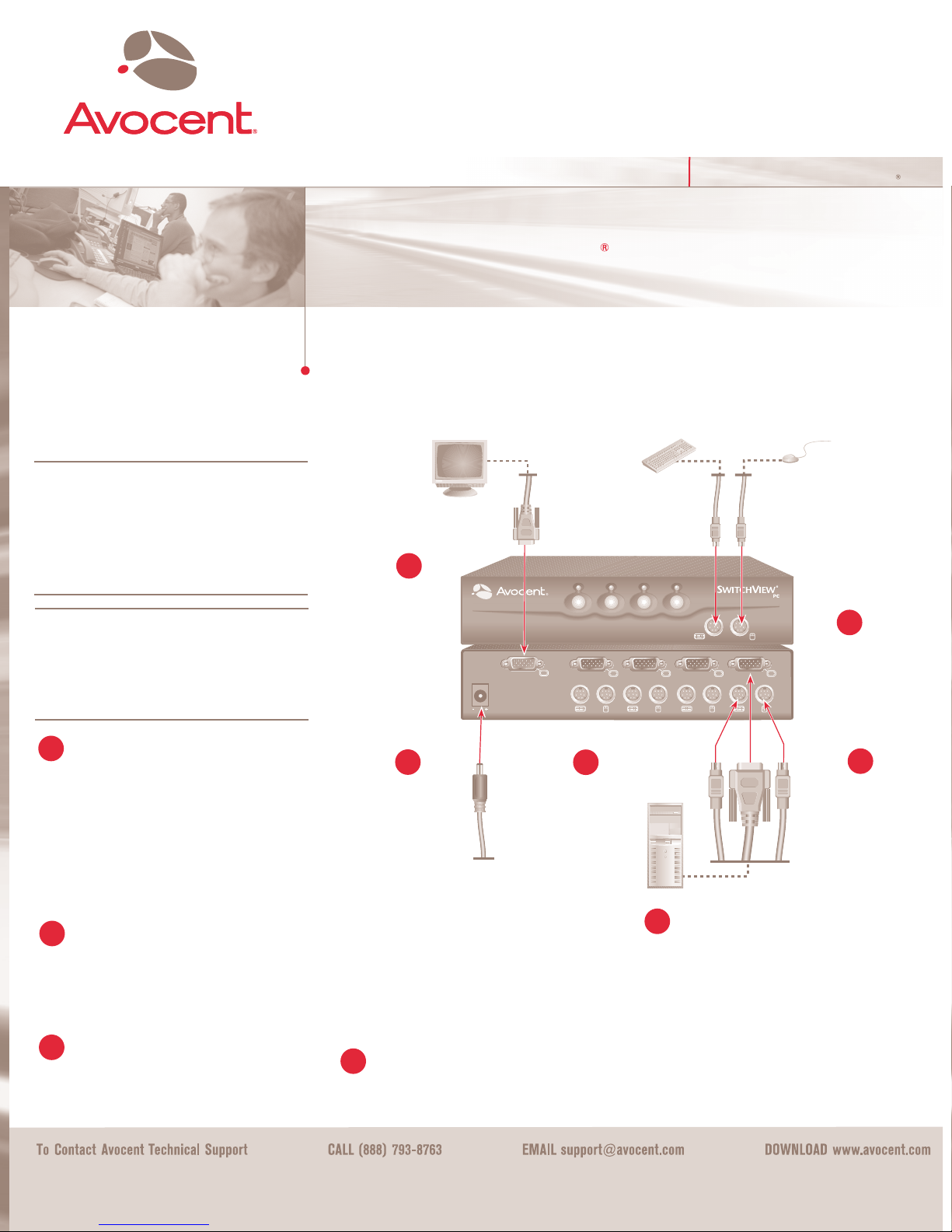

To connect a SwitchView PC

Plug in the monitor,

followed by

the keyboard

and mouse.

(Optional) Power

down your

computers and attach

the appropriate

power supply.

Connect the first

computer to the

SwitchView unit.

Plug in the remaining

computers to the

SwitchView unit.

Power up all

attached

computers.

NOTE: All drivers necessary for the SwitchView

are built into the unit. If you are installing the unit

with a Windows operating system and are

prompted for drivers, press NEXT until the

configuration is complete.

NOTE: If keyboard or mouse issues arise when

using a low-power system such as a laptop, you

should order an optional power supply by

contacting Avocent Technical Support.

DC 12V, 1A

PC4 PC3 PC2 PC1

CONSOLE

590-367-113B

Selecting a channel

A channel may be selected in one of the following ways:

• Pressing the button corresponding to the

relevant computer

• Using a hotkey command

The following instructions will help you

operate your SwitchView unit.

Should you require further assistance, please

contact Avocent Technical Support. Using Hotkey Commands

A hotkey command can be used by pressing a series of

key sequences:

• <CTRL><CTRL> <X*> switches the keyboard,

mouse and video simultaneously to another system.

• <CTRL><CTRL> <LEFT ARROW**> toggles scan

mode on or off.

• <CTRL><CTRL> <RIGHT ARROW**> resets and

reinitializes the mouse in case of lock up.

* <X> = the port number of the attached computer

** <SCROLL LOCK><SCROLL LOCK> can be

substituted in any hotkey sequences that use

Quick Installation Guide

SwitchView PC

To operate a SwitchView unit

The Power of Being There
