Aybey Elektronik EVOS Series Manuale utente

APPENDIX-3 LANDING OPERATION PANEL INSTALLATION

EVOS SERIES

SERIAL COMMUNICATION LOP

INSTALLATION MANUAL

Document Version: v1.03

ADDITIONAL SECTIONS:

EK04-1-Display CLC/CLT/CLP

EK04-2-Display SYC/SYT/SYP

EK04-3-Display DMCx/DMTx/DMPx

EVOS LOP Content

•EVOS Serial Communication LOP

•Mounting Dowels and Screws

•Installation and Usage Manuals

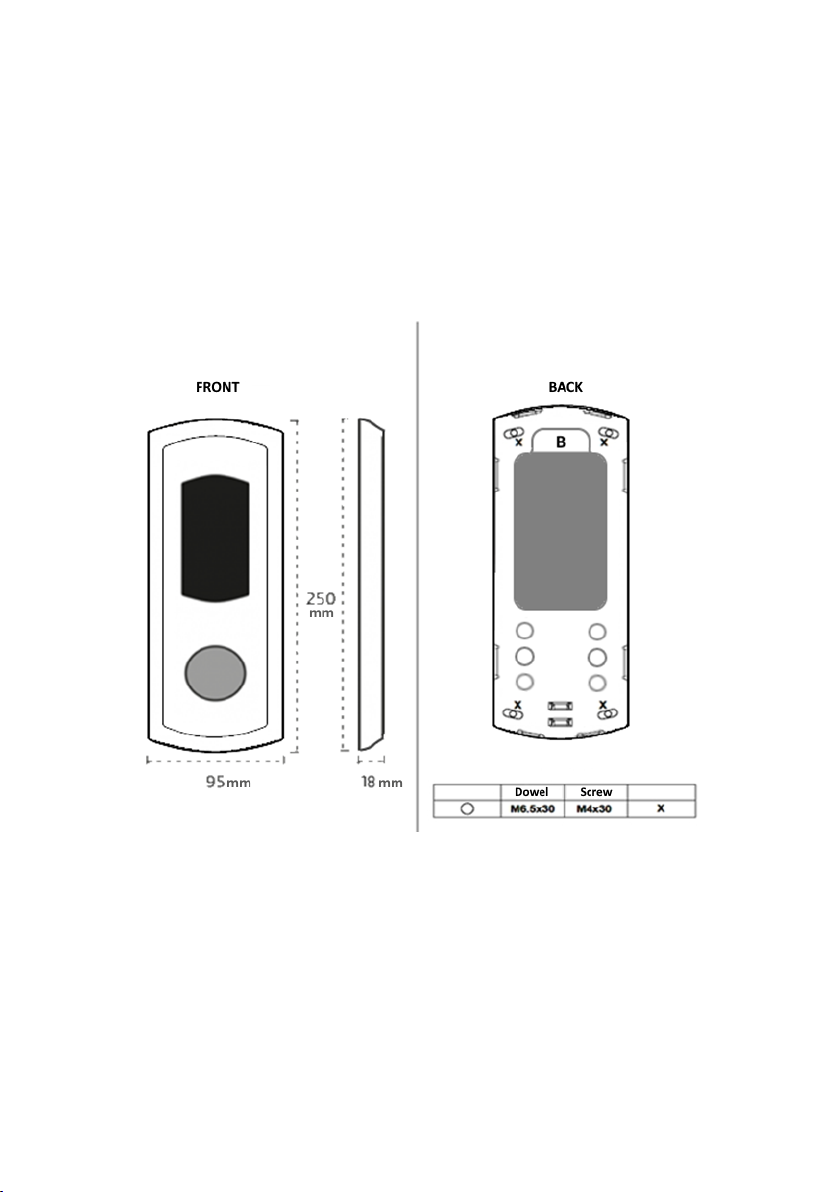

Figure 1

Figure 2

Figure 3

1- Mechanical Installation

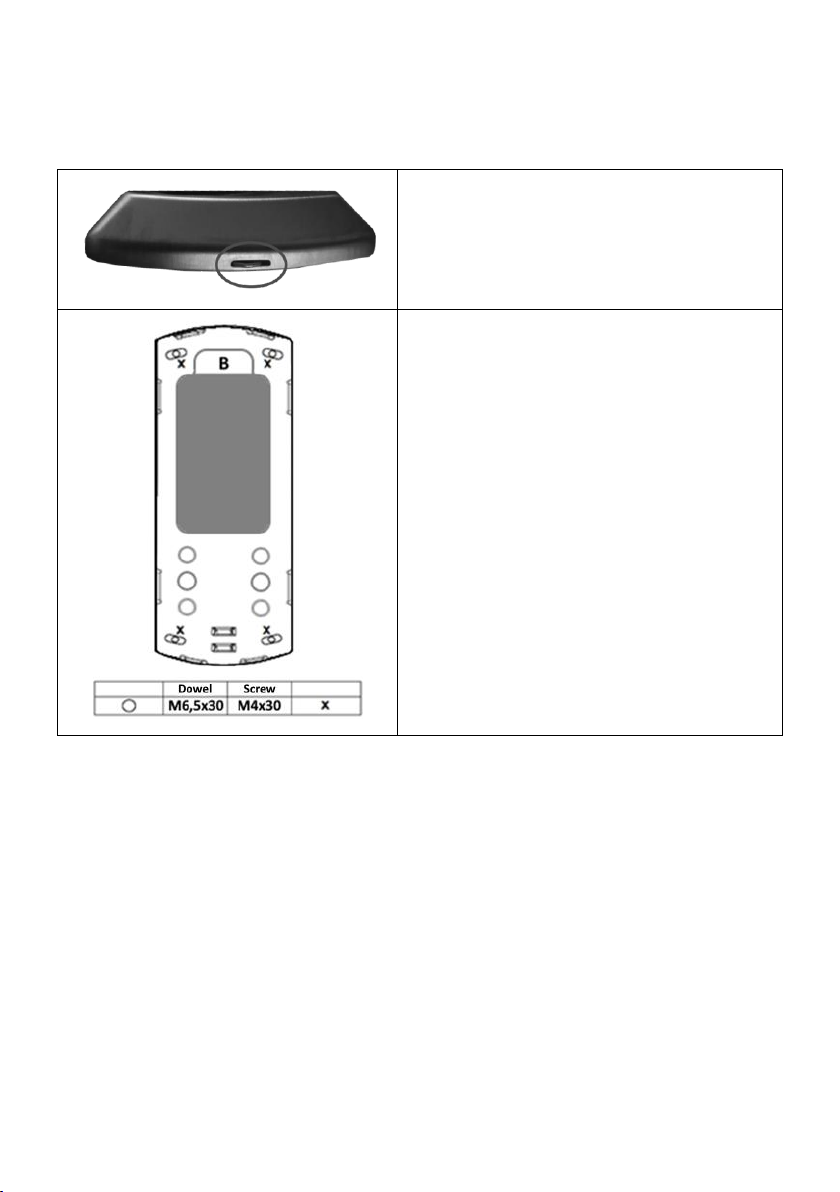

Press the spring mechanism at the bottom

of EVOS LOP with a screwdriver and open

the front cover.

Mark the cable screw holes by placing the

backplate where you want to install.

•Drill holes for M6.5 dowels. (as shown

by “X” in figure).

•Drill a hole in the wall which the

40*28mm rectangular socket coming

from the controller can pass trough

(B).

•Insert 4 dowels into the drilled holes.

(X)

Fix the backplate to the wall using 4 M4*30

screws to complete the mechanical

installation.

2- Electrical Connections

2.1 Connect the CANBUS cable terminals of the LOPs to the corresponding socket on the

control panel. (100-1000-CL1-CH1).

2.2 If your system has a pit control unit with CAN interface as shown in Figure 4, connect

all LOPs to this unit wth CAN-BUS cables with dual white rectangular sockets.

2.3 If there is no electronic pit control card with serial communication, connect the LOP

on the lowest floor as shown in Figure 5 and complete the process.

3- Operation and Setting Procedures

Select the display you have used for display settings from EK04 and follow the

instructions.

After completing the settings, close the top cover of the LOP.

Figure 4

Figure 5

4-Caution

4.1 Use only special stainless steel cleaners to clean the panels.

4.2 Do not use any detergent or acids to clean panels.

4.3 Avoid to contact any liquid to the LOP.

4.4 In case of an electrical failure, switched off the LOP and contact with Aybey

Elektronik Technical Service.
