Thank you for purchasing the Belkin Wireless G USB Network Adapter
(the Adapter). Now you can take advantage of this great new technology
and gain the freedom you need around the home or office without using
cables. The Wireless USB Network Adapter works like a conventional
network adapter, but without the wires. The easy installation and setup
will have you networking wirelessly in minutes. Please be sure to read
through this User Manual completely, and pay special attention to the
section entitled “Placement of your Wireless Networking Hardware
for Optimal Performance” on page 2. By following our simple setup
instructions your Belkin Home Network will allow you to:
• Share one high-speed Internet connection with all the computers
in your home
• Share resources, such as files, and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet e-mail,
and chat
Here are some of the advantages of setting up a Belkin
Wireless Network:
• Mobility – you’ll no longer need a dedicated “computer room”—
now you can work on a networked laptop or desktop computer
anywhere within your wireless range
• Easy installation – Belkin Easy Installation Wizard makes
setup simple
• Flexibility – set up and access printers, computers, and other
networking devices from anywhere in your home
• Easy Expansion – the wide range of Belkin networking products
let you expand your network to include devices such as printers
and gaming consoles
• No cabling required – you can spare the expense and hassle of
retrofitting Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range
of interoperable networking products
Introduction
32
Introduction
32
Introduction
Placement of your Wireless Networking Hardware for
Optimal Performance
Your wireless connection will be stronger the closer your computer
is to your Wireless Router (or Access Point). Typical indoor operating
range for your wireless devices is between 100 and 200 feet. In the
same way, your wireless connection and performance will degrade
somewhat as the distance between your Wireless Router (or Access
Point) and connected devices increases. This may or may not be
noticeable to you. As you move further from your Wireless Router
or Access Point, connection speed may decrease. Factors that can
weaken signals simply by getting in the way of your network’s radio
waves are metal appliances or obstructions, and walls.
If you have concerns about your network’s performance that might be
related to range or obstruction factors, try moving the computer to a
position between five and ten feet from the Wireless Router, in order
to see if distance is the problem. If difficulties persist even at close
range, please contact Belkin Technical Support.
IMPORTANT FACTORS FOR PLACEMENT AND SETUP
Note: While some of the items listed below can affect network
performance, they will not prohibit your wireless network from
functioning; if you are concerned that your network is not operating at
its maximum effectiveness, this checklist may help.
1. Placement of your Wireless Networking Hardware
Place your Wireless Router (or Access Point), the central connection
point of your network, as close as possible to the center of your
wireless network devices.
To achieve the best wireless network coverage for your “wireless
clients” (i.e., computers enabled by Belkin Wireless Notebook Network
Cards, Wireless Desktop Network Cards, and Wireless USB Adapters):
• Ensure that your Wireless Router (or Access Point) networking
antennas are parallel to each other, and are positioned vertically
(toward the ceiling). If your Wireless Router (or Access Point)
itself is positioned vertically, point the antennas as much as
possible in an upward direction.
3
Introduction
Introduction
3
Introduction
2
1
3
4
5
6
7
section
8
• In multistory homes, place the Wireless Router (or Access Point)
on a floor that is as close to the center of the home as possible.
This may mean placing the Router on an upper floor.
• Try not to place the Wireless Router (or Access Point) near a
cordless 2.4GHz phone.
2. Avoid Obstacles and Interference
Avoid placing your Wireless Router or Access Point near devices that
may emit radio “noise”, such as microwave ovens. Dense objects that
can inhibit Wireless communication can include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based UV tinted windows
If your wireless signal seems weak in some spots, make sure that
objects such as these are not blocking the signal’s path (between your
computers and Wireless Router or Access Point)
3. Cordless Phone Placement
If the performance of your wireless network is impaired after attending
to the above issues, and you have a cordless phone:
• Try moving cordless phones away from Wireless Routers (or
Access Points) and your wireless-enabled computers
• Unplug and remove the battery from any cordless phone that
operates on the 2.4GHz band (check manufacturers information).
If this fixes the problem, your phone may be interfering.
• If your phone supports channel selection, change the channel
on the phone to the furthest channel from your wireless network,
as possible. For example, change the phone to channel 1 and
move your Wireless Router to channel 11. See your phone’s user
manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz
cordless phone.
54
Introduction
54
Introduction
4. Choose the “quietest” channel for your wireless network
In locations where homes or offices are close together, such as
apartment buildings or office complexes, there may be wireless
networks nearby that can conflict with yours. Use the Site Survey
capabilities of your Wireless LAN Utility to locate any other wireless
networks (see page 16 of this manual), and move your Wireless Router
(or Access Point) and computers to a channel as far away from other
networks as possible.
Experiment with more than one of the available channels, in order to
find the clearest connection and avoid interference from neighboring
cordless phones or other wireless devices.
5. Secure connections, VPNs, and AOL
Secure connections are connections that typically require a user name
and password, and are used where security is important. Secure
connections include:
• Virtual Private Network (VPN) connections, often used to connect
remotely to an office network
• The “Bring Your Own Access” program from America Online
(AOL), which lets you use AOL through broadband provided by
another cable or DSL service
• Most on-line banking websites
• Many commercial websites which require a user name and
password to access your account
Secure connections can be interrupted by a computer’s power
management setting, which causes it to “go to sleep.” The simplest
solution to avoid this is to simply reconnect by re-running the VPN or
AOL software, or by re-logging into the secure web site.
A second alternative is to change your computer’s power
management settings so it does not go to sleep; however, this may
not be appropriate for portable computers. To change your power
management setting under Windows, see the “Power Options” item in
the Control Panel.
5
Introduction
Introduction
5
Introduction
2
1
3
4
5
6
7
section
8
If you continue to have difficulty with Secure Connection, VPNs and
AOL please review steps 1-4 above to be sure you have addressed
these issues.
These guidelines should allow you to cover the maximum possible
area with your Wireless Router. Should you need to cover an
even wider area, please go to the networking product section on
(www.belkin.com/networking) for more details on Belkin’s Wireless
Range Extender/Access Point.
For more information regarding our networking products, visit our website
at www.belkin.com/networking or call our Technical Support.
76
Introduction
76
Introduction
Features
The Adapter complies with the IEEE 802.11g standard in order
to communicate with other 802.11g and 802.11b-compliant
wireless devices.
• 2.4GHz ISM (Industrial, Science, and Medical) band operation
• Integrated, easy-to-use profile manager for storing multiple
wireless network settings for work, school, home, or any
other setup
• USB 2.0 interface, for Plug-and-Play installation and convenience
in virtually any desktop or notebook computer
• WPA security (Windows XP only), 64-bit WEP or 128-bit Encryption
• Wireless access to networked resources
• Support for both infrastructure and ad-hoc (peer-to-peer)
networking modes
• Packet transfer rate of up to 54Mbps
• Easy installation and use
• LED link/activity indicator
• Desktop stand allows you to position your Adapter for optimal
wireless performance
Applications and Advantages
• Wireless roaming with a laptop around the home or office
Offers the freedom of networking—without cables.
• Compatible with 802.11b
802.11g wireless LAN solutions are backward-compatible with
existing Wi-Fi (802.11b) products and with other 802.11g products.
• Difficult-to-wire environments
Enables networking in buildings with solid or finished walls, or
open areas where wiring is difficult to install.
• Frequently changing environments
Adapts easily in offices or environments that frequently rearrange
or change locations.
7
Introduction
Introduction
7
Introduction
2
1
3
4
5
6
7
section
8
• Temporary LANs for special projects or peak time
Sets up temporary networks such as at trade shows, exhibitions,
and constructions sites, which need networks on a short-term
basis; also companies who need additional workstations for a
peak activity period.
• SOHO (Small Office/Home Office) networking needs
Provides the easy and quick small network installation SOHO
users need.
Product Specifications
Host Interface: USB 2.0
This product is compatible with the
USB 1.1 and USB 2.0 specification.
To achieve maximum networking
speeds (54Mbps), this device must be
connected to a USB 2.0 host port on a
PC. Connection of this device to a USB
1.1 host port will yield a maximum of
11Mbps networking speed.
Power Consumption: 500mA (max)
Certification: FCC Class B, CE Mark, C-Tick
Operating Temperature: 32–131° F (0–55° C)
Storage Temperature: -13–158° F (-25–70° C)
Typical Operating Range: Up to 200’*
*Distance and connection speeds will vary depending on your networking environment
System Requirements
• PC with one available USB port
• Windows® 98SE, 2000, Me, or XP
Package Contents
• Belkin Wireless USB Network Adapter with Desktop Stand
• Quick Installation Guide
• Installation Software CD
• User Manual
98

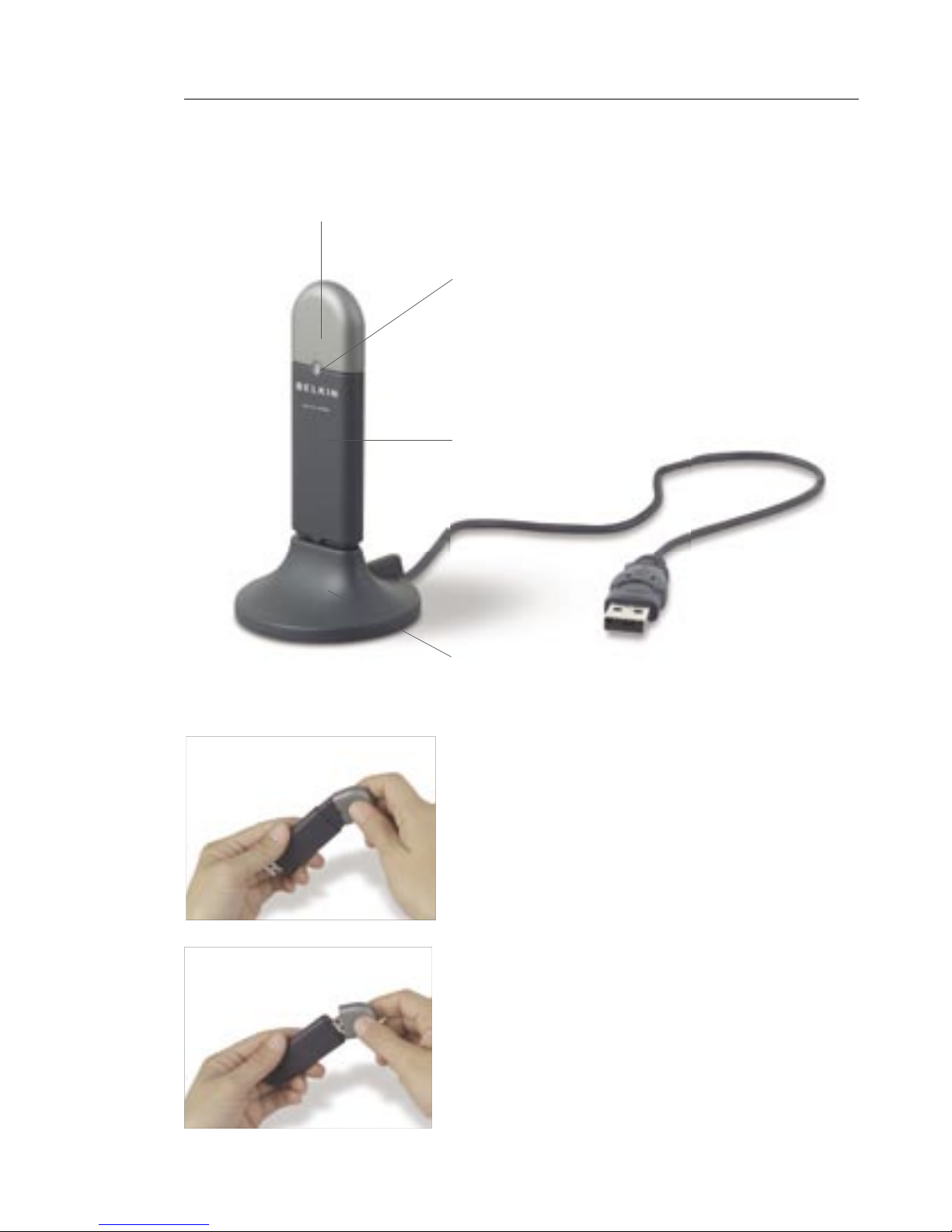

Knowing your Wireless USB Network Adapter
98
Protective Cap
Activity LED
Blinking Green: Scanning
Off: No Activity
On: Connected to network
USB Adapter
Desktop stand
(Optional Use)
The cap can be stored on the
opposite end of the USB connector.
The cap snaps over the USB
connector for protection.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Belkin Scheda di rete
Belkin
Belkin F8T031 - Bluetooth Wireless USB Printer Adapter Print... Manuale utente
Belkin
Belkin F5D5020T Manuale utente
Belkin
Belkin F5D7050 Manuale utente
Belkin
Belkin F6D3010 Manuale utente
Belkin
Belkin F6D3000 Manuale utente
Belkin
Belkin LAN Card Manuale utente
Belkin
Belkin F5D6020_ver1 Manuale utente
Belkin
Belkin Wireless G Router Istruzioni di installazione e manutenzione
Belkin
Belkin F5D6020 Guida di riferimento
Belkin
Belkin F5U005EE Istruzioni per il montaggio
Belkin
Belkin DESKTOP CARD F5D7001 Manuale utente
Belkin
Belkin F5D6020 Manuale utente
Belkin
Belkin F5D6001 Manuale utente
Belkin
Belkin F8T006-PC Manuale utente
Belkin
Belkin F5D8013 v3 Manuale utente
Belkin
Belkin F5D8055tt Manuale utente
Belkin
Belkin Wireless G Router Manuale utente
Belkin
Belkin N1 WIRELESS NOTEBOOK CARD F5D8011 Manuale utente
Belkin
Belkin F8T020 Manuale utente
Belkin
Belkin F5D7010v7 Manuale utente
