Belkin F5U250ea Manuale utente
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63

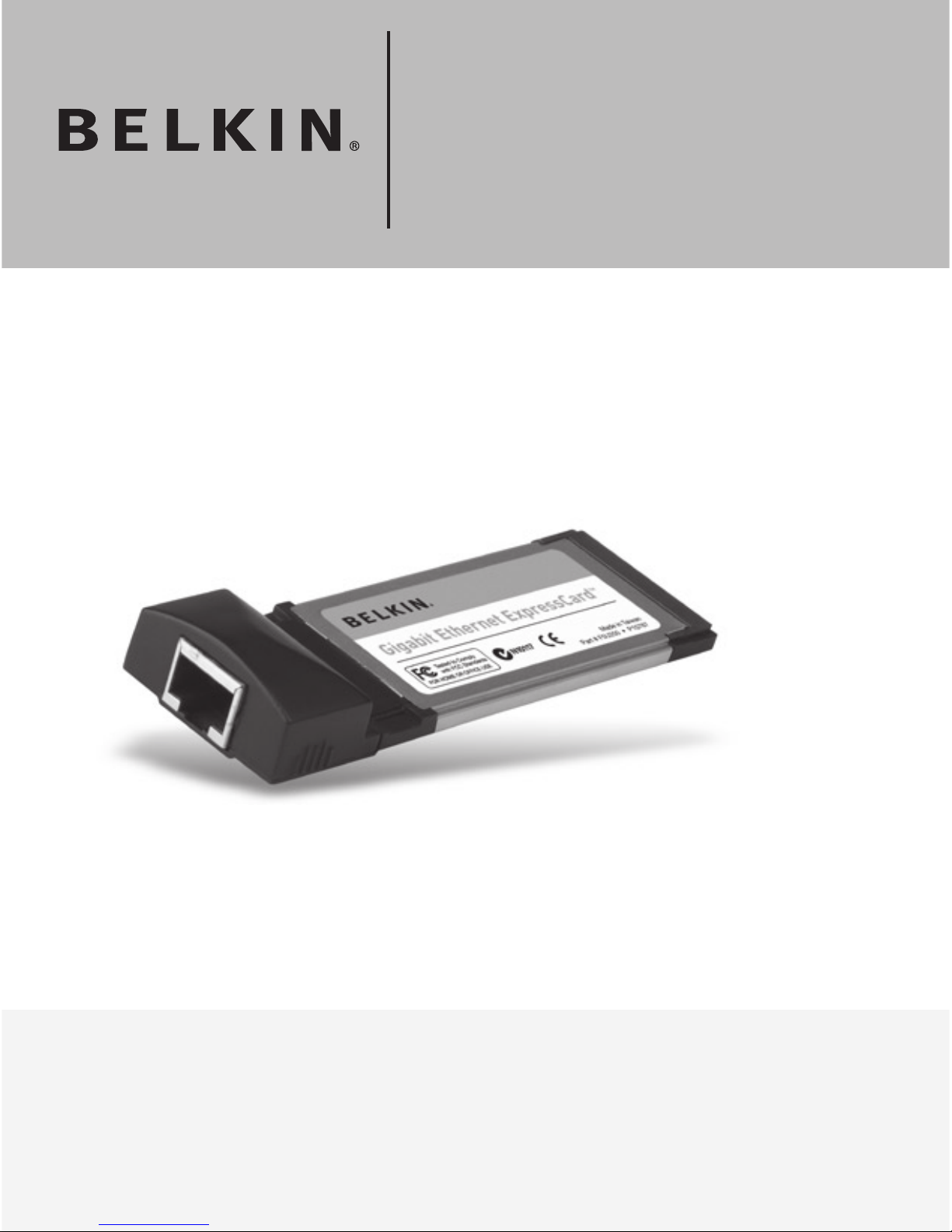

Gigabit Ethernet
ExpressCard™
F5U250ea
Add a Gigabit Ethernet port to your notebook computer
using ExpressCard technology
Ajoutez un port Ethernet Gigabit à votre ordinateur portable
grâce à la technologie ExpressCard
Gigabit Ethernet-Port für Notebooks mit
ExpressCard-Technologie
Breid uw notebook uit met een Gigabit Ethernet-poort
die gebruik maakt van ExpressCard-technologie
Añada a su ordenador portátil un puerto Ethernet Gigabit
utilizando la tecnología ExpressCard
Per aggiungere al laptop una porta Gigabit Ethernet
utilizzando la tecnologia ExpressCard
User Manual, Manuel de l’utilisateur, Benutzerhandbuch,
Handleiding, Manual del usuario, Manuale d’uso
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
User Manual
Add a Gigabit Ethernet port to your notebook
computer using ExpressCard technology
Gigabit Ethernet
ExpressCard™
F5U250ea
1. Introduction ..................................................................5
Features ....................................................................6
System Requirements ...............................................7
Package Contents .....................................................7
2. Hardware Installation ..................................................8
3. Verifying Proper Installation .......................................9
4. Troubleshooting ................................................... 10-11
5. Information .......................................................... 12-13
Table of Contents
5
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
Congratulations and thank you for purchasing the Gigabit
Ethernet ExpressCard from Belkin. This ExpressCard
offers notebook users a fast and convenient way to add
a Gigabit Ethernet port that can take advantage of the
increased bandwidth and features the new ExpressCard I/O
interconnection standard delivers.
Why ExpressCard?
ExpressCard, the standard destined to replace CardBus,
quadruples your computing bandwidth. This results in
faster music downloads, smoother streaming video, and
lightning-fast access to mass-storage devices.
The ExpressCard provides the perfect solution for
simultaneously streaming movies and downloading video
from your camcorder to your hard drive—without risking
that your computer will freeze, crash, or slow to a trickle.
ExpressCard future-proofs your computer with technology
so advanced that it exceeds the processing speed of many
devices currently on the market. This means that installing
the ExpressCard now assures you of device-upgrade
expansion room for many years to come.
Please carefully review this User Manual so that you can
take full advantage of all the capabilities the Belkin Gigabit
Ethernet ExpressCard offers.
Introduction
6
Introduction
Features
• PCI Express Base Specification Revision 1.0a Compliance
• Single-lane (x1) PCI Express throughput support rates
of 2.5Gbps
• Compliance with 10/100/1000 IEEE 802.3 specification
• 10/100/1000M data-rate auto-negotiation
• Active state power management (L0s) support
• LEDs indicating data-transmission status
• Automatic MDI/MDIX crossover at all speeds
• Wake On LAN® (WOL) power management support
• Compliance with ExpressCard 34mm-wide
module specification
• 1 external, independent Gigabit Ethernet port
7
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
System Requirements
• Windows® based notebook with available
ExpressCard slot
• Windows 2000, XP, Server 2003
Package Contents
• Gigabit Ethernet ExpressCard
• User Manual
• CD Driver
Introduction
8
1. Locate your notebook’s ExpressCard slot(s).
2. With your notebook on, slide the ExpressCard into the
unused 34mm ExpressCard bus slot.
Note: Do not plug any devices into the ExpressCard until
you have completely finished the driver installation.
3. The “New Hardware Wizard” will launch and recognize
the ExpressCard.
4. The Windows “Found New Hardware Wizard” will pop
up. Select “Yes, this time only” and click “Next”.
5. The “Ethernet Controller” will be detected by your
system. Select “Install from a list or specific location
(advanced)” and click “Next”.
6. Insert the CD driver into your CD-/DVD-ROM.
7. Select “Include this location in the search” and click
“Browse” to specify the Gigabit Ethernet ExpressCard
driver located on the CD [<drive>:\Win 2000 or
WinXP&2003 (depending on your operating system)].
Then, click “Next”. Note: “<drive>” represents the
letter that identifies your CD-ROM driver under “My
Computer”—e.g., if the CD is in drive D, enter “D:\
WinXP&2003”.
8. Windows will automatically install the correct driver.
Click “Finish” to finish driver installation.
9. Installation is now complete and the ExpressCard is
ready to use.
LED Status Identification
• Green LED steady at 10/100Mbps
• Blue LED steady at 1000Mbps
Hardware Installation
9
EN
___
FR
___
DE
___
NL
___
ES
___
IT
3
15
27
39
51
63
Verifying Proper Installation
Check the “Windows Device Manager” to confirm that
your ExpressCard has been properly installed.
1. Right-click on “My Computer” and select “Manage”.
2. Select the “Device Manager” tab.
3. Click the (+) sign next to “Network adapters”. The
“Network adapters” will now include one entry that
reads “Generic Marvell Yukon Chipset based Gigabit
Ethernet Controller”.
10
Troubleshooting
The ExpressCard and devices connected to the
computer do not work properly.
Please do the following:
1. Check that all the cables you are using are the correct
types, and that they are all securely connected.
2. Make sure all devices are powered on and connected to
the proper power supply and source.
3. Reconnect daisy-chained devices you may have
disconnected for installation. If reconnecting does not
clear up the problem, restart your computer.
4. Make sure you have properly installed the ExpressCard.
The computer did not detect the ExpressCard.
1. Make sure that the ExpressCard is correctly plugged into
the ExpressCard slot; if not, plug it in securely.
2. If the ExpressCard is plugged in correctly, see if its gold
connectors are clean; if not, clean the connector surface.
3. Follow the procedure on page 5 titled “Verifying Proper
Installation”. If the ExpressCard designation “Generic
Marvell Yukon Chipset based Gigabit Ethernet Controller”
does not appear in the Device Manager, update your
computer BIOS to the latest version (contact your
computer manufacturer for details). If after updating
your BIOS, your computer still does not detect the
ExpressCard, contact your computer manufacturer for
advanced support for BIOS.
