TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PC Card Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Supported Profiles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Software Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Bluetooth

Configurations Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

“My Bluetooth Places” Program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Uninstalling the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

FCC/CE Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 1

PRODUCT FEATURESINTRODUCTION

Thank you for purchasing the new

Bluetooth

PC Card (the PC Card) from Belkin featuring

Bluetooth

wireless technology. Now you can connect your peripherals and computing devices up

to 10 meters away without cables in your home, office,or while on the road. Establish ad-hoc

connections between devices without having to configure a network.

Before you install and start using your new PC Card, please

take a few minutes to review some of the terms that

you will be seeing throughout the document.

You will find a brief glossary on page

26 of this manual.

The PC Card is compliant with

Bluetooth

standard version 1.1 and provides the

following features:

• Support for Microsoft®Windows®98 SE, Me, 2000, and XP

• Operating distance of up to 10 meters

• Point-to-multipoint connections

• Support for data rates up to 721Kbps

• Built-in security: up to 128-bit encryption and authentication

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 2

Your PC Card gives you the ability to do the following—without cables:

• Transfer files

• Access dial-up networks

• Connect to local area networks

• Perform anActiveSync®session

• Connect to serial ports

• Exchange PIM data

• Send or exchange business cards

The basic functions of the

Bluetooth

neighborhood include:

• Device discovery

• Service discovery

• Establishing links with remote devices

PRODUCT FEATURES (CONT’D)

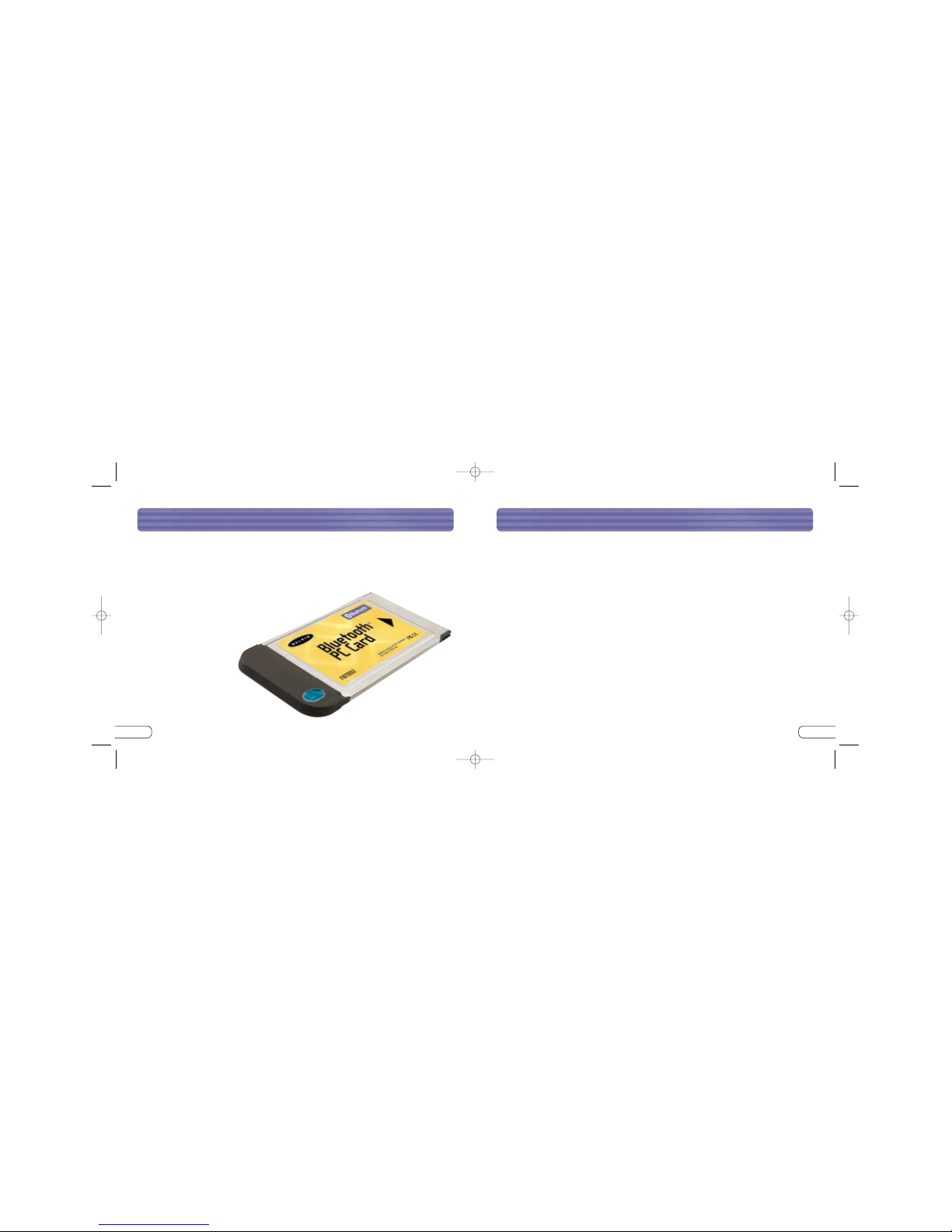

PACKAGE CONTENTS

•

Bluetooth

PC Card

• CD-ROM for installation software and documentation

• User Manual

• Quick Installation Guide

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 4

SYSTEM REQUIREMENTS

• PC-compatible computer,CPU speed 200MHz or above

• Memory: 64MB or above, 128MB recommended

• One available CardBusType II-compatible PCMCIA slot

• Windows 98 SE, Me, 2000, and XP

PC CARD SPECIFICATIONS

Bluetooth

Compliance: Version 1.1

Physical Interface: CardBusType II

Operating Frequency: 2.4 to 2.4835GHz

Output Power: 0 dBm (1mW), Class 2

Sensitivity: -80 dBm @ 1E-3 BER

Data Rate: 723/57.6Kbps

Operating Range: 10-meter radius indoors

NetworkTopology: Point-to-Multipoint

Packet Support: 1/3/5 Slots Packet

Operation: Master/Slave

Frequency Stability: +/- 10PPM

LED Indicator: Power On, Data Traffic

AntennaType: Internal

Dimensions: 100.7mm (L) x 54mm (W)

x 5mm (H)

Weight: 1.35oz.

OperatingTemp: 0 to 50 degrees Celsius

StorageTemp: -33 to 55 degrees Celsius

Humidity: 93% (non-condensing)

SupplyVoltage: 5.0VDC

Nominal Current: 350mA

Support Profiles: Service Discovery, File Transfer,

Serial Port, DUN, LAN, Generic

Object Exchange,Business

Card, Push, Pull & Exchange

OS Support: Windows 98 SE, Me, 2000,

and XP

Specifications subject to change without notice

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 6

SOFTWARE SETUP

SUPPORTED PROFILES

Do not insert the PC Card into your notebook computer prior to installation.

Sof ware Se up for Windows 98 SE, Me, 2000, and XP

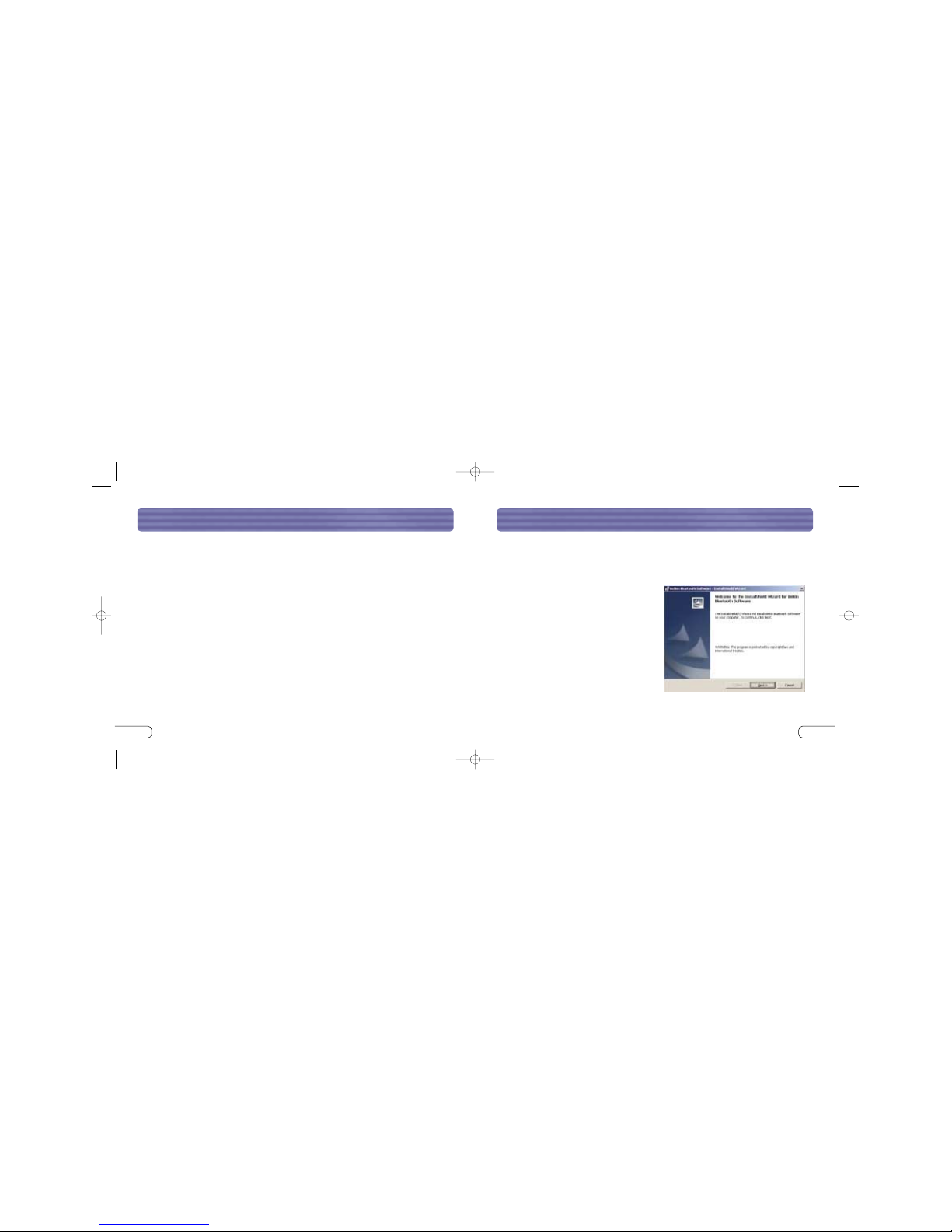

1. Insert the software installation CD-ROM

into the PC’s CD-ROM drive.

2. The “Software InstallShield Wizard”

window appears. Click on “Next” to

begin the installation process.

The services supported by your PC Card are defined as“Profiles”.Available profiles include:

• GenericAccess

• Service Discovery

• Serial Port

• LANAccess

• Dial-Up Networking

• Generic Object Exchange

• Object Push

• FileTransfer

• Synchronization

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 8

SOFTWARE SETUP (CONT’D)

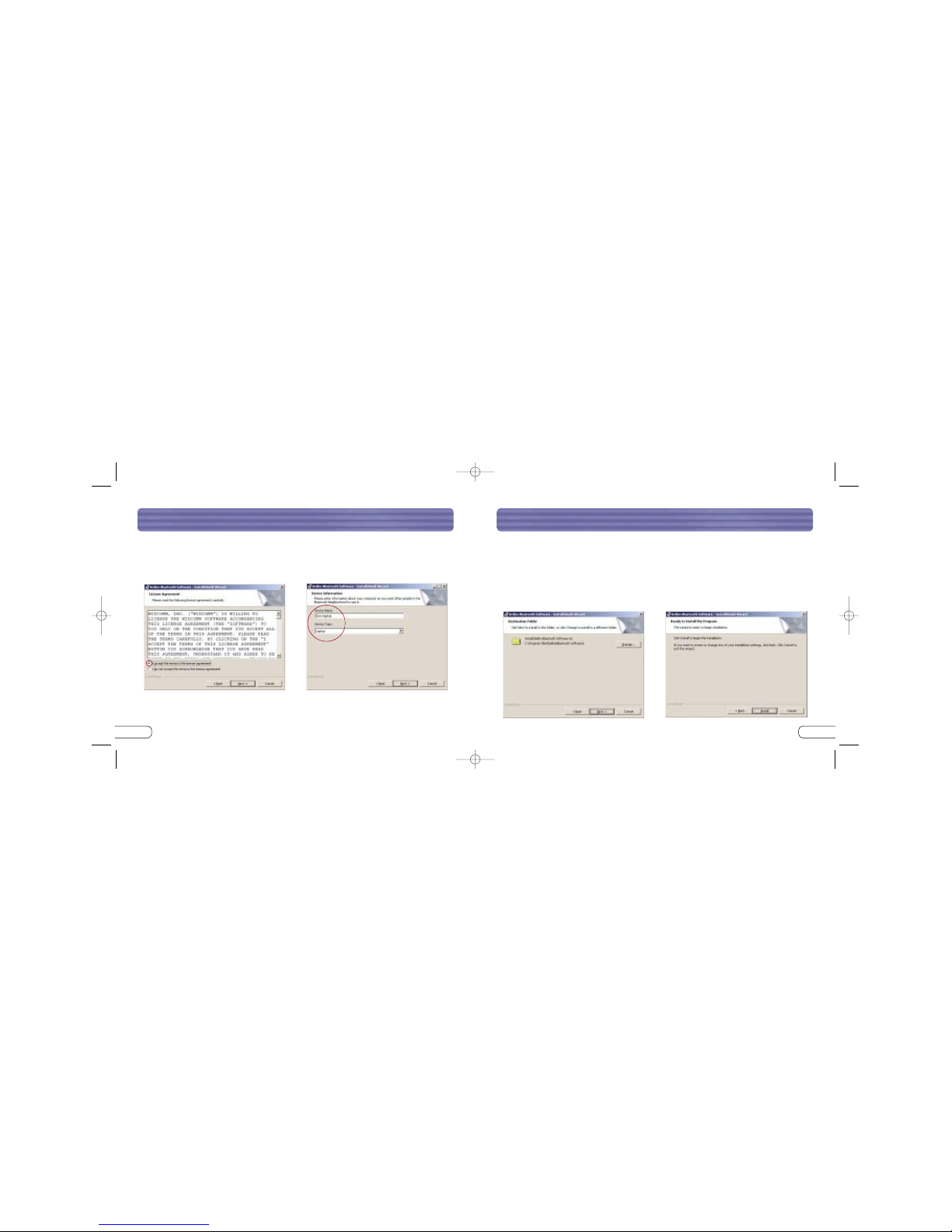

3. Choose “I accept the terms in the license

agreement” to accept the license

agreement. Click on “Next”.

4. Name your device and select the type of

computer you are installing your PC Card

in. Click on “Next”.

5. Specify the location where the software and

driver will be installed on your hard drive.It

is recommended that you install the

software and driver to the default directory

“C:\Program Files\belkin\Bluetooth

Software”. Click on “Next”.

6. Confirm that the device software and

driver are ready to be installed and click

on “Install”.

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 10

INSTALLING THE PC CARD

SOFTWARE SETUP (CONT’D)

Note: If at any time during the installation process you receive a “Device Signature Notice”, click

“Yes” or “OK” to continue the installation process.

7. Confirm the completion of

installation. Click “Finish” and

then restart the system.

Note: The PC Card is sensitive to static electricity, which can damage its delicate electrical

components. To protect your device, always touch the metal chassis of your computer before

handling the PC Card. This will ground any potential electrostatic discharge. Dry weather conditions

or walking across carpeted floors may cause you to acquire an electrostatic charge.

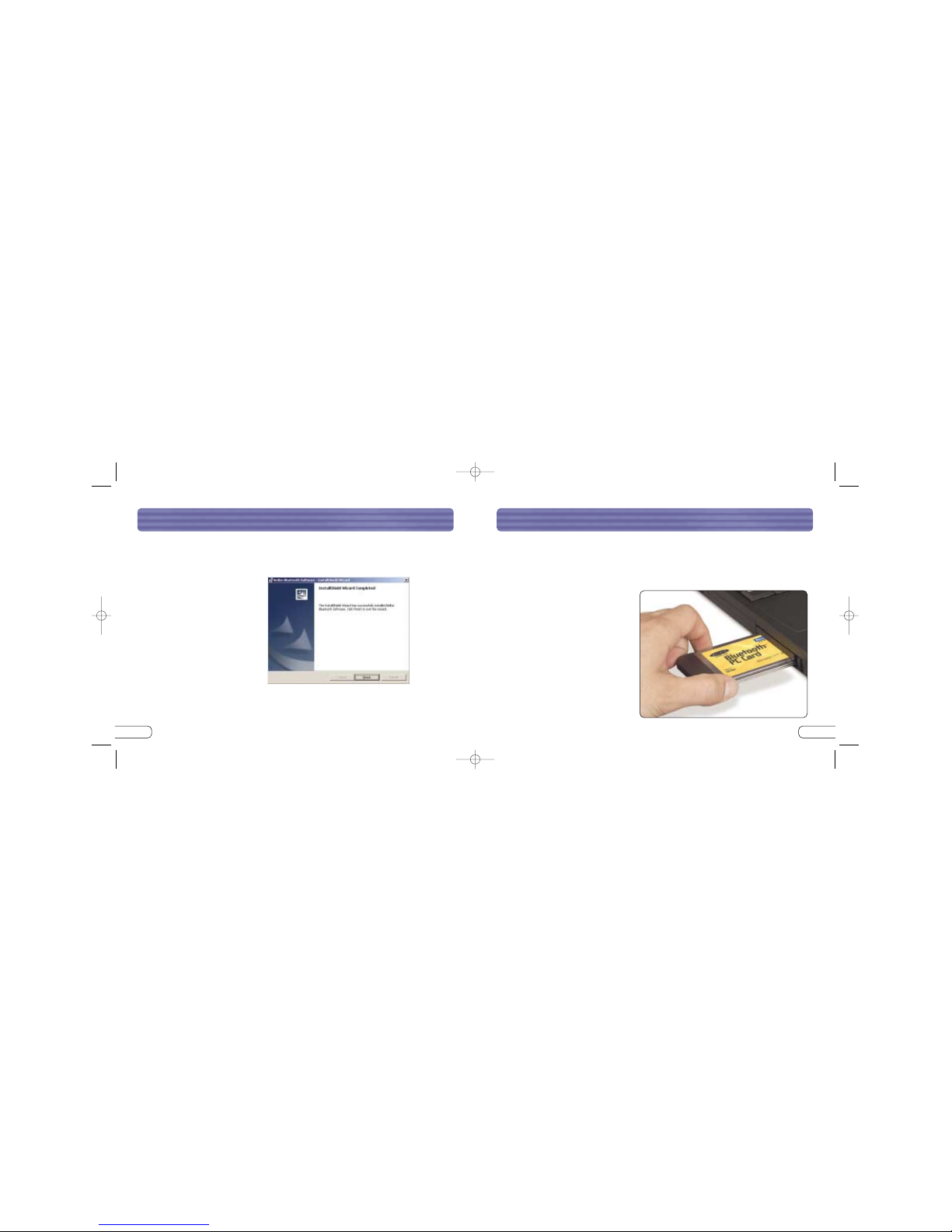

1. After installing the software and

restarting the system, insert the PC

Card into an available PCMCIA slot

of your notebook computer with the

color label facing up.

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 12

INSTALLING THE PC CARD (CONT’D)

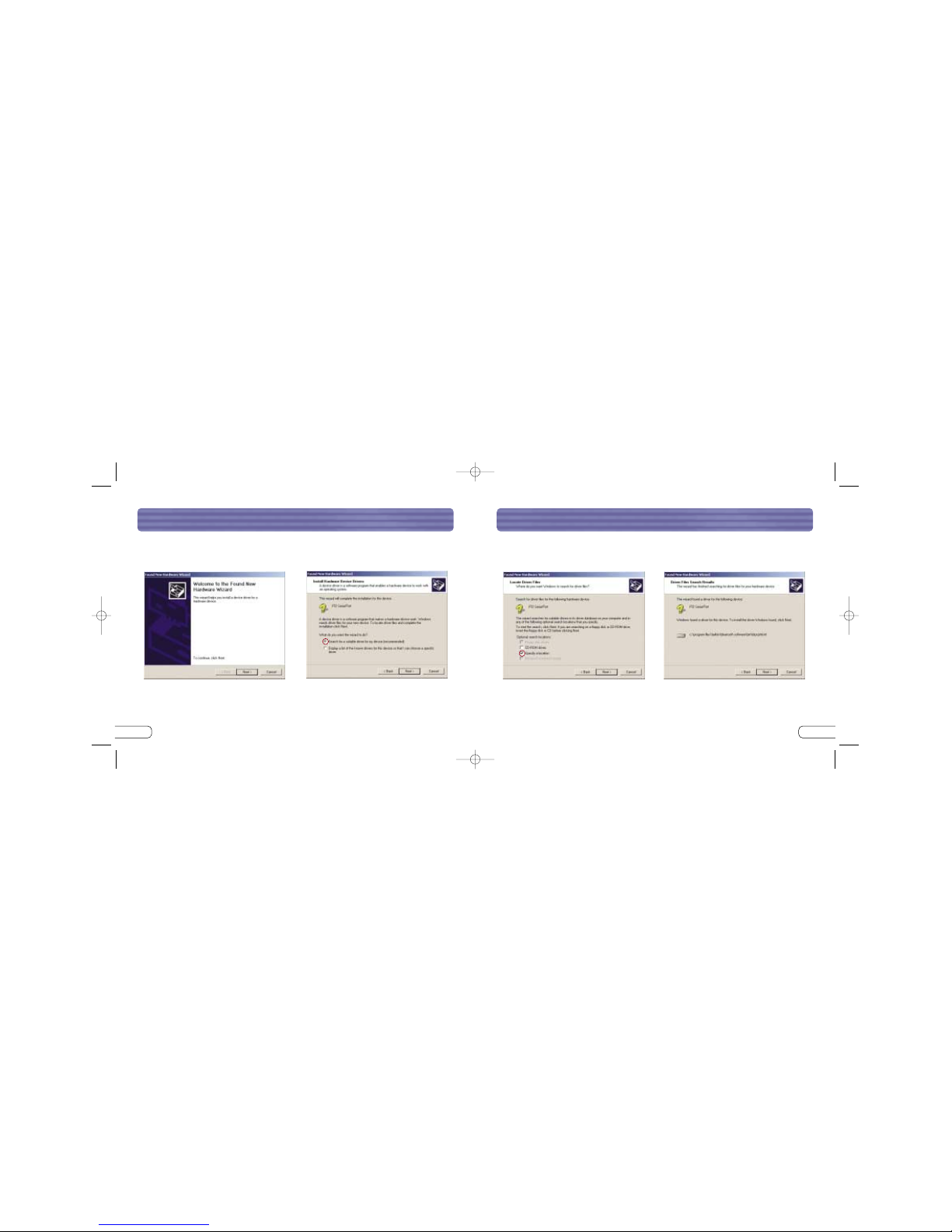

2. You should see your system register a new

hardware device found. 3. Choose “Search for a suitable driver for my

device”. Click on “Next”. 4. Choose “Specify a location”.Click on

“Next”. 5. Confirm that the device driver was found

and click on “Next”.

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 14
