Berkel 330M Manuale utente

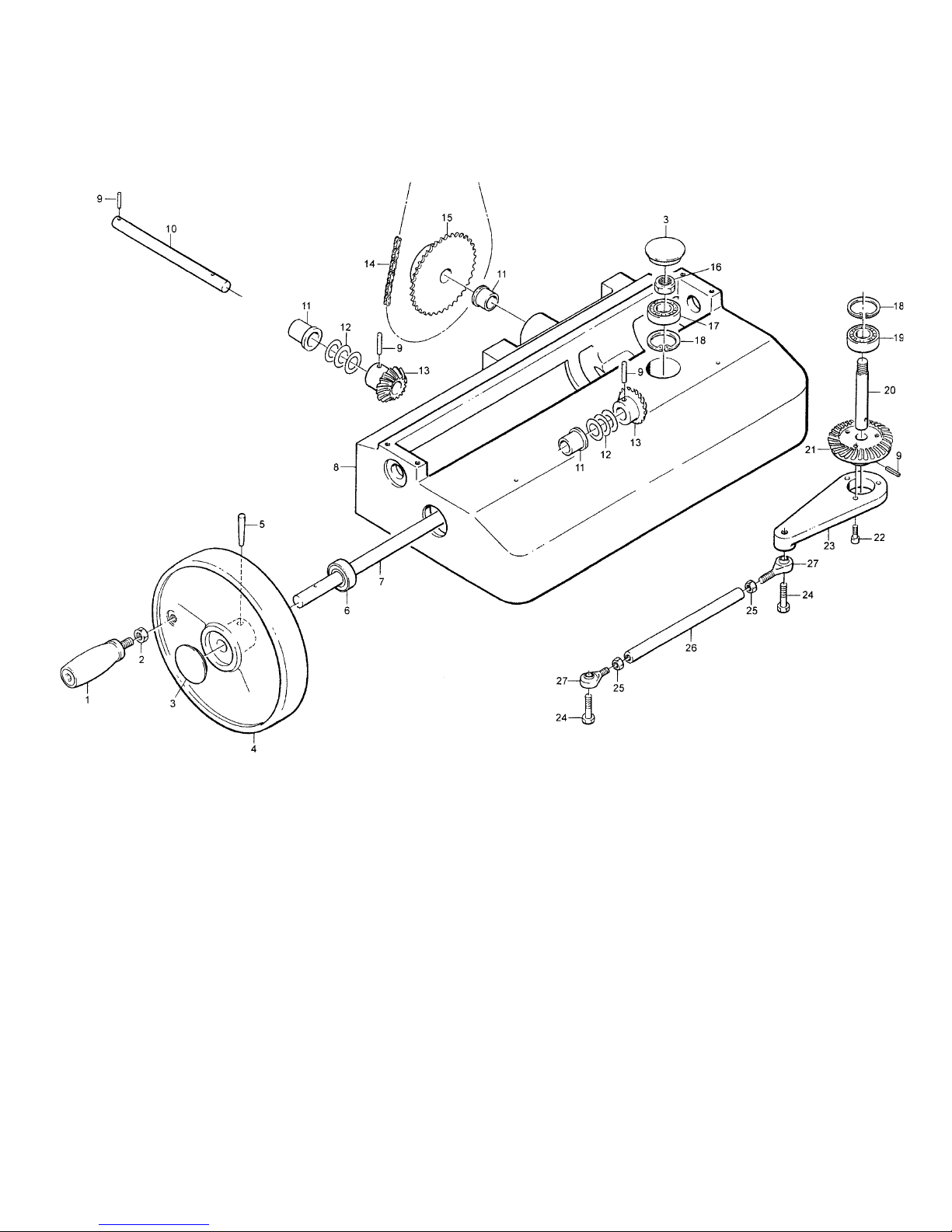

Base

Item Description Part No. Item Description Part No.

1 Handle 330M-00001 15 Pinion 330M-00015

2 Nut 330M-00002 16 Nut 330M-00016

3 Cover 330M-00003 17 Bearing 32004 330M-00017

4 Fly-Wheel 330M-00004 18 Circlip 330M-00018

5 Conic Pin 330M-00005 19 Bearing 6004 2Z 330M-00019

6 Bearing 6204 330M-00006 20 Threaded Shaft 330M-00020

7 Rod 330M-00007 21 Gear 330M-00021

8 Case 330M-00008 22 Screw 330M-00022

9 Springy Pin 330M-00009 23 Crankwheel 330M-00023

10 Shaft 330M-00010 24 Screw 330M-00024

11 Bushing 20 28 35 330M-00011 25 Nut 330M-00025

12 Ring 330M-00012 26 Connecting Rod 330M-00026

13 Gear 330M-00013 27 Joint Ball 330M-00027

14 Chain 330M-00014

Transmission

Item Description Part No. Item Description Part No.

1 Screw 330M-00028 18 Bearing 72002B 330M-00045

2 Washer 330M-00029 19 Pin 330M-00046

3 Spacer 330M-00030 20 Blade-Carrier Shaft 330M-00047

4 Hinge 330M-00031 21 Sharpener Slide 330M-00048

5 Spring 330M-00032 22 Screw 330M-00049

6 Slice Deflector 330M-00033 23 Knob 330M-00050

7 Pin 330M-00034 24 Washer 330M-00051

8 Screw 330M-00035 25 Sharpener Guard 330M-00052

9 Washer 330M-00036 26 Screw 330M-00053

10 Foot 330M-00037 27 Washer 330M-00054

11 Rubber Stop 330M-00038 28 Nut 330M-00055

12 Cover 330M-00039 29 Back Blade Cover 330M-00056

13 Head 330M-00040 30 Screw 330M-00057

14 Grub Screw 330M-00041 31 Flange 330M-00058

15 Threaded Bar 330M-00042 32 Blade 330M-00059

16 Nut 330M-00043 33 Screw 330M-00060

17 Nut 330M-00044 34 Front Blade Cover 330M-00061

Guards

Item Description Part No. Item Description Part No.

1 Screw 330M-00062 17 Screw 330M-00078

2 Washer 330M-00063 18 Chain Guard 330M-00079

3 Washer 330M-00064 19 Guard 330M-00080

4 Pin 330M-00065 20 Screw 330M-00081

5 Rubber Tube 330M-00066 21 Spacer 330M-00082

6 Tray 330M-00067 22 Screw 330M-00083

7 Washer 330M-00068 23 Guard 330M-00084

8 Knob 330M-00069 24 Screw 330M-00085

9 Screw 330M-00070 25 Gear Guard 330M-00086

10 Washer 330M-00071 26 Rubber Foot 330M-00087

11 Shoe 330M-00072 27 Nut 330M-00088

12 Screw 330M-00073 28 Screw 330M-00089

13 Washer 330M-00074 29 Washer 330M-00090

14 Guard 330M-00075 30 Bar 330M-00091

15 Screw 330M-00076 31 Square Bar 330M-00092

16 RearCover 330M-00077

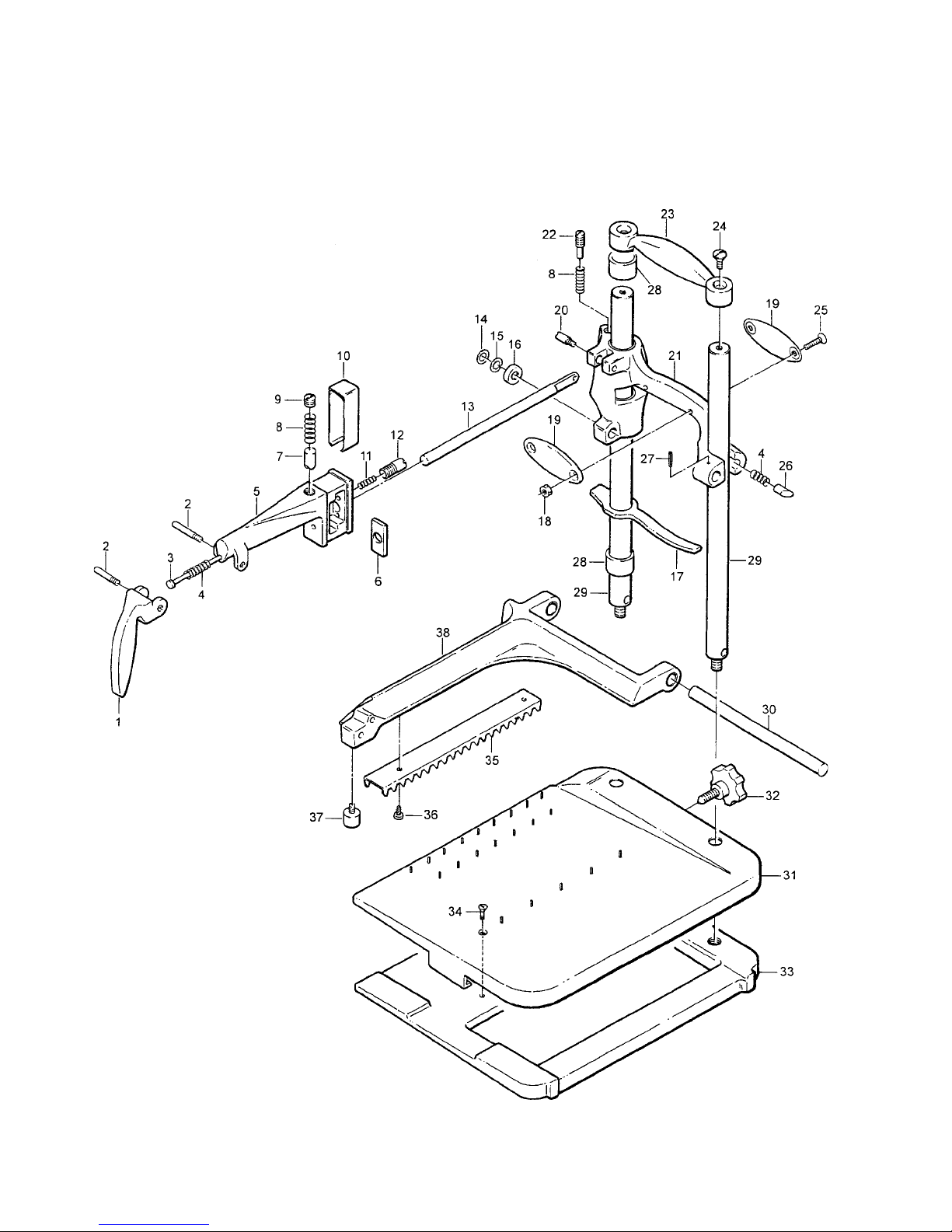

Sliding Plate

Item Description Part No.

1 Aluminum Handle 330M-00093

2 Pin 330M-00094

3 Brake Rod 330M-00095

4 Spring 330M-00096

5 Brake Body 330M-00097

6 Brake Plate 330M-00098

7 Brass Tablet 330M-00099

8 Spring 330M-00100

9 Grub Screw 330M-00101

10 Brake Protection 330M-00102

11 Spring 330M-00103

12 Brake Pin 330M-00104

13 Pin 330M-00105

14 Washer 330M-00106

15 Spring Lock Washer 330M-00107

16 Metal Ring 330M-00108

17 Hand Grip Brake 330M-00109

18 Nut 330M-00110

19 Cheek 330M-00111

20 Pin 330M-00112

21 Hand Grip Body 330M-00113

22 Pin 330M-00114

23 Arc 330M-00115

24 Screw 330M-00116

25 Screw 330M-00117

26 Brass Tablet 330M-00118

27 Springy Pin 330M-00119

28 Rubber Tube 330M-00120

29 Column 330M-00121

30 rod 330M-00122

31 Stainless Steel Plate Cover 330M-00123

32 Fixing Plate Knob 330M-00124

33 Aluminum Plate 330M-00125

34 Screw 330M-00126

35 Rack 330M-00127

36 Screw 330M-00128

37 Nylon Spacer 330M-00129

38 Hand Grip 330M-00130

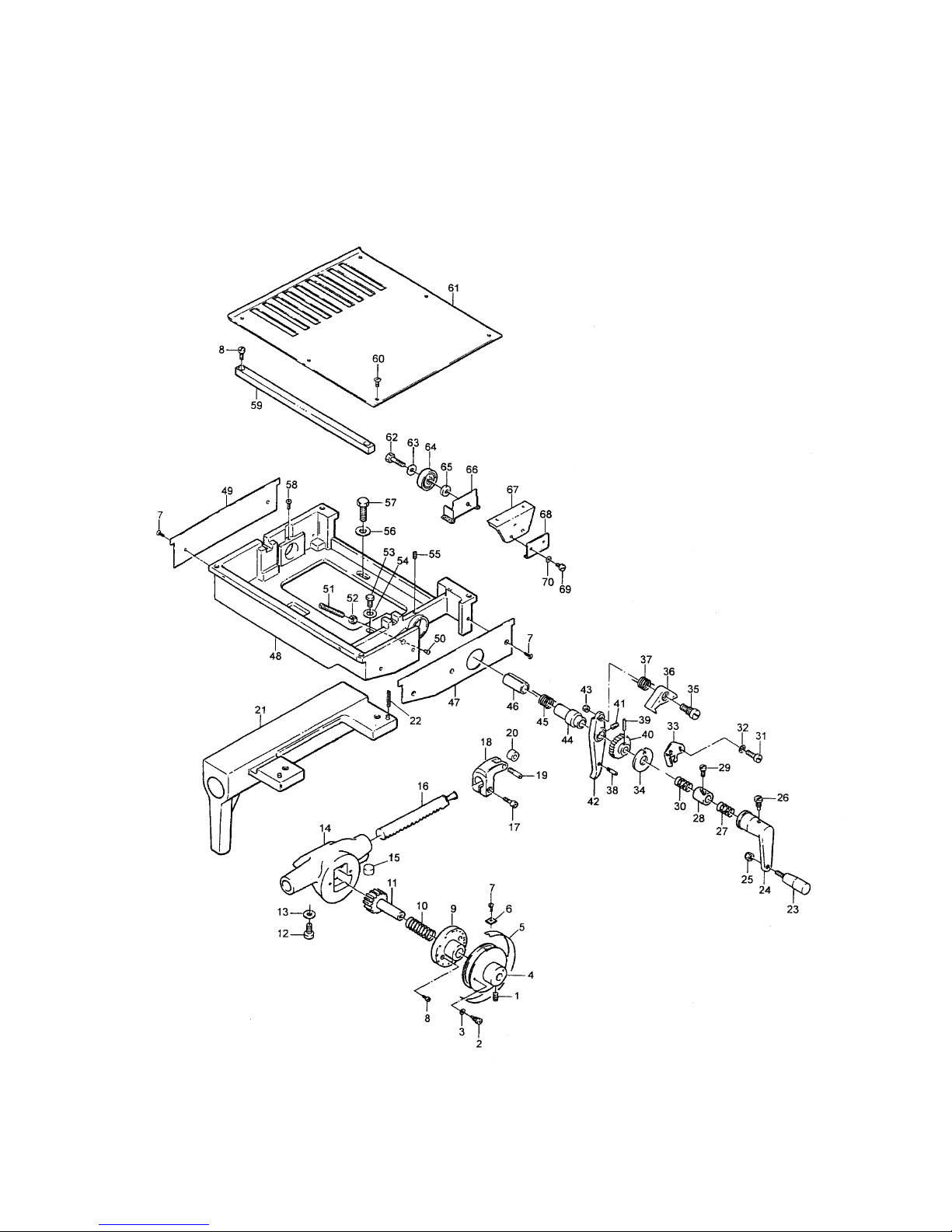

Carriage

Item Description Part No. Item Description Part No.

1 Grub Screw 330M-00131 36 Pawl 330M-00166

2 Screw 330M-00132 37 Spring 330M-00167

3 Washer 330M-00133 38 Pin 330M-00168

4 Alum. Flange Index Head 330M-00134 39 Springy Pin 330M-00169

5 Graduated Badge 330M-00135 40 Pinion 330M-00170

6 Plate 330M-00136 41 Grub Screw 330M-00171

7 Screw 330M-00137 42 Lever 330M-00172

8 Screw 330M-00138 43 Nut 330M-00173

9 Flange 330M-00139 44 Bushing 330M-00174

10 Spring 330M-00140 45 Spring 330M-00175

11 Pinion 330M-00141 46 Bushing 330M-00176

12 Screw 330M-00142 47 SS Front Part 330M-00177

13 Washer 330M-00143 48 Plate Carrier 330M-00178

14 Index Head 330M-00144 49 SS Front Part 330M-00179

15 Grub Screw 330M-00145 50 Pin 330M-00180

16 Rack 330M-00146 51 Threaded Pin 330M-00181

17 Screw 330M-00147 52 Nut 330M-00182

18 Feeder 330M-00148 53 Screw 330M-00183

19 Pin 330M-00149 54 Washer 330M-00184

20 Retainer 330M-00150 55 Screw 330M-00185

21 Carriage 330M-00151 56 Washer 330M-00186

22 Springy Pin 330M-00152 57 Screw 330M-00187

23 Advancement Handle 330M-00153 58 Screw 330M-00188

24 Advancement Knob 330M-00154 59 Carriage Bar 330M-00189

25 Nut 330M-00155 60 Screw 330M-00190

26 Screw 330M-00156 61 SS Plate Cover 330M-00191

27 Spring 330M-00157 62 Screw 330M-00192

28 bushing 330M-00158 63 Washer 330M-00193

29 Screw 330M-00159 64 Bearing 626ZZ 330M-00194

30 Spring 330M-00160 65 Washer 330M-00195

31 Screw 330M-00161 66 SS Plate Cover 330M-00196

32 Washer 330M-00162 67 Bearing Support 330M-00197

33 Plate 330M-00163 68 SS Plate Cover 330M-00198

34 Washer 330M-00164 69 Screw 330M-00199

35 Screw 330M-00165 70 Washer 330M-00200

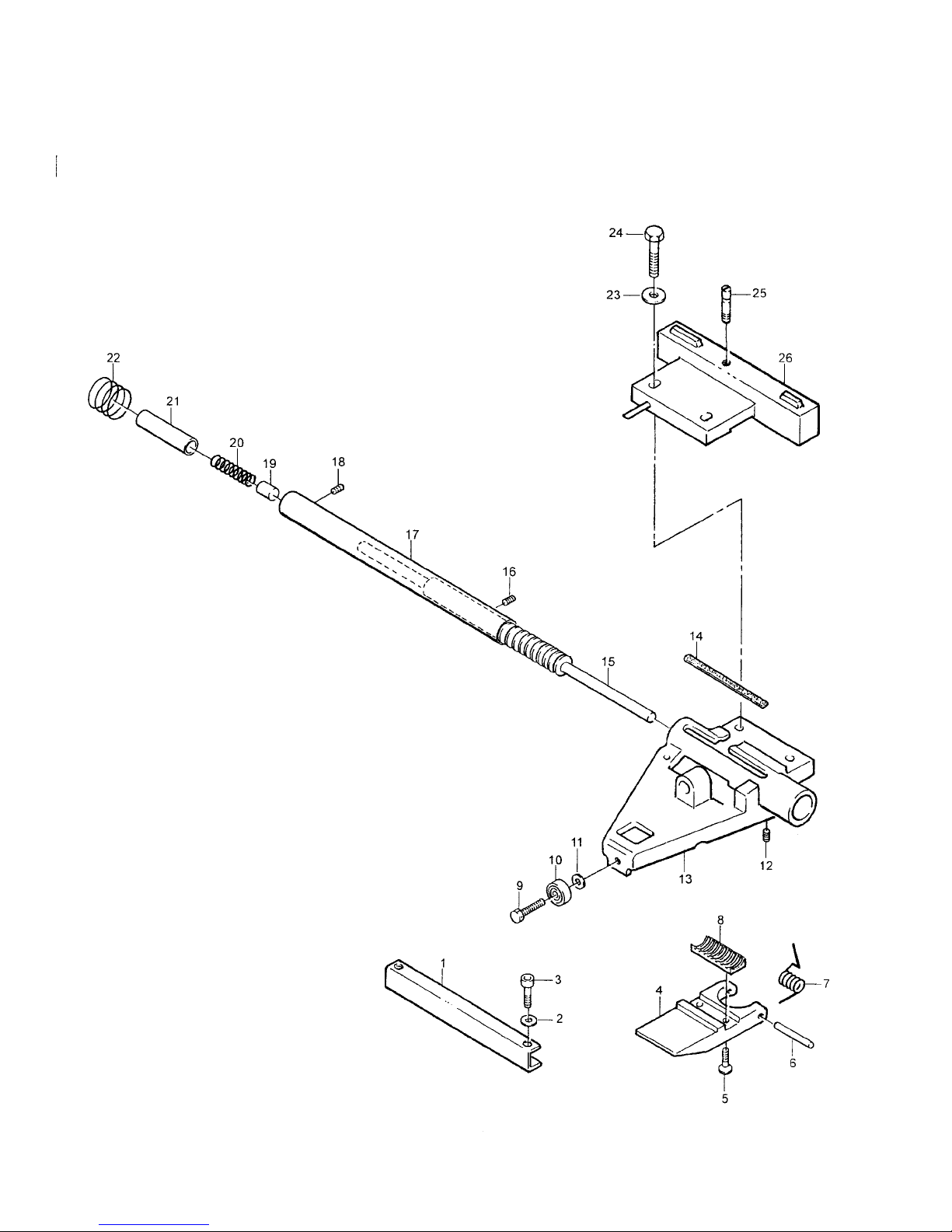

Thickness Regulator

Item Description Part No.

1 Sliding Guide 330M-00201

2 Washer 330M-00202

3 Screw 330M-00203

4 Rack Support 330M-00204

5 Screw 330M-00205

6 Pin 330M-00206

7 Spring 330M-00207

8 Rack Support 330M-00208

9 Screw 330M-00209

10 Bearing 626 2RS 330M-00210

11 Washer 330M-00211

12 Grub Screw 330M-00212

13 Feeding Carriage 330M-00213

14 Felt 330M-00214

15 Endless Screw 330M-00215

16 Grub Screw 330M-00216

17 Screw Guard Tube 330M-00217

18 Grub Screw 330M-00218

19 Spacer 330M-00219

20 Spring 330M-00220

21 Bushing 330M-00221

22 spring 330M-00222

23 Washer 330M-00223

24 Screw 330M-00224

25 Block Table Pin 330M-00225

26 Carriage Carrier Support 330M-00226

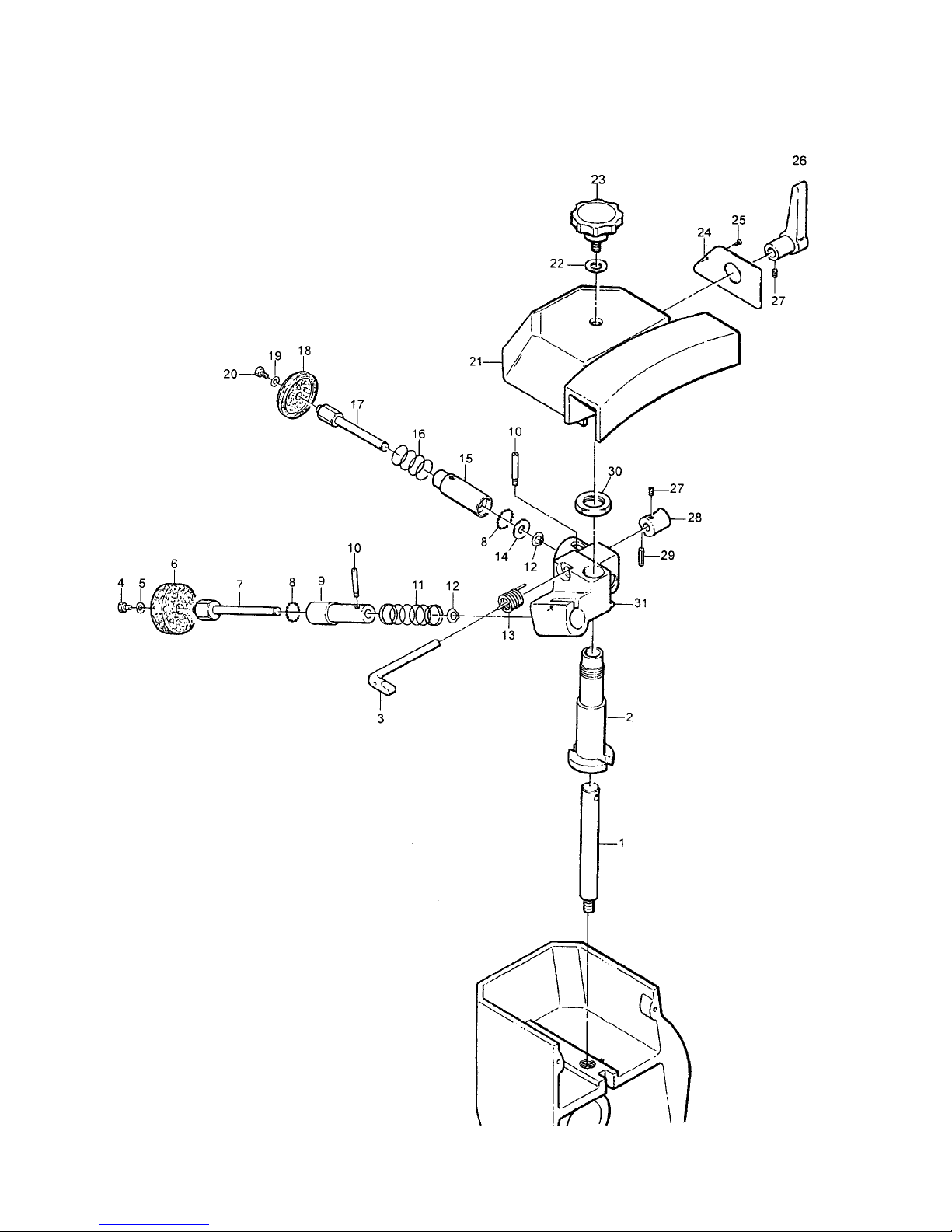

Sharpener
