Berkel 850A Manuale utente

ODEL

850A

XPLODED

IEWS AND

ARTS

ISTS

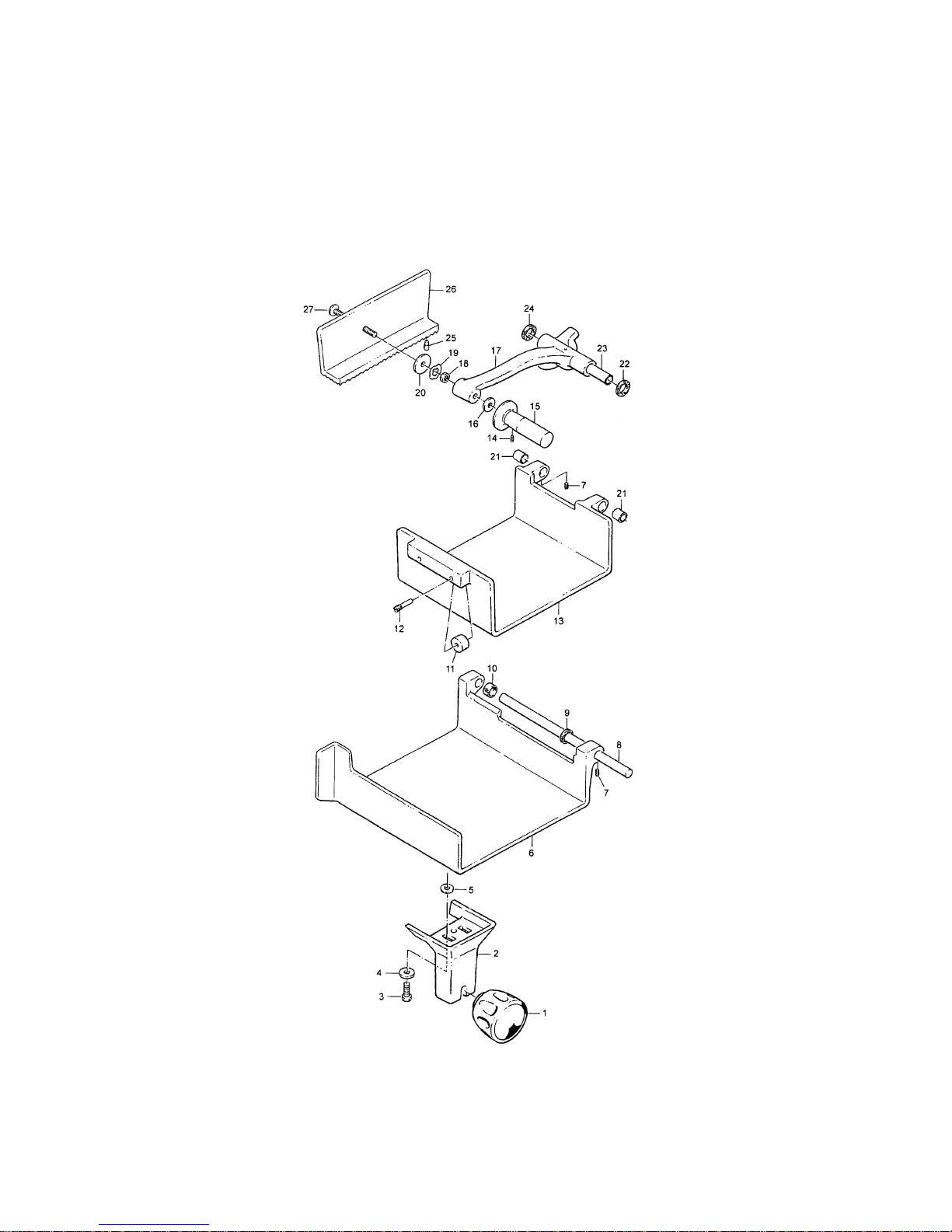

EAT

ABLE

SSEMBLY

EAT

ABLE

SSEMBLY

Item Description Part Number

1 Knob 827A-00040

2 Meat Table Support 850-00010

3 Screw 825-00122

4 Washer 827-00131

5 Washer 2275-03071

6 Meat Table 850-00013

7 Set Screw 825-00086

8 Shaft 850-00014

9 Plastic Spacer 850-00015

10 Spacer 850-00016

11 Nylon Wheel 850-00017

12 Pin 850-00018

13 Upper Table 850-00019

14 Spring Lock Washer 850-00020

15 Handle 850-00021

16 Nylon Washer 850-00022

17 Arc 850-00023

18 Nut 827-00130

19 Washer 827-00095

20 Nylon Washer 850-00024

21 Bushing 850-00025

22 Nylon Washer 850-00026

23 Tube 850-00027

24 Nylon Washer 850-00028

25 Retainer 850-00029

26 Hand Grip 850-00030

27 Screw 850-00031

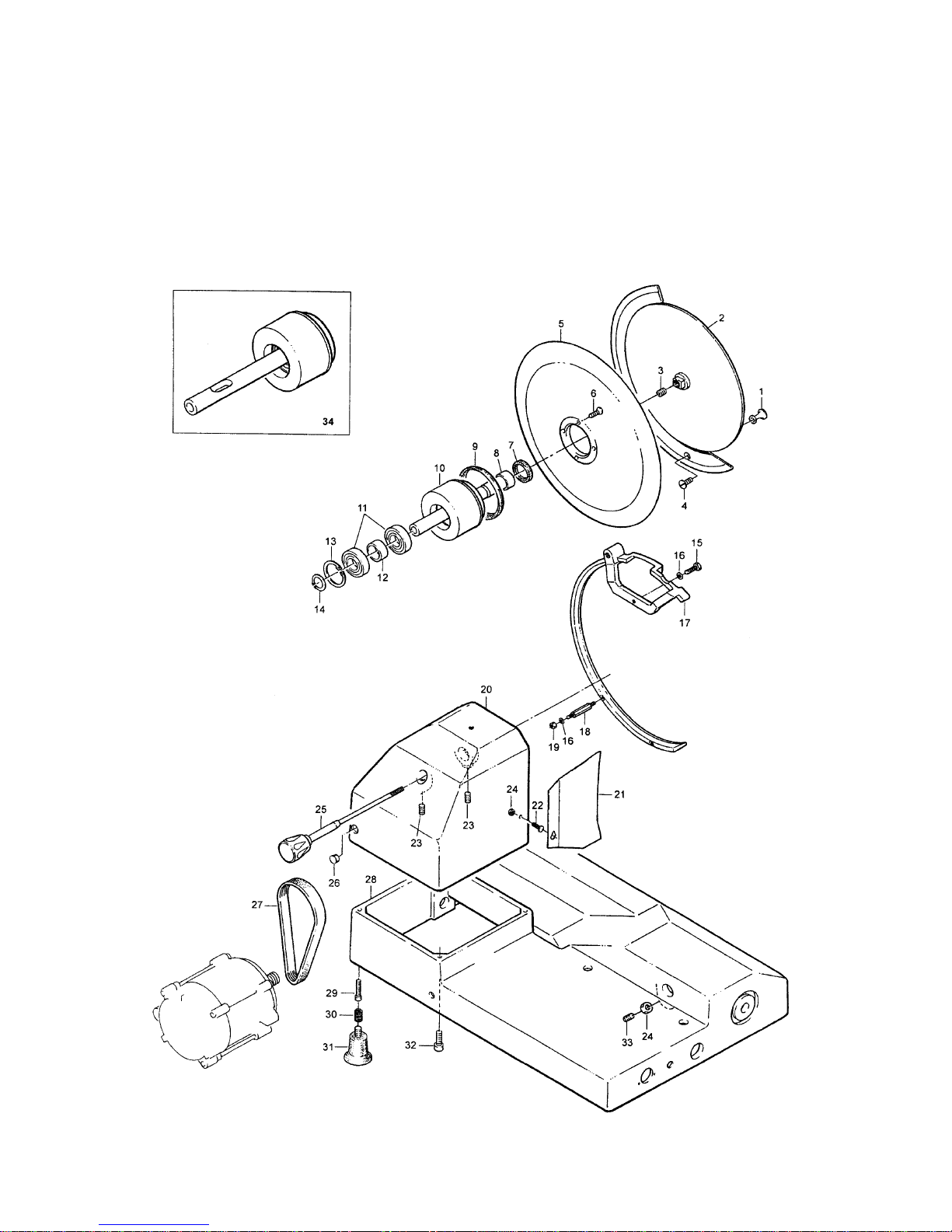

NIFE AND

OUSING

SSEMBLY

NIFE AND

OUSING

SSEMBLY

Item Description Part Number

1 Knob 823-00403

2 Center Plate 829-00002

3 Insert 827-00135

4 Screw 827-00074

5 Knife 829-00073

6 Screw 827-00074

7 Rubber Ring 827-00209

8 Pulley Shaft N/A

9 Rubber Ring 850-00001

10 Pulley Complete 829-00067

11 Bearing 2375-00103

12 Bearing Spacer 827-00070

13 Circlip 825-00071

14 Circlip 825-00072

15 Screw 825-00122

16 Washer 2275-03071

17 Ring Guard 850-00003

18 Spacer 850-00004

19 Nut 850-00005

20 Housing N/A

21 Slice Deflector 829-00011

22 Screw 829-00091

23 Set Screw 827-00086

24 Nut 827-00146

25 Tie Rod 827A-00075A

26 Plug 850-00006

27 Belt850-00066-B

28 Housing N/A

29 Screw 850-00008

30 Insert 850-00009

31 Foot 827-00093

32 Screw 827-00021

33 Set Screw 827-00086

34 Pulley Assembly Complete 829-00067

Carriage and Index Assembly

ARRIAGE AND

NDEX

SSEMBLY

Item Description Part Number

1 Gauge Plate 850-00032

2 Support 850-00033

3 Spacer 850-00034

4 Washer 823-00102

5 Screw 850-00035

6 Index Knob 850-00036

7 Spring 829-00024

8 Gauge Plate Support 850-00037

9 Washer 850-00038

10 Screw 825-00122

11 Plate 827-00026

12 Screw 827-00032

13 Bushing 827-00219

14 Nut 827-00033

15 Cam Pin 827-00027

16 Index Cam 829-00029

17 Nylon Pin 827-00030

18 Washer 827-00095

19 Screw 825-00021

20 Support 850-00039

21 Set Screw 827-00086

22 Bushing 827-00219

23 Screw 827-00028

24 Nut 827-00029

25 Screw 829-00017

26 Plate 829-00092

27 Screw 827-00021

28 Washer 823-00114

29 Square Rail 829-00014

30 Rivet 829-00096

31 Oil Plate 827-00097

32 Ball Oiler 829-00099

33 Spring 829-00020

34 Round Rail 829-00013

35 Bushing N/A

36 Carriage 850-00012

37 Screw 829-00050

38 Nylon Screw 827-00129

39 Washer 827-00016

40 Bearing 827-00015

Housing and Electrical

OUSING AND

LECTRICAL

Item Description Part Number

1 Motor Pin 827-00074

2 Set Screw 827-00086

3 Locking Plate 827-00127

4 Cable 4175-00031

5 Plate 3675-00224

6 Washer 825-00006

7 Screw 825-00021

8 Motor Pin 829-00048

9 Nut 2101-07041

10 Nut 827-00029

11 Screw 827-00062

12 Tie Rod 850-00049

13 Screw N/A

14 Lock Washer N/A

15 Terminal N/A

16 Plate 823-00055

17 Nut 823-00106

18 Washer 823-00102

19 Screw 827-00058

20 Box 825-00405

21 Screw 825-00021

22 Washer 825-00006

23 Spacer 829-00128

24 Capacitor 829-00042

25 Washer 829-00402

26 Pilot Light 825-00041

27 Switch 827A-00039-02

28 Screw 827A-00400

29 Knob 827A-00036-02

30 Screw 827A-00401

31 Badge 827A-00039-B02

32 Switch Complete 827A-00039-02

HARPENER

SSEMBLY
