BIRD SiteHawk SK-6000-TC Manuale utente

Measures how well all the components in a system are matched to 50 Ω. Results are given in VSWR or Return Loss (dB).

Use Markers and Limit Line. Enter frequency range to sweep, select number of data points, Calibrate using the Calibration Combo.

Bird®SiteHawkTM

QUICK START GUIDE

MEASURE/MATCH

1. Select Mode of operation

by tapping here, then

make your selection.

2. Set the Start & Stop

frequency range

3. Enter the frequency

4. Press OK

5. Select number of data

points by tapping here and

making your selection.

6. Calibrate - see calibrating

the SiteHawk

EXAMPLES OF AN ANTENNA FREQUENCY RESPONSE SWEEP IN RETURN LOSS AND VSWR.

Using Markers and a limit line allows for a quick and accurate reading. Nothing has been changed in each sweep except for the Mode from ReturnLoss to SWR.

Antenna sweep in Return Loss Markers

Limit Line

-14dB

Antenna Resonant Band

Correction

Same antenna sweep in SWR Markers

Limit Line

-14dB

Correction On

Distance to Fault (DTF) will pinpoint where the problem occurs.

Need to know the frequency of operation, cable type, and the distance from the transmitter to the antenna.

Add 10-20% additional length to the Stop Distance. It is also very helpful to have a diagram of your system so that components can be identied.

It is not always possible to have such a diagram.

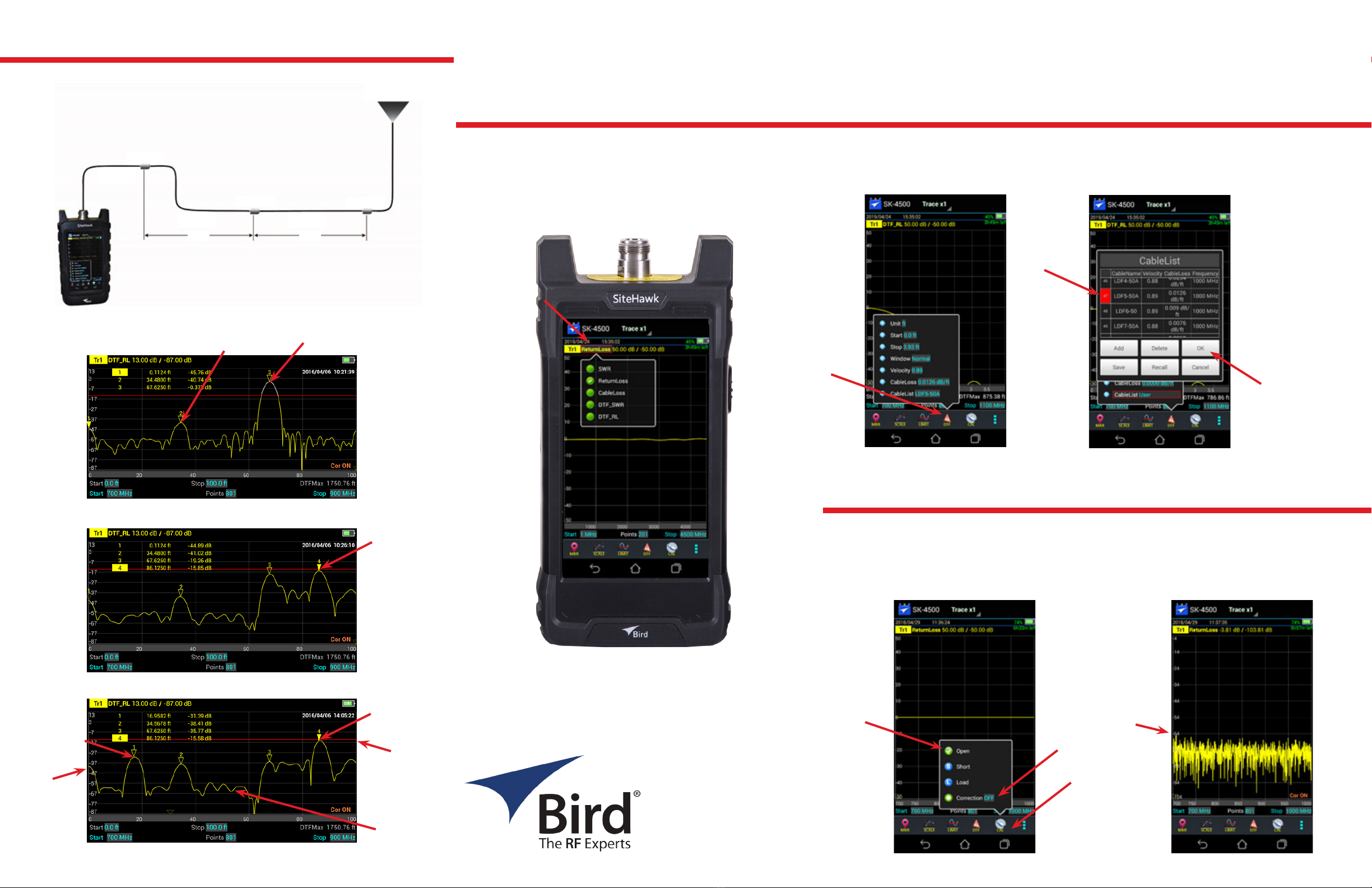

DISTANCE TO FAULT

1. Select DTF_RL or DTF_SWR mode.

2. Select Points. (See step 5 of measure match).

3. Set start and stop frequency. Refer to step 2 in

measure/match.

DISTANCE TO FAULT EXAMPLES

CALIBRATING THE SITEHAWK

4. Select DTF Units (meters or feet), stop distance, and cable info

(manually or from list) by tapping on the DTF icon.

5. Calibrate - see below.

Diagram of Tested System

System terminated with an open.

System terminated with an antenna.

System as in diagram, but with some type of fault.

Non-precision barrel connection Open

Antenna

Feed Line

Connection

to SiteHawk

Fault

Limit Line at

-14dB

1. Tap on the CAL icon

2. Connect the OPEN to the test port. Press OPEN

3. Unit sweeps & GREEN circle appears

4. Repeat for SHORT & LOAD. Correction ON appears

Leave load attached & sweep

should be at -50dB or better

indication a good calibration.

CAL icon

For more info:

t: 440.248.1200

e: [email protected]om

www.birdrf.com

quick-start-guide-sitehawk-05162019

Connector

Connector Connector

LDF5-50A

Feedline

LDF5-50A

Feedline

RF Test

Cable 1.5m

Antenna Return Loss

= -14dB

33 Ft. 33 Ft.
