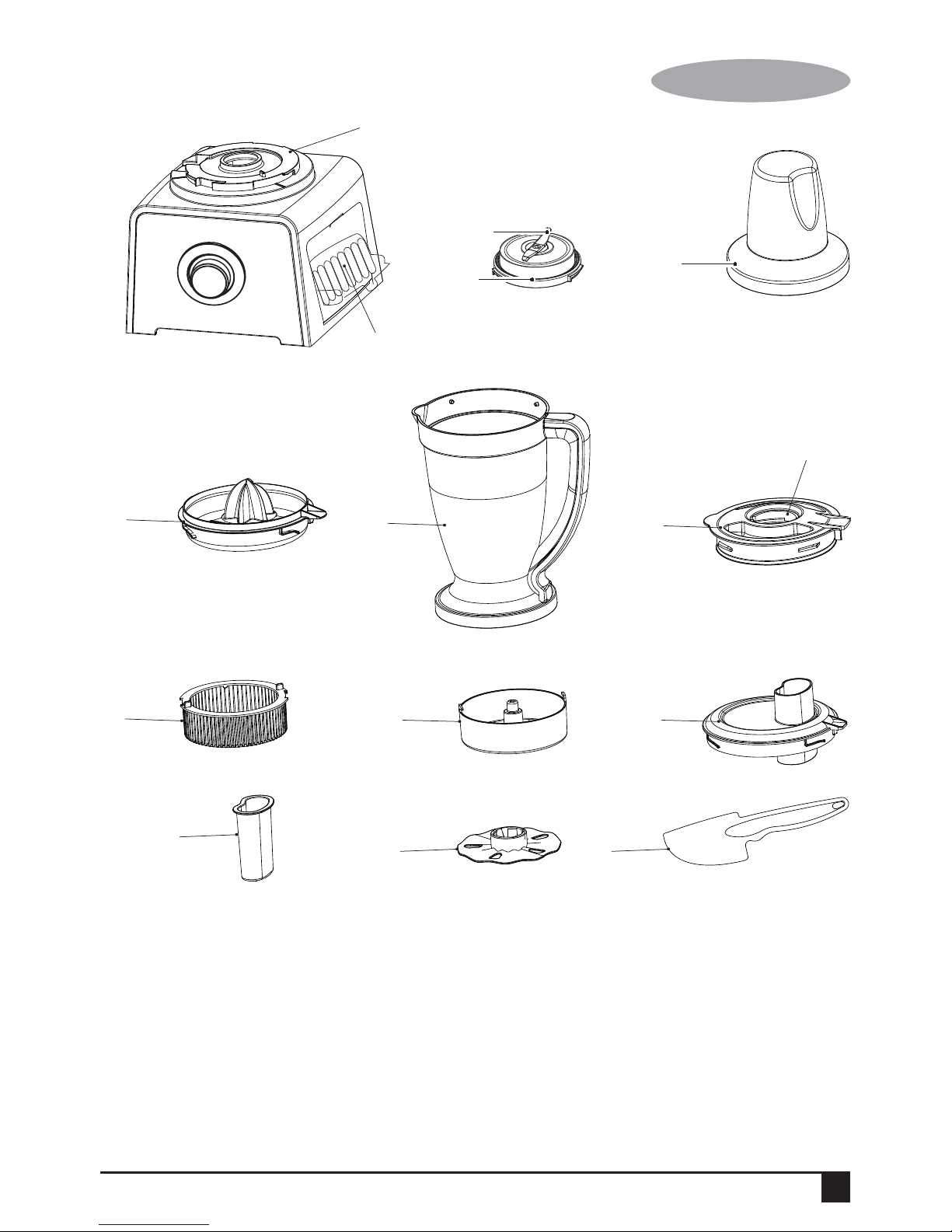

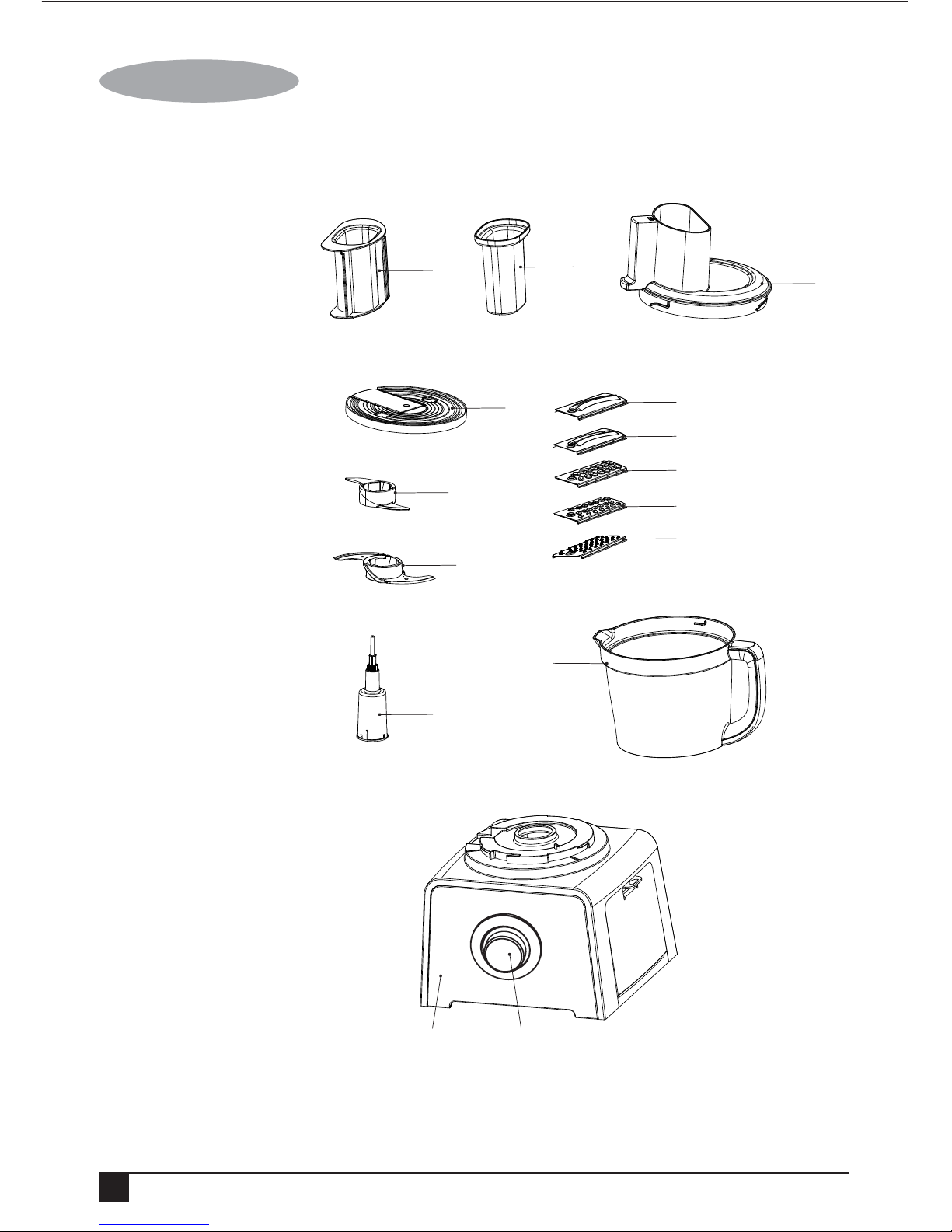

Parts Identiﬁcation

A Pusher

B Inner pusher

C Food processor lid

D Cutter disc

D1 Fine slice cutter

D2 Coarse slice cutter

D3 Fine grating cutter

D4 Medium grating cutter

D5 Coarse grating cutter

E Mixing blade

F Chopping blade

G Blade holder

H Food processor bowl

I Food processor base

J Control knob

K Drive coupling

L Cutter storage

M Grinder blade

N Grinder jug seal

O Grinder jar

P Citrus juicer

Q Blender jar

R Blender lid

S Filler cap

T Centrifugal juicer

U Centrifugal ﬁlter

V Centrifugal juicer lid

W Centrifugal juicer pusher

X Mixing Blade

Y Spatula

ENGLISH

Intended use

Your Black & Decker appliance comes with

accessories to perform these functions:

Blade for chopping, beating, creaming,

crumbling, cutting, folding in, mashing,

mincing, mixing & kneading.

Blades for coarse, medium and ﬁne grating

and shredding vegetables, fruits and

cheese.

Slicing blades for coarse and ﬁne slicing of

vegetables and fruits.

Blender for blending, crushing, foaming,

grinding, pureeing, homogenizing,

liquidising, milling, shaking and stirring.

Grinder mill for grinding coee, herbs and

spices.

Juice Extractor attachment for juicing and

pulping non-citrus fruits.

Citrus Juice Extractor for juicing and

pulping of citrus fruits.

Warning!

Do not use the centrifugal juicer if the

rotating sieve is damaged or has visible

cracks

This appliance is intended for use in

household and similar applications such as:

sta kitchen areas in shops, oces and

other working environments; farm houses;

by clients in hotels, motels and other

residential type environments; bed and

breakfast type environments.

Do not use this appliance for any other

purpose. This product is intended for indoor

household use only.

Read this entire manual carefully

before using the appliance.

Safety instructions

• Warning! When using mains-powered

appliances, basic safety precautions,

including the following, should always be

followed to reduce the risk of ﬁre, electric

shock and personal injury.

• The intended use is described in this

manual. The use of any accessory or

attachment or the performance of any

operation with this appliance other than

those recommended in this instruction

manual may present a risk of personal

injury.

• Retain this manual for future reference.

Using your appliance

• Always take care when using the

appliance.

• Never pull the power supply cord to

disconnect the plug from the socket.

Keep the power supply cord away from

heat, oil and sharp edges.

• Do not place the appliance on or near

heat sources or in a heated oven.

• Do not use the appliance outdoors.

• Always protect the motor unit from water

or excessive humidity.

• If the power supply cord is damaged

during use, disconnect the appliance from

the power supply immediately. Do not

touch the power supply cord before

disconnecting from the power supply.

• Disconnect the appliance from the power

supply when not in use, before ﬁtting or

removing parts and before cleaning.

• Misuse could cause injury

• Be careful if hot liquid is poured into the

food processor or blender as it can be

ejected out of the appliance due to

sudden steaming

ENGLISH

• Never let the appliance operate

unattended.

• Never reach into the jar with your ﬁngers

or an object while the appliance is

running.

• Only remove the jar after you have

switched the appliance o and any

moving parts have stopped.

• Do not touch the cutting blades.

• Keep any loose clothing or long hair

away from the feeding tube and any

moving parts.

• Care shall be taken when handling the

sharp cutting blades, emptying the bowl

and during cleaning.

• Do not immerse the appliance, cord set

or plug in liquids.

• Position the cord so it does not hang

over the edge of worktops & cannot be

caught accidentally or tripped over.

Caution: Ensure the Blender is turned o

before removing from the stand.

Safety of others

• This appliance is not intended for use by

persons (including children) with

reduced physical sensory or mental

capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning use

of the appliance by a person responsible

for their safety.

• Children should be supervised to ensure

that they do not play with the appliance.

After use

• Remove the plug from the socket before

leaving the appliance unattended and

before changing, cleaning or inspecting

any parts of the appliance.

• When not in use, the appliance should be

stored in a dry place. Children should not

have access to stored appliances.

Inspection and repairs

• Switch oﬀ the appliance and disconnect

from the supply before cleaning,

changing accessories or approaching

parts which move in use

• Before use, check the appliance for

damaged or defective parts. Check for

breakage of parts, damage to switches

and any other conditions that may aect

its operation.

• Do not use the appliance if any part is

damaged or defective.

• Do not use the appliance if the blade is

damaged.

• Have any damaged or defective parts

repaired or replaced by an authorised

repair agent.

• Before use, check the power supply cord

for signs of damage, ageing and wear.

• Do not use the appliance if the power

supply cord or mains plug is damaged or

defective.

• If the power supply cord or mains plug is

damaged or defective it must be

repaired by an authorised repair agent in

order to avoid a hazard. Do not cut the

power supply cord and do not attempt to

repair it yourself.

• Never attempt to remove or replace any

parts other than those speciﬁed in this

manual.

Electrical safety

Before use, check that the mains voltage

corresponds to the voltage on the rating

plate.

This appliance is double insulated

in accordance with EN 60335-2-14;

therefore no earth wire is required.

ENGLISH

• To avoid the risk of electric shock, do not

immerse the cord, plug or motor unit in

water or other liquid.

• Check that the supply voltage shown on

the rating plate of the appliance matches

that of your electrical system. Any

connection error will invalidate the

guarantee.

Mains plug replacement

If a new mains plug needs to be ﬁtted:

• Safely dispose of the old plug

• Connect the brown lead to the live

terminal of the new plug

• Connect the blue lead to the neutral

terminal

• If the product is class I (earthed),

connect the green/yellow lead to the

earth terminal.

Warning! If your product is class II double

insulated (only 2 wires in the cord set), no

connection is to be made to the earth

terminal

• Follow the ﬁtting instructions supplied

with good quality plugs

• Any replacement fuse must be of the

same rating as the original fuse supplied

with the product.

Warning! The above section on mains plug

replacement is for authorized service centre

personnel.

Assembly

Wash all detachable parts (see

chapter ‘Maintenance and

cleaning’).

Assembling the food processor

1. Fit the food processor bowl (H) onto the

food processor base (I), secure it by

turning it clockwise.

2. For chopping or kneading ﬁt the

required blade (E or F) onto the blade

holder (G).

3. For shredding or slicing, ﬁt the required

blade (D1, D2, D3, D4 or D5) into the

cutter disc (D).

4. Place the assembled blade / cutter disc

into the food processor jug (H).

5. Fit the food processor lid (C) and secure

it by turning it clockwise

6. Fit the inner pusher (B) into the pusher

(A), then place the assembly into the

hole in the lid (C)

Assembling the blender

1. Place the blender jug (Q) onto the food

processor base (I) and secure it by

turning clockwise.

2. Fit the blender lid (R) to the blender jar

(Q) and secure it by turning it

anti-clockwise.

3. Fit the ﬁller cap (S) to the blender lid (R)

and secure it by turning it clockwise.

Assembling the grinder

1. Fit the grinder jug seal (N) into the

grinder blade (M).

2. Fit the grinder blade (M) into the grinder

jar (0) and secure by turning it clockwise

3. Place the grinder jar onto the food

processor base (I) and secure it by

turning it clockwise

Assembling the citrus Juicer

1. Fit the food processor jug (H) onto the

food processor base (I), and secure it by

turning it clockwise

2. Fit the citrus juicer (P) onto the food

processor jug (H), and secure it by

turning it clockwise.

ENGLISH

Assembling the centrifugal juicer

1. Fit the food processor bowl (H) onto the

food processor base (I), secure it by

turning it clockwise

2. Place the blade holder (G) into the bowl

(H)

3. Fit the centrifugal juicer (T) into the food

processor jug.

4. Fit the centrifugal juicer ﬁlter(U) and

secure this by pushing it down

5. Fit the centrifugal juicer lid (V), locking in

place by rotating it ant-clockwise, then

place the pusher (W) into the lid.

Note: Do not use the centrifugal juicer if the

rotating sieve is damaged

Use

1. Place the appliance on a ﬂat, stable

surface.

2. Assemble the required accessory as

advised above.

3. Put the ingredients into the jug or bowl.

4. Connect to the mains supply.

5. Turn the control knob to the required

setting.

Note: Additional items can be added during

use by using the chutes in the lids and the

pusher.

The following settings are available:-

P = Pulse Operation

O = Power Oﬀ

1 = Low Speed

2 = High Speed

The appliance should be

disconnected from the mains

supply before removing the jug.

Recommendations when food

processing

*1 Use the chopping blade (F)

*2 Use the mixing blade (E)

Function Types of food Speed Time

Chopping *1 Vegetables 1 or 2 15 sec

and fruits

Chopping *1 Meat, cheese 1 or 2 20 sec

and chocolate

Blending *1 Soups and 1 or 2 20 sec

thick drinks

Pureeing *1 Cooked vegetables 1 or 2 10-15 sec

and soft fruits

Mixing *1 Pastry and scones 1 or 2 40 sec

Mashing *1 Cooked potatoes 1 or 2 60 sec

and baby food

Kneading *2 Bread dough 1 or 2 20 sec

Folding in *2 Mousse batter 1 or 2 15 sec

Creaming *2 Cake batter 1 or 2 30 sec

Slicing *3 Vegetables and fruits 1 or 2 5 sec

Slicing *3 Potatoes and cheese 1 or 2 5 sec

Shredding *3 Vegetables and fruits 1 or 2 5 sec

Grating *4 Cheese and 2 5 sec

chocolate

Cutting *5 Potatoes 1 or 2 5 sec

for french fries

Cutting *5 Vegeatables and fruits 1 or 2 5 sec

Slow Mashing Raw fruits and 1 or 2 5 sec

*6 vegetables for

babyfood

Peeling/ Hard fruit or 2 5 sec

Rasping *6 vegetable pieces

(3x2cm) with skin

ENGLISH

*3 Use the slicing blades (D1 or D2)

*4 Use the grating blades (D3, D4 or D5)

Note: The processor should not be run for

longer than 3 minutes at a time. Allow a rest

period of 5 minutes between work cycles

Recommendations when blending

Note: The blender should not be run for

longer than 3 minutes at a time. Allow a rest

period of 5 minutes between work cycles

Warning: Pulse mode should not be

operated more than 10 sec at a time.

Recommendations when grinding

Note: The dry grinder should not be

continuously run for longer than 15 seconds.

Rest the grinder for 5 minutes afterwards.

Warning: Max capacity of Grinder mill is

50g.

Warning! The grinder MUST NOT be used for

wet grinding of hard food materials like

pulses, beans, grains etc. This will lead to

damage of blades and reduction of motor

life span.

Recommendations when juicing

*1 Use the centrifugal juicer (T)

*2 Use the citrus juicer (P)

Note: Fruits that contain starch, such as

bananas, papayas, avocados, ﬁgs,

strawberries and mangoes are not suitable

for processing in this juice extractor

attachment. Use the stainless steel blade

attachment of the food processor or the

blender to process these fruits.

Note: The juicer is not suitable for

processing very hard and/or ﬁbrous/starchy

fruits, vegetables or plants such as sugar

cane.

Note: The Juicer should not be run for

longer than 3 Minute. After each 3 Minute

use, the Juicer should be allowed to cool for

at least 5 minutes. After 3 consecutive cycles

the juicer must be allowed to cool for 15

minutes before further use

Function Types of food Speed Time

Blending Liquids 2 15 sec

Liquidizing Fruits or vegetables 2 30 sec

cut in cubes with

equal amount of water

Crushing Ice cubes of Pulse 10 sec

dimension 3x2cm

Foaming Milk shakes, juices etc 2 20 sec

Pureeing Vegetables and 2 30 sec

soft fruits

Stirring Batter or soups 2 1 min

Function Types of food Speed Time

Dry grinding Coee beans 2 10-15 sec

Dry grinding Dry herbs 2 10-15 sec

Dry grinding Spices 2 10-15 sec

Function Types of food Speed Time

Juicing *1 Non-citrus fruits 2 1 min

Collecting Draining and 2 1 min

pulp *1 collecting the pulp

of non-citrus fruits

Juicing *2 Citrus fruits 2 1 min

and ground spices

with water

Collecting Draining and 2 1 min

pulp *2 collecting the pulp

of citrus fruits

ENGLISH

Useful advice

• Place the appliance on a clean, ﬂat work

surface.

• Connect the appliance to a suitable

electrical supply. Rotate the control knob

(J) to the required speed.

• When processing is complete return the

control knob to the o (0) position.

• Once the blade has come to a complete

stop, lift the jar / bowl from the blender

body (I).

• Remove the lid and pour the ingredients

into a suitable container.

Note: Ingredients can be added by inserting

them through the hole left when the ﬁller

cap (S) or pushers (A), (B) or (W) are

removed.

Warning! Never operate the Blender

without the lid ﬁtted.

Warning! Never operate the Food processor

without the lid ﬁtted.

Maintenance & cleaning

• Switch the appliance oﬀ, remove the

plug from the wall socket and wait until

the blade has stopped rotating.

• The appliance is easier to clean if you do

so immediately after use.

• Do not use abrasive cleaning agents,

scourers, acetone, alcohol etc. to clean

the appliance.

• All removable parts can be cleaned with

a cleaning brush in warm water with

some washing-up liquid and rinse them

under the tap.

• Remove the dirty parts from the motor

unit. Clean the motor unit with a damp

cloth.

• Never immerse the motor unit in water

nor rinse it under the tap.

Technical data

FX810

Voltage 220 – 240 Volts

Supply 50/60 Hz

Power 800W.

Weight 5.03 Kg.

Warranty

Black & Decker is conﬁdent of the quality of

its products and oers an outstanding

warranty.

This warranty statement is in addition to and

in no way prejudices your statutory rights.

The warranty is valid within the territories of

the Member States of the European Union

and the European Free Trade Area.

If a Black & Decker product becomes

defective due to faulty materials,

workmanship or lack of conformity, within

24 months from the date of purchase, Black

& Decker warranty to replace defective

parts, repair products subjected to fair wear

and tear or replace such products to ensure

minimum inconvenience to the customer

unless:

The product has been used for

trade, professional or hire

purposes;

The product has been subjected to

misuse or neglect;

The product has sustained damage

through foreign objects,

substances or accidents;

Repairs have been attempted by

persons other than authorised

repair agents or Black & Decker

service sta.

To claim on the warranty, you will need to

submit proof of purchase to the seller or an

authorised repair agent. You can check the

location of your nearest authorised repair

agent by contacting your local Black &

Decker oce at the address indicated in this

manual.

Alternatively, a list of authorised Black &

Decker repair agents and full details of our

after-sales service and contacts are available

on the Internet at: www.2helpU.com.

Protecting the environment

Separate collection. This product must

not be disposed of with normal

household waste.

Should you ﬁnd one day that your Black &

Decker product needs replacement, or if it is

of no further use to you, do not dispose of it

with other household waste. Make this

product available for separate collection.

• Black & Decker provides a facility for

recycling Black & Decker products once

they have reached the end of their

working life. This service is provided free

of charge. To take advantage of this

service please return your product to any

authorised repair agent who will collect

them on our behalf.

• You can check the location of your

nearest authorised repair agent by

contacting your local Black & Decker

oce at the address indicated in this

manual. Alternatively, a list of authorized

Black & Decker repair agents and full

details of our after-sales service and

contact are available on the Internet at:

www.2helpU.com.

ENGLISH

Indice

Lingue:

Altri manuali Black & Decker Elettrodomestico da cucina

Black & Decker

Black & Decker TS4040 Manuale utente

Black & Decker

Black & Decker PKS100 Manuale utente

Black & Decker

Black & Decker SKG111 Istruzioni per l'installazione

Black & Decker

Black & Decker JE2200 Manuale utente

Black & Decker

Black & Decker Press&Steam HGS500-LA Manuale utente

Black & Decker

Black & Decker bev BEHB101-BM Manuale utente

Black & Decker

Black & Decker BEV BCHB101 Manuale utente

Black & Decker

Black & Decker Deep Dutch SKG110C Istruzioni per l'installazione

Black & Decker

Black & Decker G100 Series Istruzioni per l'installazione

Black & Decker

Black & Decker HST1200 Manuale utente

Black & Decker

Black & Decker HGS200 Series Manuale utente

Black & Decker

Black & Decker je2400bd Manuale utente

Black & Decker

Black & Decker HGS250-LA Manuale utente

Black & Decker

Black & Decker JE2050 Istruzioni per l'installazione

Black & Decker

Black & Decker JE65 Manuale utente

Black & Decker

Black & Decker Deep Dutch SKG610C Istruzioni per l'installazione

Black & Decker

Black & Decker TS2040 Manuale utente

Black & Decker

Black & Decker SK1212BC Istruzioni per l'installazione

Black & Decker

Black & Decker G605SB Istruzioni per l'installazione

Black & Decker

Black & Decker MX151R Manuale utente

Black & Decker

Black & Decker TS75R Manuale utente

Black & Decker

Black & Decker SM250 Manuale utente

Black & Decker

Black & Decker SK1215BC Manuale utente

Black & Decker

Black & Decker JE1500 Series Istruzioni per l'installazione

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
