Black Box LB9030A-R2 Manuale utente

October, 2006

Express Ethernet Switch:

LB9030A-R2

LB9031A-R2

LB9032A-R2

CUSTOMER

SUPPORT

INFORMATION

Order toll-free in the U.S. Call : 877-877-BBOX ( Outside U. S. call 724-746-5500 )

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 orfax

724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail:[email protected]

LB9030A-R2_LB9031A-R2_LB9032A-R2

Preface

This manual describes how to install and use the Manageable

8-Port 10/100BaseTX, 7-Port 10/100BaseTX plus 1-Port

100BaseFX, and 6-Port 10/100BaseTX plus 2-Port

100BaseFX Compact Switch. This switch integrates full wire

speed switching technology with SNMP/RMON web-based

management functions. This switch brings a simple answer to

today’s complicated networking environments.

To get the most out of this manual, you should have an

understanding of Ethernet networking concepts.

In this manual, you will find:

•Features on the switch

•Illustrative LED functions

•Installation instructions

•Management Configuration

•SNMP…

•Specifications

LB9030A-R2_LB9031A-R2_LB9032A-R2

Table of Contents

October, 2006 1

PREFACE 2

TABLE OF CONTENTS 3

PRODUCT OVERVIEW 5

COMPACT MANAGED SWITCH .................................................................. 5

PACKAGE CONTENTS .............................................................................. 5

PRODUCT HIGHLIGHTS ............................................................................ 6

Basic Features 6

Management Support 6

FRONT PANEL DISPLAY ........................................................................... 8

PHYSICAL PORTS.................................................................................... 9

BASIC FUNCTIONS ................................................................................ 10

UNICAST SWITCHING 11

MULTICAST SWITCHING 12

VLAN ................................................................................................. 13

Broadcast Containment 14

Multicast-Based Multimedia Applications 14

Enhanced Security 14

VLAN Membership 15

VLAN CONFIGURATION 16

Intra-VLAN Communication 16

Inter-VLAN Communication 16

GVRP................................................................................................. 17

IGMP SNOOPING AND IP MULTICAST FILTERING...................................... 18

SWITCH MANAGEMENT .......................................................................... 20

INSTALLATION 21

SELECTING A SITE FOR THE SWITCH ....................................................... 21

CONNECTING TO POWER ....................................................................... 22

Power-on Self test (POST) 23

CONNECTING TO YOUR NETWORK .......................................................... 24

Cable Type & Length 24

SWITCH MANAGEMENT 25

MANAGEMENT ACCESS OVERVIEW ......................................................... 26

ADMINISTRATION CONSOLE ................................................................... 27

Direct Access 27

Modem Access 28

WEB MANAGEMENT .............................................................................. 29

Netscape Navigator 29

Internet Explorer 29

SNMP-BASED NETWORK MANAGEMENT ................................................ 30

LB9030A-R2_LB9031A-R2_LB9032A-R2

PROTOCOLS......................................................................................... 31

MANAGEMENT ARCHITECTURE ............................................................... 31

MENU-DRIVEN CONSOLE MANAGEMENT 32

LOGGING ON TO THE SWITCH.................................................................. 32

At the screen prompt 32

SWITCH MANAGEMENT SCREEN ............................................................. 33

Navigating Through the Console Interface 34

PERFORMING BASIC MANAGEMENT ACTIVITIES ........................................ 35

To Perform Basic Management Activities: 35

PERFORMING ADVANCED MANAGEMENT ACTIVITIES................................. 43

To Perform Advanced Management Activities: 43

LOGOUT .............................................................................................. 90

SAVE SETTINGS.................................................................................... 90

RESTORE DEFAULT SETTINGS ............................................................... 90

REBOOT .............................................................................................. 90

WEB-BASED BROWSER MANAGEMENT 91

LOGGING ON TO THE SWITCH.................................................................. 91

UNDERSTANDING THE BROWSER INTERFACE ........................................... 92

PERFORMING FILE ACTIVITIES................................................................ 94

To perform File Activities: 94

PERFORMING BASIC SETUP ACTIVITIES................................................... 97

To perform Basic Setup Activities: 97

PERFORMING ADVANCED SETUP ACTIVITIES.......................................... 104

To perform Advanced Setup Activities: 104

SNMP &RMON MANAGEMENT 143

OVERVIEW ......................................................................................... 143

SNMP AGENT AND MIB-2 (RFC 1213) ............................................... 144

RMON MIB (RFC 1757) AND BRIDGE MIB (RFC 1493)....................... 145

RMON Groups Supported 145

Bridge Groups Supported 146

SPECIFICATIONS 147

APPENDIX A–CONNECTOR PINOUTS 148

LB9030A-R2_LB9031A-R2_LB9032A-R2

Product Overview

Compact Managed Switch

Front View

Package Contents

When you unpack the product package, you shall find the

items listed below. Please inspect the contents, and report

any apparent damage or missing items immediately to your

authorized reseller.

3This Management Switch

3User’s Manual

3AC power cord (or external power adapter)

LB9030A-R2_LB9031A-R2_LB9032A-R2

Product Highlights

Basic Features

♦Provide:

Eight 10/100BaseTX ports

Eight 10/100BaseTX ports + one 100BaseFX port

Six 10/100BaseTX ports + two 100BaseFX ports

♦100BaseFX Multi-mode fiber using SC or ST connector

up to 2km; single-mode fiber using SC or ST

connector up to 120km; WDM single-mode fiber

using SC connector up to 40km

♦Auto-negotiation for speed and duplexity on all RJ-45

ports

♦Auto MDI/MDIX on all RJ-45 ports

♦Full wire-speed forwarding rate

♦Store-and-forward mechanism

♦Back-pressure and IEEE 802.3x compliant flow control

♦Support 4K MAC addresses

♦Provide 256K bytes memory buffer

♦Front panel port status LEDs

♦Wall-mountable compact size

Management Support

VLAN

♦Port-based VLAN

♦802.1Q tagged VLAN

TRUNKING

♦Port-based Trunking

PORT-SECURITY

♦Limit number of MAC addresses learned per port Load

♦Static MAC addresses stay in the filtering table

LB9030A-R2_LB9031A-R2_LB9032A-R2

PORT-MIRRORING

♦Port-mirroring provided through dedicated port, Port 1

QOS (Quality of Service)

♦Support IEEE802.1p Quality of Service

COS (IEEE802.1P CLASSIFICATION OF SERVICE)

♦Packet transmission scheduled using Weighted Round

Robin (WRR)

♦Classification of packet priority can be based on either

a VLAN tag on packet or a user-definable port

priority

INTERNETWORKING PROTOCOLS

♦Bridging: 802.1w Rapid Spanning Tree

802.1p/Q – GARP/GVRP

♦IP Multicast:IGMP Snooping

VLANs & IP Multicast sessions

♦Bandwidth Control

♦Rate Control

NETWORK MANAGEMENT METHODS

♦Console port access via RS-232 cable

♦Telnet remote access

♦SNMP agent:

MIB-2 (RFC1213)

Bridge MIB (RFC1493)

RMON MIB (RFC1757) – statistics, history, alarm

and events

VLAN MIB (802.1Q/RFC2674)

Private MIB

♦Java applet-based MIB browser

♦Web browser support based on HTTP server and CGI

parser

♦TFTP software-upgrade capability

LB9030A-R2_LB9031A-R2_LB9032A-R2

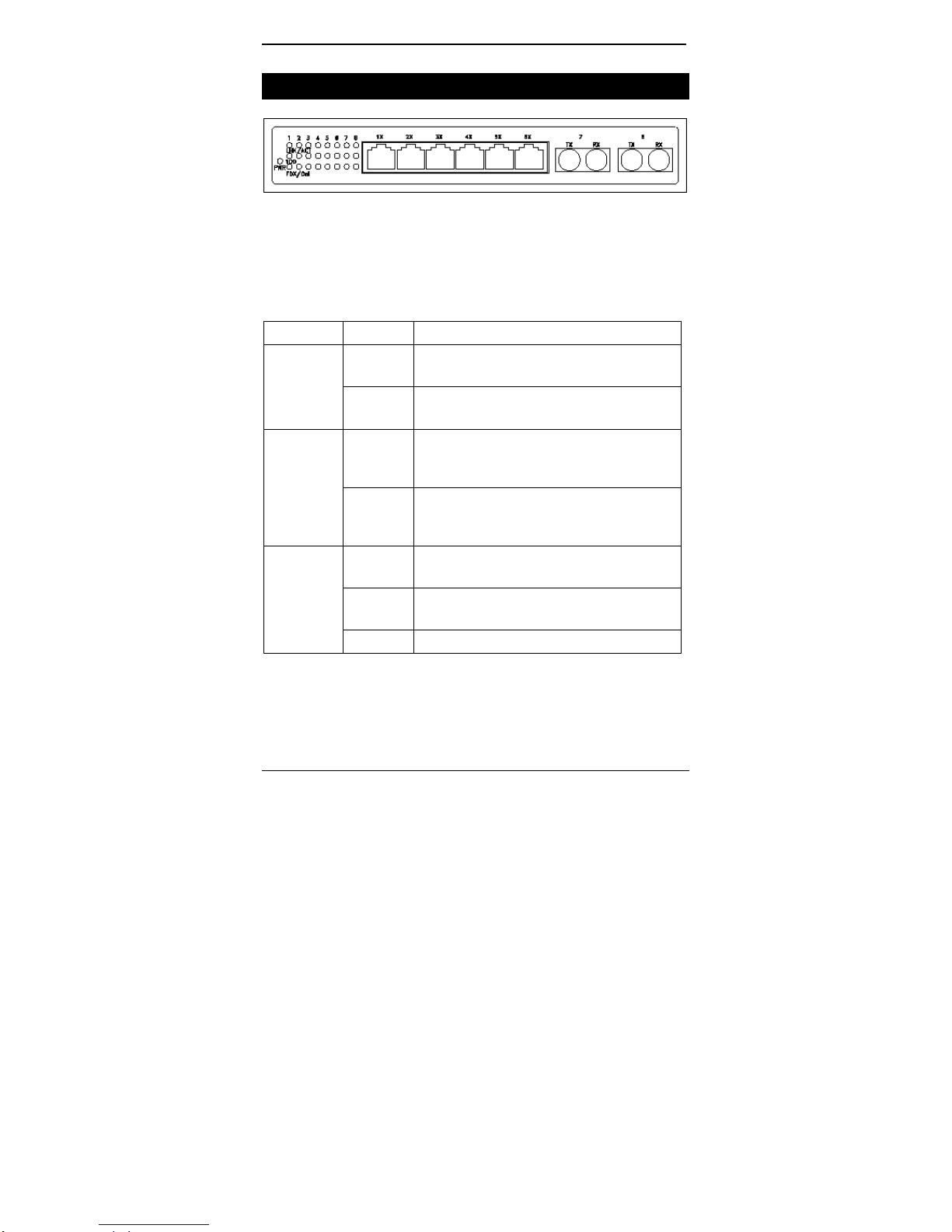

Front Panel Display

cPower Status (PWR)

These LEDs come on when the switch is properly connected to power and

turned on.

dPort Status LEDs

The LEDs display status for each respective port.

LED State Indication

Steady A valid network connection established.

LNK stands for LINK.

LNK/ACT

Flashing Transmitting or receiving data.

ACT stands for ACTIVITY.

Steady

A valid 100Mbps network connection

established.

100 stands for 100Mbps.

100

Off

A valid 10Mbps network connection

established.

10 stands for 10Mbps.

Steady Connection in full duplex mode.

FDX stands for FULL-DUPLEX.

Flashing Collision occurred.

COL stands for COLLISION.

FDX/COL

Off Connection in half-duplex mode.

LB9030A-R2_LB9031A-R2_LB9032A-R2

Physical Ports

This switch provides:

•Eight 10/100BaseTX ports

•Seven 10/100BaseTX ports + one 100BaseFX port

•Six 10/100BaseTX ports + two 100BaseFX ports

CONNECTIVITY

•RJ-45 connectors

•ST or SC connector on 100BaseFX fiber port.

MODE SELECTION

•10BaseT full-duplex mode

•10BaseT half-duplex mode

•100BaseTX full-duplex mode

•100BaseTX half-duplex mode

•100BaseFX full-duplex mode

•Auto-sensing mode (Copper Ports)

<Note>

i. Half-duplex mode uses back pressure flow control to prevent the receiving

buffer from being overrun by data from a source node.

ii. Full-duplex mode uses 802.3x flow control standard to prevent fast data

traffic from overrunning slow data traffic.

iii. Auto-sensing mode is in use after auto-negotiating with the other end of the

link.

LB9030A-R2_LB9031A-R2_LB9032A-R2

Basic Functions

In general, the switch is responsible for switching both VLAN

tagged and untagged frames from a receiving port to one or

more transmitting ports. The switch performs multiple steps

during the switching process:

VLAN CLASSIFICATION

LEARNING

FILTERING

FORWARDING

AGING

Below is additional information about tasks that the switch

performs during unicast and multicast switching.
