Safety en
7
1 Safety
Please read the safety information to ensure that you use your ac-
cessories safely.
1.1 General information
You can find general information for this instruction manual here.
¡Read this instruction manual carefully. Only this will ensure that
you operate accessories safely and efficiently.
¡Observe the instructions for the base unit.
¡Follow the safety instructions and warnings.
¡Keep the manual and the product information in a safe place for
future reference or for the next owner.
1.2 Intended use
Only use the accessories:
¡with a food processor from the same series MUMS2, MUM5.
¡With genuine parts and accessories.
¡for cutting up, shredding and grating food.
1.3 Safety instructions
Observe the safety instructions.
WARNING‒Risk of cutting!
The cutting discs have sharp blades and edges.
Only take hold of the cutting discs by the edge.
Never touch the sharp blades and edges with bare hands.
WARNING‒Risk of injury!
Rotating drives, tools or accessory parts may cause injury.
Do not reach into the filling shaft.
Only use the pusher to push down ingredients.
Improper use may cause injuries.
Never assemble the accessories on the base unit.
Only attach and remove accessories once the drive has
stopped and the appliance has been unplugged.
Only use the accessories once fully assembled.
en Safety
8
The accessories should only be used in the intended operating
position.
WARNING‒Risk of harm to health!
Soiling on surfaces may be harmful to health.
Follow the cleaning instructions.
Clean surfaces which come in contact with food before each
use.
Avoiding material damage en
9
Avoiding material damage
2 Avoiding material dam-
age
Avoiding material damage
ATTENTION!
Improper use may cause material
damage.
Do not process food that contains
hard components, e.g. bones.
Do not insert objects into the filling
shaft or housing, e.g. wooden
spoons.
Before use, check the filling shaft
and housing for foreign objects.
Do not apply great force with the
pusher.
Unpacking and checking
3 Unpacking and check-
ing
Unpacking and checking
Find out here what you need to note
when unpacking the appliance.
3.1 Unpacking the accessor-
ies and parts
1. Take the accessories out of the
packaging.
2. Take all other parts and the ac-
companying documents out of the
packaging and place them to
hand.
3. Remove any packaging material.
4. Remove any stickers or film.
3.2 Contents of package
After unpacking all parts, check for
any damage in transit and complete-
ness of the delivery.

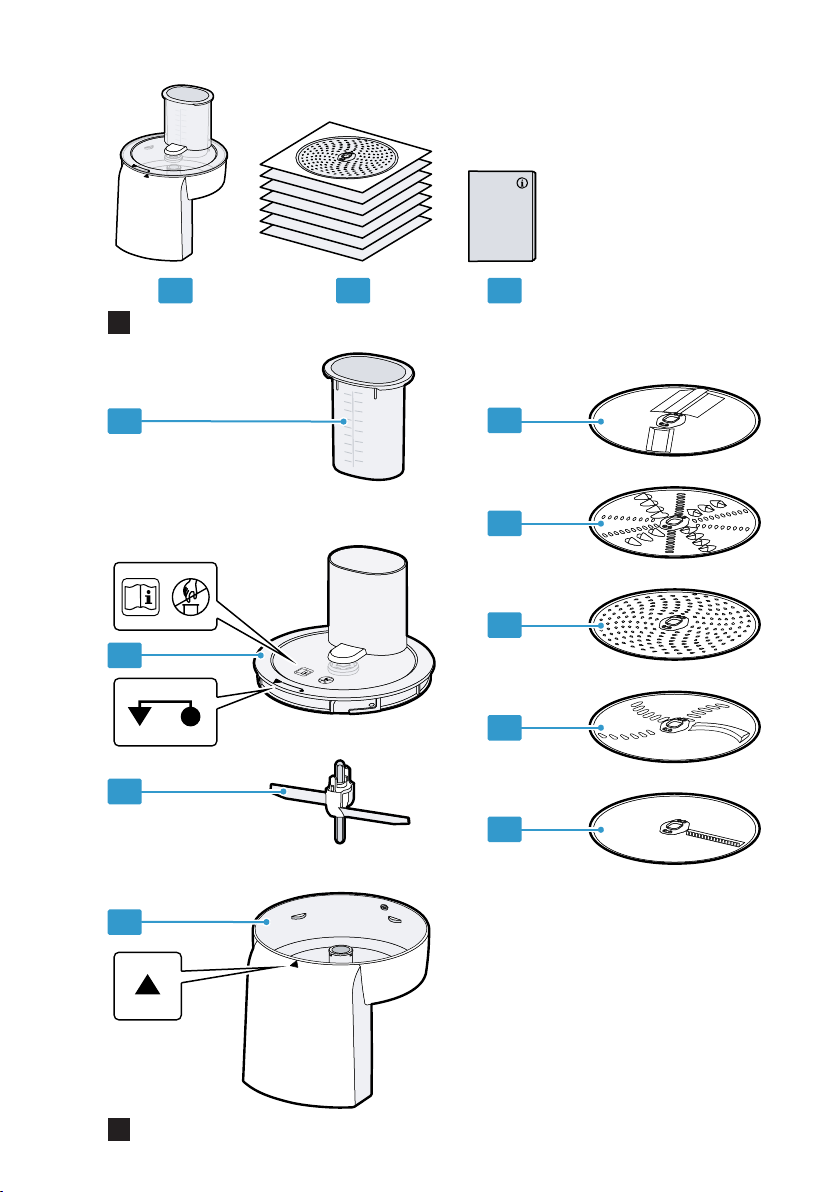

→Fig. 1
Continuous-feed shredder
1Depending on the appliance spe-
cifications
Cutting discs1
Accompanying documents
1Depending on the appliance spe-
cifications
3.3 Cleaning the accessories
before using for the first
time
1. Take the assembled accessories
apart.
→"Dismantling the continuous
feed shredder", Page12
2. Clean all parts that come into con-
tact with food before using for the
first time.
→"Cleaning and servicing",
Page12
3. Put the cleaned and dried parts
out ready for use.
Familiarising yourself with the accessories
4 Familiarising yourself
with the accessories
Familiarising yourself with the accessories
4.1 Components
You can find an overview of the parts
of your accessories here.
→Fig. 2
Housing
Disc holder
Lid with integrated filling shaft
Pusher and measuring jug
Reversible cutting disc, thick/
thin
Reversible shredding disc,
coarse/fine
1Depending on the appliance spe-
cifications
en Familiarising yourself with the accessories
10
Fine grating disc
Reversible slicing / shredding
disc1
Asia vegetables disc1
1Depending on the appliance spe-
cifications
4.2 Symbols
You can find an overview of the sym-
bols used on your accessories here.
Symbol Description
Follow the instructions in
the operating instructions.
Do not reach into the
filling shaft.
Attach the lid
Position marking housing
4.3 Overview of cutting discs
You can find an overview of the cut-
ting discs and their purposes here.
Designa-
tion
Use
Revers-
ible cut-
ting disc,
thick/thin
Cutting food into thick or
thin slices, e.g. fruit and
vegetables.
Marking:
¡1 = thick slices
¡3 = thin slices
Note:Not suitable for
processing hard cheese,
bread, rolls or chocolate.
Tip:Only cut up cooked
potatoes once they have
cooled down.
1Depending on the appliance spe-
cifications
Designa-
tion
Use
Revers-
ible
shredding
disc,
coarse/
fine
Shredding food coarsely
or finely, e.g. fruit, veget-
ables or cheese as
Gouda or Edam.
Marking:
¡2 = coarse side
¡4 = fine side
Note:Not suitable for
processing nuts or hard
cheese, e.g. Parmesan.
Tip:Shred soft cheese
with the coarse side
only.
Fine grat-
ing disc
Shredding food medium-
fine, e.g. raw potatoes or
hard cheese such as
Parmesan.
Note:Not suitable for
processing soft cheese
and cheese slices.
Revers-
ible sli-
cing /
shredding
disc1
Grating raw potatoes or
cutting into slices.
Note:Not suitable for
processing very fibrous
foods, e.g. leek or
mango.
Asia ve-
getables
disc1
For cutting food into thin
strips, e.g. fruit and ve-
getables.
1Depending on the appliance spe-
cifications
4.4 Overload protection
The overload protection system pre-
vents the motor and other compon-
ents from being damaged through
being overloaded.
