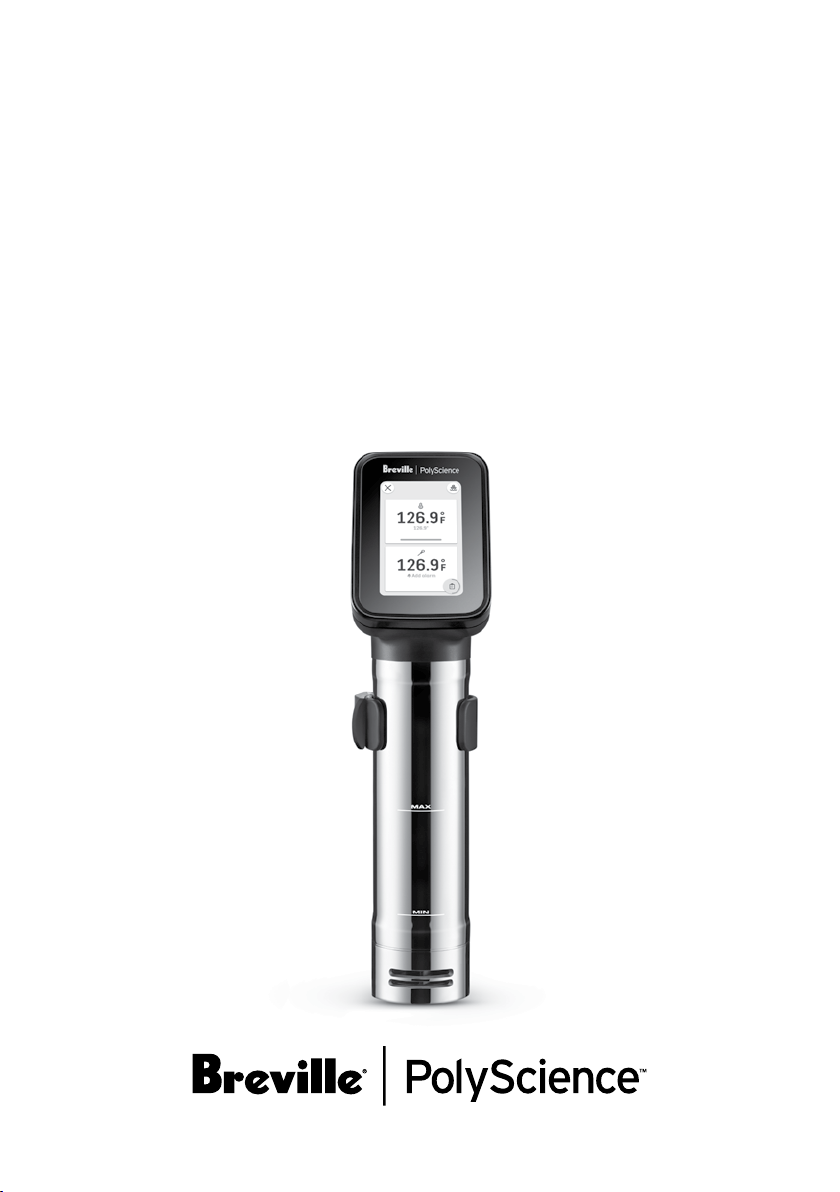

Breville PolyScience the HydroPro Manuale utente

the HydroPro™Plus

the HydroPro™

Instruction Book - CSV750/CSV700

BREVILLE|

POLYSCIENCE

RECOMMENDS

SAFETY FIRST

At Breville | PolyScience we

are very safety conscious.

We design and manufacture

commercial products with

the safety of you, our valued

customer, foremost in mind.

In addition we ask that you

exercise a degree of care

and adhere to the following

precautions.

IMPORTANT

SAFEGUARDS

READ ALL

INSTRUCTIONS BEFORE

USE AND SAVE FOR

FUTURE REFERENCE

When using electrical

appliances, basic safety

precautions should always

be followed, including the

following

•Carefully review the

safety section in included

literature.

•Do not operate this

immersion circulator with

a damaged power cord

or plug, or if it has been

dropped, damaged, or

malfunctioned. Return the

immersion circulator to

Breville|PolyScience for

examination and/or repair.

•The immersion circulator

is intended for use with

water only.

•Do not let power cord

touch hot surfaces or hang

over the edge of table or

counter.

2 Important Safeguards

9 Controls & Components

10 Assembly

12 Functions

12 Turning the Unit On

12 Sous Vide Toolbox

14 Manual Cooking

14 My Presets

15 Loss of Power

16 Cleaning & Storage

16 Routine Cleaning

16 Descaling the appliance

17 Troubleshooting

Contents

•Unplug from electrical

outlet when not in use.

•To avoid the possibility

of personal injury, always

unplug the immersion

circulator from the

electrical outlet before

cleaning the unit.

•The immersion circulator

is IPx7 rated so that

it is protected against

accidental temporary

submersion in water. The

immersion circulator

is not intended to be

used above the MAX

water level. If the unit is

temporarily submersed,

disconnect the power

and remove the unit from

the water immediately,

dry the unit thoroughly

before using. If the unit

has been submerged for

an extended period, it

should be inspected and

electrically tested before

using. Never place the

power plug in the water.

•Secure the bags to the

vessel using clips or

weights.

•The intended cooking

vessel used with

conjunction with this

product shall be a

thermoplastic vessel with

the maximum capacity

of 45 L and the height

no greater than 290 mm.

Lid shall be used with the

vessel.

•Do not use an extension

cord with this immersion

circulator.

•This immersion circulator

is intended for indoor use

only.

•Do not let this immersion

circulator come in direct

contact with food. All

food should be packaged

in a chosen bag and/or

container to ensure it is

separated from the water.

•This appliance should

not be used by children.

To avoid accidental

injury, close supervision

is necessary when this

appliance is used where

children may be present.

•Do not operate in the

presence of explosive and/

or ﬂammable fumes.

•Never operate the

immersion circulator

without the impeller and

the foot secured in place

•Always turn the immersion

circulator OFF, unplug the

unit and wait for it to cool,

before removing it from

the liquid before making

ﬂow direction adjustments.

•Do not use this immersion

circulator for other than

the intended use of

preparing foods.

•This appliance is not

intended for use by

persons (including

children) with reduced

physical, sensory or mental

capabilities, or lack of

experience and knowledge,

unless they have been

given supervision or

instruction concerning

use of the appliance by

a person responsible for

their safety.

•This appliance is intended

to be used in commercial

environments and similar

applications such as:

•Staff kitchen areas in

shops, ofﬁces, and other

working environments;

•Farm houses;

•By clients in hotels,

motels and other

residential type

environments;

•Bed and breakfast type

environments

•The installation of

a residual current

device (safety switch)

is recommended to

provide additional safety

protection when using

electrical appliances.

It is advisable that a

safety switch with a rated

residual operating current

not exceeding 30mA be

installed in the electrical

circuit supplying the

appliance. See your

electrician for professional

advice.

•The appliance must

be used on a properly

grounded outlet. If you

are not sure if the power

outlets are properly

grounded, please consult

a qualiﬁed electrician.

•Do not, under any

circumstances, modify

the power plug or use

an adapter.

•Read all instructions

carefully.

NOTE

This immersion

circulator is equipped

with a grounded power

cord which must be

plugged into a properly

grounded power outlet.

Do not use the appliance

if the grounding prong

on the plug is missing

or damaged or with

a grounding adapter.

Contact a qualiﬁed

electrician if the plug does

not ﬁt into the electrical

outlet you intend on using.

IMPORTANT

Your immersion

circulator is equipped

with an automatic over-

temperature safety that will

disable the heater in the

event of a heater fault or if

it is run with insufﬁcient

cooking liquid for too long

a time period.

If this safety cannot be

reset, the unit must be

sent back to Breville |

Polyscience.

IMPORTANT

Some countertop materials

may not be able to

withstand the prolonged

exposure to heat required

for sous vide cooking. To

safeguard against damage

to your countertop,

Breville | Polyscience

recommends that you

always place your cooking

vessel on a trivet or other

insulating material before

you begin heating the

cooking liquid.

NOTICE TO

CUSTOMERS

REGARDING MEMORY

STORAGE

•Please note that in

order to better serve

our customers, internal

memory storage has

been imbedded into your

appliance.

•This memory storage

consists of a small chip to

collect certain information

about your appliance

including the frequency of

use of the appliance and

the manner in which your

appliance is being used. In

the event your appliance

is returned for service,

the information collected

from the chip enables us

to quickly and efﬁciently

service your appliance.

The information collected

also serves as a valuable

resource in developing

future appliances to better

serve the needs of our

consumers.

•The chip does not

collect any information

regarding the individuals

who use the product or

the household where the

product is used.

•If you have any questions

regarding the memory

storage chip please

breville.com.

FOOD SAFETY

WARNING

The food safety issues

in cooking sous vide

are different from more

conventional forms of

cooking. Do not start to

cook before you fully

understand the speciﬁed

food handling practices

to prevent, eliminate, or

reduce the food biological,

chemical, and physical

hazards to a safe level.

Cooking foods at low

temperatures may not

pasteurize and may pose

a health risk to certain

individuals such as

pregnant women, young

children, the elderly or

those with compromised

immune systems.

The Sous-Vide Toolbox

within the immersion

circulator allows you

to calculate and set the

cooking time of various

foods so that they can be

cooked to pasteurization.

For Safety please select the

Food Authority suggested

temperature setting when

selecting temperature in

the Sous-Vide Toolbox

which is the FDA and

other regulatory approved

temperature for the

selected food.

CAUTION

The user is cautioned that

changes or modiﬁcations

not expressly approved by

the party responsible for

compliance could void the

user's authority to operate

the equipment.

This device complies with

Part 15 of the FCC Rules.

Operation is subject to the

following two conditions:

(1) this device may not

cause harmful interference,

and (2) this device must

accept any interference

received, including

interference that may

cause undesired operation.

NOTE

This equipment has been

tested and found to comply

with the limits for a Class

B digital device, pursuant

to Part 15 of the FCC Rules.

These limits are designed

to provide reasonable

protection against

harmful interference in

a residential installation.

This equipment generates,

uses and can radiate radio

frequency energy and,

if not installed and used

in accordance with the

instructions, may cause

harmful interference to

radio communications.

However, there is no

guarantee that interference

will not occur in a

particular installation.

If this equipment does

cause harmful interference

to radio or television

reception, which can be

determined by turning the

equipment off and on, the

user is encouraged to try

to correct the interference

by one or more of the

following measures:

•Reorient or relocate the

receiving antenna.

•Increase the separation

between the equipment

and receiver.

•Connect the equipment

into an outlet on a circuit

different from that to

which the receiver is

connected.

•Consult the dealer or an

experienced radio/TV

technician for help.

SAVE THESE INSTRUCTIONS

CSV750 Shown

Back of Unit

A. Power Button

B. TFT Touchscreen

C. Probe

For CSV750 model only.

D. Probe Holder

Controls & Components

E. Foot

Remove to clean the impeller. Flow direction

can be adjusted by rotating the foot .

F. Temperature Probe Connection

For CSV750 model only.

G. Mounting Clamp

Assembly

APPROPRIATE COOKING VESSEL

An immersion circulator can be used with

reservoirs of various capacities and shapes.

These variables may adversely affect

temperature accuracy and stability. For

example, a reservoir with large surface area

loses heat more quickly, which may prevent

the immersion circulator from attaining the

desired temperature. The maximum vessel size

that the unit has been validated against is a

45L uninsulated vessel with a secure lid.

BEFORE FIRST USE

Your immersion circulator is easy to set up:

1. Ensure the impeller and foot are in position.

2. Turn the foot on the bottom of the

immersion circulator foot to the desired

positions. The foot of the immersion

circulator allows you to easily adjust the

direction with which the cooking ﬂuid

circulates.

WARNING: To avoid the potential for

burns and/or electrical shock, do not

change the position of the foot while

your immersion circulator is immersed in

liquid. For safety, turn power to the unit OFF,

unplug from the electrical outlet, remove the

immersion circulator from reservoir, and allow

the housing to cool to room temperature before

making adjustments.

3. Fill the vessel with water.

This immersion circulator is capable

of holding 45 litres of water at a stable

temperature in an uninsulated, covered

vessel.

The depth of the liquid in the cooking

vessel should be kept somewhere between

the “MAX” and “MIN” liquid level lines

indicated on the unit housing.

IMPORTANT

• The water level in the cooking vessel will

rise as food is added. Be sure to allow for

this displacement when placing liquid in the

vessel.

• Please note that the water level might also

drop while cooking due to evaporation.

4. Attach the immersion circulator to the

cooking vessel. The mounting clamp

provided with the unit will mount it securely

to both ﬂat and rounded vessel. The clamp

can be used to rotate the unit so that the

screen faces in the desired direction.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Breville Elettrodomestico da cucina

Breville

Breville Juice Fountain JE900 Guida rapida

Breville

Breville Crepe Creations BCP200 Manuale utente

Breville

Breville VHB014 Manuale utente

Breville

Breville the Milk Cafe BMF600XL Manuale utente

Breville

Breville the Smart Oven Pizzaiolo BPZ800 Series Manuale utente

Breville

Breville VST026X Manuale utente

Breville

Breville BEF450 Manuale utente

Breville

Breville VST025 Manuale utente

Breville

Breville EliteTemp VIN432 Manuale utente

Breville

Breville the Dose Control Pro Manuale utente

Breville

Breville the Juice Fountain JE95 Manuale utente

Breville

Breville BFP006 Manuale utente

Breville

Breville the Multi Mash BSB380XL Manuale utente

Breville

Breville VST027 Manuale utente

Breville

Breville the Tea Maker BTM800XL Manuale utente

Breville

Breville BSG540 Manuale utente

Breville

Breville JUICE & BLEND BJB840XL Manuale utente

Breville

Breville BTM600 Manuale utente

Breville

Breville ikon BKT500 Manuale utente

Breville

Breville Perfect Press BSG600 Manuale utente

Breville

Breville AquaStation LWA200BSS Manuale utente

Breville

Breville VIN430 Manuale utente

Breville

Breville JUICE FOUNTAIN JE95XL Guida rapida

Breville

Breville Personal Pie BPI640 Manuale utente

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
