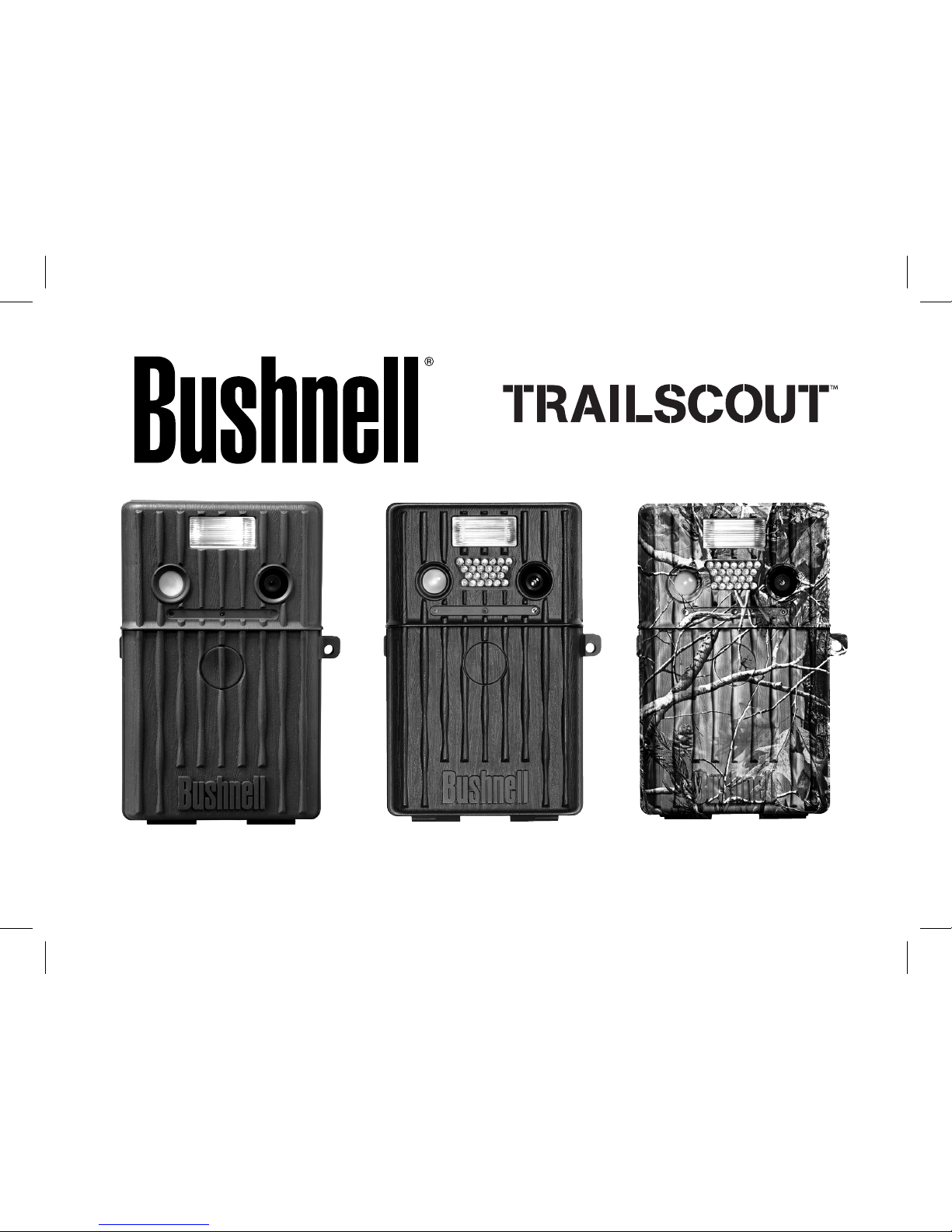

Bushnell TrailScout 119835 Manuale utente

LIT. #: 981110/0208

Model 119907 Model 119937

Model 119835

Trail Scout 2008 Models 119835+11 1 3/4/08 12:05:25 AM

Trail Scout 2008 Models 119835+12 2 3/4/08 12:05:25 AM

Congratulations on your purchase of the Bushnell® Digital Trail Scout™ Camera!

is trail camera is designed to record the activity of wildlife game in the outdoors

with its still image and movie modes and weatherproof, rugged construction. is

instruction manual is designed to maximize your understanding of how the camera

operates.

Bushnell Digital Trail Scout Features (All Models)

One of the most revolutionary advances in scouting technology to date, the Bushnell Digital trail

Scout delivers. Boasting one of the most user friendly interfaces in the industry, this trail camera

has a positive toggle switch system that instantly tells you what your camera settings are—without

fumbling with a confusing soware interface! e built-in security system has four levels of security.

Every trail Scout comes complete with padlock, cable lock, ratcheting tree bracket for screw attach-

ment, and soware password that locks out would-be thieves. e high resolution digital camera

delivers crisp views of game in your area and stamps each image with the date, time, your name, and

even the moon phase. Along with regular image mode, there is a movie mode for 15 second video

clips with audio. e camera will function during day and night, sensing game out to 45 feet. e

oversized xenon (standard) ash will reach out to 45 feet. Image delay settings include 30 seconds,

1 minute and 2 minutes. e innovative backlit LCD makes set up a breeze in the eld. e trail

Scout is weatherproof and rugged. Resolution is user selectable from 3 options so you can prioritize

quality vs storage space to best suit your needs. An input for a solar panel accessory (optional) is

provided for use with rechargeable batteries to extend the time your camera can remain unattended

in the eld.

Trail Scout 2008 Models 119835+13 3 3/4/08 12:05:26 AM

DIGITAL TRAIL SCOUT MODELS

119835—Trail Scout 5.0MP

Great images and scouting technology at a great value. is camera will sense deer and other game as far out

as 45 feet with its passive infrared sensor. Low-battery indicator lights when battery life drops below 25%.

Motion LED lights when activity is detected by the sensor in regular imaging mode and during setup mode

for aiming. Weatherproof. Video Movie mode with audio. Selectable Lo/Med/Hi Resolution (2MP/3MP/

5MP*). Date/time/Moon Phase stamp feature. Comes complete with aircra aluminum security cable,

padlock, and ratcheting tree bracket. Power input jack for optional solar panel. Textured “bark-like” surface

for maximum concealment.

*5MP Hi Res option via soware interpolation, sensor resolution is 3MP

119937/119907 (RealTree AP®Camo)—Trail Scout Pro 7.0MP with Night Vision & Game

Call Module

With all the features of the 5.0 MP Trail Scout plus Night Vision and more, this is the top of the line digital

trail camera. Still photos are captured with your choice of low, medium or high resolution (3MP/5MP/7MP*),

and the video clips include audio collected by a built-in microphone. Choose your setting for regular camera

ash or stealth-like LED ash. LED ash enables you to discretely image game in the night without a visible

ash. ere is no need to worry about your ash giving away your position in popular, busy hunting areas.

And no need to manually set an infrared lter switch for day or night mode to get great results-it’s done for

you automatically. A new feature lets you select from 8 dierent Game Calls to attract any of a wide variety

of animals, with sounding intervals adjustable from 1 to 24 hours. is camera even includes a laser aiming

feature for easy set up in the woods. Comes complete with aircra aluminum security cable, padlock, and

ratcheting tree bracket. Power input jack for optional solar panel. Textured “bark-like” surface for maximum

concealment.

*7MP Hi Res option via soware interpolation, sensor resolution is 5MP

Trail Scout 2008 Models 119835+14 4 3/4/08 12:05:26 AM

DIGITAL TRAIL SCOUT SPECIFICATIONS

Image Sensor 1/2” CMOS sensor with 3.0 million (119835) or 5.0 million pixels (119907/119937).

“Hi” res setting captures images with 5MP (119835) or 7MP (119937/119907)

resolution via soware processing

Lens F/3.5, eective focal length 42mm. Sight range: 45 degrees

Flash High power electronic Xenon Flash or Infrared 24-lamp LED array. Range: 45 .

PIR Sensor Low noise, high sensitivity passive infrared sensor. Range: 45 

Motion LED Indicator Yes

Display Backlit LCD, 2 rows x 8 characters. Auto-o: 3 min. 2-digit event and image

display.

File Format Still image JPG. Movie images AVI 320x 240 pixels per frame. DCF version 1.0 le

management.

Exposure Auto

White Balance Auto

Power Supply 4 x “D” cell batteries. Low battery indicator at 25% remaining power. Solar panel

(optional) input jack (for use with “D” size NiMh type rechargeable batteries only)

Battery Life Approximately 30 days (w/standard alkaline batteries). Or ≥6 mo. using solar panel

with NiMh rechargeable batteries.

(actual battery life will vary with temperature, camera activity and ash usage)

User Password Yes, available range: 0000 to 9999

Other (119937/119907

only)

Laser pointer, IR LED array for night vision infrared imaging

Trail Scout 2008 Models 119835+15 5 3/4/08 12:05:26 AM

Parts

Guide

Motion

LED

Low

Battery

LED

Flash

Camera

Lens

PIR

SD Card

Slot

Keylock

119835 119937/119907

Standard Flash

PIR

Motion

LED

Infrared

LED Array Camera

Lens

Laser

Pointer

Low

Battery

LED

Keylock

SD Card

Slot

Game Call

Volume

Trail Scout 2008 Models 119835+16 6 3/4/08 12:05:26 AM

Switch and Setup Description Switch Position/Setting

Switch #/Function UP CENTER DOWN

K1 (Operating

Mode)

On Setup O

K2 (Image Mode) Still - Movie

K3 (Resolution)* Hi (5MP) Med (3MP) Lo (2MP)

K4 (Camera Delay) 2 minutes 1 minute 30 seconds

Switch Position/Setting

Switch #/Function UP CENTER DOWN

K1 (Operating

Mode)

On Setup O

K2 (Image Mode) Still - Movie

K3 (Flash Mode) LED - Standard

(Std)

K4 (Resolution)* Hi (7MP) Med (5MP) Lo (3MP)

K5 (Camera Delay) 2 minutes 1 minute 30 seconds

K1 K2 K3 K4

119835 Control Panel

K1 K2 K3 K4 K5

119937/119907 Control Panel

* affects only still photo resolution (video resolution is preset at 320x240 pixels per frame)

Up/Down/Enter

Trail Scout 2008 Models 119835+17 7 3/4/08 12:05:27 AM

SETUP GUIDE

NOTE (Models 119937/119907 Only) : THE LASER POINTER IS ACTIVATED IN THE SET- UP MODE. DO NOT PERMIT

THE LASER POINTER TO BE DIRECTED TOWARD ANYONE’S EYES, TO AVOID POTENTIAL EYE INJURY.

1. K1 - Mode Switch (OFF / SETUP/ ON) :

a) Power ON (UP position): Set K1 to ON position, e LCD display will show “BUSHNELL”

for about 2 seconds.

e LCD will rotate through the DATE\TIME\EVENT&IMAGE displays

when pressing the Up and Down keys.

EVENT nn

IMAGE nn

For mounting directions, please refer to the manual section titled “Using e Trail Scout” .

Before beginning the setup, insert 4 “D” size alkaline batteries as indicated

inside the battery compartment. If you will be using the optional solar

panel accessory, be sure to use rechargeable NiMh batteries only.

b) SETUP Mode [move switch K1 from UP (ON) position to center position]:

Press Up or Down buttons to scroll through choices of DATE, TIME, NAME,PASSWORD, etc to

modify or set these functions. Refer to the next three pages for more details.

c) Power OFF: Set K1 to “O”, the Trail Scout will be OFF.

Trail Scout 2008 Models 119835+18 8 3/4/08 12:05:27 AM

Setup Guide (cont.)

Note: See “Other Setup Notes” for details on the moon phase

stamp feature, which is linked to the date you set here.

(2) SET TIME: When the LCD shows Set Time, press the ENTER key to modify the time.

Press Up or Down button to select 1-12, then press ENTER to conrm the two

digit hour. en the cursor will move to the minute.

Press Up or Down button to select 0-59, then press ENTER to conrm the two

digit minute. From SET TIME, press the Down button to set the name.

(3) SET NAME: When the LCD shows “NO NAME”, press ENTER key to modify the

name display. Press Up or Down button to select one character from “A” to “Z”,

“0” to “9”, ”_” , then Press ENTER to conrm, the cursor will move to next character.

ere are 2 lines of 8 characters each for your use. From Set Name, press the Down

button to change the password.

Set Date

09/18/04

Set Time

06: 30 PM

MY NAME

555_1234

When the LCD shows PASSWORD, press the ENTER key to set the password.

Password

Set

(4) SET PASSWORD:

(1) SET DATE: When the LCD shows Set Date, press the ENTER key to modify the date.

Press Up or Down button to select 1-12 then press the ENTER button to

conrm the two digit month. e cursor will then move to the day.

Press Up or Down button to select 1-31 then press ENTER to conrm the two

digit day. en the cursor will move to the year.

Press Up or Down button to select 0-99,then press ENTER to conrm the two

digit year. From Set Date, press the Down button to set the time.

Trail Scout 2008 Models 119835+19 9 3/4/08 12:05:27 AM

Setup Guide (cont.)

e LCD will show [Password Yes]. To change the password, press Enter.

If you do not want to set a password, you can press the Up or Down key to select NO.

If you selected YES, the LCD shows [New Pswd]. Press the Up or Down key to select the

rst password digit of 0-9. Press ENTER to conrm, the cursor will move to the next digit

to the right. Repeat the process using UP, Down and Enter keys to enter your four digit

password. Press ENTER to conrm.

If you do not want to set a password when the LCD shows (PW YES) , you can press the

U/D button to select No, Aer pressing the ENTER, the LCD display shows (PW NO),

and no password will be set. From Set Password, press the Down button to set Day Time.

When the LCD shows DAY TIME, press ENTER key to set the DAY TIME range. e

LCD will show and underscore under the rst 2 digits in the DAY TIME mode. Press

the up or down keys to set time of 24 hour clock for the specic DAY TIME start hour

desired. Press ENTER to set the DAY TIME start time.

en, underscore will move to the second 2 digits in the DAY TIME mode. Press the up

or down keys to set time of 24 hour clock for the specic DAY TIME end hour desired.

Press ENTER to set the DAY TIME end time.

Now your DAY TIME is dened (NIGHT is dened as the period between DAY end and

start times). If you do not make your own settings for DAY, a default of 6AM~6PM is

used.

Example: 07—18 would dene DAY as from 7AM to 6PM (6PM=18:00 hours on 24 hr clock).

From Set Day Time, press the Down button to set the next user option.

(4) SET PASSWORD (cont.):

(5) SET DAY TIME: (Note: is setting auto switches an infrared lter-see #4 under “Other Setup Notes”)

New Pswd

0 0 0 0

Password

None

Password

Yes

Day Time

07 -- 18
