Chicago Electric 45338 Manuale utente

HAMMER DRILL - 1/2 INCHHAMMER DRILL - 1/2 INCH

HAMMER DRILL - 1/2 INCH

VARIABLE SPEED - REVERSIBLEARIABLE SPEED - REVERSIBLE

ARIABLE SPEED - REVERSIBLEARIABLE SPEED - REVERSIBLE

ARIABLE SPEED - REVERSIBLE

ASSEMBLY AND OPERATING INSTRUCTIONS

3491 MISSION OAKS BLVD., CAMARILLO, CA 93011

VISIT OUR WEB SITE AT HTTP://WWW.HARBORFREIGHT.COM

this manual or any artwork contained herein may be reproduced in any shape

or form without the express written consent of Harbor Freight Tools.

For technical questions and replacement parts,please call 1-800-444-3353

45338

Page 2SKU 45338

SPECIFICATIONS

Item Description

Power Consumption 120 VAC, 60 Hz, single phase, 6.3 amps (load),

750 watts

Motor Double insulated

Chuck Capacity 3/64 to 1/2 inch, plus key chuck

Chuck Thread 1/2" - 20 UNF

Speed 0 ~ 2800 RPM (no load); 0 ~ 42,000 BPM

Switch Electronic variable speed trigger, forward and

reverse; continuous run trigger lock; maximum

speed set

Power Cord 6 feet long, 18 AWG/2C, 2-prong polarized plug,

UL listed

Weight 4.9 lbs.

Features - High Impact Housing

- Side grip handle

- Belt hook

- Depth gauge

- Removable chuck

- Ideal for hard materials: concrete, marble,

and steel

SAVE THIS MANUAL

You will need the manual for the safety warnings and precautions, assembly instructions,

operating and maintenance procedures, parts list and diagram. Keep your invoice with this

manual. Write the invoice number on the inside of the front cover. Keep the manual and

invoice in a safe and dry place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instruc-

tions listed below may result in electric shock, fire, and/or serious injury.

SAVETHESE INSTRUCTIONS

Work Area

1. Keep your work area clean and well lit. Cluttered benches and dark areas invite

accidents.

2. Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases, or dust. Power tools create sparks which may ignite the

dust or fumes.

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed.

E194601

Page 3SKU 45338

Electrical Safety

4. Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and

refrigerators. There is an increased risk of electric shock if your body is grounded.

5. Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

6. Grounded tools must be plugged into an outlet properly installed and grounded in

accordance with all codes and ordinances. Never remove the grounding prong or

modify the plug in any way. Do not use any adapter plugs. Check with a qualified

electrician if you are in doubt as to whether the outlet is properly grounded. If the

tools should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user.

7. This Double insulated Hammer Drill is equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If the plug

does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a

qualified electrician to install a polarized outlet. Do not change the plug in any way.

Double insulation eliminates the need for the three wire grounded power cord and

grounded power supply system.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools or pull the

Plug from an outlet. Keep the Power Cord away from heat, oil, sharp edges, or

moving parts. Replace damaged Power Cords immediately. Damaged Power Cords

increase the risk of electric shock.

9. When operating a power tool outside, use an outdoor extension cord marked “W-A” or

“W”. These extension cords are rated for outdoor use, and reduce the risk of electric

shock.

Personal Safety

10. Stay alert. Watch what you are doing, and use common sense when operating a

power tool. Do not use a power tool while tired or under the influence of drugs,

alcohol, or medication. A moment of inattention while operating power tools may

result in serious personal injury.

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your

hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair

can be caught in moving parts.

12. Avoid accidental starting. Be sure the Power Switch is off before plugging in.

Carrying power tools with your finger on the Power Switch, or plugging in power tools

with the Power Switch on, invites accidents.

13. Remove adjusting keys or wrenches before turning the power tool on. A wrench or a

key that is left attached to a rotating part of the power tool may result in personal

injury.

Page 4SKU 45338

14. Do not overreach. Keep proper footing and balance at all times. Proper footing and

balance enables better control of the power tool in unexpected situations.

15. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety

shoes, hard hat, or hearing protection must be used for appropriate conditions.

Tool Use and Care

16. Use clamps (not included) or other practical ways to secure and support the

workpiece to a stable platform. Holding the work by hand or against your body is

unstable and may lead to loss of control.

17. Do not force the tool. Use the correct tool for your application. The correct tool will do

the job better and safer at the rate for which it is designed.

18. Do not use the power tool if the Power Switch does not turn it on or off. Any tool that

cannot be controlled with the Power Switch is dangerous and must be replaced.

19. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing accessories, or storing the tool. Such preventive safety

measures reduce the risk of starting the tool accidentally.

20. Store idle tools out of reach of children and other untrained persons. Tools are

dangerous in the hands of untrained users.

21. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained

tools with a sharp cutting edge are less likely to bind and are easier to control. Do not

use a damaged tool. Tag damaged tools “Do not use” until repaired.

22. Check for misalignment or binding of moving parts, breakage of parts, and any other

condition that may affect the tool’s operation. If damaged, have the tool serviced

before using. Many accidents are caused by poorly maintained tools.

23. Use only accessories that are recommended by the manufacturer for your model.

Accessories that may be suitable for one tool may become hazardous when used on

another tool.

Service

24. Tool service must be performed only by qualified repair personnel. Service or

maintenance performed by unqualified personnel could result in a risk of injury.

25. When servicing a tool, use only identical replacement parts. Follow instructions in the

“Inspection, Maintenance, And Cleaning”

section of this manual. Use of unauthorized

parts or failure to follow maintenance instructions may create a risk of electric shock

or injury.

Page 5SKU 45338

SPECIFIC SAFETY RULES FORTHE HAMMER DRILL

1. Hold tool by insulated gripping surfaces when performing an operation where

the cutting tools may contact hidden wiring or its own cord. Contact with a

”live” wire will make exposed metal parts of the tool “live” and shock the

operator.

2. Maintain labels and nameplates on the Hammer Drill.These carry important

information. If unreadable or missing, contact Harbor Freight Tools for a replacement.

3. Always wear safety impact eye goggles and heavy work gloves when using the

Hammer Drill. Using personal safety devices reduce the risk for injury. Safety impact

eye goggles and heavy work gloves are available from Harbor Freight Tools.

4. Maintain a safe working environment. Keep the work area well lit. Make sure there is

adequate surrounding workspace. Always keep the work area free of obstructions,

grease, oil, trash, and other debris. Do not use a power tool in areas near flammable

chemicals, dusts, and vapors. Do not use this product in a damp or wet location.

5. Avoid unintentional starting. Make sure you are prepared to begin work before turning

on the Hammer Drill.

6. Do not force the Hammer Drill.This tool will do the work better and safer at the speed

and capacity for which it was designed.

7. Always unplug the Hammer Drill from its electrical outlet before performing and

inspection, maintenance, or cleaning procedures.

8. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities, contain chemicals known (to the State of California) to

cause cancer, birth defects or other reproductive harm. Some examples of these

chemicals are: lead from lead-based paints, crystalline silica from bricks and cement

or other masonry products, arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of

work. To reduce your exposure to these chemicals: work in a well ventilated area, and

work with approved safety equipment, such as those dust masks that are specially

designed to filter out microscopic particles.

(California Health & Safety Code 25249.5,

et seq.)

9. WARNING! People with pacemakers should consult their physician(s) before

using this product. Operation of electrical equipment in close proximity to a heart

pacemaker could cause interference or failure of the pacemaker.

10. Never leave the Hammer Drill unattended while running.Turn power off if you have to

leave the Hammer Drill.

11. Before each use, check all nuts, bolts, and screws for tightness.Vibration may cause

these to loosen.

12. Keep extension cord away from water.

13. Always connect the Line Cord to a Ground Fault Circuit Interrupter (GFCI) protected

electrical outlet.

(1)

Page 6SKU 45338

GROUNDING

WARNING!

Improperly connecting the grounding wire can result in the risk of electric

shock. Check with a qualfified electrician if you are in doubt as to whether the

outlet is properly grounded. Do not modify the power cord plug provided with

the tool.Never removethe grounding prong from the plug. Do not use the tool if

the power cord or plug is damaged. If damaged, have it repaired by a service

facilitybefore use. If the plug will not fit the outlet,have a proper outlet installed

byaqualifiedelectrician.

Grounded Tools: Tools withThree Prong Plugs

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If the tool

should electrically malfunction or break down, grounding provides a low resistance

path to carry electricity away from the user, reducing the risk of electric shock. (See

Figure A.)

2. The grounding prong in the plug is connected through the green wire inside the cord

to the grounding system in the tool.The green wire in the cord must be the only wire

connected to the tool’s grounding system and must never be attached to an

electrically “live” terminal. (See Figure A.)

3. Your tool must be plugged into an appropriate outlet, properly installed and grounded

in accordance with all codes and ordinances. The plug and outlet should look like

those in the following illustration. (See Figure A.)

Double InsulatedTools:Tools withTwo Prong Plugs

4. This tool is double insulated.Tools marked “Double Insulated” do not require

grounding.They have a special double insulation system which satisfies OSHA

requirements and complies with the applicable standards of Underwriters

Laboratories, Inc., the Canadian Standard Association, and the National Electrical

Code. (See Figure B above.)

5. Double insulated tools may be used in either of the 120 volt outlets shown in the

following illustration. (See Figure B above.)

Figure A Figure B

Page 7SKU 45338

EXTENSION CORDS

Grounded

tools require a three wire extension cord.

Double Insulated

tools (like this

one) can use either a two or three wire extension cord.

2. As the distance from the supply outlet increases, you must use a heavier gauge

extension cord. Using extension cords with inadequately sized wire causes a serious

drop in voltage, resulting in loss of power and possible tool damage. (See Table A.)

3. The smaller the gauge number of the wire, the greater the capacity of the cord. For

example, a 14 gauge cord can carry a higher current than a 16 gauge cord. (See

Table A.)

4. When using more than one extension cord to make up the total length, make sure

each cord contains at least the minimum wire size required. (See Table A.)

5. If you are using one extension cord for more than one tool, add the nameplate

amperes and use the sum to determine the required minimum cord size. (See Table

A.)

6. If you are using an extension cord outdoors, make sure it is marked with the suffix “W-

A” (“W” in Canada) to indicate it is acceptable for outdoor use.

7. Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified electrician

before using it.

8. Protect your extension cords from sharp objects, excessive heat, and damp or wet

areas.

Table A

RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*

(120 VOLT)

NAMEPLATE

AMPERES

(At Full Load) EXTENSION CORD LENGTH

Feet 50

Feet 75

Feet 100

Feet 150

Feet

0 – 2.0 18 18 18 18 16

2.1 – 3.4 18 18 18 16 14

3.5 – 5.0 18 18 16 14 12

5.1 – 7.0 18 16 14 12 12

7.1 – 12.0 18 14 12 10 -

12.1 – 16.0 14 12 10 - -

16.1 – 20.0 12 10 - - -

* Based on limiting the line voltage drop to five volts at 150% of the rated amperes.

Page 8SKU 45338

SYMBOLOGY

Table B

UNPACKING

When unpacking, check to make sure that all the parts are included. See Figure C. Also

refer to the Assembly section, and the Assembly Drawing and Parts List at the end of this

manual. Figure C

If any parts are missing or broken, please call Harbor Freight Tools at the number on the

cover of this manual as soon as possible.

Auxiliary Handle (501)

Chuck (2)

Depth Gauge (502)

Chuck Key (3)

Page 9SKU 45338

ASSEMBLY INSTRUCTIONS

1. Insert the Auxiliary Handle (501) over the Housing (29) until it rests behind the Chuck

(2). When required for exact depth drilling, insert the Depth Gauge (502) into the

Auxiliary Handle clamp. See Figure D below.

2. Turn the Forward Handle for left or right-handed use, then securely tighten the wing

nut until Auxiliary Handle cannot move.

Figure D

OPERATING INSTRUCTIONS

Inserting and Removing Drill and Hammer Bits

The Hammer Drill is equipped with a keyed Chuck (2). Follow these steps to insert a bit.

1. Insert the Chuck Key (3) into the Chuck (2) and turn counterclockwise to open the

mouth of the Chuck.

2. Insert the hammer bit or the drill bit (not supplied) all the way into the Chuck.

3. Turn the Chuck Key clockwise to tighten the Chuck on the bit.

Drill Operation

1. Plug the Line Cord into an electrical outlet.

2. Press the Forward/Reverse Switch to correct position for the current job.

See Figure E on the next page.

Right position

: drill or fasten (clockwise).

Left position

: removing fasteners or freeing bits (counterclockwise).

Housing (29) Auxiliary Handle (501)

Chuck (2)

Depth Gauge (502)

Wing Nut

Page 10SKU 45338

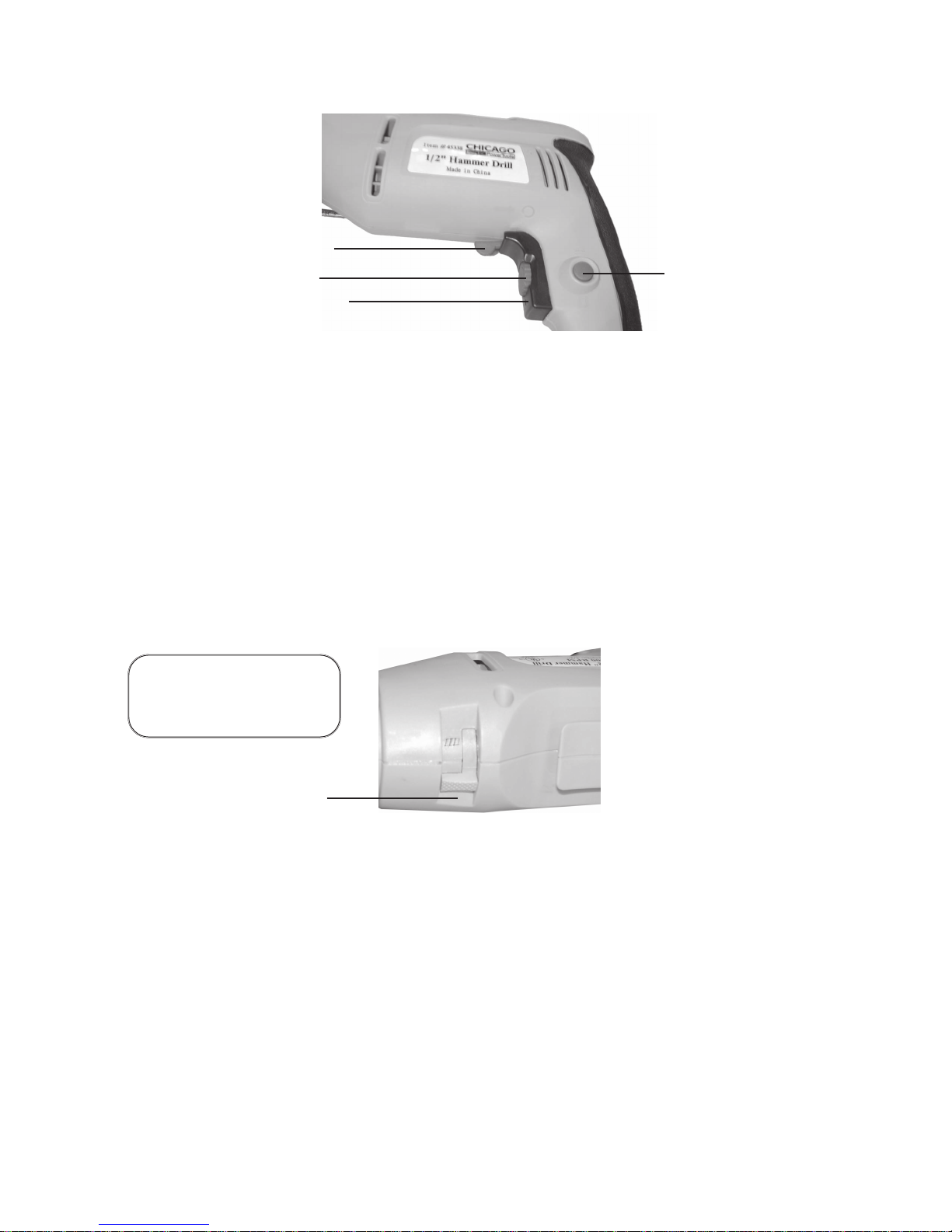

Figure E

3. Adjust the Variable Speed Screw for the desired (maximum) speed action when the

Switch is pressed.

4. For precision depth drilling, loosen the Wing Nut securing the Auxiliary Handle (501),

and slide the Depth Gauge (502) down, gauging the depth from the bit tip. Retighten

the Wing Nut again.

5. Verify that the bit is securely locked in the Chuck (2).

6. On the top of the Hammer Drill, push the Gear Setting Control to select plain drilling

or hammer drilling.

A symbol for a drill bit indicates plain drilling is selected. If a hammer is shown, it is set

for hammer drilling. See Figure F below.

Figure F

7. Press (and hold) the trigger Switch (24) to turn the drill on.

This Switch varies the speed depending on how far in it is pressed.

8. Optionally, after pressing in the trigger Switch, you can press the Switch On Locking

Button to keep the drill running without keeping your finger on the trigger Switch (24).

Use this function when drilling soft materials only. Press the trigger Switch again to

turn it off.

9. When you are finished drilling, release the trigger Switch to turn the Hammer Drill off.

Caution: Do not drill or hammer hard, brittle materials such as steel or concrete with

the Switch On Locking Button pressed in (ON). If the drill bit catches on the material,

the high torque of the drill will cause the tool body to twist around without stopping.

This violent action could cause injuries to your hands and arms. It could also damage

the Hammer Drill.

Forward/Reverse Switch

Variable Speed Screw

Trigger Switch (24)

Switch On

Locking Button

Gear Setting Control

Top View

Note: While using the

Hammer Drill, always

use both hands.

Altri manuali per 45338

Indice

Altri manuali Chicago Electric Trapano

Chicago Electric

Chicago Electric 60495 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 68126 Manuale di installazione

Chicago Electric

Chicago Electric HARBOR FREIGHT TOOLS 98544 Manuale di installazione

Chicago Electric

Chicago Electric 93449 Manuale utente

Chicago Electric

Chicago Electric 69452 Istruzioni per il montaggio

Chicago Electric

Chicago Electric VARIABLE SPEED 18 VOLT CORD- LESS DRILL/HAMMER DRILL... Manuale utente

Chicago Electric

Chicago Electric 93632 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 67089 Manuale di installazione

Chicago Electric

Chicago Electric 46804 Manuale utente

Chicago Electric

Chicago Electric 1/2" variable Speed Reversible HEAVY DUTY DRILL... Istruzioni per il montaggio

Chicago Electric

Chicago Electric 45790 Manuale utente

Chicago Electric

Chicago Electric 68856 Manuale utente

Chicago Electric

Chicago Electric 66127 Manuale di installazione

Chicago Electric

Chicago Electric 95877 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 95848 Manuale utente

Chicago Electric

Chicago Electric 66006 Manuale di installazione

Chicago Electric

Chicago Electric 93632 Manuale di installazione

Chicago Electric

Chicago Electric 91007 Manuale utente

Chicago Electric

Chicago Electric Chicago 44849 Manuale del proprietario

Chicago Electric

Chicago Electric 98179 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 98179 Manuale di installazione

Chicago Electric

Chicago Electric ITEM 62427 Manuale utente

Chicago Electric

Chicago Electric 94434 Manuale utente

Chicago Electric

Chicago Electric 60495 Istruzioni per il montaggio

Manuali Trapano popolari di altre marche

Makita

Makita BDF456 Manuale utente

Black & Decker

Black & Decker LDX220 Manuale utente

Hitachi

Hitachi DH 40MA Manuale utente

Challenge

Challenge JO Manuale tecnico di riferimento

Makita

Makita LXFD01 Manuale utente

Festool

Festool T18+3 Manuale utente

Milwaukee

Milwaukee M12 FPDX-202X Manuale utente

EINHELL

EINHELL TE-RH 32 E Manuale utente

Makita

Makita DHP484 Manuale utente

Makita

Makita FD05 Manuale utente

Bosch

Bosch PSB 530 RA Manuale utente

Maximum

Maximum 054-1359-4 Manuale utente

Makita

Makita HP332D Manuale utente

Raider

Raider RDP-HD31H Manuale utente

Bort

Bort BPM-1400x2 Manuale utente

Black & Decker

Black & Decker 7266 Manuale utente

KENT USA

KENT USA TRD1230 Manuale utente

Bosch

Bosch GSB 19-2 RE Manuale utente
