3/8” CORDLESS DRILL with DRIVER

19.2 VOLT

Model 93142

OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

TO PREVENT SERIOUS INJURY,

READ AND UNDERSTAND ALL WARNINGS

AND INSTRUCTIONS BEFORE USE.

REV 05/05

SKU 93142 For technical questions, please call 1-800-444-3353 PAGE 2

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the

front cover. Keep this manual and invoice in a safe and dry place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

1. Keep your work area clean and well lit. Cluttered benches and dark areas invite

accidents.

2. Do not operate power tools in explosive atmospheres, such as in the presence

of flammable liquids, gases, or dust. Power tools create sparks which may ignite

the dust or fumes.

UNPACKING

When unpacking, check to make sure all the parts shown on the Parts List on page 11

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

REV 05/05

Electrical Requirements Battery Charger Input: 120VAC / 60 HzBattery Output: 19.2VBattery

Charging Time:1 Hour

Drill Specifications 19.2 V / 600 RPM / 3/8" Keyless ChuckVariable Speed / Reversible / 16

Torque SettingsPistol Grip / Squeeze Trigger / NiCd Battery

Weight 4.2 Lbs. with Battery

SKU 93142 For technical questions, please call 1-800-444-3353 PAGE 3

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed.

ELECTRICAL SAFETY

1. Avoid body contact with grounded surfaces such as pipes, radiators, ranges,

and refrigerators. There is an increased risk of electric shock if your body is

grounded.

2. Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

PERSONAL SAFETY

1. Stay alert. Watch what you are doing, and use common sense when operating

a power tool. Do not use a power tool while tired or under the influence of

drugs, alcohol, or medication. A moment of inattention while operating power

tools may result in serious personal injury.

2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose clothes,

jewelry, or long hair can be caught in moving parts.

3. Avoid accidental starting. Be sure the Trigger is released before plugging

in. Carrying power tools with your finger on the Trigger, or plugging in power tools

with the Trigger depressed, invites accidents.

4. Remove adjusting keys or wrenches before using the power tool. A wrench or

a key that is left attached to a rotating part of the power tool may result in personal

injury.

5. Do not overreach. Keep proper footing and balance at all times. Proper footing

and balance enables better control of the power tool in unexpected situations.

6. Use safety equipment. Always wear ANSI approved safety glasses underneath

a full face safety shield. Dust mask, nonskid safety shoes, hard hat, or hearing

protection must be used for appropriate conditions.

7. Use clamps (not included) or other practical ways to secure and support

the workpiece to a stable platform. Holding the work by hand or against your

body is unstable and may lead to loss of control.

SKU 93142 For technical questions, please call 1-800-444-3353 PAGE 4

TOOL USE AND CARE

1. Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

2. Do not use the power tool if the Trigger does not turn it on or off. Any tool

that cannot be controlled with the Trigger is dangerous and must be replaced.

3. Disconnect the power tool from its Battery Pack (15) before making any

adjustments, changing accessories, or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally.

4. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

5. Maintain tools with care. Keep cutting tools sharp and clean. Properly

maintained tools with a sharp cutting edge are less likely to bind and are easier

to control. Do not use a damaged tool. Tag damaged tools “Do not use” until

repaired.

6. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool’s operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly

maintained tools.

7. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

SPECIFIC SAFETY RULES

1. Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding workspace. Always keep the work area free of

obstructions, grease, oil, trash, and other debris. Do not use the Cordless Drill in

areas near flammable chemicals, dusts, and vapors. Do not use this product in a

damp or wet location.

SERVICE

1. Tool service must be performed only by qualified repair personnel. Service

or maintenance performed by unqualified personnel could result in injury.

2. When servicing a tool, use only identical replacement parts. Follow

instructions in the

“Inspection, Maintenance, And Cleaning”

section of this

manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of electric shock or injury.

SKU 93142 For technical questions, please call 1-800-444-3353 PAGE 5

2. Maintain labels and nameplates on this product. These carry important

information. If unreadable or missing, contact Harbor Freight Tools for a replacement.

3. When using the Cordless Drill, always maintain a firm grip on the tool with

both hands.

4. Hold the tool by its insulated gripping surfaces when performing an operation

where the Cordless Drill may contact hidden wiring. Contact with a “live” wire

will make exposed metal parts of the Cordless Drill “live” and shock the operator.

This is just an additional precaution; always check for hidden wiring before

drilling.

5. Do not use the Cordless Drill or Charger (21) if it has been dropped, damaged,

left outdoors, or immersed in liquid.

6. To avoid electrical shock, do not handle the Charger (21), its Power Cord Plug,

or the Cordless Drill with wet hands.

7. Keep the Handle of the Cordless Drill dry, clean, and free from oil and grease.

8. Always turn off the Cordless Drill and unplug the Charger (21) from its electrical

outlet before changing accessories or performing any inspection,

maintenance, or cleaning procedures.

9. Avoid unintentional starting. Make sure you are prepared to begin work before

turning on the Cordless Drill.

10. To avoid electrical shock, do not pull or carry the Charger (21) by its Power

Cord.

11. Never leave the Charger (21) unattended when it is plugged into an electrical

outlet. Make sure to unplug it from its electrical outlet before leaving.

12. Proper Battery Pack Care: Battery Pack (15) leakage may occur under extreme

usage or temperature conditions. If Battery Pack fluid comes in contact with skin,

wash with soap and water and rinse with lemon juice and vinegar. If the fluid comes

into contact with the eyes, flush with water for several minutes and contact a doctor

immediately. Never burn the Battery Pack, as it can explode in a fire. Do not charge

the Cordless Drill with a leaking Battery Pack. Contact local solid waste authorities

for instructions on correct disposal or recycling of the Battery Pack.

13. Use clamps (not included) or other practical ways to secure and support the

workpiece to a stable platform. Holding the work by hand or against your body is

unstable and may lead to loss of control.

SKU 93142 For technical questions, please call 1-800-444-3353 PAGE 6

14. Always switch to a fresh Battery Pack (15) when tool performance begins to

diminish. Severe heat is most destructive to a Battery Pack. The more heat

generated, the faster the Battery Pack loses power. A Battery Pack that gets too hot

can be permanently damaged. Never over-discharge a Battery Pack by using the

tool while tool performance is decreasing. Never attempt to discharge a tool’s Battery

Pack by continuing to pull the tool Trigger. When tool performance begins to diminish,

stop the tool, recharge the Battery Pack, and use the fresh Battery Pack for optimal

performance.

15. WARNING! Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities, contain chemicals known (to the State of California)

to cause cancer, birth defects or other reproductive harm. Some examples of these

chemicals are: lead from lead-based paints, crystalline silica from bricks and cement

or other masonry products, arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do this type of

work. To reduce your exposure to these chemicals: work in a well ventilated area,

and work with approved safety equipment, such as those dust masks that are specially

designed to filter out microscopic particles.

(California Health & Safety Code

25249.5, et seq.)

16. WARNING! People with pacemakers should consult their physician(s) before

using this product. Electromagnetic fields in close proximity to a heart pacemaker

could cause interference or failure of the pacemaker. In addition, people with

pacemakers should adhere to the following: Avoid operating power tools alone.

Don’t use a power tool with the power switch (Trigger) locked on. If powered via a

power cord be certain that the tool is properly grounded. A ground fault interrupt

(GFCI) system is also a good precaution. This inexpensive device is a good safety

measure because it prevents a sustained electrical shock. Properly maintain and

inspect all tools before use to avoid electrical shock.

17. WARNING! The warnings, precautions, and instructions discussed in this

manual cannot cover all possible conditions and situations that may occur. The

operator must understand that common sense and caution are factors which cannot

be built into this product, but must be supplied by the operator.

PRODUCT FEATURES

NOTE: For additional information regarding the parts listed in the following pages, refer

to the Assembly Diagram on page 12.

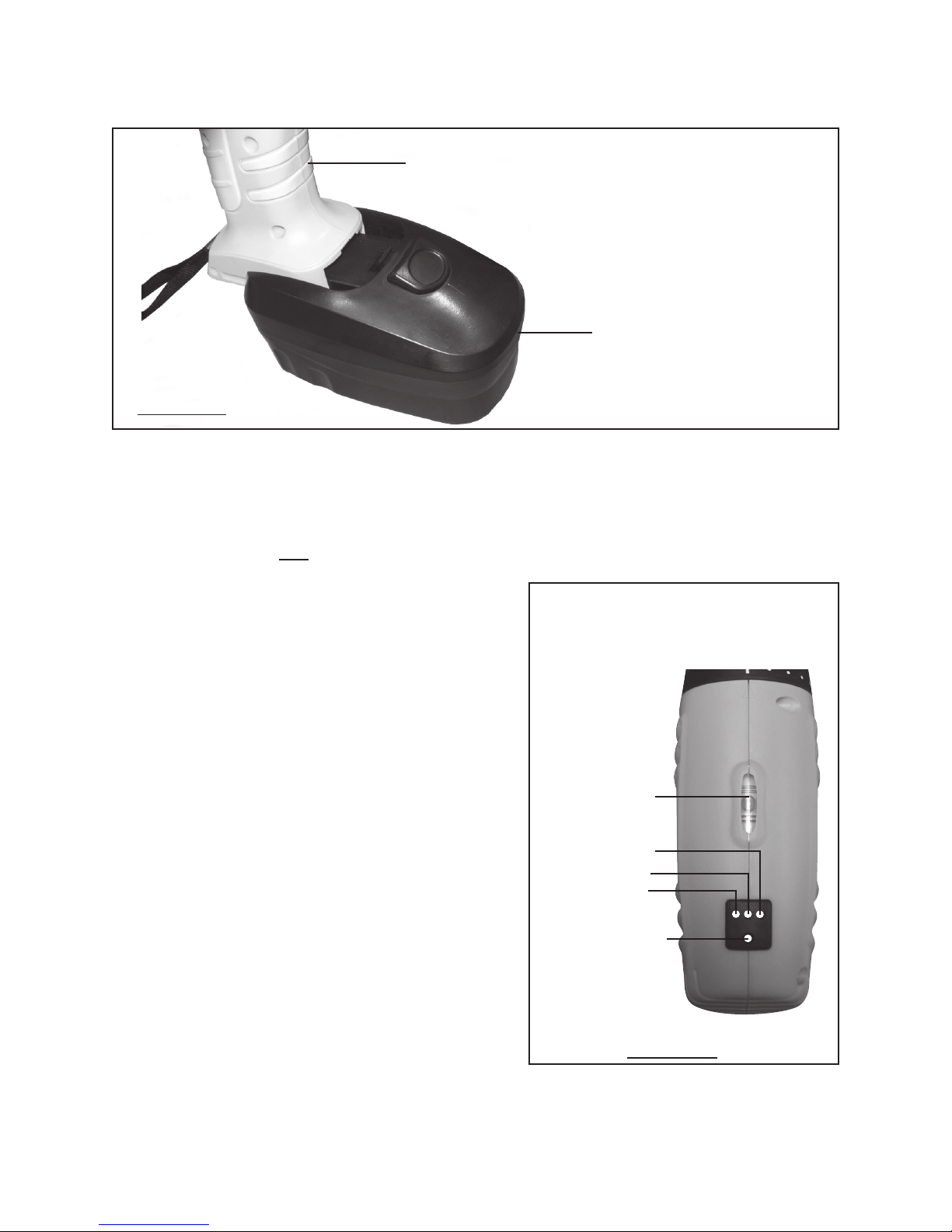

1. WARNING! Always make sure the Trigger of the Cordless Drill is in its “OFF”

position, the Battery Pack (15) is removed from the Cordless Drill, and the Charger

(21) is unplugged from its electrical outlet prior to making any adjustments to the

tool. (See Figure A.)

SKU 93142 For technical questions, please call 1-800-444-3353 PAGE 7

2. Chuck (4): Accepts up to 3/8”

shank

diameter Drill Bits (not included). To install a

Drill Bit with the Cordless Drill pointed away from your body, hold the Chuck Sleeve

firmly in place and turn the Chuck

clockwise

. Insert the shank of a Drill Bit all the

way into the Chuck. While holding the Chuck Sleeve in place, turn the Chuck

counterclockwise

to lock the Drill Bit in place. (See Figure A.)

3. Trigger (13): The Trigger is operated

manually

simply by squeezing the Trigger to

turn on the Cordless Drill and releasing pressure on the Trigger to turn off the

Cordless Drill. The drill will go faster the more the trigger is squeezed.

(See Figure A.)

4. Reversing Lever (16): The Reversing Lever Switch allows you to change the

rotational direction of the Cordless Drill. To change the rotational direction, make

sure the Cordless Drill is at a complete stop. For a

clockwise

rotation, move the

Switch to the

right

. For a

counterclockwise

rotation, move the Switch to the

left

(See Figure A.)

5. Torque Selector Ring: The Torque Selector Ring allows you to select up to 16

different driving torque settings, depending on the job required. To change the driving

torque, make sure the Cordless Drill is at a complete stop. Then, simply turn the

Torque Selector Ring to the desired setting. The drill setting is used to force the

chuck not to slip and is used when drilling. (See Figure A.)

BATTERY PACK

(15)

CHARGED

INDICATOR

CHARGING

INDICATOR

CHARGER

POWER CORD

CHARGER

(21)

FIGURE A

TRIGGER

(13)

CHUCK (4)

TORQUE SELECTOR RING

REV 05/05

SKU 93142 For technical questions, please call 1-800-444-3353 PAGE 8

TO CHARGE THE CORDLESS DRILL

1. NOTE: The Battery Pack (15) requires charging. The first charge requires 1 hour

charge time prior to using the Cordless Drill. (See Figure A.)

2. When the Battery Pack (15) requires recharging, a 1 hour quick charge allows the

tool to operate at full power. Do not recharge the Battery Pack longer than 1 hour, as

damage to the Battery Pack and/or Charger (21) may occur. Do not leave the charger

unattended while charging. (See Figure A.)

3. Make sure the Trigger on the Cordless Drill is in its “OFF” position. Slide the Battery

Pack (15) off of the Handle of the Cordless Drill. Next, slide the Charger Plug onto

the Charging Socket of the Battery Pack. Then, plug the Charger (21) into the nearest

120 volt, grounded, electrical outlet. (See Figure A.)

4. Verify that the charging indicator light comes on. If it does not come on, check the

power cord connection. Charge the Battery Pack (15) until the charging indicator

light turns off and the charged indicator light comes on. When the Battery Pack (15)

is fully charged, the Charger (21) will automatically shut off. (See Figure A.)

5. NOTE: While charging, the Battery Pack (15) and Charger (21) may become warm

to the touch. This is normal, and does not indicate a problem. (See Figure A.)

6. Once the Battery Pack (15) is fully charged, disconnect the Charger (21) from the

electrical outlet. Then, disconnect the Charger from the Battery Pack.

(See Figure A.)

OPERATING INSTRUCTIONS

1. When installing Drill Bits, make sure the Battery Pack (15) is removed from the

Cordless Drill to avoid accidental starting. Then, insert and lock in place a Drill Bit

in the Chuck (4) of the Cordless Drill.

2. Whenever possible, secure the workpiece in place, using a vise or clamps (not

included).

3. When drilling in light gauge metal or wood, use a wooden block to back up the

material to prevent damage to the workpiece.

4. Mark the center of the hole to be drilled with a center punch to give a Drill Bit a start

and to prevent it from “walking”.

5. Lubricate the Drill Bit with cutting oil when drilling iron or steel. Use a coolant when

drilling nonferrous metals such as copper, brass, or aluminum.

6. Insert the fully charged Battery Pack (15) into the Handle of the Cordless Drill.

(See Figure B.) REV 05/05

SKU 93142 For technical questions, please call 1-800-444-3353 PAGE 9

7. Make sure to hold the Cordless Drill firmly with both hands, as torque from the Motor

will cause the tool to twist.

8. Observe the top of the Cordless Drill.

(See Figure C.)

9. The Cordless Drill is equipped with a Level

that helps the operator drill holes parallel to

the floor. (See Figure C.)

10. When depressed, the Light Activator

allows the Red, Yellow, and Green Lights to

illuminate. (See Figure C.)

11. The Red, Yellow, and Green Lights indicate

the Battery Pack’s (15) charge level. All

three Lights illuminated means the Battery

Pack is at

full

charge. Red and Yellow Lights

illuminated means the Battery Pack is

partially

charged.The Red alone illuminated

means the Battery Pack is almost fully

discharged

, and requires recharging.

(See Figure C.)

BATTERY PACK (15)

HANDLE

FIGURE B

GREEN LIGHT

LEVEL

LIGHT ACTIVATOR

YELLOW LIGHT

FIGURE C

TOP VIEW

RED LIGHT

SKU 93142 For technical questions, please call 1-800-444-3353 PAGE 10

12. Turn the Cordless Drill on, using the Trigger.

13. Do not drill into areas where you cannot identify any possible hazards such

as electric wires and cables behind the drilling surface. Drill only as deep as

necessary.

14. To reduce jamming as the Drill Bit breaks through the workpiece, decrease the drilling

pressure when the point of the Drill Bit breaks through the workpiece.

15. When you have drilled the hole, remove the Drill Bit from the hole while the Cordless

Drill is still running. This prevents the Drill Bit from getting caught in the hole and

causing damage.

16. Release the Trigger to stop the Cordless Drill. Then, remove the Battery Pack (15)

and Drill Bit from the Cordless Drill.

INSPECTION, MAINTENANCE, AND CLEANING

1. WARNING! Always turn the Trigger to its “OFF” position, unplug the

Charger (21) from its electrical outlet, and disconnect the battery before

performing any inspection, maintenance, or cleaning.

2. BEFORE EACH USE, inspect the general condition of the Cordless Drill. Check

for misalignment or binding of moving parts, cracked or broken parts, leaking Battery

Pack, damaged Charger wiring, chipped or broken Drill Bits, and any other condition

that may affect its safe operation. If abnormal noise or vibration occurs, have the

problem corrected before further use.

Do not use damaged equipment.

3. Battery Pack (15) precautions: Never burn Batteries, as they can explode in a

fire. Do not charge leaking Batteries. Only a qualified service technician should

perform maintenance on the Battery Pack. Contact local solid waste authorities for

instructions on correct disposal or recycling of the Battery Pack.

4. DAILY: With a soft brush or cloth, remove all dirt and debris from the Cordless Drill.

Do not immerse the Cordless Drill in any liquids.

5. When storing: Always remove the Battery Pack (15) from the Cordless Drill. Keep

the Cordless Drill and its accessories in a clean, dry location and out of children’s

reach.

Indice

Altri manuali Chicago Electric Trapano

Chicago Electric

Chicago Electric 67089 Manuale di installazione

Chicago Electric

Chicago Electric 42564 Manuale utente

Chicago Electric

Chicago Electric 1/2" variable Speed Reversible HEAVY DUTY DRILL... Istruzioni per il montaggio

Chicago Electric

Chicago Electric 67616 Manuale di istruzioni originale

Chicago Electric

Chicago Electric 94434 Manuale utente

Chicago Electric

Chicago Electric 95848 Manuale utente

Chicago Electric

Chicago Electric 65756 Manuale di installazione

Chicago Electric

Chicago Electric 45790 Manuale utente

Chicago Electric

Chicago Electric 66006 Manuale di installazione

Chicago Electric

Chicago Electric 97907 Manuale di installazione

Chicago Electric

Chicago Electric 66127 Manuale di installazione

Chicago Electric

Chicago Electric 93632 Istruzioni per il montaggio

Chicago Electric

Chicago Electric Chicago 44849 Manuale del proprietario

Chicago Electric

Chicago Electric 45338 Manuale utente

Chicago Electric

Chicago Electric 60495 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 1/2" variable Speed Reversible HEAVY DUTY DRILL... Istruzioni per il montaggio

Chicago Electric

Chicago Electric 93449 Manuale utente

Chicago Electric

Chicago Electric 47991 Manuale elenco delle parti

Chicago Electric

Chicago Electric 68856 Manuale utente

Chicago Electric

Chicago Electric 68851 Istruzioni per il montaggio

Chicago Electric

Chicago Electric 68126 Manuale di installazione

Chicago Electric

Chicago Electric VARIABLE SPEED 18 VOLT CORD- LESS DRILL/HAMMER DRILL... Manuale utente

Chicago Electric

Chicago Electric 93632 Manuale di installazione

Chicago Electric

Chicago Electric 95877 Istruzioni per il montaggio

Manuali Trapano popolari di altre marche

Makita

Makita BDF456 Manuale utente

Black & Decker

Black & Decker LDX220 Manuale utente

Hitachi

Hitachi DH 40MA Manuale utente

Challenge

Challenge JO Manuale tecnico di riferimento

Makita

Makita LXFD01 Manuale utente

Festool

Festool T18+3 Manuale utente

Milwaukee

Milwaukee M12 FPDX-202X Manuale utente

EINHELL

EINHELL TE-RH 32 E Manuale utente

Makita

Makita DHP484 Manuale utente

Makita

Makita FD05 Manuale utente

Bosch

Bosch PSB 530 RA Manuale utente

Maximum

Maximum 054-1359-4 Manuale utente

Makita

Makita HP332D Manuale utente

Raider

Raider RDP-HD31H Manuale utente

Bort

Bort BPM-1400x2 Manuale utente

Black & Decker

Black & Decker 7266 Manuale utente

KENT USA

KENT USA TRD1230 Manuale utente

Bosch

Bosch GSB 19-2 RE Manuale utente
