Clarke CPSB200B Manuale di istruzioni

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0218 ISS 1

PRESSURISED SANDBLASTER

MODEL NO: CPSB200B

PART NO: 7640134

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Pressurised Sandblaster.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended. Faulty goods should be returned to their place of purchase, no

product can be returned to us without prior permission.

This guarantee does not effect your statutory rights.

CARTON CONTENTS

The following items should be supplied in the carton.

If any parts are missing or damaged, please see your Clarke dealer.

• 1 x Tank Assembly • 1 x Front Leg

• 2 x Handlebars • 1 x Gun Assembly

• 2 x Wheels • 2 x Wheel Covers

• 1 x Fixings Kit • 1 x Axle

• 1 x Media Hose • 1 x Funnel

• 1 x Sand Sieve • 1 x Roll Teflon Tape

• 1 x Protective Mask/Hood • 1 x Spare Gun Closing Block

• 4 x Nozzles - nominal diameters: 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

1. Read this instruction manual before connecting the sandblaster to your

compressor.

2. Do not use any silica based abrasives with this tool. Silica based abrasives

have been linked to severe respiratory disease. Always use recommended

abrasives. Abrasives used in this sandblaster may be covered by COSHH

Regulations.

3. Read this manual carefully, Learn the sandblaster applications and

limitations, as well as potential hazards specific to it.

4. Do not expose to moisture. Don't use this product in damp or wet locations,

Keep out of rain.

5. Keep work area clean and well lit. Cluttered or dark work areas invite

accidents.

6. Keep children away. All children should be kept away from the work area.

Never let a child handle tools without strict adult supervision.

7. Do not operate this product if under the influence of alcohol or drugs.

Read warning labels on prescriptions to determine if your judgment or

reflexes are impaired while taking medication. If there is any doubt, do not

attempt to operate.

8. Use safety equipment. Dust mask, non-skid safety shoes, hard hat, or

hearing protection should be used in appropriate conditions.

9. Don't overreach, Keep proper footing and balance at all times when

operating this product.

10. Always disconnect the sandblaster from the air supply and release pressure

from the tank before storing, servicing, or changing accessories.

11. Use clamps or other practical means to secure and support the work piece

to a stable platform. Do not hold the work by hand or against your body.

12. Do not point the sandblaster at anyone or at any objects other than the

intended work object.

13. Check your sandblaster regularly for damage, If any part is damaged it

should be carefully inspected to make sure that it can perform its intended

function correctly. If in doubt, the part should be repaired. Refer all

servicing to a qualified technician. Consult your dealer for advice.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE

USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

14. Do not attempt to operate this product near flammable materials or

combustibles. Failure to comply may cause serious injury.

15. Always make sure that the trigger is not on before connecting the

sandblaster to the air supply.

16. Store idle equipment out of the reach of children and untrained persons.

Tools may be dangerous in the hands of untrained users.

17. Drain the water trap periodically during use, Do not allow moisture to fill

more than 1/2 of the water trap bowl. Do not leave water standing in the

water trap when storing the sandblaster.

18. Do not allow the sandblaster to sit pressurized while unattended or not in

use.

19. Periodically check the abrasive medium delivery components. Valves,

hoses and nozzles that carry the abrasive medium after it leaves the

pressure tank are subjected to the abrasive blasting action so will wear out

more quickly than other components.

20. Release the air pressure in the tank before opening. See “Releasing

Pressure from the Tank” section, Make sure pressure gauge reads “0”

before opening the tank. Do not attempt any maintenance on the

sandblaster until the pressure gauge reads “0” and it has been

disconnected from the air supply.

21. Maintain the correct air pressure whenever working. Do not allow working

pressure to exceed 125 psi. If the safety valve does not release excess air

pressure, stop all work and release pressure from the tank (see “Releasing

Pressure from the Tank” section).

22. ALWAYS make sure there is adequate ventilation. Do not work in confined

areas.

23. In the case of injury seek expert medical advice immediately.

24. Use clamps or a vice to hold the work if it is small or of light weight rather

than using your hands. This frees both hands to operate the nozzle.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as waste.

All tools, accessories and packaging should be sorted, taken to a

recycling centre and disposed of in a manner which is compatible

with the environment.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ASSEMBLY

FIT THE PRESSURE GAUGE TO THE TANK

1. Screw the pressure gauge onto

the sandblaster as shown in Fig 1.

FIT THE HANDLE BARS TO THE TANK

1. Lay the tank on a flat level surface

such as a workbench, with the

handlebar mounting brackets

facing up, as shown in Fig 2.

2. Align the holes in the left

handlebar with the handlebar

mounting brackets on the left side

of the tank.

3. Fit a washer to each of the

handlebar mounting screws. Insert

a screw through each hole in the handlebar and mounting brackets.

4. Fit a nut onto each of the screws and firmly tighten with a wrench.

5. Repeat steps 2-4 for the right handlebar.

ASSEMBLE THE AXLE

1. Slide the axle through the holes at

the bottom of the handlebars, see

Fig 3.

2. Slide a washer onto each end of

the axle.

Fig 1

Fig 2

Fig 3

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

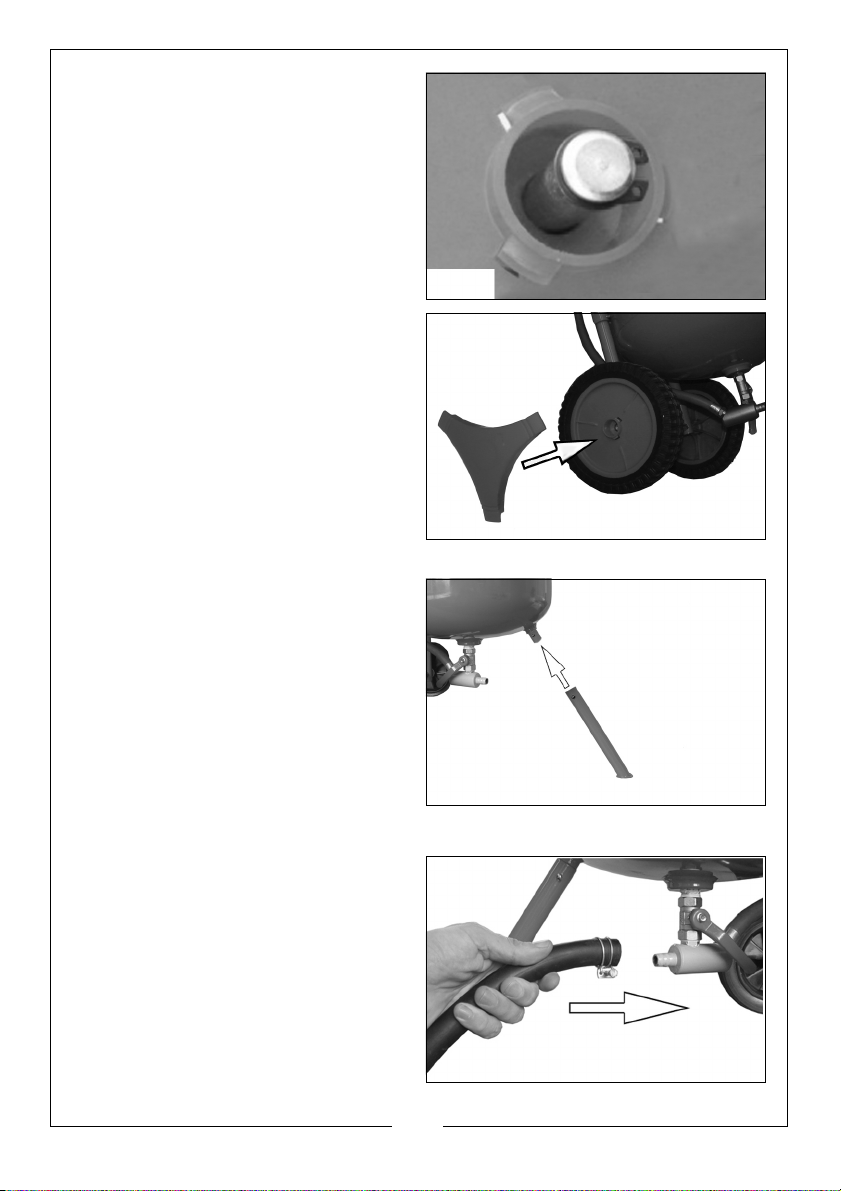

3. Slide a wheel onto each end of

the axle followed by another

washer.

4. Use the circlip provided to secure

the wheel, see Fig 4.

5. Press the wheel cover onto the

wheel as shown in Fig 5.

ATTACH THE FRONT LEG

1. Roll the tank over so that handlebars

are now facing down.

2. Align the holes of the front leg

with the holes in the leg mounting

on the front side of the tank, see

Fig 6.

3. Insert a split pin through the holes

and bend it so the front leg

cannot slide off the leg mount.

ATTACH THE MEDIA HOSE

1. Slide the hose onto the outlet at

the bottom of the sandblaster as

shown in Fig 7.

2. Tighten the clip shown to secure

the hose.

Fig 4

Fig 5

Fig 6

Fig 7

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

3. Connect the sandblasting gun to

the other end of the hose in a

similar manner. Ensure the inlet

connector is tightly fitted to the

gun.

• A spare gun closing block is

supplied for future use.

OPERATION

SAFETY AND HEALTH CONSIDERATIONS

• Before opening tank make sure that it is not pressurized. Ensure the

gauge reads “0”. If it does not, release pressure from the tank (See

page 10).

• Disconnect the compressor before opening the tank. Protect

yourself and those around you from “over-spray”. Remember that

your sandblaster is shooting a powerful spray of abrasive material.

Do not point it at yourself or anyone around you.

• Wear protective clothing including hood (30), and heavy gloves

when using this sandblaster.

• Wear a dust mask over your mouth and nose when using this

sandblaster. You will create a cloud of abrasive material and debris

which is dangerous to inhale.

• Protect anything around you that may be damaged from the spray

of abrasive particles. Nothing subject to contamination damage or

with a fine surface should be near your sandblaster work area.

WARNING: ALWAYS WEAR YOUR HOOD, DUST MASK AND HEAVY DUTY

CANVAS GLOVES WHEN OPERATING THE SANDBLASTER.

WARNING: BEFORE OPERATING YOUR SANDBLASTER, INSPECT EACH

CONNECTION, DOUBLE CHECKING TO MAKE SURE THAT ALL ARE TIGHT

AND PROPERLY SEALED.

WARNING: THIS SANDBLASTER IS NOT INTENDED FOR USE WITH SILICA

BASED ABRASIVES. WHICH HAVE BEEN LINKED TO SEVERE RESPIRATORY

DISEASE. ALWAYS USE SILICA SUBSTITUTES (SUCH AS CLARKE GLASS BEAD

ABRASIVE.

Fig 8

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

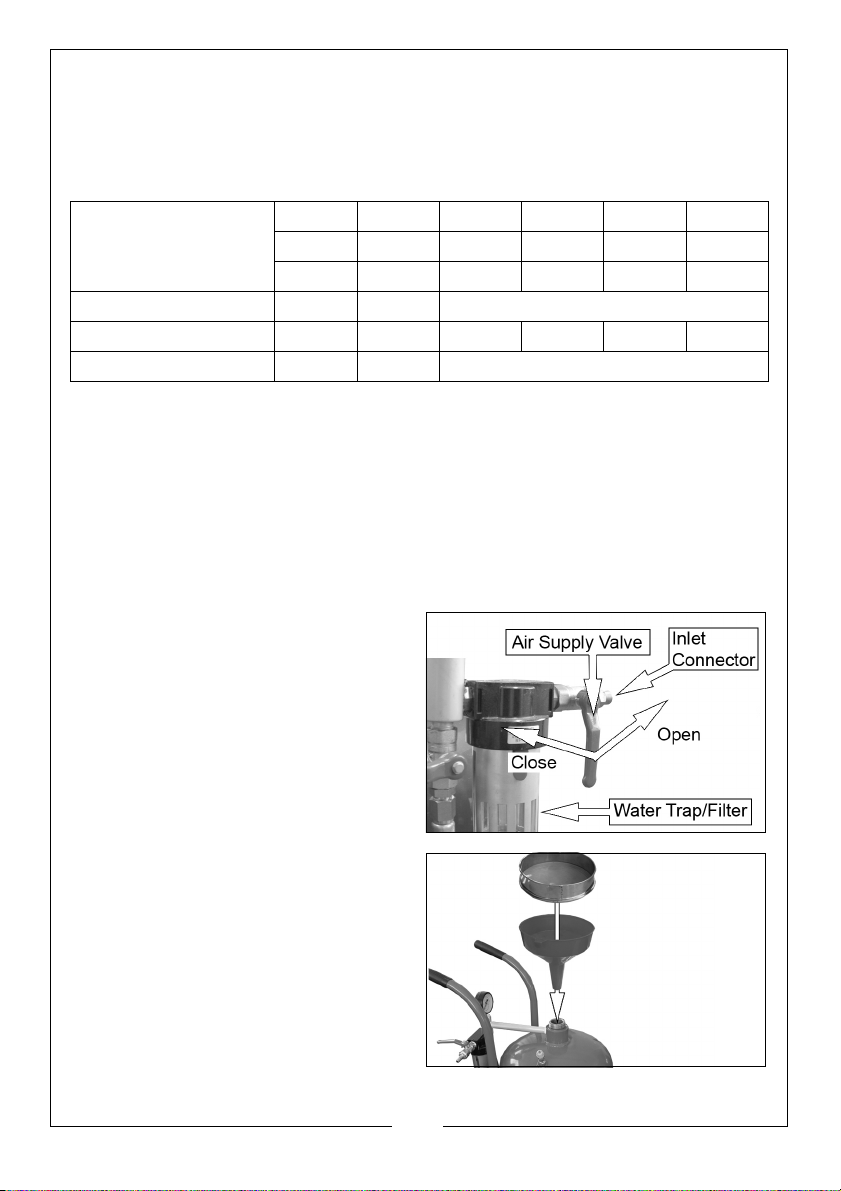

ABRASIVE SELECTION

The type of abrasive you choose will greatly influence the amount of time

needed to clean a given surface area.

Suitable Abrasives available from your clarke stockist

LOADING THE ABRASIVE

• To prevent clogging, ensure that the abrasive you use is dry.

• While you may re-use abrasive but remember that abrasive grit/

material does wear out. After use, abrasive becomes smoother and

rounder, thus reducing its effectiveness.

NOTE: Re-using abrasive may also cause clogging due to fine debris

contained in the mixture from prior use.

1. Close the air supply valve by

turning it to the closed position,

see Fig 9.

2. Squeeze the trigger to release any

pressure from the tank.

• Make sure the pressure gauge

reads “0”.

3. Remove the filler cap.

4. Using the sieve and funnel

supplied, pour the selected

abrasive material into the tank,

see Fig 10.

• Do not fill the tank more than ¾

full.

• If humidity in your region is 90%

or more, only fill the tank ½full

and check the water trap more

frequently.

Aluminium Oxide

Powder

60 60-80 60-80 80 80-120 120

22kg 20kg 7.5kg 22kg 7.5kg 22kg

3052070 3052110 3052100 3052075 3052105 3052080

Glass Bead Abrasive 3052095 20kg

Soda Blast Abrasive 3052805 7.5kg 3052800 22kg

Garnett Abrasive 3052090 22kg

Fig 9

Fig 10

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

5. Replace the filler cap ensuring the O-ring is in place.

NOTE: Place your air compressor in another room to prevent damage

from the intake of abrasive dust laden air.

TO START BLASTING

NOTE: Start with all valves in the closed position. Following the instructions

below will help prevent clogging in the delivery hose, outlet

manifold and in the gun.

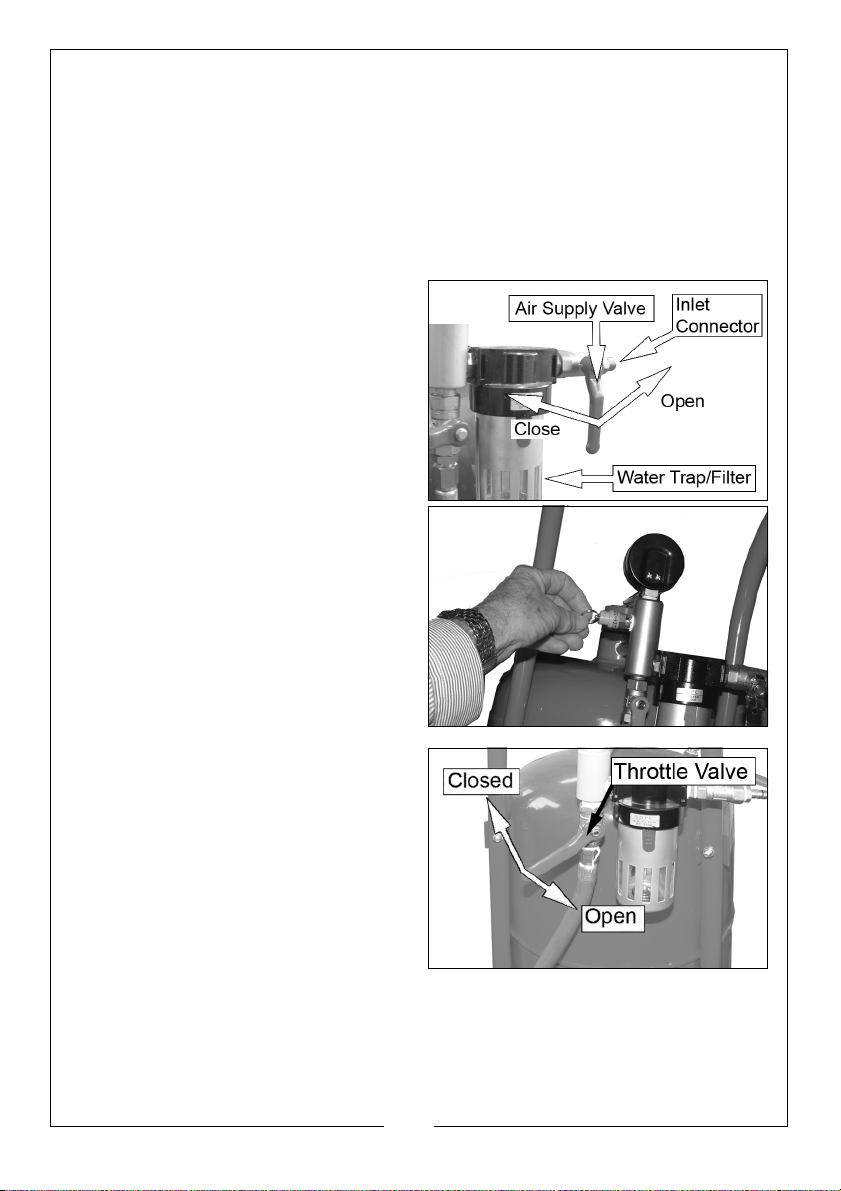

1. Connect the compressor to the

inlet connector.

2. Start the compressor and open

the air supply valve, see Fig 11.

• The tank will start to pressurise.

3. Test the safety valve by pulling up

on the valve as shown in Fig 12.

• Air will hiss out when the valve is

pulled.

•

4. Open the throttle valve, Fig 13.

5. Check for leaks at the filler cap

and along all hoses and fittings as

the system pressurises. If leaks are

observed, release the pressure

from the tank and repair any leaks

immediately.

6. Press and hold the trigger until air

is flowing through the gun.

Fig 11

Fig 12

Fig 13

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

7. With the trigger open, slowly open

the abrasive control valve as

shown in Fig 14 until abrasive

material begins to flow out of the

gun.

8. Adjust the abrasive control valve

until the desired amount of

abrasive material is flowing

through the gun.

9. Begin blasting.

ABRASIVE FLOW ADJUSTMENT

• Choose a larger nozzle for a broader spray pattern. Choose a

smaller nozzle for more focused spray.

• Adjust air pressure with the throttle valve. Adjust abrasive flow with

the abrasive control valve.

• Watch for abrasive clogging. Release pressure from the tank if

necessary and replace the abrasive with drier or cleaner abrasive.

TO STOP BLASTING

1. While continuing to press and hold the trigger, turn the abrasive control

valve to the closed position, see Fig 14.

2. When you notice only air (no abrasive) is coming out of the nozzle, you can

stop the air flow by releasing the trigger. By doing this you are ensuring a

clean manifold, hose and gun.

3. ALWAYS clean the gun thoroughly after use.

RELEASING PRESSURE FROM THE TANK

1. When finished blasting, close the

abrasive control valve, see Fig 15.

2. Press and hold the trigger to expel

any remaining abrasive material

from the abrasive hose and gun.

Fig 14

Fig 15

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Utensili elettrici

Clarke

Clarke CBM 2B Manuale di installazione e funzionamento

Clarke

Clarke STRONG-ARM CSA12F Manuale di istruzioni

Clarke

Clarke ECSS2 Manuale di istruzioni

Clarke

Clarke Metalworker CDP301B Manuale di installazione e funzionamento

Clarke

Clarke Metalworker CL251MH Manuale di installazione e funzionamento

Clarke

Clarke CAT50 Manuale di installazione e funzionamento

Clarke

Clarke CHT674 Manuale utente

Clarke

Clarke CAT84 Guida alla risoluzione dei problemi

Clarke

Clarke CPSB100B Manuale di istruzioni

Clarke

Clarke Air CAT149 Manuale di installazione e funzionamento

Clarke

Clarke CAT22B Manuale di installazione e funzionamento

Clarke

Clarke X-Pro CAT202 Manuale di installazione e funzionamento

Clarke

Clarke Metalworker CDP350V Manuale di installazione e funzionamento

Clarke

Clarke Strong-Arm CSA15F Manuale di installazione e funzionamento

Clarke

Clarke Contractor CON15 Manuale di installazione e funzionamento

Clarke

Clarke CE7 PRO Manuale utente

Clarke

Clarke CAT113 Guida all'installazione

Clarke

Clarke CAT211 Manuale di installazione e funzionamento

Clarke

Clarke CCRT266 Manuale di istruzioni

Clarke

Clarke CAT134 Manuale di installazione e funzionamento

Clarke

Clarke Metalworker CDP101B Manuale di installazione e funzionamento

Clarke

Clarke CWS200B Manuale utente

Clarke

Clarke Woodworker CJS2 Manuale di installazione e funzionamento

Clarke

Clarke CWS250 Manuale di installazione e funzionamento

Manuali Utensili elettrici popolari di altre marche

AEG

AEG OMNI-JS Manuale utente

SIP

SIP 01533 Manuale utente

Ribimex

Ribimex PRS499 Manuale utente

3M Fiber Optic Connector Crimp Tool Manuale utente

Ryobi

Ryobi P524 Manuale utente

ROJEK

ROJEK FSN 300A Manuale utente

Kemper

Kemper 1740PRO Manuale utente

WABCO

WABCO OptiTire Manuale utente

EINHELL

EINHELL TE-MS 18/210 Li Manuale utente

Orgapack

Orgapack OR-T 85 Guida rapida

TOUGHCUT

TOUGHCUT Diamond 400 Manuale utente

Yaros

Yaros PB-3603 Manuale utente

Fein

Fein BSS 2.0 E Guida all'installazione

Baileigh Industrial

Baileigh Industrial SS-2725 Manuale utente

Milwaukee

Milwaukee 2674-20 Manuale utente

Fein

Fein BLs 1.6 Manuale utente

Princess

Princess Electric Multi Sharpener Manuale utente

FOREDOM

FOREDOM K.1050 Manuale
