Clarke CSV1A Manuale di istruzioni

OPERATION & MAINTENANCE

INSTRUCTIONS

GC11/18 iss 5

ORIGINAL INSTRUCTIONS

SUBMERSIBLE WATER PUMP

MODEL NO: CSV1A, CSV2A

PART NO: 7230582, 7230602

INTRODUCTION

Thank you for purchasing this CLARKE Submersible Water Pump.

This pump is designed for pumping clean water or water containing solids in

suspension. It is not designed for pumping slurry, sludge, mud or heavily

polluted water, or any water containing chemicals or other acidic

contaminants including salt water.

These pumps have the ability to pump solids as large as 30mm, however, the

outlet elbow and delivery pipe diameter will restrict this.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

SPECIFICATIONS CSV1A CSV2A

Outlet Diameter 1½”/38mm 1½”/38mm

Motor Output (Watts) 330 620

Head Max (m) 5 8

Max. Capacity (L/min) 118 200

Weight 3.7 5.2

Cable (m x mm2)10 x 1.5 10 x 1.5

Dimensions (mm) not including the elbow 140 x 300 140 x 300

SAFETY PRECAUTIONS

1. These pumps are designed to pump WATER ONLY. Never use for pumping

flammable liquids or chemicals.

2. Never run the pump dry.

3. An approved Residual Current Device (RCD) which has a tripping current

of less than 30mA must be used when pumping from ponds or swimming

pools.

4. Never carry the pump by the mains lead or float switch.

5. Never pull the mains lead to disconnect the pump from the mains socket.

6. Your submersible pump may only be used for pumping water from a

swimming pool when there is no person or animal in the pool.

7. Always disconnect the pump from the electrical supply before placing it

into, or removing it from the water and before any cleaning or

maintenance.

8. Always use the moulded handle (or lifting eye), with a rope or cable

attached when lifting the pump. NEVER lift the pump by the mains cable,

or, where fitted, the float switch cable.

9. DO NOT run the pump with the body exposed for longer than 10 minutes.

10. DO NOT install the pump on sand or ground which is likely to shift.

11. Do not use the pump if the water is liable to freeze, as this can cause

damage to the pump. Remove the pump from the water and store it in a

frost free location.

12. If the pump is to be used where there may be silt or mud (for example,

garden ponds), keep the pump clear of any sediment by standing it on a

platform or brick.

13. Do not allow children to touch the pump, cables or connections.

14. Disconnect the pump from the mains supply when not in use.

15. Have the pump repaired by a qualified person.

16. Keep the mains cable away from heat, oil and sharp edges.

17. Always check the plug, mains cable and float switch cable for damage

before use. Do not use the pump if damaged. Refer to qualified service

personnel for repair.

18. If you have to use an extension lead with this product, it must be designed

for outdoor use and incorporate a cable suitable for use with Class I

appliances.

ELECTRICAL CONNECTIONS

Connect the mains lead to a suitable 110 Volt (50Hz) electrical supply through

an approved plug or a suitably fused isolator switch, or to a suitable portable

110 volt transformer.

We recommend that this pump is fitted with a Residual Current Device (RCD).

If the pump is to be connected to an outdoor electrical supply, ensure both

the plug and the socket are of a British Standard approved waterproof design.

The wires in the mains lead are coloured according to with the following code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the flexible power cable of this appliance may not

correspond with the coloured markings identifying terminals in your plug

proceed as follows:

• Connect GREEN & YELLOW wire to the terminal marked with a letter “E” or

Earth symbol ‘ ’or coloured GREEN or GREEN & YELLOW.

• Connect BROWN wire to terminal marked with a letter “L” or coloured RED

• Connect BLUE wire to terminal marked with “N” or coloured BLACK

IMPORTANT: If you are in any doubt regarding electrical installation, you should

consult a qualified electrician.

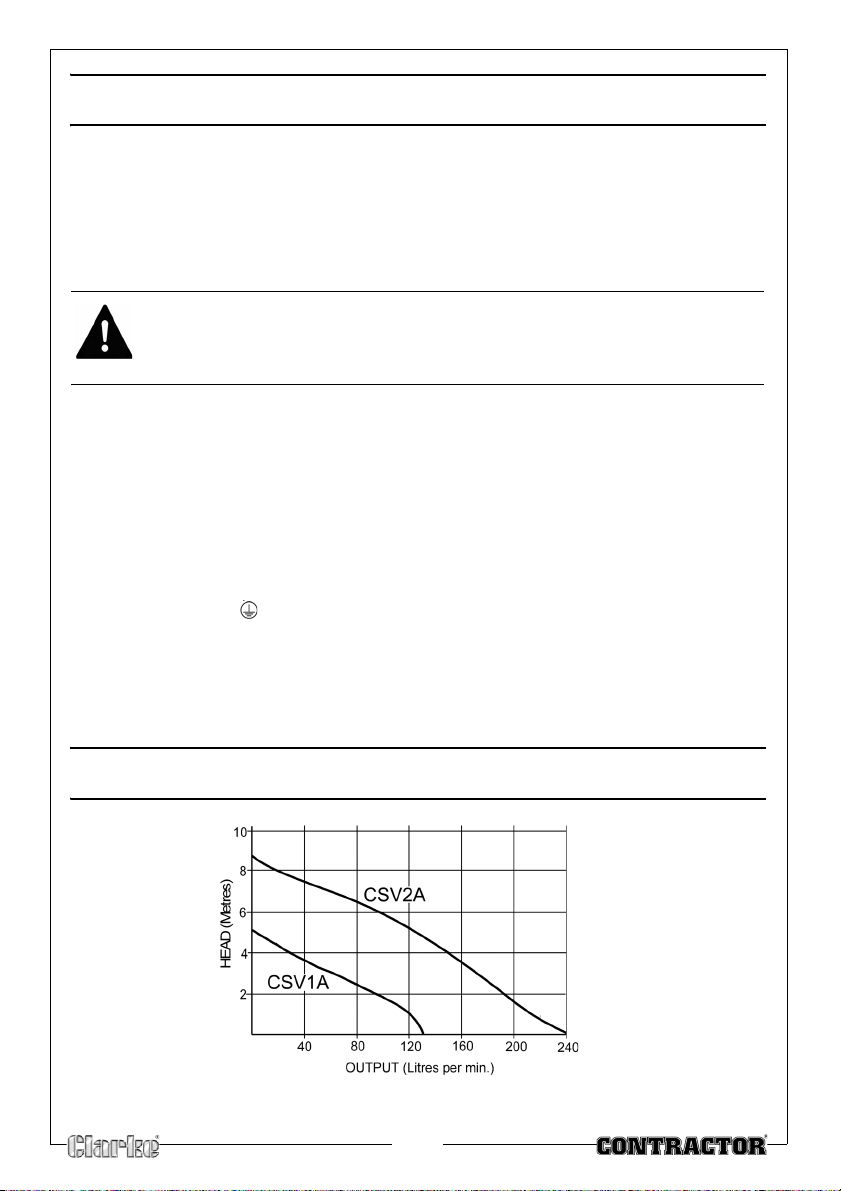

PUMP PERFORMANCE DATA

WARNING: THIS APPLIANCE MUST BE EARTHED

PREPERATION

CONNECTING THE MULTI HOSE ADAPTOR

ELBOW

Fit the elbow adaptor to the

pump outlet as shown in the

diagram opposite.

2. Screw the multi hose adaptor

onto the elbow.

• The multi hose adaptor is

capable of accepting 1”,

¾”and ½” hoses.

1”

¾”

½”

Simply cut the multi hose

connector to the required size

and attach a suitable hose using

with a worm drive clip.

• For maximum efficiency, we

strongly recommend that you

connect a 1½” diameter hose

to the multi hose adapter.

• Alternatively, you may remove

the multi adapter altogether,

and screw on a 1½” BSP hose adapter.

The pump is completely submersible and should be placed in a vertical

position on a solid flat surface, placing the pump on a couple of house bricks if

required.

SUITABLE HOSES AND SPARE/REPLACEMENT MULTI HOSE ADAPTERS ARE

AVAILABLE FROM YOUR CLARKE DEALER.

WARNING: DISCONNECT THE PUMP FROM THE MAINS POWER SUPPLY

BEFORE CONNECTING THE MULTI HOSE ADAPTOR.

USING THE PUMP

1. Place the pump on a flat surface in the area that you want to drain.

• If there is sediment in the operating area, the pump should be

placed on house bricks or similar.

• Ensure the pump is positioned with adequate space so that the

movement of the float switch is not restricted - recommended

minimum area of 40 x 40cm.

• ALWAYS raise and lower the pump using a rope attached to the

lifting handle.

• Take all necessary precautions as described on page 3 before

plugging in and switching ON.

2. Connect the mains plug to a high sensitivity residual current device (RCD)

which has a tripping current of less then 30mA.

3. Switch the mains power supply on.

• The pump incorporates a float switch, which automatically switches

the pump ON when the water is above a pre-determined level.

• The pump will begin to drain water.

• As the water level falls, so will the float switch until it stops the pump.

4. Disconnect the pump from the mains power supply when finished.

• These pumps are fitted with automatic thermal overload protection.

If the pump overheats due to an obstruction in the pump or

pumping warm water for example, it will shut off automatically.

Switch the pump OFF and disconnect from the mains supply. Check

for blockages and allow the motor to cool (at least 5 minutes)

before attempting to re-start.

WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE. DO NOT USE THE

PUMP IF IT IS DAMAGED IN ANY WAY.

WARNING: THE WATER BEING PUMPED WILL BE POLLUTED IF THIS PUMP

BECOMES DAMAGED AND LUBRICANT WITHIN THE PUMP ESCAPES.

WARNING: NEVER CARRY THE PUMP USING THE MAINS POWER CABLE.

DAMAGE TO ELECTRICAL CABLES CAN BE HAZARDOUS . ALWAYS USE THE

HANDLE WHEN MOVING THE PUMP.

CAUTION: DO NOT ALLOW THE PUMP TO RUN DRY

MAINTENANCE

These pumps should require no maintenance other than regular cleaning.

If the pump starts to show signs of wear or damage, contact your CLARKE

dealer for advice.

• Do not use the pump if there is any damage to the mains supply

cable or to the float switch or its cable.

• Do not attempt to repair the pump yourself, as you may damage

the waterproof seal and invalidate your guarantee. Repairs must be

carried out by your CLARKE dealer or contact the CLARKE Service

Department on 020 8988 7400.

• If the troubleshooting on page 8 does not solve your problem,

please contact the Clarke service department.

CLEANING

1. Check the pump installation regularly to ensure the base inlet is clear of

leaves or other debris.

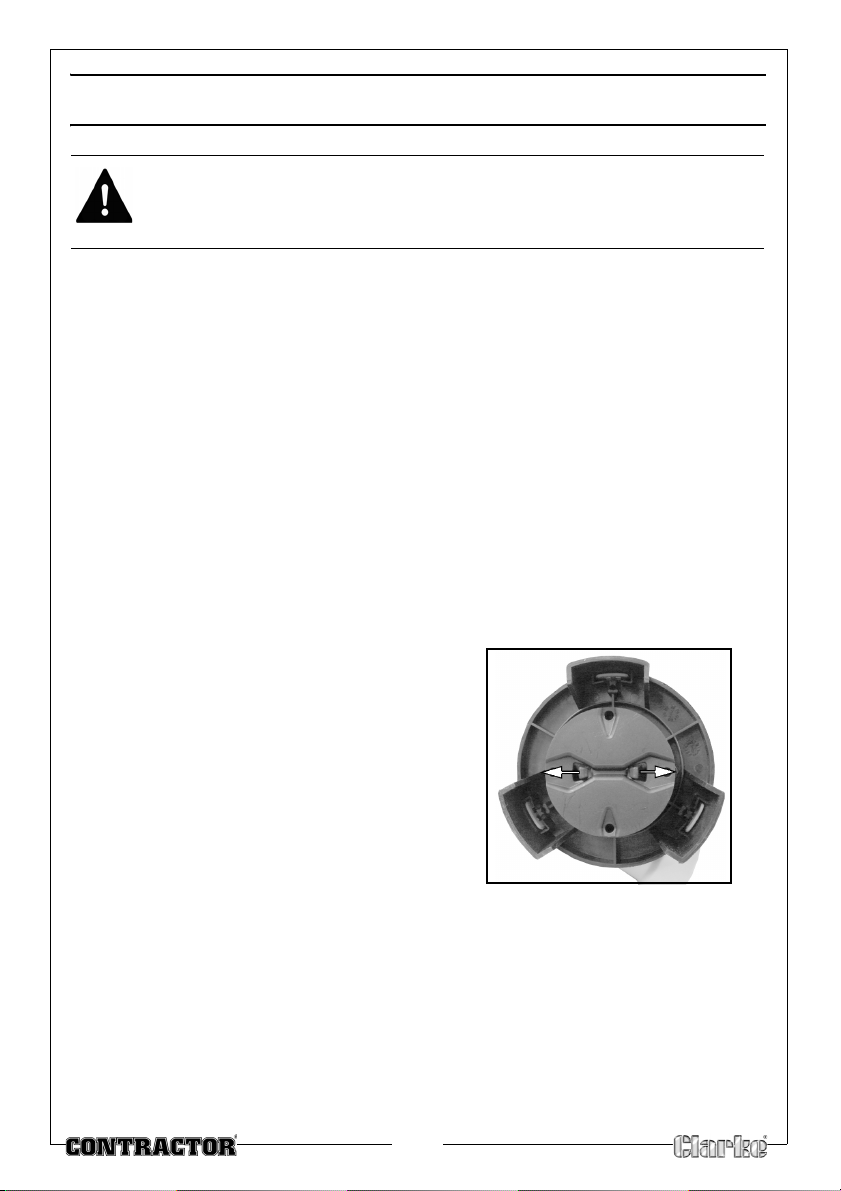

• These pumps have screwless fittings at

their base, allowing the removal of the

plastic cover by prising the two

release clips apart in the direction of

the arrows.

• This allows better access to the cavity

at the bottom, should the pump

become badly clogged. Flush the

cavity and the impeller housing with

clean water.

• To replace the cover, ensure the

release clips line up with the holes on the base of the pump and

press the cover home.

NOTE: Do not attempt to strip the pump further as this will invalidate the

guarantee.

WARNING: BEFORE CHECKING THE CONDITION OF THE PUMP, ENSURE IT

IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED,

ENSURE THE CIRCUIT BREAKER IS OPEN.

TROUBLESHOOTING

PROBLEM SOLUTION

PUMP WILL

NOT START

1. Check to ensure power is switched on.

2. Check fuse (consult an electrician if in doubt).

3. If extension lead is fitted, check connections (consult an

electrician if in doubt).

4. Internal thermal cut-out has not re-set. Leave for 5

minutes and try again.

5. The impeller may be jammed. Disconnect from the mains

supply, remove the bottom strainer, and remove any

objects that may be obstructing the impeller. Replace

the strainer and try again.

6. If the pump still fails to start, consult your CLARKE dealer

for advice.

7. Float switch may be jammed against side wall, or

prevented from moving.

8. Water level too low - float switch in OFF position - lift float

to check switch.

PUMP WILL

START BUT NOT

PUMP

1. Check to ensure strainer is not blocked.

2. Discharge tube clogged or obstructed.

3. The head may be too great, i.e. you are trying to lift the

water too great a distance for the pump to cope with.

(See specification chart page 2).

4. Air bubble in the pump, produced during the plunge.

Plunge the pump again, at an angle, and shake it whilst

lowering to remove any air trapped in the system.

5. Impeller may be damaged - Consult your CLARKE dealer.

PUMP WILL

NOT STOP

1. Float switch may be prevented from moving to the fully

down position.

2. Float switch may be faulty. Consult your CLARKE dealer

for advice.

PUMP STOPS

RUNNING

1. Thermal overload has operated. If this condition persists,

investigate the cause. Are you attempting to pump liquid

which is too heavy for the pump (mud, slurry etc.)

2. Pump has run dry, or float switch has cut in.

3. A foreign object has jammed the impeller.

EXPLODED PARTS DIAGRAM

PARTS LIST

NO DESCRIPTION PA R T N O NO DESCRIPTION PA R T N O

1Float-switch LDP1380002 21 Stator (CSV1A) LDS3410004

2Cap LDS3600170 21 Stator (CSV2A) LDS3410017

3Cable 10m LDP1320016 22 Joint O-ring LDP1200007

4Grommet N/A 23 Pump housing

(CSV1A)

LDS3500206

5Grommet LDP1230003 23 Pump housing

(CSV2A)

LDS3500207

6Capacitor LDP1360030 24 Joint O-ring LDP1200009

7Lock LDS3500011 25 Elbow with O-ring LDS3600111

8Anti-tear ring LDS3500336 26 Washer LDP1120006

9Cable fastener LDS3500335 27 Nut LDP1110005

10 Screw LDP1100008 28 Impeller (CSV1A) LDS3500013

11 Earth screw LDP1100003 28 Impeller (CSV2A) LDS3500014

12 Spring-washer LDP1120003 29 Joint O-ring LDP1200008

13 Washer LDP1120051 30 Pedestal LDS3500018

14 Insulation disc LDS3500106 31 Joint O-ring LDP1200033

15 Upper flange LDS3120005 32 Screw LDP1100090

16 Waved washer LDP1120002 33 Screw LDP1100014

17 Ceramiic shaft with

bearings (CSV1A)

LDS3101001 34 Washer LDP1120017

17 Ceramiic shaft with

bearings (CSV2A)

LDS3101002 35 Ball LDP1180003

18 Bearing LDP1180001 36 Twin lip seal LDP1210004

19 Washer LDP1120007 37 Joint O-ring LDP1200002

20 Lip seal LDP1210001 38 3-step fitting with O-

ring

LDS3600162

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste but according to the laws governing Waste Electrical and

Electronic Equipment (WEEE) at a recognised disposal facility.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Pompa dell'acqua

Clarke

Clarke PW50 Manuale di istruzioni

Clarke

Clarke PTP100 Manuale di istruzioni

Clarke

Clarke CEB103 Manuale di istruzioni

Clarke

Clarke MSP12 Manuale utente

Clarke

Clarke DW50 Manuale di istruzioni

Clarke

Clarke CHF2 Manuale di installazione e funzionamento

Clarke

Clarke HIPPO-3 Manuale

Clarke

Clarke PF75 Manuale di istruzioni

Clarke

Clarke CSE400A Manuale di installazione e funzionamento

Clarke

Clarke PSV1A Manuale di istruzioni

Clarke

Clarke PSV3A Manuale di installazione e funzionamento

Clarke

Clarke PSV6A Manuale di istruzioni

Clarke

Clarke LEP1A 7260060 Manuale di istruzioni

Clarke

Clarke CS85S Manuale di installazione e funzionamento

Clarke

Clarke GSE1 Manuale di istruzioni

Clarke

Clarke PW2 Manuale di installazione e funzionamento

Clarke

Clarke BPT600 Manuale di installazione e funzionamento

Clarke

Clarke CHHDP830 Manuale di istruzioni

Clarke

Clarke CRWP1 Manuale utente

Clarke

Clarke CPE15S Manuale di istruzioni

Clarke

Clarke CGP870 Manuale di istruzioni

Clarke

Clarke HIPPO 2 Manuale di istruzioni

Clarke

Clarke CPE30A3 Manuale di istruzioni

Clarke

Clarke CWP1000A Manuale di istruzioni

Manuali Pompa dell'acqua popolari di altre marche

Neptun

Neptun NPHW 5500 Manuale utente

Sensidyne

Sensidyne Gilian BDX-II Istruzioni per l'installazione e il funzionamento

Draper

Draper 47808 Manuale utente

Trolla

Trolla 12820 Manuale utente

Sunfab

Sunfab SVH Series Manuale utente

WilTec

WilTec 50740 Manuale utente

Fieldmann

Fieldmann FVC 5015 EK Manuale utente

Everbilt

Everbilt EFSUB5-122HD Manuale utente

Graco

Graco Husky 3300e Manuale utente

esotec

esotec 101018 Manuale utente

moyno

moyno 2000 CC Manuale utente

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuale utente

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guida alla risoluzione dei problemi

DUROMAX

DUROMAX XP WX Series Manuale utente

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuale utente

Franklin Electric

Franklin Electric IPS Manuale utente

Xylem

Xylem e-1532 Series Manuale utente

Milton Roy

Milton Roy PRIMEROYAL Manuale utente
