COO CHILL SYSTEMS Cook/Chill S stems

Cleveland Standard Features

IElectrically powered belt Exiting Conveyor with quick

disconnects for the Air and Electrical hookups for use

with the Cycle-Matic Form-Fill-Seal Machine

IAir operated raise and lower loading end of Exiting

Conveyor for various pouch lengths

INo additional Air or Electric required if used with

Cycle-Matic Form-Fill-Seal Machine

IAll stainless steel construction

IFrame mounted on (4) 3" diameter lockable swivel

casters

I18" wide USDA approved polypropylene belt with rub-

ber inserts

I1/3 Horse power TEFC motor with drive gearbox

IVariable belt speed controlled from Cycle-Matic Form-

Fill-Seal Machine touch screen

IExiting Conveyor can operate in either Constant Run or

Timed Run

IOperator start/stop controlled from Cycle-Matic Form-

Fill-Seal Machine touch screen

IEmergency stop at Cycle-Matic Form-Fill-Seal Machine

control panel

IAccepted for use in U.S.D.A. Inspected Facilities

SECT. XIV PAGE 33

0907

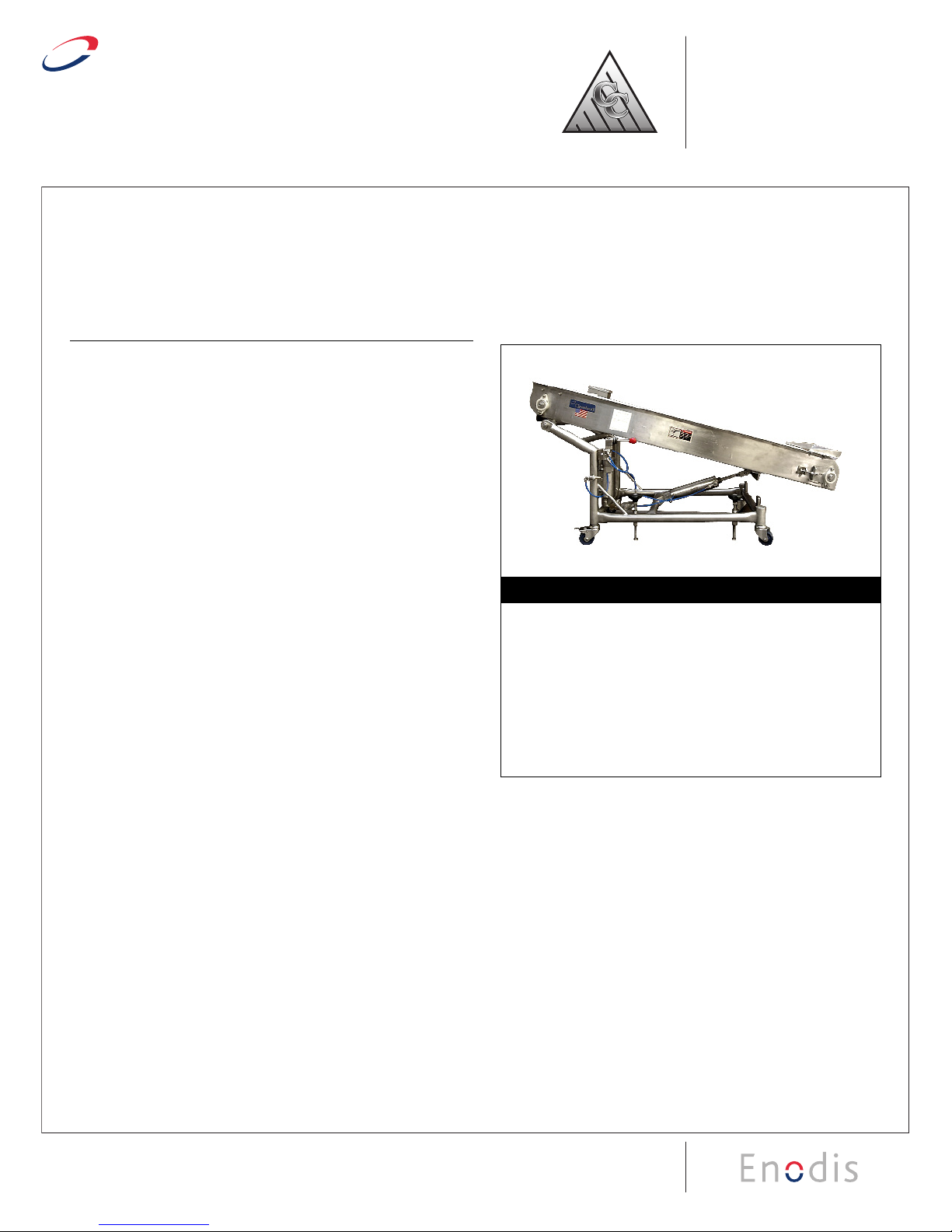

EXITING CONVEYOR

FOR USE WITH CYCLE-MATIC VERTICAL

FORM-FILL-SEAL MACHINE

MODEL:



AFF-1150-EC

Shall be CLEVELAND Mo el AFF-1150-EC EXITING CONVEYOR

with; Air operate raise an lower, loa ing en of Exiting

Conveyor for various bag lengths; All stainless steel construc-

tion; Frame mounte on (4) 3" iameter lockable swivel casters;

18" wi e USDA approve polypropylene belt with rubber inserts;

1/3 Horse power TEFC motor with rive gearbox; Variable belt

spee an Operator start/stop controlle from Cycle-Matic Form-

Fill-Seal Machine touch screen; Exiting Conveyor can operate in

either Constant Run or Time Run; Emergency stop at Cycle-

Matic Form-Fill-Seal Machine control panel.

Short Form Specifications

SECT. XIV PAGE 34

0907

Litho in USA

Cleveland Range reserves right of design improvement or modification, as warranted.

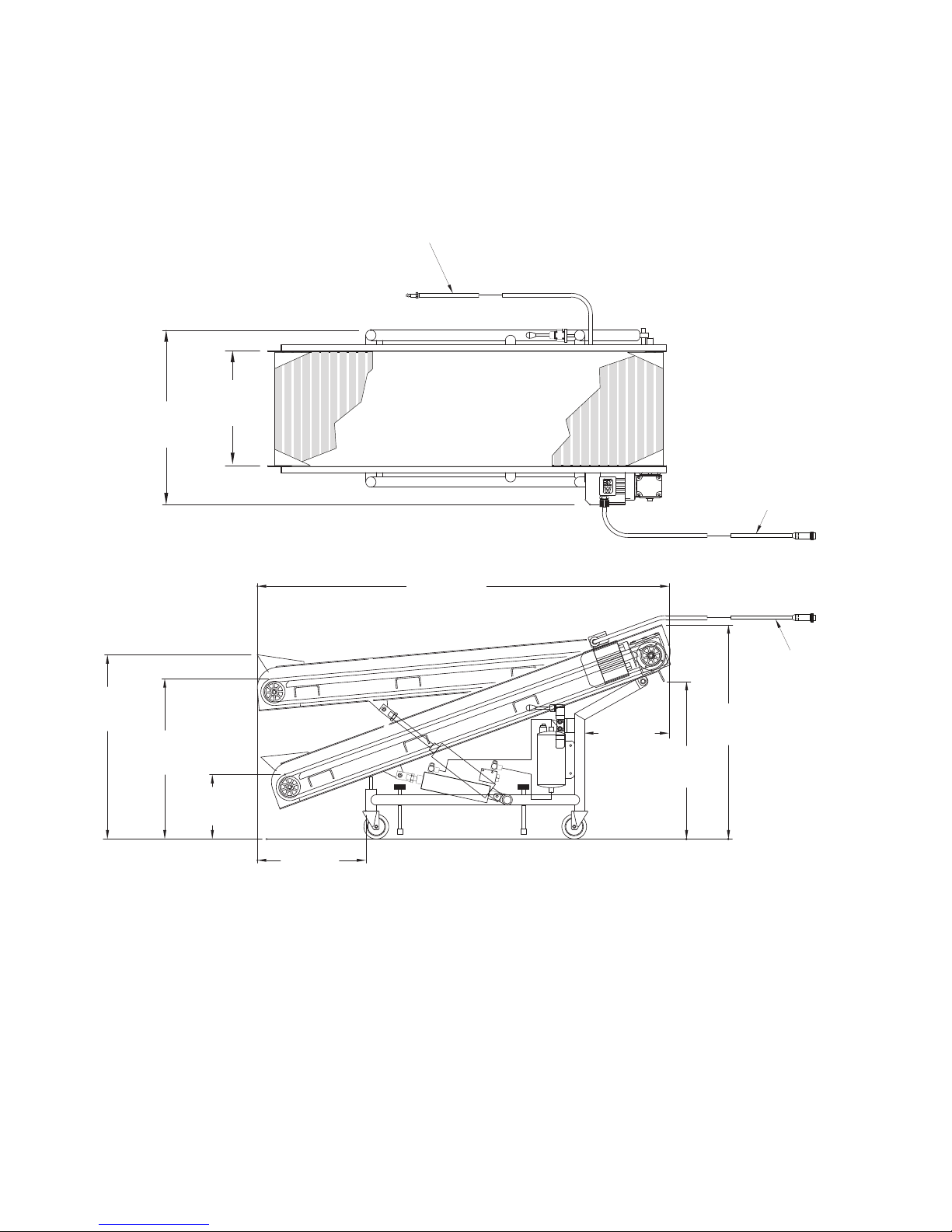

(NOT TO SCALE)

61 3/4"

32 1/2”

28.00"

711mm

18.00"

457mm

5 5/16”

17 3/4"

MOTOR POWER

CABLE TO

AFF-1150 CONTROL PANEL

NO EXTRA POWER

REQUIRED

MOTOR POWER

CABLE TO

AFF-1150

CONTROL BOX

NO EXTRA AIR

REQUIRED

AIR SUPPLY HOSE

TO AFF-1150

85 PSI MAX

AIR SUPPLIED FROM CYCLEMATIC

NO EXTRA AIR REQUIRED

16.00"

50.00"

98.38"

32.25"

63.78"

77.50"

96.88"

32.00"

37.75"

8.25" MIN.

(210mm)

25.50" MAX.

(648 mm)

29.75"

(756 mm)

66.25"

1683mm

25.25"

641mm

13.25"

337mm

17.50"

438mm

33.75"

857mm
