Commell LV-672 Manuale utente

LV-672

Mini-ITX motherboard

User’s Manual

Edition: 1.0

2004/8/18

LV-672 User’s Manual Index

reserved. The information in this document is subject to change without prior notice to make

improvements to the products.

This document contains proprietary information and protected by copyright. No part of this

document may be reproduced, copied, or translated in any form or any means without prior

written permission of the manufacturer.

All trademarks and/or registered trademarks contains in this document are property of their

respective owners. Disclaimer

The company shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

The company does not issue a warranty of any kind, express or implied, including without

limitation implied warranties of merchantability or fitness for a particular purpose.

The company has the right to revise the manual or include changes in the specifications of

the product described within it at any time without notice and without obligation to notify any

person of such revision or changes.

Trademark

All trademarks are the property of their respective holders.

Any questions please visit our website at http://www.commell.com.tw.

LV-672 User’s Manual Packing List

Packing List

Please check package component before you use our products.

Hardware:

LV-672 Mini-ITX motherboard x 1

Cable Kit:

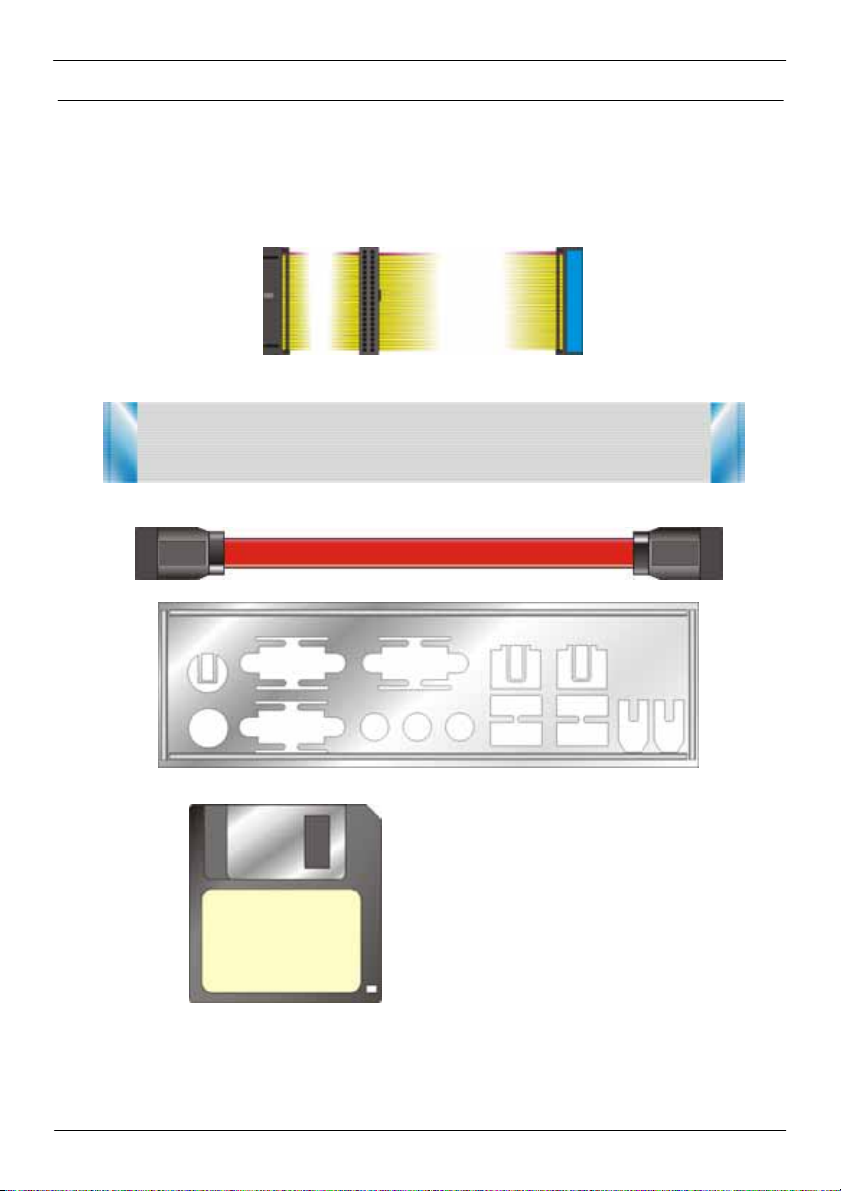

40-pin ATA100 IDE flat cable x 1

26-pin slim type floppy cable x 1

Serial ATA ribbon cable x 2

I/O Shield x 1

RAID drivers Disc for Windows 2000,

Windows XP and Windows Server 2003

Other Accessories:

Divers CD (including User’s Manual) x 1

User’s Manual x 1

LV-672 User’s Manual Index

Index

Chapter1 <Introduction>......................................................................................7

1.1 <Product Overview>.................................................................................7

1.2 <Product Specification> ...........................................................................8

1.3 <Component Placement> ......................................................................10

1.4 <Block Diagram>.................................................................................... 11

Chapter 2 <Hardware Setup>.............................................................................13

2.1 <Connector Location>............................................................................13

2.2 <Jumper Reference> .............................................................................14

2.3 <Connector Reference>.........................................................................15

2.3.1 <Internal Connectors>................................................................15

2.3.2 <External Connectors>...............................................................15

2.4 <CPU and Memory Setup>....................................................................16

2.4.1 <CPU installation>......................................................................16

2.4.2 <Memory installation> ................................................................17

2.5 <CMOS Setup>......................................................................................18

2.5 <Enhanced IDE interface>.....................................................................19

2.6 <Serial ATA installation>.........................................................................20

2.7 <Floppy Installation>..............................................................................21

2.8 <LAN installation>..................................................................................22

2.9 <Audio Installation>................................................................................23

2.10 <Display Installation>...........................................................................25

2.11 <IEEE1394 and USB Installation> .......................................................26

2.12 <Power and Fan Installation> ..............................................................28

2.13 <GPIO interface>.................................................................................30

2.14 <Serial Port> ........................................................................................31

2.15 <Switch and Indicator>.........................................................................32

2.16 <Expansion Interface>.........................................................................33

LV-672 User’s Manual Index

Chapter 3 <System Configuration>...................................................................35

3.1 <SATA configuration>.............................................................................35

3.2 <SATA RAID Configuration> ..................................................................38

3.3 <Audio Configuration> ...........................................................................41

3.4 <Video Memory Setup> .........................................................................42

Chapter 4 <BIOS Setup> ....................................................................................45

Appendix A <I/O Port Pin Assignment>............................................................47

A.1 IDE Port .................................................................................................47

A.2 <Serial ATA Port>...................................................................................47

A.3 <Floppy Port> ........................................................................................48

A.4 <IrDA Port>............................................................................................48

A.5 <Serial Port>..........................................................................................49

A.6 <VGA Port>............................................................................................49

A.7 <LAN Port>............................................................................................49

Appendix B <Flash BIOS>..................................................................................50

B.1 BIOS Auto Flash Tool......................................................................50

B.2 Flash Method...................................................................................50

Contact Information............................................................................................51

LV-672 User’s Manual

(This Page is Left for Blank)

LV-672 User’s Manual Introduction

Product Overview 7

Chapter1 <Introduction>

1.1 <Product Overview>

LV-672 is the motherboard with last Intel desktop technology with Mini-ITX form factor.

Based on Intel®915G and ICH6R, the board integrates a new Pentium 4 processor 775-pin

socket, DDR2 memory socket, Intel®Graphic Media Accelerator 900 technology, PCI

express interface and Serial ATA with RAID function for a powerful desktop system.

Intel®LGA775 processor

The Intel®Pentium 4 processor now comes with a new form factor with 775-pin PLGA

package, for 800MHz front-side-bus, 1MB L2 cache, and for 90nm manufacturing

technology, the PLGA processor without pin header on solder side can make user installing

the processor on the socket easier.

Intel®915G and ICH6R chipset

The Intel 915G integrates DDR2 400/533MHz for memory, and Graphic Media Accelerator

(GMA) 900 technology for new graphic engine. It can provide up to 224MB of frame buffer

when you install over 256MB of system memory. The ICH6R integrates with up to 8 USB2.0

interfaces (6 ports for LV-672), and serial ATA interface with RAID function.

Dual Intel®82541GI Gigabit LAN

With dual Gigabit LAN with Intel®82541GI, LV-672 comes with a powerful network function

for the system that requires large transfer data of NAS system or Server platform.

PCI express interface

LV-672 integrates a 16x PCI express interface, it can provide up to 8GB/s of bandwidth,

which AGP 8x can only provide up to 2GB/s.

Multimedia interfaces

LV-672 also integrates 5.1channel AC97 audio, mini-PCI interface and IEEE1394 port, for

these flexible function, system integrator can built more powerful systems for many

applications.

LV-672 User’s Manual Introduction

Product Specification8

1.2 <Product Specification>

General Specification

Form Factor Mini-ITX motherboard

CPU Intel®Pentium 4 processor with LGA775 socket

Package type: 775 pin PLGA

L2 Cache: 1MB

Front side bus: 800MHz (200MHz x 4)

Intel®Hyper-Threading Technology supported

Memory 2 x 240-pin DDR2 400/533MHz SDRAM up to 2GB

Up to 8GB/s of bandwidth with dual-channel interleaved mode

Dual-Channel technology supported

Unbufferred, none-ECC memory supported only

Chipset Intel®915G (Northbridge) and ICH6R (Southbridge)

BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS

Green Function Power saving mode includes doze, standby and suspend modes.

ACPI version 1.0 and APM version 1.2 compliant

Watchdog Timer System reset programmable watchdog timer with 1 ~ 255

sec./min. of timeout value

Real Time Clock Intel®ICH6R built-in RTC with lithium battery

Enhanced IDE Enhanced IDE interface supports dual channels and up to 2

ATAPI devices at Ultra DMA100

One 40-pin IDE port onboard

Serial ATA Intel®ICH6R integrates 4 Serial ATA interface

RAID 0, 1, Intel Matrix Storage Technology supported

Multi-I/O Port

Chipset Intel®82801FR ICH6R with Winbond®W83627THF controller

Serial Port Two external RS-232 serial ports

USB Port Six Hi-Speed USB 2.0 ports with 480Mbps of transfer rate

Parallel Port None

Floppy Port One slim type Floppy port

IrDA Port One IrDA compliant Infrared interface supports SIR

K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel

GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O

interface

Smart Fan Two fan connectors for fan speed controllable

VGA Display Interface

Chipset Intel®915G GMCH (Graphic Memory Controller Hub)

Core Frequency 333MHz

Memory Intel®DVMT 3.0 with up to 224MB shared with system memory

Display Type CRT, LCD monitor with analog display

Connector External DB15 female connector on rear I/O panel

LV-672 User’s Manual Introduction

Product Specification 9

Ethernet Interface

Chipset Intel®PRO/1000MT LAN interface with Intel 82541GI

Type 10Base-T / 100Base-TX/1000Base-T,

auto-switching Fast Ethernet

Full duplex, IEEE802.3U compliant

Connector Dual External RJ45 connectors with LED on rear I/O panel

Audio Interface

Chipset Intel®ICH6R with Realtek®ALC655 AC97 3D audio codec

Interface 5.1 channel 3D audio with Line-in, Line-out and MIC-in

Connector External Audio phone jack for Line-out/Front, Line-in/Rear and

MIC(stereo)-in/Center

Onboard audio connector with pin header

Onboard CD-IN connector

Expansive Interface

PCI Express One 16x PCI Express slot

Up to 8GB/s of transfer bandwidth

Power supply: +3.3V, +12V

PCI One Mini-PCI socket TYPE III (32-bit, 33MHz)

Power supply: +3.3V, +5V

IEEE1394 AGERE FW323-06 controller integrated

IEEE1394A supported

Up to 400Mb/s of transferring rate

Power and Environment

Power

Requirement Standard ATX 24-pin power supply

Additional +12V 4-pin power connector

Dimension 170 (L) x 170 (H) mm

Temperature Operating within 0 ~ 60oC (32 ~ 140oF)

Storage within -20 ~ 85oC (-4 ~ 185oF)

Ordering Code

LV-672 Intel®Pentium 4 platform with Mini-ITX form factor

LGA775 socket, DDR2, onboard GMA900 VGA, 5.1 CH Audio,

SATA, USB2.0, PCI Express, Mini-PCI, IEEE1394

Dual Gigabit LAN

The specifications may be different as the actual board.

For further product information please visit the website at http://www.commell.com.tw

LV-672 User’s Manual Introduction

Component Placement10

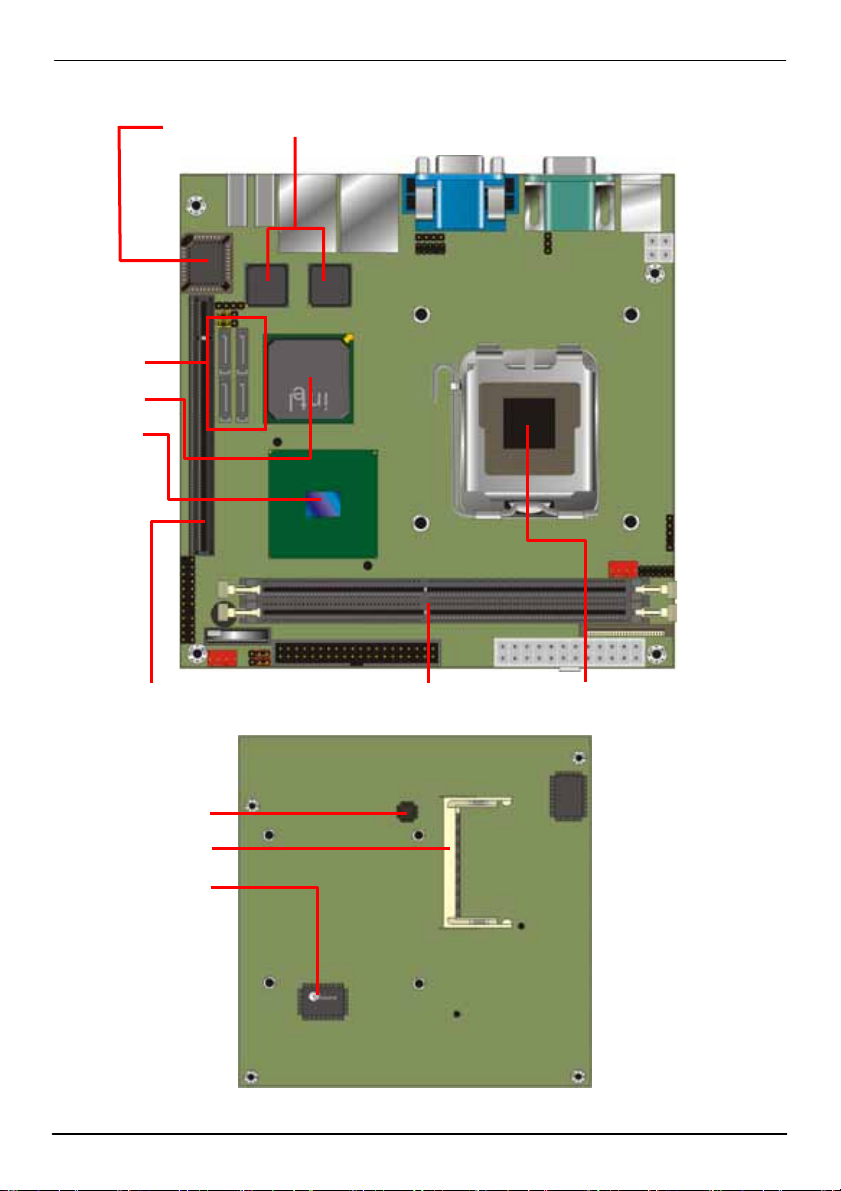

1.3 <Component Placement>

BIOS Intel 82541GI

Serial ATA

ICH6R

915G

PCI Express 16x 240-pin DDR2 Memory DIMM LGA775

Realtek ALC655

Mini-PCI

Super I/O

(Solder Side)
