QUICK INSTALLATION GUIDE
2000515 Rev G | Release Date - October 2016
ROCKETLINX ES8510
ES8510 | ES8510-XT | ES8510-XTE
INTRODUCTION
The RocketLinx ES8510, ES8510-XT, and ES8510-XTE are managed industrial
Ethernet switches with:
• Seven 10/100BASE-TX ports
• Three combo RJ45/SFP ports
• ES8510/ES8510-XT: 10/100BASE-TX (RJ45) or 100BASE-FX/
1000BASE-SX/LX/LHX/XD/ZX (SFP) Gigabit ports (standard mini GBIC
SFPs)
• ES8510-XTE: 10/100BASE-TX (RJ45) or 100BASE-FX (SFP) ports
(standard mini GBIC SFPs)
When the SFP is acve and installed, the corresponding RJ45 port is
deacvated. For example, if an SFP is installed and acve on the SFP Port 8,
the corresponding RJ45 Port 8 becomes inacve.
The ES8510 is encased with a rugged aluminum housing for industrial
environments:
• ES8510 provides a wide operang temperature
• ES8510-XT/ES8510-XTE are NEMA TS2 cered and provide an extended
operang temperature
The ES8510, ES8510-XT, and ES8510-XTE are referred to as the ES8510 unless
there is a dierence between the models.
See the Comtrol website for complete product specicaons.
INSTALLATION OVERVIEW
If you need more detailed installaon and conguraon informaon, you
can download the appropriate User Guide, which can be located at hp://
downloads.comtrol.com

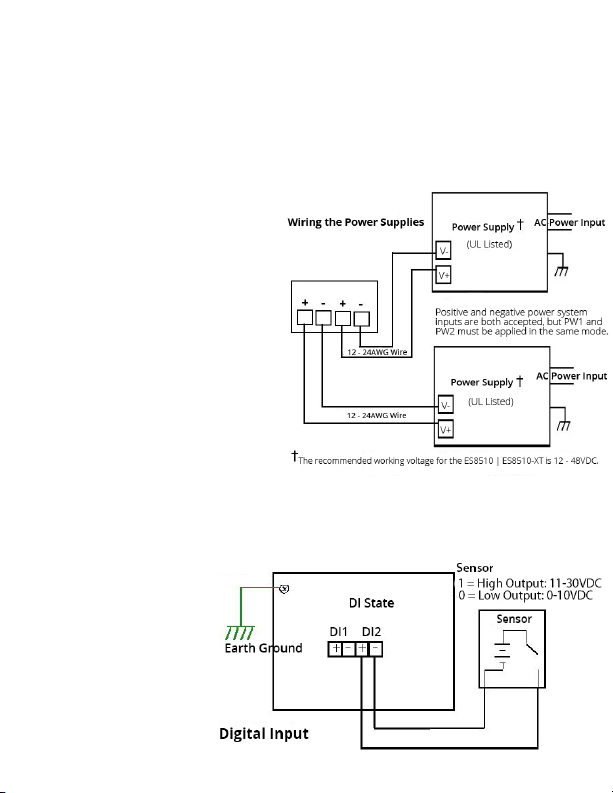

Wiring the Power Inputs
The ES8510 provides redundant power, reverse polarity protecon, and
accepts a posive or negave power source but PW1 and PW2 must apply
to the same mode. The ES8510 can be congured to signal an alarm for loss
of power in either PW1 or PW2 using the web interface or Command Line
Interface (CLI).
1
2
Note: Power should be disconnected from the power supply before connecng it to
the switch. Otherwise, your screwdriver blade can inadvertently short your terminal
connecons to the grounded enclosure.
1. Insert the posive and negave wires into PW+ and PW- contacts
(PW1 and PW2). You can connect a single power supply or two power
supplies depending on your requirements.
2. If both power inputs are connected, the ES8510 is powered from the
highest connected voltage.
• ES8510/ES8510-XT: 12 to
48VDC.
• ES8510-XTE: 10 to 60VDC.
The Power 1/2 LEDs turn
red during the boot cycle
and change to green when
the ES8510 is ready.
3. Tighten the wire-clamp
screws to prevent the wires
from being loosened.
Wiring the Alarm Relay Output
The ES8510 provides two digital
inputs and two digital outputs
(dry relay output) on terminal
block connectors on the boom of the unit. Fault condions can be
congured in the web interface or Command Line Interface (CLI).
The Digital Input pin
can be pulled high or
low so that the
connected equipment
can acvely drive these
pins. The web interface
allows you to read and
set the value to the
connected device.
3
The power input voltage
of logic low is 0 to 10VDC
and logic high is 11 to
30VDC. Do not apply a
higher voltage than the
specicaon; it may cause
internal circuit damage
or cause an incorrect DI
acon.
Digital output relay contacts are energized (open) for normal operaon and
close for fault condions. The digital output relay contacts support up to 1A
at 24VDC. Do not apply voltage and current higher than the specicaons.
1. Insert the posive and negave wires (12-24 AWG) into V+ and V-.
2. Tighten the wire-clamp screws to prevent the wires from coming loose.
Mounng the ES8510
You can mount the ES8510 onto a DIN rail or oponally a panel or wall.
Follow the steps below to install the ES8510 with the
wall mounng plate:
1. To remove the DIN rail clip from the ES8510,
loosen the screws from the DIN rail clip.
2. Place the wall mounng plate on the rear
panel of the ES8510.
3. Use the screws to aach the wall mounng
plate to the ES8510.
4. Use the hook holes at the corners of the wall
mounng plate to hang the ES8510 onto the wall.
4
Connecng Ethernet Ports
Connect one end of an Ethernet cable into the Ethernet port of the ES8510
and the other end to the aached networking device. The Ethernet ports
support 10/100Mbps half/full-duplex. All ports auto-detect the signal from
connected devices to negoate the link speed and duplex mode. Auto MDI/
MDIX allows users to connect another switch, hub, or workstaon without
changing straight through or crossover cable.
Link/Act LED are lit to indicate trac and link status. See the LED subsecon
for more informaon.
Always make sure that the cables between the switches and aached devices
(for example, switch hub, or workstaon) are less than 100 meters (328 feet).
• 10BASE-T: Category 3, 4, or 5 cable
• 100BASE-TX/1000BASE-TX: Category 5 or 5e cable
Connecng the SFP Transceivers
To ensure system reliability, Comtrol recommends using Comtrol cered SFP
transceivers.
1. Plug the SFP transceiver into the SFP port.
2. Connect the transmit channel to the receive channel at each end.
3. Check the direcon/angle of the ber transceiver and the ber cable.
Note: This is a Class 1 Laser/LED product. Do not stare at the Laser/LED beam.
5
The SFP port does not funcon unl the ber cable is linked to another acve
device. The SFP and corresponding RJ45 ports work in an exclusive mode.
Trac sent or received through
the SFP module has priority thus
no trac is sent or received over
the corresponding RJ45
connecon. To use the RJ45
connecon, remove the
corresponding SFP.
Mul-Mode cables should not
exceed 2KM and Single-Mode cables should not exceed 30km.
PROGRAMMING THE IP ADDRESS
Congure the IP address using one of the following methods:
• PortVision DX (hp://downloads.comtrol.com)
• Web browser
• Telnet
• Command line interface (CLI) using the RS-232 console cable
The easiest way to congure a stac IP address for your network in
the ES8510 is to use a Windows host and PortVision DX (see below).
For informaon about using other conguraon methods, refer to the
appropriate
RocketLinx ES8510 User Guide.
The following procedure uses PortVision DX to program network sengs.
1. Install PortVision DX on a host system with a Windows operang system.
If you need assistance installing PortVision DX, see the appropriate
RocketLinx ES8510 User Guide.
2. Start PortVision DX. PortVision DX can be started from Start --> All
Programs --> Comtrol --> PortVision DX.
3. Click the Scan buon.
4. Select the Comtrol product families that you want to locate and click the
Scan buon.
5. Right-click the ES8510 in the Device List pane (lower) that you want to
congure and click Properes.
6. Enter a user-friendly Device Name.
7. Oponally, enter the ES8510 serial number, which displays a friendly
device name in the
Device List
pane on the main page.
8. Select DHCP IP or Stac IP for the
IP Mode
.
• If you select DHCP IP, go to Step 9.
• If you select Stac IP, enter an IP address, Subnet Mask, and
Default Gateway value for your network.
9. Oponally, select the appropriate Network Topology, which is an
informaonal eld.
10. Click the Apply Changes buon.
11. Click Close to return to the main screen.
12. You are now ready to congure the ES8510 features.
FEATURE CONFIGURATION
The ES8510 provides both in-band and out-band conguraon methods:
Out-band management means that you congure the ES8510 using the
RS-232 console cable and the Command Line Interface (CLI) to access the
ES8510 without aaching an admin PC to the network. You can also use
out-bound management, if you lost the network connecon to the
ES8510.
In-band management means that you connect remotely using the ES8510 IP
address through the network. You can remotely connect with the
ES8510 web interface or a Telnet console and the CLI.
The following procedure uses a web browser to congure ES8510
features. Refer to the appropriate
RocketLinx ES8510 User Guide
for other
conguraon methods.
1. Open a web browser and enter the IP address of the ES8510.
2. Enter admin for both the user name and the password when prompted.
3. Use the web interface to congure your device as needed for your
network.
You can use the help system or the appropriate User Guide for informaon
about conguring other ES8510 features.
6
LED INDICATORS
You can also view the LEDs for the ES8510 through the web interface using
the Device Front Panel page.
LEDs LED On LED Blinking LED O
Power 1, Power 2 Green: Power available Not applicable No power
DO1, DO2 Red: DO acvated Not applicable DO not acvated
DI1, DI2 Green: DI acvated Not applicable DI not acvated
R. M. (ring master) Green: working as ring
master
Green: ring failed Ring funcon disabled
or ES8510 is on a ring
but not the ring master
1 - 7 Green: Linked to another
device
Amber: Full-Duplex
Green: Acve trac Not connected
Collision
8 - 10
SFP
RJ45
Green: Connected
Green: Acve connecon
Green: Acve connecon
Green: Acve connecon
Plugged in but not
linked up
Not connected
COMTROL CUSTOMER SERVICE
You can use one of the following methods to contact Comtrol.
Contact Method Web Address or Phone Number
Support hp://www.comtrol.com/support
Downloads hp://downloads.comtrol.com/html/default
Website hp://www.comtrol.com
Phone +1 763.957.6000
7
