QUICK INSTALLATION GUIDE
2000620 Rev A | Release Date - June 2016
INTRODUCTION
The RocketLinx ES8520-XT is a 20 port managed industrial switch that
provides:
• Sixteen 10/100BASE-TX ports
• Four Gigabit RJ45/SFP combo ports. The SFP ports support 100BASE-FX
and Gigabit ber.
The ES8520-XT provides features needed for network control in an industrial
network environment. See the Comtrol website for detailed product
specicaons and the product warranty.
INSTALLATION OVERVIEW
You can use the following overview to install the ES8520-XT. If you need more
detailed informaon, you can refer to the RocketLinx ES8520-XT User Guide
on the download site, which contains detailed installaon and conguraon
informaon.
Connecng the Power
The ES8520-XT provides redundant power inputs (PW 1/2), which supports
reverse polarity protecon, and accepts a posive or negave power source.
However, PW1 and PW2 must apply to the same mode.
Note: Power should be disconnected from the power supply before connecng it to
the switch. Otherwise, your screwdriver blade can inadvertently short your terminal
connecons to the grounded enclosure.
1
1. Insert the posive and negave wires
into the PW+ and PW- contacts. You
can connect a single power supply or
both power supplies depending on your
requirements.
2. Tighten the wire-clamp screws to prevent the wires from coming loose.
3. Connect an appropriate ground wire between the chassis ground screw
and earth ground to ensure that the ES8520-XT is not damaged by
noise or electrical shock.
a. Loosen the chassis ground screw on the boom of the unit.
b. Tighten the screw aer the ground wire is connected.
Wiring the Relay Output (DO)
The relay output alarm contacts are on the terminal block connector on the
boom of the ES8520-XT.
The relay contact supports up to 1A at 24VDC.
The relay output (DO) is controlled by the pre-dened operang rules. To
acvate relay output funcon, refer to the RocketLinx ES8520-XT User Guide.
Wiring the Digital Input (DI)
The Digital Input (DI) contacts are on the terminal block connector on the
boom of the ES8520-XT. The contacts accept one external DC type signal
input and can be congured to send alert message through Ethernet when
the signal is changed.
2
Trigger
Switch 24VDC
Buzzer/
PLC Input
1.0A
Power
24VDC
+-+-
DI DO
Digital Input
1 = High Output: 11-30VDC
0 = Low Output: 0-10VDC
The DI accepts DC type signal and supports isolated input circuit with digital
high level input 11VDC to 30VDC and digital low level input 0VDC to 10VDC. .
Make sure that you remove the ground screw before
insulaon/Hi-pot tesng.
Mounng the ES8520-XT
You can mount the ES8520-XT to a DIN rail.
1. Insert the upper end of DIN rail clip into the back of DIN rail track from
its upper side.
2. Lightly push the boom of DIN rail clip into the track.
3. Verify that the DIN rail clip is ghtly aached on the track.
Connecng the Ethernet Ports
The ES8520-XT provides (Ports 1-16 ) Fast Ethernet 10/100BASE-TX ports
and RJ45/SFP combo Gigabit ports (Ports 17-20). The Gigabit Ethernet ports
support 10BASE-T, 100BASE-TX and 1000BASE-T. The SFP ports support
100BASE-FX and Gigabit ber. When an SFP port is acve and installed on a
combo port, the corresponding RJ45 port is deacvated.
All of the ports automacally detect the signal from the connected devices
to negoate the link speed and duplex mode. Auto MDI/MDIX allows you
to connect another switch, hub, or workstaon without changing straight-
through or crossover cables.
3
4
Connect one side of an Ethernet cable into any switch port and connect the
other side to your aached device. The LINK/ACT LED is lit when the cable is
correctly connected. Always make sure that the cables between the switches
and aached devices (for example, switch, hub, or workstaon) are less than
100 meters (328 feet).

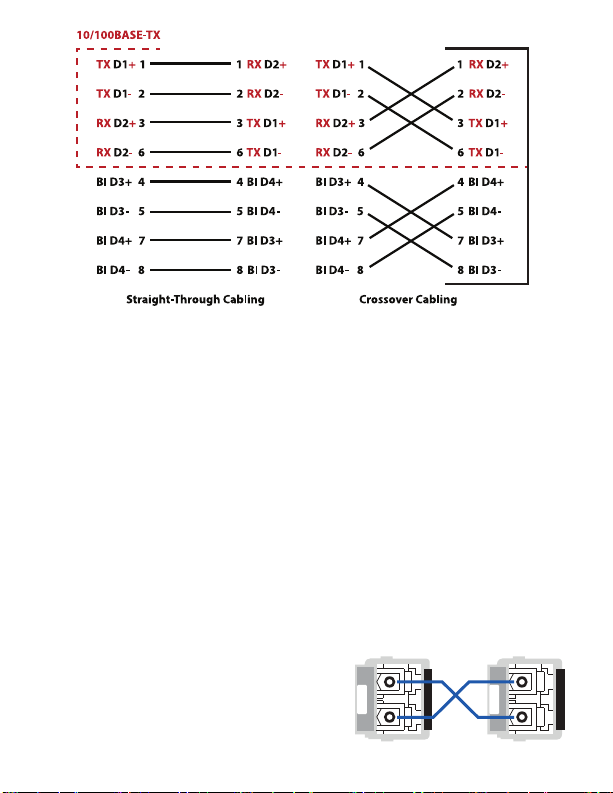

The wiring cable types are as follows:
• 1000BASE-TX: Cat5c/6 cable
• 10/100BASE-TX: Cat5
Connecng the SFP Transceivers
You can oponally connect SFP transceivers. Comtrol recommends using
Comtrol-approved SFP mini GBIC transceivers. The SFP ports also provide
Digital Diagnosc Monitoring, which can assist you in monitoring the quality
of the opcal signal, and diagnose the transmission. This funcon is only
available for Comtrol cered DDM SFP transceivers, and does not support
third party transceivers. Cross-connect
the transmit channel at each end to the
receive channel at the opposite end as
illustrated in the gure.
1000BASE-TX
BA
TX
RX
TX
RX
5
LED INDICATORS
You can also view the LEDs for the ES8520-XT through the web interface
using the Device Front Panel page.
LEDs LED On LED Blinking LED O
Power 1
Power 2
Power On No Power
Sys (System) System Operaonal System is uploading
rmware or the system is
reboong
System not ready
Do (Digital
Output)
DO acvated DO not acvated
DI (Digital
Input)
DI acvated DI not acvated
Ring (Ring
Master)
Green: Working as a
ring master
Amber: Ring abnormal
Green: Ring with wrong
port
Amber: Device’s ring port
failed
Ring funcon not
enabled
PROGRAMMING THE IP ADDRESS
Congure the IP address using one of the following methods:
• PortVision DX automacally detects Comtrol Ethernet aached products
physically aached to the local network segment so that you can
congure the network address, upload rmware, and manage.
LEDs LED On LED Blinking
Link/
Act
Indicates the trac
and link status
On: Port is linked to another device.
Blinking: The trac is acve
O: Port not connected
Speed Indicates the copper
port link speed
On: Port link is 1000Mbps
O: Port link is 100Mbps or 10 Mbps
1000 SFP transceiver
speed indicator
On: The SFP is 1000 Mbps
O: Port link is 100Mbps or 10 Mbps
Link/Act
1000
Link/Act
Speed
• In addion to idenfying Comtrol Ethernet aached products, you can
use PortVision DX to display any third-party switch and hardware that
may be connected directly to those devices. All non-Comtrol products
and unmanaged RocketLinx devices are treated as non-intelligent
devices and have limited feature support. For example, you cannot
congure or update rmware on a third-party switch.
• PortVision DX can be downloaded from hp://downloads.comtrol.com/
rocketlinx/portvision_dx
• Web browser
• Telnet
• Command line interface (CLI) using the RS-232 console cable
The easiest way to congure a stac IP address for your network in the
ES8520-XT is to use a Windows host and PortVision DX (see below). For
informaon about using other conguraon methods, refer to the RocketLinx
ES8520-XT User Guide.
The following procedure uses PortVision DX to program network sengs.
1. Install PortVision DX on a host system with a Windows operang system.
If you need assistance installing PortVision DX, see the RocketLinx
ES8520-XT User Guide.
2. Start PortVision DX. PortVision DX can be started from Start --> All
Programs --> Comtrol --> PortVision DX.
3. Click the Scan buon.
4. Select the Comtrol product families that you want to locate and click the
Scan buon.
5. Right-click the ES8520-XT in the Device List pane (lower) that you want
to congure and click Properes.
6. Enter a user-friendly Device Name, which displays a friendly device
name in the Device List pane on the main page.
7. Oponally, enter the ES8520-XT serial number.
8. Select DHCP IP or Stac IP for the IP Mode.
• If you select DHCP IP, go to Step 9.
• If you select Stac IP, enter an IP address, Subnet Mask, and
Default Gateway value for your network.
6
9. Oponally, select the appropriate Network Topology, which is an
informaonal eld.
10. Click the Apply Changes buon.
11. Click Close to return to the main screen.
You are now ready to congure the ES8520-XT features.
FEATURE CONFIGURATION
The ES8520-XT provides both in-band and out-band conguraon methods:
Out-band management means that you congure the ES8520-XT using the
RS-232 console cable and the Command Line Interface (CLI) to access the
ES8520-XT without aaching an admin PC to the network. You can also use
out-band management, if you lose the network connecon to the ES8520-XT.
In-band management means that you connect remotely using the ES8520-
XT IP address through the network. You can remotely connect with the web
interface or a Telnet console and the CLI.
The following procedure uses a web browser to congure ES8520-XT
features. Refer to the User Guide for other conguraon methods or
conguring features.
1. Open a web browser and enter the IP address of the ES8520-XT.
2. Enter admin for both the user name and the password when prompted.
3. Use the web interface to congure your device as needed for your
network.
COMTROL CUSTOMER SERVICE
You can use one of the following methods to contact Comtrol.
Contact Method Web Address or Phone Number
Support hp://www.comtrol.com/support
Downloads hp://downloads.comtrol.com
Website hp://www.comtrol.com
Phone +1 763.957.6000
Warranty hp://downloads.comtrol.com/html/warranty.htm
7
