COOLABAH 713238 Manuale utente
After Sales Suppor t
Product Code: 713238
Rotary Table Top
Gas Pizza Oven
MODEL: SKYGB-GO13R-2RSB PRODUCT CODE:713238 09/2023
Version: 0211V2
OPERATION MANUAL
ASSEMBLY, CARE AND SAFETY INSTRUCTIONS
WWW.SKY-WELL.COM
2
AFTER SALES SUPPORT
1
YEAR
WARRANTY
Warranty Details
REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registra�on/
TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
Rotary Table Top Gas Pizza Oven
The product is guaranteed to be free from defects in workmanship and parts for a period of
12 months from the date of purchase. Defects that occur within this warranty period, under
normal use and care, will be repaired, replaced or refunded at our discretion. The benefits
conferred by this warranty are in addition to all rights and remedies in respect of the product
that the consumer has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Contents
Warranty Details...........................................................................................2
Contents........................................................................................................3
WARNINGS....................................................................................................4
Primary Components and Parts List.........................................................5-6
Assembly Instructions...............................................................................8-9
Outdoor Installation Guide..........................................................................10
Liquid Propane (LP) Safety Information.....................................................11
The Gas System..........................................................................................12
Lighting up..................................................................................................13
Cleaning and Maintenance..........................................................................15
Troubleshooting...........................................................................................16
Af ter S ales S uppor t
MODEL: SKYGB-GO13R-2RSB PRODUCT CODE:713238
3
Assembly Notes............................................................................................7
Technical Specification and Replacement Parts........................................14
Af ter S ales S uppor t
MODEL: SKYGB-GO13R-2RSB PRODUCT CODE:713238
4

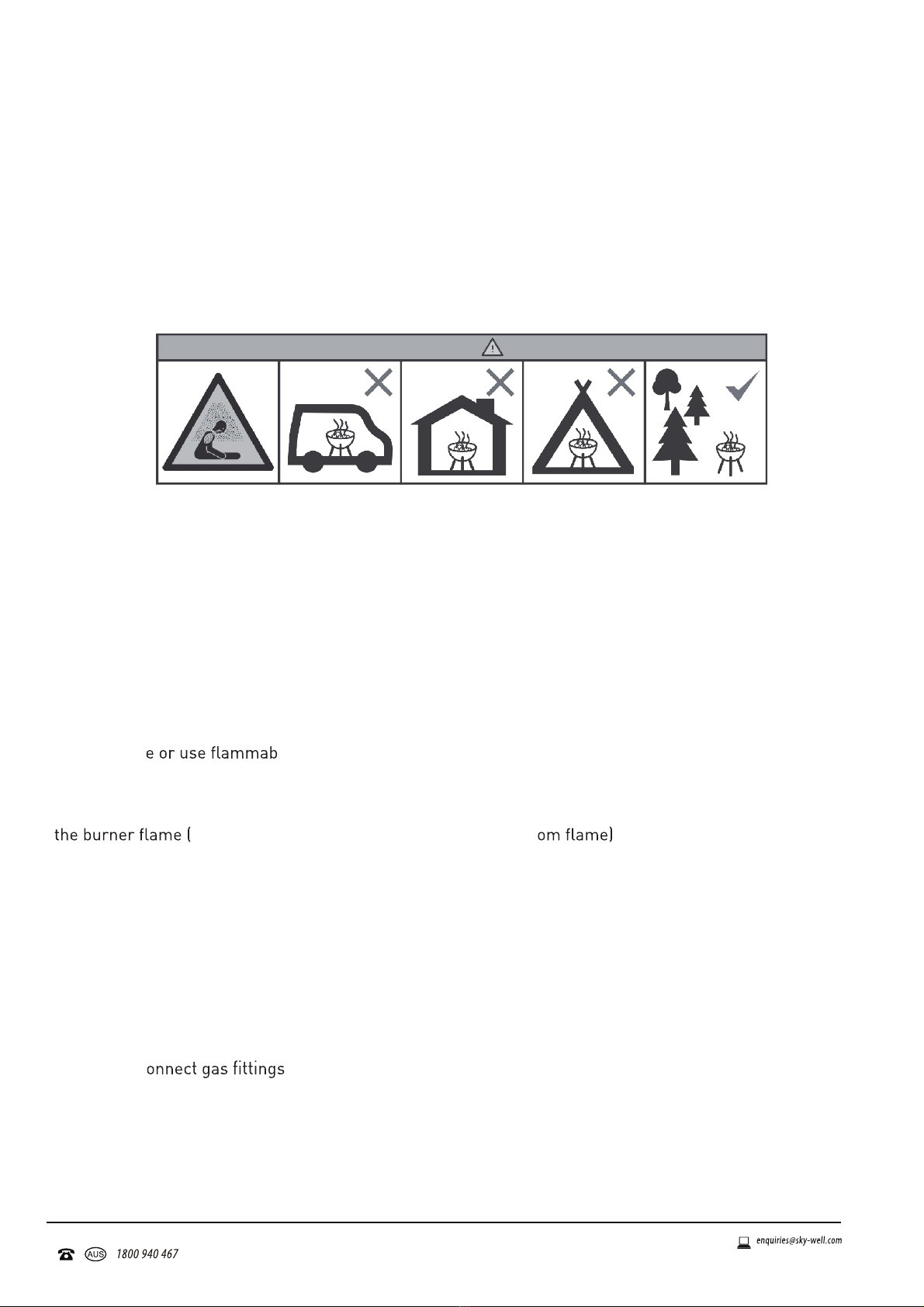

SAFETY IS VERY IMPORTANT - FAILURE TO FOLLOW PROPER PROCEDURES AND SAFEGUARDS MAY
RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE
REFERENCE
READ ALL INSTRUCTIONS THOROUGHLY
OUTDOOR USE ONLY
General
-This pizza oven is for Outdoor Use Only and NOT to be left unattended
-Pizza oven is to be used for intended use only. NOT intended for commercial use.
HOT both while in use and during cooling down period
-Keep children and pets away from pizza oven at all times
-Place pizza oven on level, stable, non-combustible surface such as concrete, pavers or
-DO NOT use pizza oven onvinyl, plastic
or any surface which may burn or melt.
-DO NOT move pizza oven when it is in use.
-DO NOT modify this pizza oven and not use unauthorised spare parts. This will void the warranty.
-DO NOT use in enclosed area including homes, garages, sheds, tents, caravans or boats. Keep a
minimum clearance of 1.5 metre from overhead construction. Keep 1 metre from walls/railings.
-DO NOT stor le materials in or near pizza oven.
-DO NOT spray aerosols near the pizza oven when it is in operation.
-DO NOT move pizza oven while in use. Allow to completelycool firsrst.
-Wear protective mitts or gloves when using unit. It is alsorecommended to wear shoes. Beware of
keep your face/hair and loose clothing away fr
-DO NOT use plastic, glassware or ceramic cookware in this pizza oven.
-DO NOT cover the burner or restrict airflow from the
burner.
-DO NOT obstruct flow of ventilation and combustion..
Gas
-DO NOT use a gas cylinder if it has any sign of damage eg. dents, damage, excessive rust, gouges,
corrosion,
or any other visible external damage.
-Check the gas hose for any sign of damage. Perform a leak test before each use of this pizza oven.
-Keep the gas hose away from any heated surface.
-DO NOT disc when the pizza oven is in use.
-Always disconnect the gas cylinder from your pizza oven when not in use. It is recommended to
store cylindes in an upright position, outdoors, out of reach of children.
-DO NOT attach a gas cylinder, move, or alter fittings when the pizza oven is in use or still hot.
-Upon completion turn the control knob off, then the gas cylinder valve off.
-In the event of a grease/oil fire, immdeiately turn off gas supply, if safe to do so and call Fire Brigade.
try to extinguish the fire with water. In the case of a gas leak the same applies.
WARNINGS
-DO NOT place articles on or against this appliance.
-DO NOT
-Pizza oven is
non-combustible material.
After S ales Support
MODEL: SKYGB-GO13R-2RSB PRODUCT CODE:713238
5

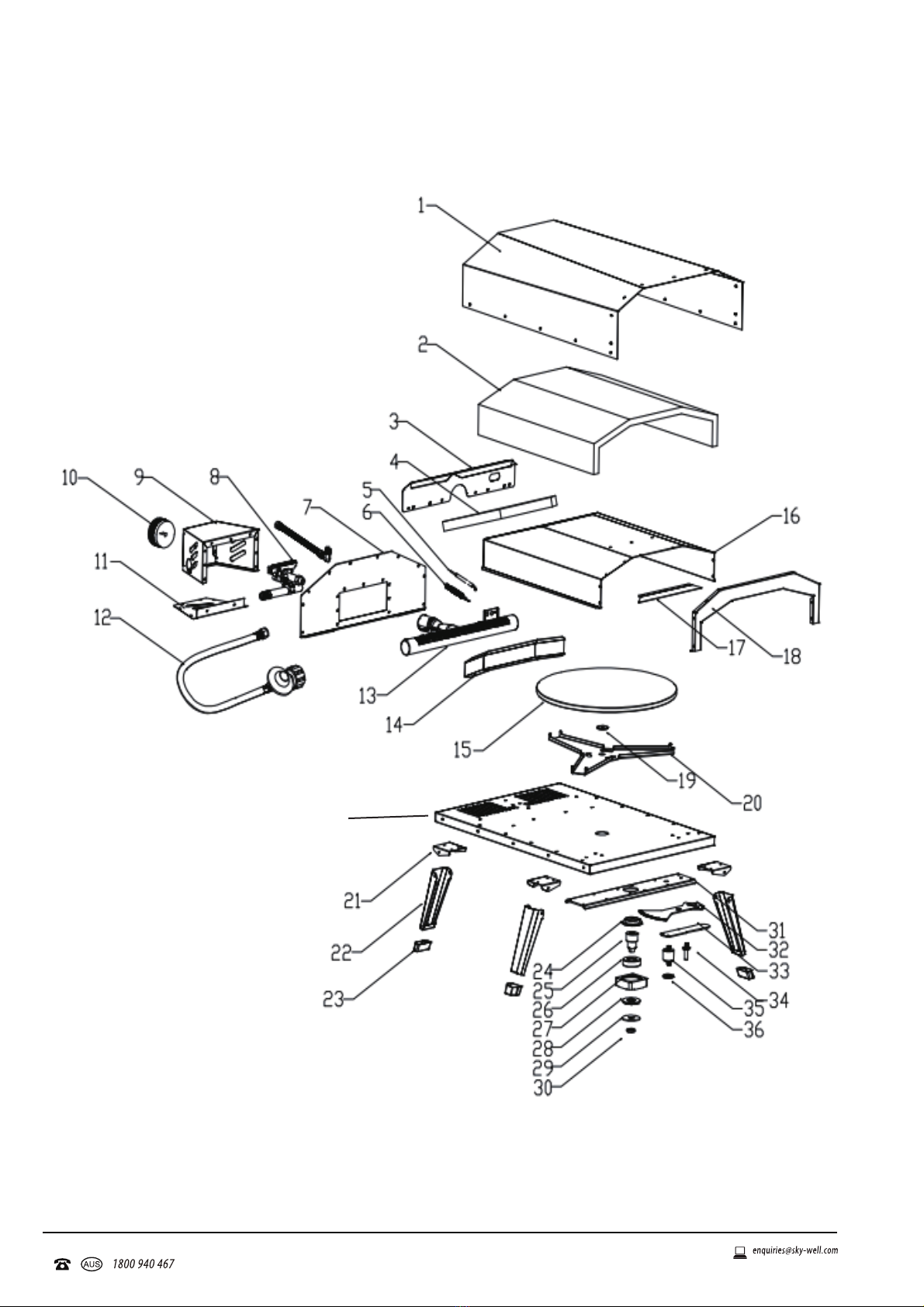

Primary Components List
37
After Sales Suppor t
MODEL: SKYGB-GO13R-2RSB PRODUCT CODE:713238
6
Read instruction OPERATION MANUAL for further information
PARTS LIST
No. Description Q'ty No. Description Q'ty
1 Outer shell 1 19 Screw washer 1 1
2 Insulation material 1 20 Rotation holder 1
3 Insulation board 1 21 Foot mount 3
4 Heat filter 1 22 Foot 3
5 Ignition needle 1 23 Foot plug 3
6 Burner assembly 1 1 24 Rotation base 1
7 Rear panel 1 25 Rotation axis 1
8 Valve assembly 1 26 Rotation bushing 1
9 Control panel 1 27 Bearings 1
10 Knob 1 28 Gland 1 1
11 Control panel bottom 1 29 Gland 2 1
12 Gas hose and regulator 1 30 Gland 3 1
13 Burner assembly 2 1 31 Bottom bracket 1
14 Pizza stone baffle 1 32 Gear shank 1
15 Pizza stone 1 33 Rotable handle 1
16 Inner shell 1 34 Limit pin 1
17 Fire stopper 1 35 Handle fixing shaft 1
18 Front plate 1 36 Screw washer 2 1
37 Base plate 1
After S ales Support
MODEL: SKYGB-GO13R-2RSB PRODUCT CODE:713238
7
Rotary Table Top Gas Pizza Oven ASSEMBLY NOTES
Before commencing assembly of your table top pizza oven, unpack all of the components from
your carton. Carefully remove all packaging for the pizza oven and lay out all the components
as per the attached Primary Components List.
DO NOT discard the carton or packaging until you have fully assembled the pizza oven unit
and have fully assembled and checked the operation of your table top pizza oven.
Tools required for assembly of table top pizza oven are a No2 Phillips Head Screwdriver and
small adjustable spanner.
When assembled, the pizza oven unit is heavy at approximately 12 kg and is approximately
45 cm(W) 60.5 cm(D) 26 cm(H). If the Unit is too heavy, enlist the help of a colleague or
friend.
When the Unit is fully assembled you need to locate the pizza oven unit to a suitable location.
Cylinder Exchange Centre.
In the event you require assistance, please contact one of our experienced customer service team
on 1800 940 467 (Monday --Friday 9:00 am --04:00 pm)
After S ales Support
MODEL: SKYGB-GO13R-2RSB PRODUCT CODE:713238
8
ASSEMBLY INSTRUCTIONS
WARNING
BEFORE ASSEMBLY OF ANY PARTS, TAKE OUT ALL PARTS FROM THE CARTON.
DO NOT ASSEMBLE IF SOME PARTS ARE DAMAGED OR MISSING.
STEP 2
STEP 1

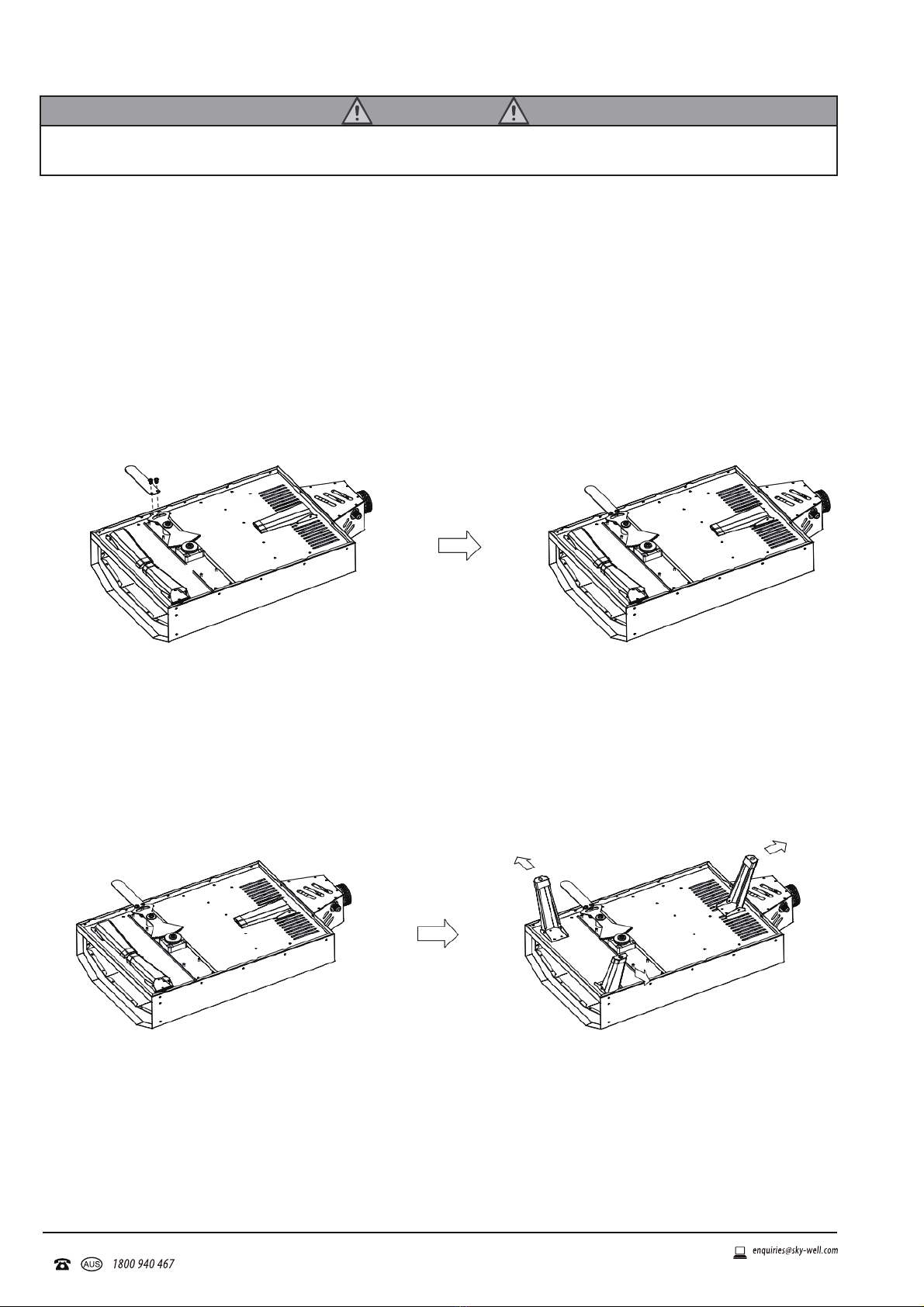

Turn unit over, using 2 screws attach
the handle
Unfold the legs
After S ales Support
MODEL: SKYGB-GO13R-2RSB PRODUCT CODE:713238
9
STEP 3

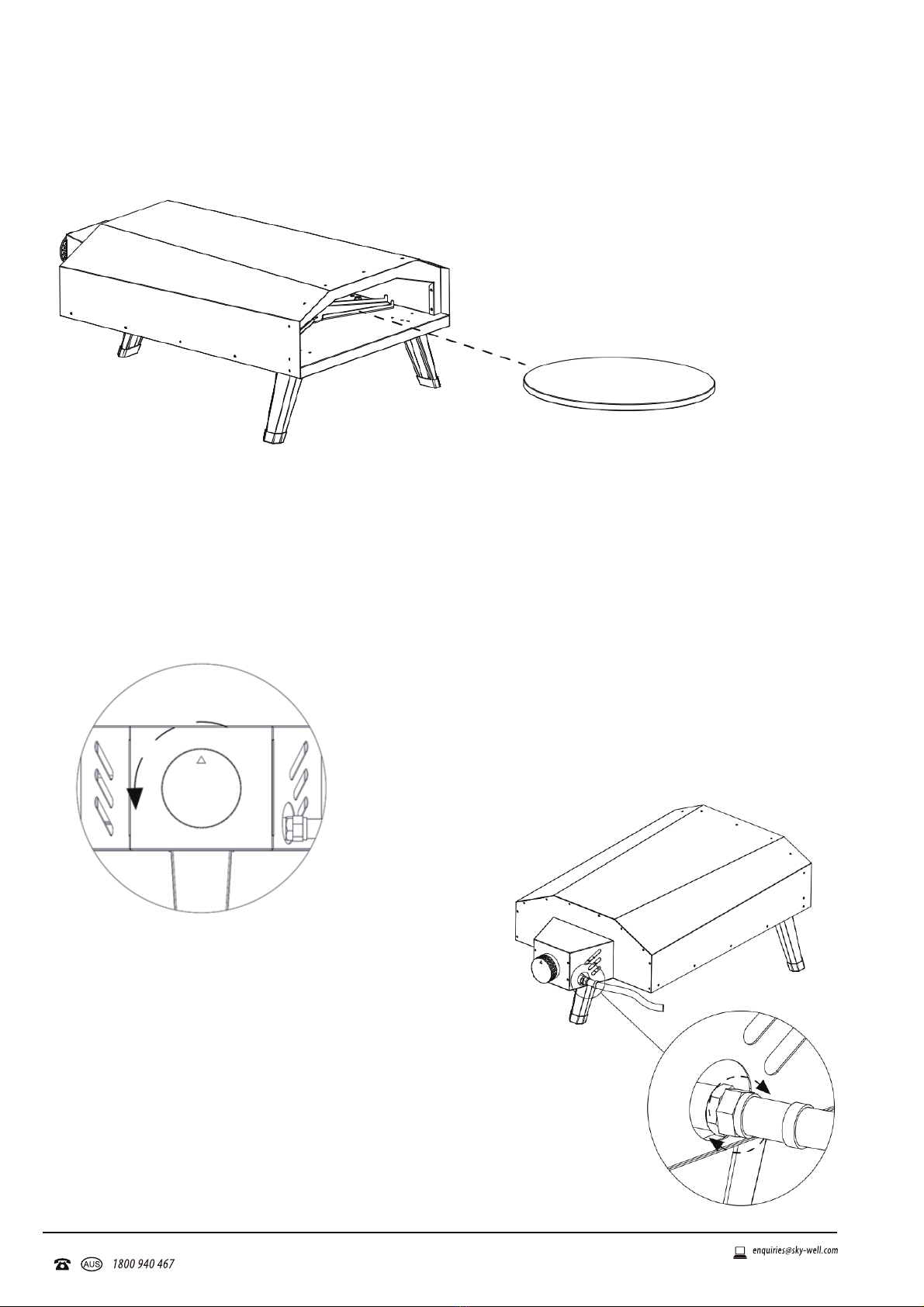

Turn unit over, insert the stone baking board with the flat side up, and
ensure board sits correctly on pizza roation holder.
Control valve in off posinon.
The hose and regulator is already connected to
the gas pizza oven.
STEP 4
Connect to the gas cylinder to the supplied connected LCC 27 hose and regulator.
Turn anticlockwise ensuring that, the hose is centred on the gas valve and hand
tighten being careful not to cross thread.
STEP 5
Assemble the pizza peel to the insulated
handle with the 3 screws and nuts supplied.
Outdoor Installation Guide
After Sales Suppor t
MODEL: SKYGB-GO13R-2RSB PRODUCT CODE:713238
10

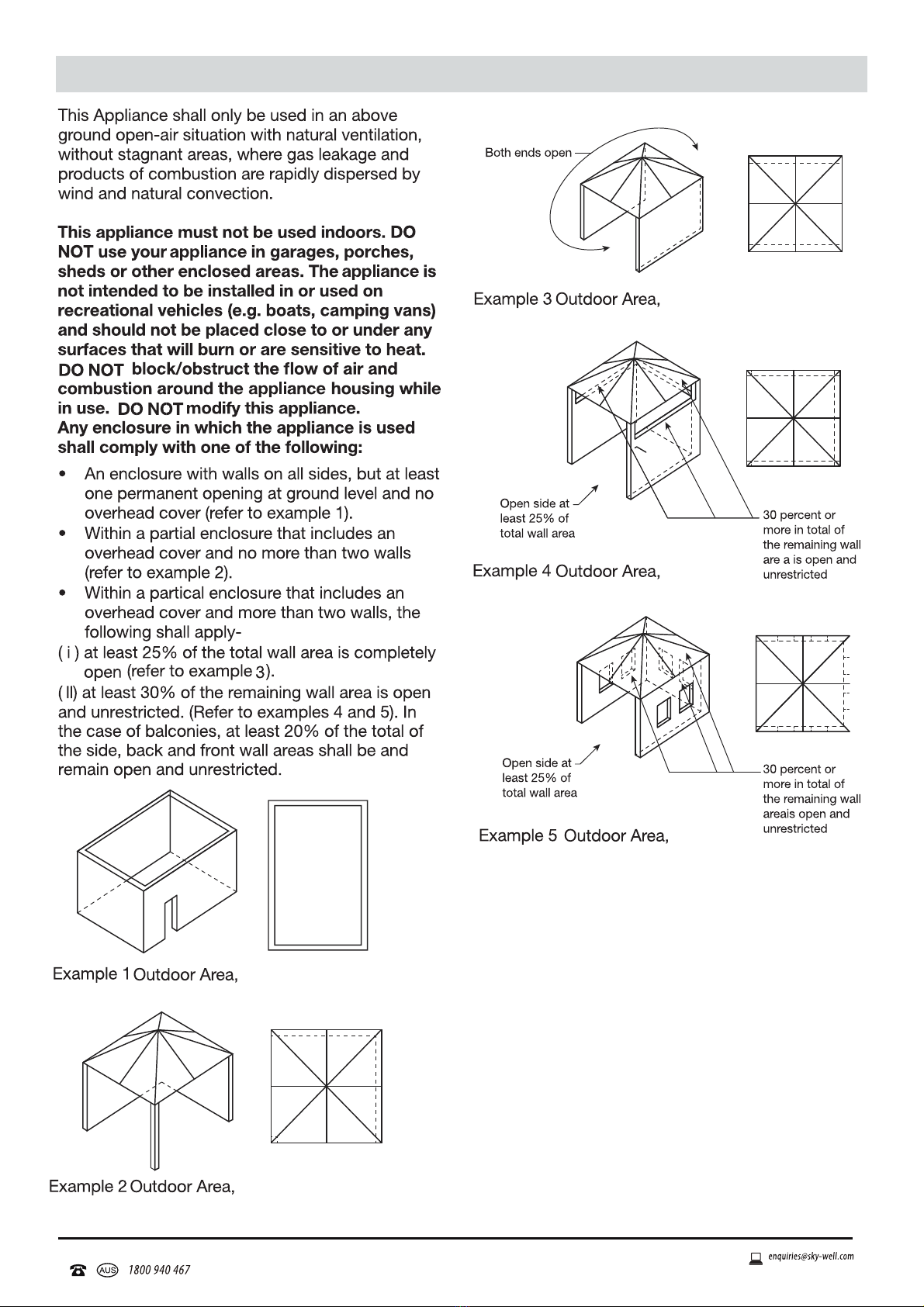

Example 6 Min. Distance and Positions
The Appliance must be positioned to avoid
walkways, gangways and general pedestrian access.
