CoolGear CG-10U2AML Manuale utente

Thank you for purchasing this high-speed 10-port USB2.0 hub. It

provides an ideal solution to expand 10 USB2.0 ports from one

single USB2.0 host port. It provides a wide range self power

source (+5~24VDC from the 2-pin Terminal Blocks or DC Jack) to

supply enough power on USB2.0 buses.

Features:

✓Compliant with USB Specification 2.0

✓Metal Case, DIN Rail and wall mountable

✓Provides 10 Downstream USB2.0 Facing Ports

✓Supports USB Screw-Lock Mechanism for Both Type-B and

Type-A Cables

✓Supports 480Mbps (High speed), 12Mbps (Full-speed) and

1.5Mbps (Low-speed) Speed

✓Supports 15KV ESD Level 4 Protection for Each Port

✓Supports +5~24V DC Wide Range Input Power

✓Power Inputs: DC-Jack or Terminal Blocks

10-Port USB2.0 Metal Hub

with 15KV ESD Surge Protection and Rack/DIN-RAIL Mounting Kit

Installation Guide

1. Introduction

2. Connector Layout

Power LED

10 USB2.0 Downstream Port

Connectors

USB2.0 Upstream Port Connector

+5~24V DC Power Input DC

Jack and Terminal Blocks

10-Port Managed USB2.0 Metal Hub with 15KV ESD Surge Protection

⚫USB2.0 Upstream Port Connector: Type-B connector from

upstream USB2.0 port. It is connected from host or another

USB2.0 hub. Supports both normal and screw-lock type USB

cables.

⚫USB2.0 Downstream Port Connectors: There are 10 Type-A

connectors for USB2.0 or USB1.1 devices. They support both

normal and screw-lock type USB cables.

⚫Self Power Input Connectors: This 2-pin (one pin plus voltage

and the other pin is GND) terminal block connector and DC

Jack are used to connect external power to self-power the

hub, the voltage can be in the range from +5V to 24V DC.

WARNING!!

Please make sure the polarity of the input power should be

correctly matched with the terminal block pins to function

properly.

1. Use static electricity discharge precautions.

Remove possible static discharge potential from any objects

that the hub may come in contact with before installation.

This can be accomplished by touching a bare metal chassis

rail after you have turned off the power.

2. Apply DC power (range from +5V to 24V) to the 2-pin

Terminal Block Connector or DC Jack. The hub was

bus-powered by the upstream USB port, and was

self-powered by either of the 2 connectors to add power to

ensure enough power for the 10 downstream ports.

3. Connecting USB Host cable: The host cable is either a

standard A-to-B USB2.0 cable or a screw-lock type A-to-B

cable. Please connect the type-A end connector of the

3. Hardware Installation

+5~24V

GND

10-Port Managed USB2.0 Metal Hub with 15KV ESD Surge Protection

cable to your upstream USB port, then connect the type-B

end connector to this hub. Since the USB hub is

plug-and-play, you don’t have to turn off your host computer

when installing the hub.

Note: In some cases, you will see an error message said

the USB bus power over the current limit, please ignore this

message since the hub is hot plug and its power capacitor

will cause a very short period of current. It will NOT affect your

USB function.

4. Connect the USB devices to the downstream ports of this hub.

5. Mount your hub on the wall or DIN RAIL (with optional

mounting kit) if required.

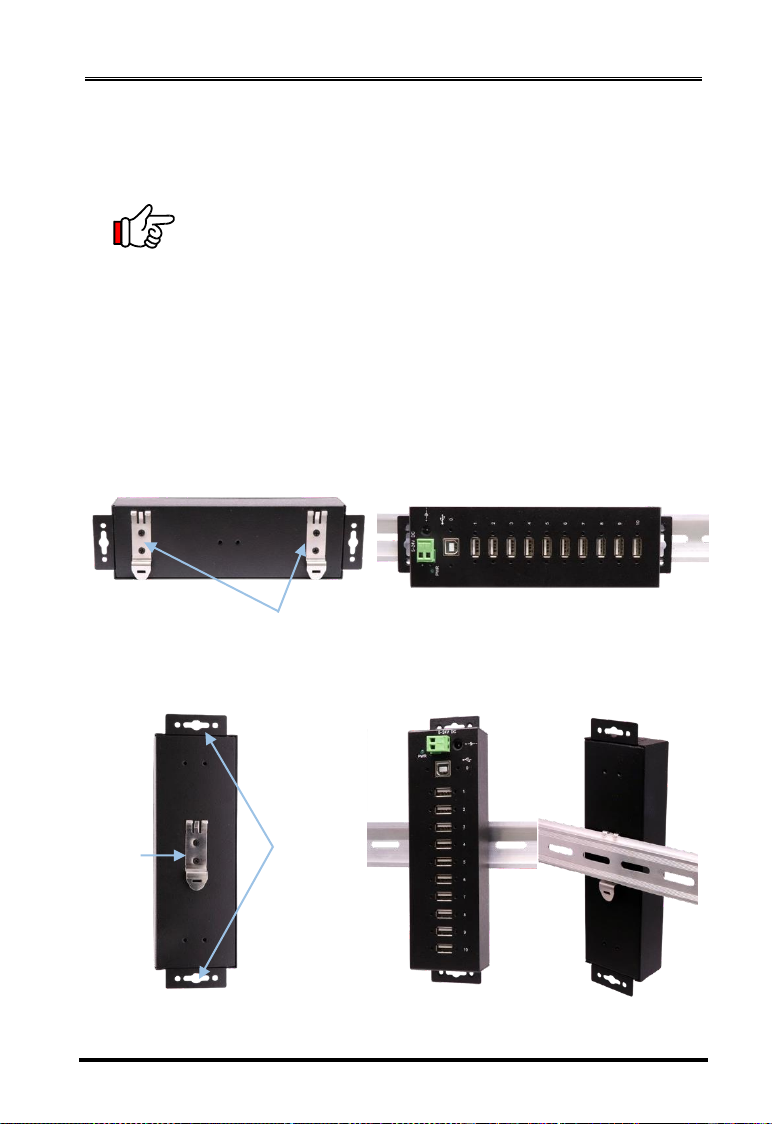

DIN RAIL Mount (horizontal):

DIN RAIL Mount (vertical):

Wall

Mounting

Holes

DIN RAIL Clips

Mounted on the DIN RAIL vertically

Mounted on the DIN RAIL horizontally

DIN

RAIL

Clip

Wall

Mounting

Holes

10-Port Managed USB2.0 Metal Hub with 15KV ESD Surge Protection

To check the USB2.0 hub installation in Windows device

manager, please follow the following steps:

1. Click Start ➔Control Panel ➔System ➔Device Manager

button

2. Double click Universal Serial Bus Controller

3. Double click Generic USB Hub, the message will show that

this device is working properly.

Operating temp.: 0 to 60°C (32 to 140°F)

Operating humidity: 5 to 95% RH (non-condensing)

Dimensions (LxWxH): 7.78”(L)x2.18”(W)x1.22”(H)

(19.77x5.55x3.1cm)

5. Environmental Specifications

4. Checking the Hub Installation

Here is your USB2.0 Hub
