CoolGear USBG-7DU2S Manuale utente

Thank you for purchasing this high-speed 7-portUSB2.0hub.It

providesanidealsolutiontoexpand7 USB2.0 ports from one

single USB2.0hostport.Itprovidesaself power source

(+7~24VDC from 2-pin Terminal Blocks) to provide enough

power on USB2.0 buses.

Features:

Compliant with USB Specification Revision 2.0

Rigid and Wall-mountable Metal Case

Supports High-speed and or Full-speed Packet

Protocol Sequencer for Endpoint 0/1

Provides 7 Downstream Facing Ports

Optional 350W Surge Protection over All USB Signal Pins

Supports USB Screw Lock Mechanism Increases Reliability

Supports 480Mbps, 12Mbps and 1.5Mbps Speed

Supports Self-powered and Bus-powered Mode

CoolGear USBG-7DU2S 7-Port USB2.0

Metal Hub with DIN RAIL Mounting Kit

Installation Guide

1. Introduction

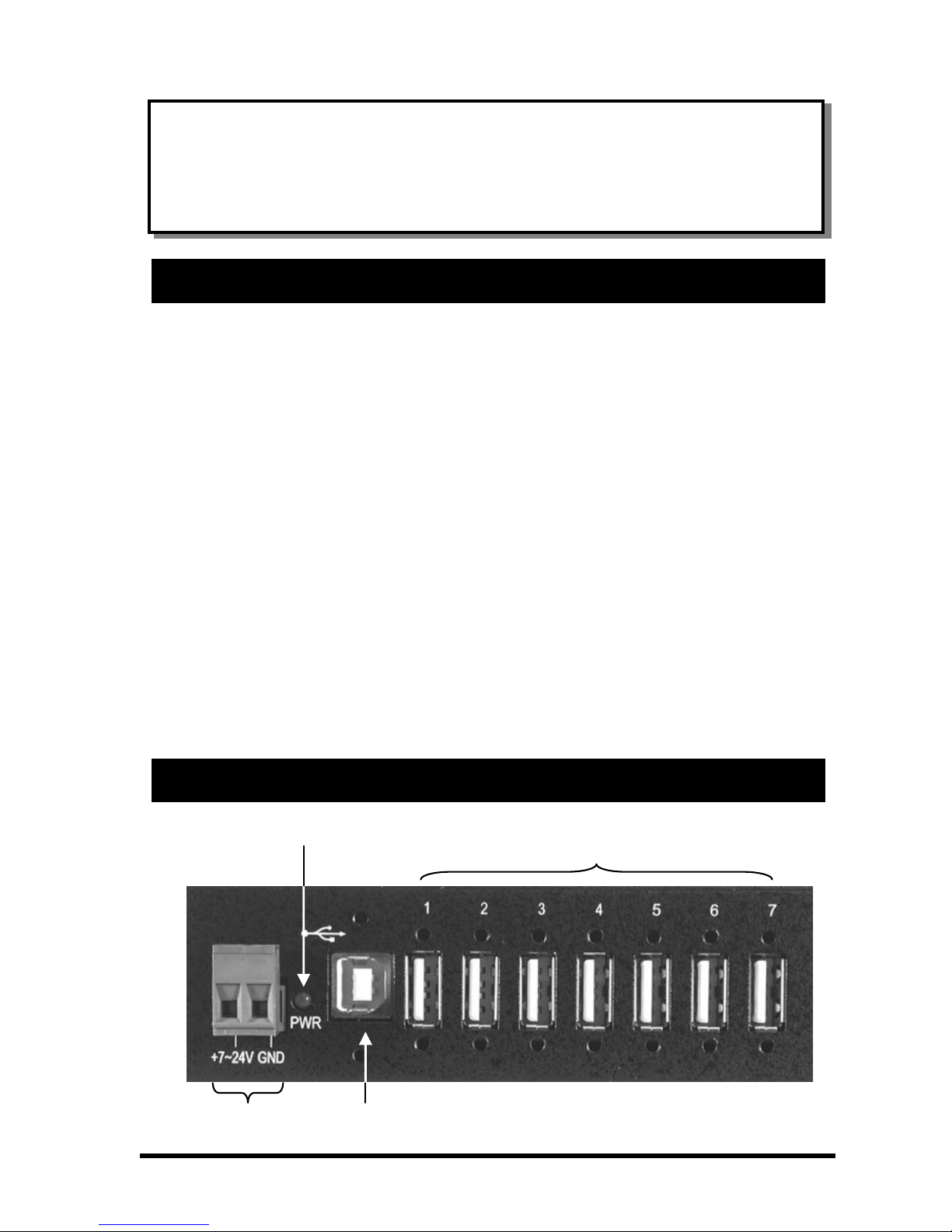

2. Connector Layout

P o w e r L E D

7 Downstream Ports

Upstream Port

Connector

Self Power Input

Connectors

7-Port USB2.0 Metal Hub with DIN RAIL Mounting Kit

Upstream Port Connector: Type-B connector from upstream

USB2.0port.ItisconnectedfromhostoranotherUSB2.0

hub.

Self Power Input Connectors: This 2-pin (one pin plus voltage

and the other pin is GND) terminal block connectors are

used to connect strong power to self-power the h u b , the

voltage can be in the range from +7V to 24VDC.

Warning!!

Please make sure the polarity of the input power should be

correctly match the terminal block pins, otherwise it will

damage the hub.

1. Use static electricity discharge precautions.

Remove possible static dischargepotentialfromany

objects that the hub maycomeincontactwithbefore

installation. This can be accomplished by touching a bare

metal chassis rail after you have turned off the power.

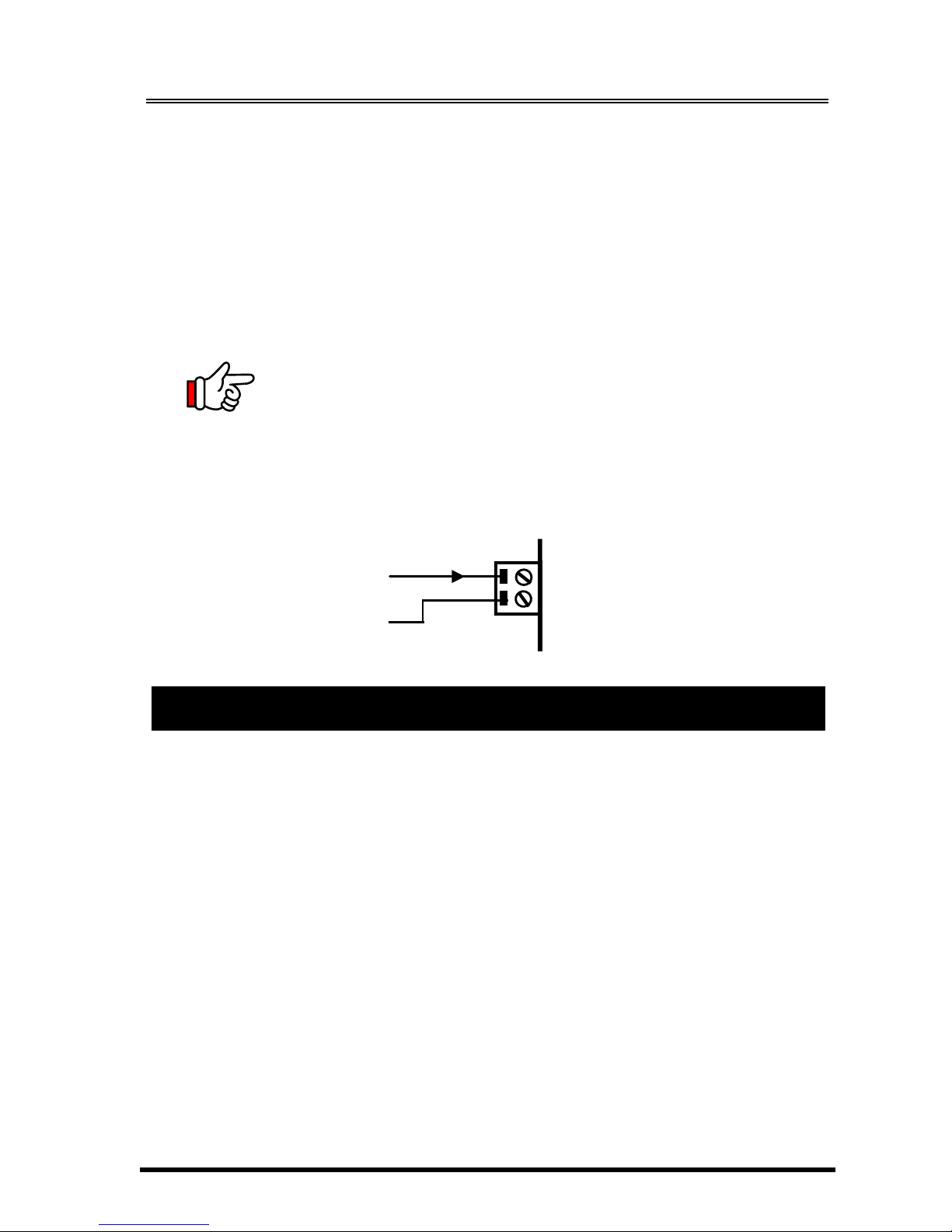

2. Apply DC power (range from +7V to 24V) to the 2-pin

Terminal Block Connector. The hub was bus-powered by

the upstream USB port, t h i s terminal block connector is to

add power to ensure enough power for the 7 downstream

ports.

3. Connecting USB Host cable: Thehostcableiseither a

standard A-to-B USB2.0 cable or a screw-locktypeA-to-B

cable. Please connect the type-A end connector of the

cabletoyourupstreamUSBport,thenconnectthetype-B

3. Hardware Installation

-+7~24V

-GND

7-PortUSB2.0MetalHubwithDINRAILMountingKit

end connector to this hub. Since the USB hub is

plug-and-play, you don’t have to turn off your host

computer when installing the hub.

Note: In some cases, you will see an error message said

that the USB Hub caused the USB bus power over the current limit,

please ignore this message since the hub is hot plug and its power

capacitor will cause a very short period of current. It will NOT affect

your USB function.

4. Connect the USB devices to the downstream ports of this

hub.

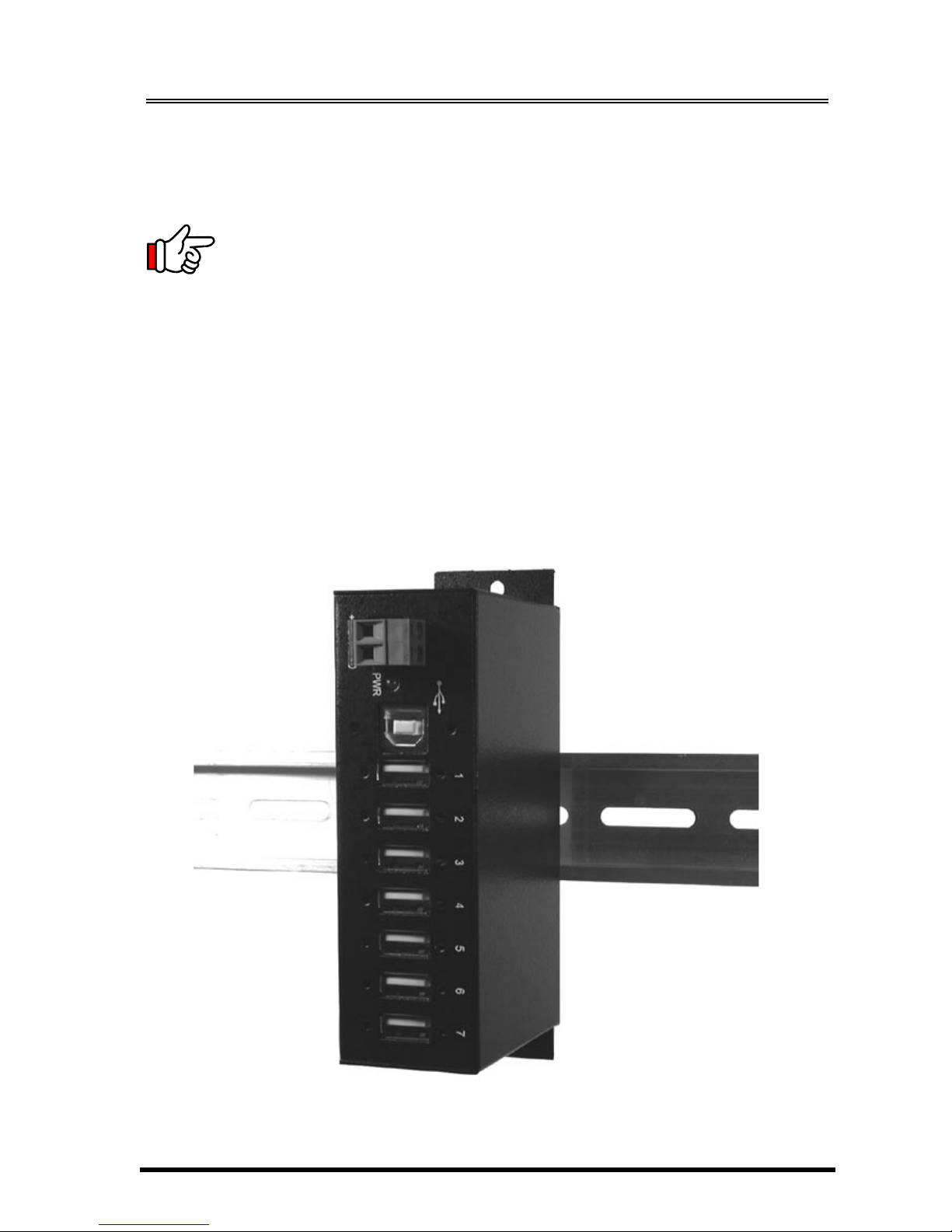

5. Mount your hub on the wall or DIN RAIL if required.

7-Port USB2.0 Metal Hub with DIN RAIL Mounting Kit

To check the USB hub installation in Windows device manager,

please follow the following steps:

1. Click Start

2. Click Control Panel

3. Click System

4. Click Device Manager button

5. Double click Universal Serial Bus Controller

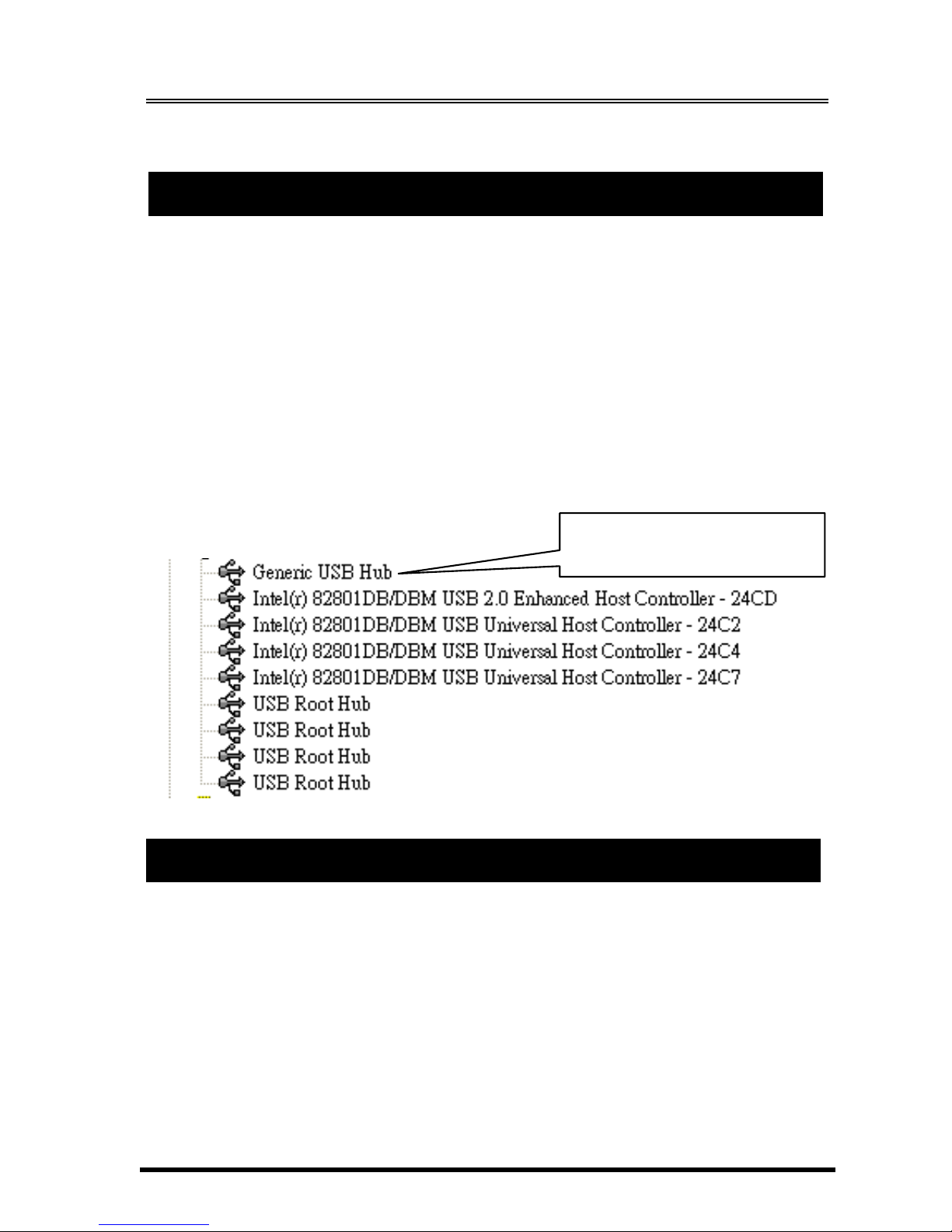

6. Double click Generic USB Hub, the message will show that

this device is working properly.

Operating temp.: 0 to 558C (32 to 1318F)

Operating humidity: 5 to 95% RH

Dimensions (LxWxH): 5.23”(L)x2.42”(W)x1.43”(H)

(13.30x6.15x3.63 cm)

5. Environmental Specifications

4. Checking the Hub Installation

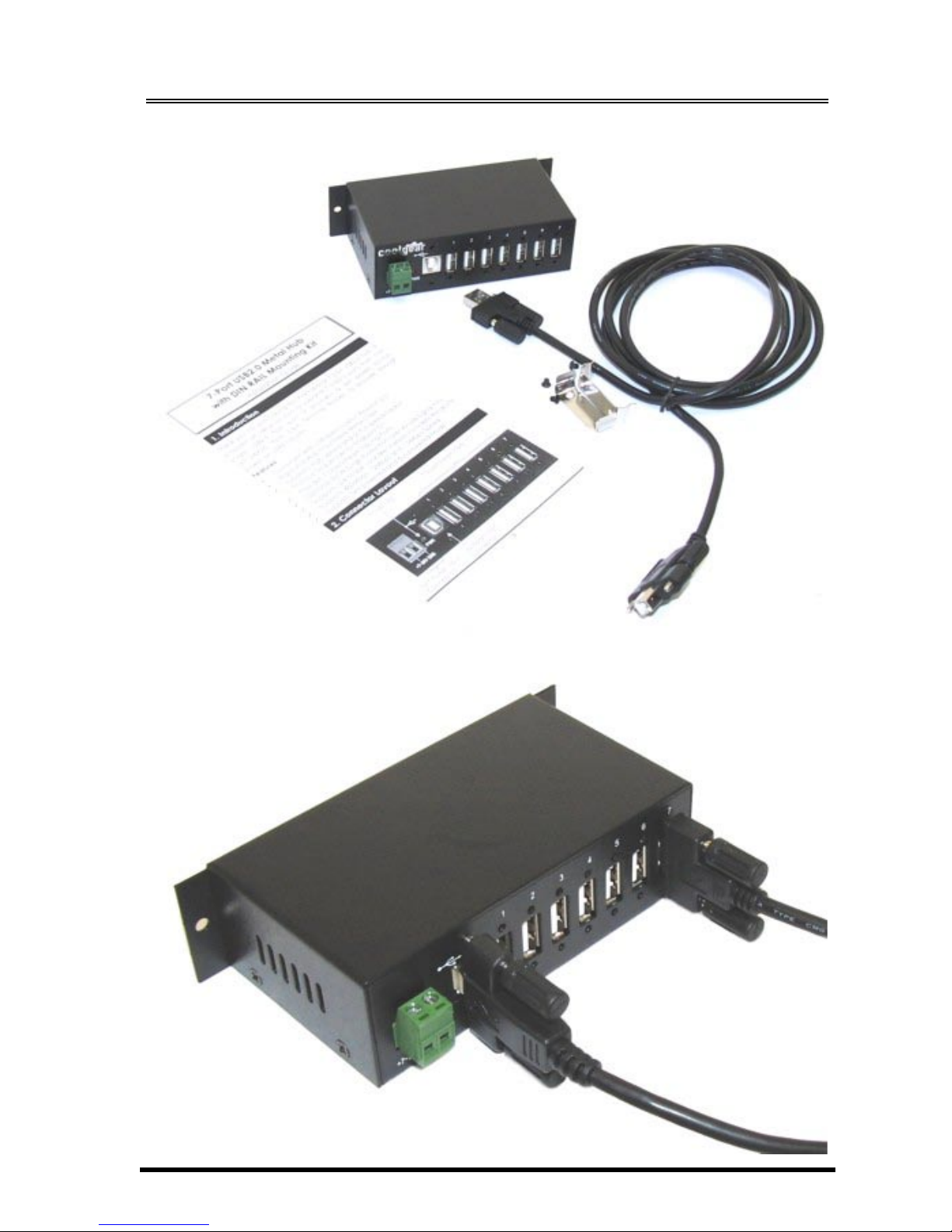

Here is your USB2.0 Hub

7-PortUSB2.0MetalHubwithDINRAILMountingKit
