Crestron 4K DigitalMedia 3-Series Manuale utente

The Crestron® AV3 and PRO3 are rack-mountable 3-Series control

processors offering immense power, expanded memory, numerous

integrated control ports, and optional control card expansion slots.

In the Box

1 AV3 or PRO3, 3-Series Control System

Additional Items

2 Bracket, Rack Ear, 2U (2032678)

4 Foot, 0.5 in. x 0.5 in. x 0.23 in., Adhesive (2002389)

4 Connector, 3-Pin (2003575)

1 Connector, 4-Pin (2003576)

2 Connector, 5-Pin (2003577)

4 Connector, 8-Pin (2003580)

1 Connector, 9-Pin (2003581)

1 Cable, Power, 6 ft 7 in. (2 m) (2001134)

Install the Device

The control system can be mounted into a rack or placed on a flat

surface.

Mount into a Rack

The control system occupies 2U of rack space. Use the three screws from

the front part of each side panel, and a #1 or #2 Phillips screwdriver to

attach the two included rack ears to the device, as shown in the following

illustration. Then mount the device into the rack using four mounting

screws (not included).

Rack Mounting Safety Precautions

Elevated Operating Ambient Temperature: If installed in a closed or

multi-unit rack assembly, the operating ambient temperature of the rack

environment may be greater than room ambient temperature. Therefore,

consideration should be given to installing the equipment in an

environment compatible with the maximum ambient temperature (Tma)

specified by the manufacturer.

Reduced Airflow: Installation of the equipment in a rack should be such

that the amount of airflow required for safe operation of the equipment

is not compromised.

AV3 and PRO3 QuickStart

3-Series® Control System

Mechanical Loading: Mounting of the equipment in the rack should be

such that a hazardous condition is not achieved due to uneven mechanical

Circuit Overloading: Consideration should be given to the connection of

the equipment to the supply circuit and the effect that overloading of the

circuits might have on overcurrent protection and supply wiring.

Appropriate consideration of equipment nameplate ratings should be

used when addressing this concern.

Reliable Earthing: Reliable earthing of rack-mounted equipment should be

maintained. Particular attention should be given to supply connections

other than direct connections to the branch circuit (e.g., use of power

strips).

Place on a Flat Surface

Attach the included feet near the corners on the underside of the device

before placing the device onto a flat surface or stacking it with other

equipment.

AV3 and PRO3 QuickStart

3-Series® Control System

Connect the Device

Connect the Control System

Connect the device as called out in the following illustrations. Connect

power last.

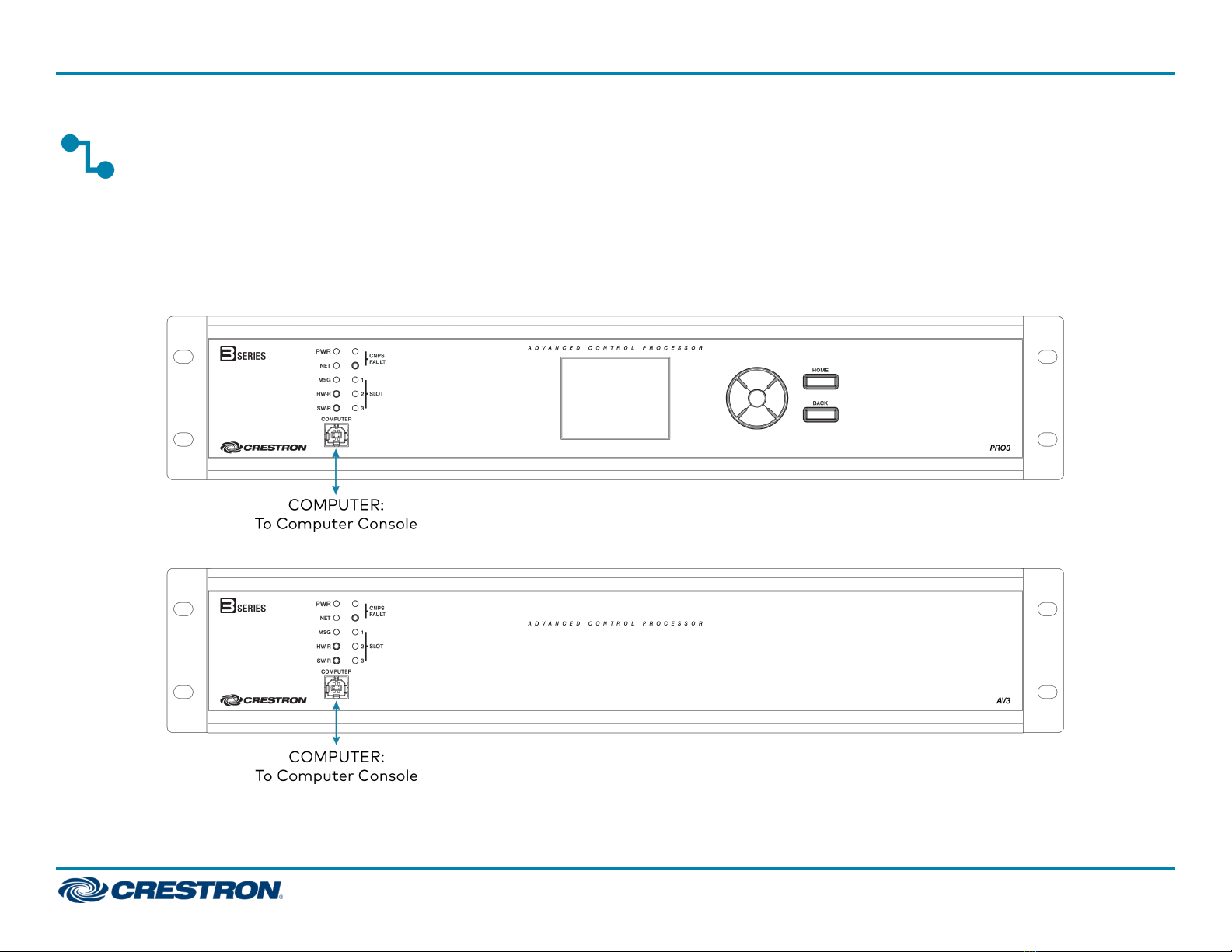

AV3 Front Panel

PRO3 Front Panel

AV3 and PRO3 QuickStart

3-Series® Control System

Rear Panel Connections

NOTE: Ensure the unit is properly grounded by connecting the chassis

ground lug to an earth ground (building steel).

AV3 and PRO3 QuickStart

3-Series® Control System

PORT RS-232 RS-4221RS-485

G|G GND GND GND2

TX|TX- TX (from AV3/PRO3) TX- (from AV3/PRO3) TX-/RX-

RX|RX+ RX (to AV3/PRO3) RX+ (to AV3/PRO3) Not used

RTS|TX+ RTS (from AV3/PRO3) TX+ (from AV3/PRO3) TX+/RX+

CTS|RX- CTS (to AV3/PRO3) RX- (to AV3/PRO3) Not used

COM 1-2 Connections

1. RS-422 transmit and receive are balanced signals requiring two lines plus a ground in

each direction. RXD+ and TXD+ should idle high (going low at start of data

transmission). RXD- and TXD- should idle low (going high at start of data

transmission). If necessary, RXD+/RXD- and TXD+/TXD- may be swapped to maintain

correct signal levels.

2. A ground terminal connection is recommended but not required. Ground potential

difference must be under ±4 V.

Connect the Control Subnet

The control system has a dedicated Control Subnet used for

communication between the control system and Crestron Ethernet

devices. This subnet allows for communication without interference from

other network traffic on the LAN.

NOTE: Do not connect the CONTROL SUBNET port to the LAN. The

CONTROL SUBNET port must only be connected to Crestron

Ethernet devices.

Configure the Device

The control system can be configured using Crestron Toolbox™ software,

the built-in, web-based setup tool, or (on the PRO3 only)the front panel

controls.

Configure with Crestron Toolbox

To use Crestron Toolbox to establish communication and configure the

control system, refer to the Crestron Toolbox help file.

Configure with the Web-based Tool

1. Use Crestron Toolbox to set the time zone. For details, refer to the

Crestron Toolbox help file.

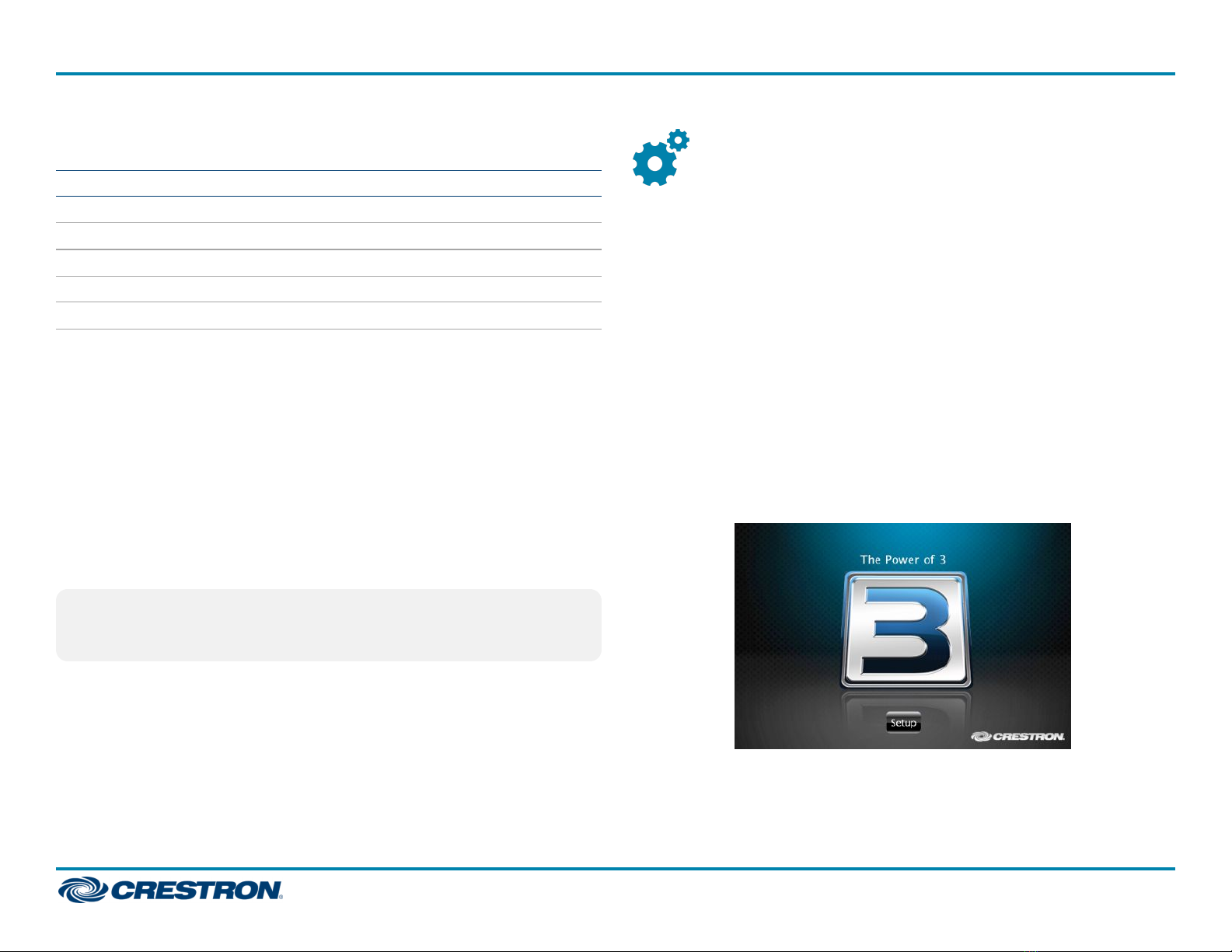

2. Use Internet Explorer® to navigate to http://xxx.xx.xx.xxx/setup,

where xxx.xx.xx.xxx is the IPaddress of the control system. The control

system's welcome screen is displayed.

AV3 and PRO3 QuickStart

3-Series® Control System

NOTES:

lThe web-based setup tool is only accessible from Internet Explorer.

lIf a security warning is displayed, click Install to continue.

3. Click Setup to display the control system's setup menu. The menu

displays the IPaddress, hostname, and MAC address of the device. It

also allows access to various setup and programming screens.

4. Click the following options from the setup menu to configure the

control system:

lEthernet Setup configures the control system's Ethernet settings

and displays DHCP, hostname, IP address, subnet mask, default

router, domain, and MAC address settings.

There are additional options in the Ethernet Setup menu:

oClick Advanced Settings to specify DNS servers, web server

settings, and SSL settings.

oClick MyCrestron Dynamic DNS to configure the

myCrestron.com Dynamic DNS service.

oClick Ethernet Diagnostics to test Ethernet communications.

oClick Reboot to reboot the control system.

lApplication Setup selects programs to be loaded on startup and

controls which programs are running.

lInput/Output Control configures the COM ports, operates the

relays, and monitors the Versiports.

lDiagnostics displays information about the connected devices,

hardware configuration, and error logs.

lAbout displays firmware information.

Click to return to the previous screen.

Configure with the Front Panel (PRO3 Only)

Use the front panel navigation pad and LCD display to configure and

monitor the PRO3's operations. For details, refer to the PRO3

Supplemental Guide (Doc. 7330) at www.crestron.com/manuals.

AV3 and PRO3 QuickStart

3-Series® Control System

Visit the Product Page

Scan the QR code to visit the product page.

AV3

www.crestron.com/model/6504878

PRO3

www.crestron.com/model/504880

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, 3-Series, Cresnet, and Crestron Toolbox are either

trademarks or registered trademarks of Crestron Electronics, Inc. in the United States

and/or other countries. Internet Explore is either a trademark or registered trademark

of Microsoft Corporation in the United States and/or other countries. Other

trademarks, registered trademarks, and trade names may be used in this document

to refer to either the entities claiming the marks and names or their products. Crestron

disclaims any proprietary interest in the marks and names of others. Crestron is not

responsible for errors in typography or photography.

Doc. 7721C

04/09/20
