FT-TSC600

FlipTop™ Touch Screen Control System

Supplemental Guide

Crestron Electronics, Inc.

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited non-exclusive,

non-transferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron

dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron

website at www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at patents.crestron.com.

Crestron, the Crestron logo, 3-Series, Cresnet, Crestron Toolbox, FlipTop, and Rava are either trademarks or registered trademarks of

Crestron Electronics, Inc. in the United States and/or other countries. Internet Explorer is either a trademark or registered trademark of

Microsoft Corporation in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in

this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the

marks and names of others. Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Contents

Access the Setup Screens 1

Configure the FT-TSC600 2

Ethernet Setup ........................................................................................................ 2

Edit the Hostname ..................................................................................... 3

Edit the IP Address .................................................................................... 3

Edit Additional Ethernet Parameters........................................................... 4

Edit the Advanced Settings ........................................................................ 4

Edit the Ethernet Diagnostics ..................................................................... 6

Edit the MyCrestron Dynamic DNS Settings............................................... 7

Audio Setup ............................................................................................................ 7

Display Setup.......................................................................................................... 8

Application Setup.................................................................................................... 8

Standby Timeout..................................................................................................... 9

Diagnostics ............................................................................................................. 9

Keypad Test............................................................................................. 10

Touch Test............................................................................................... 10

RAVA ....................................................................................................... 11

Test Patterns............................................................................................ 11

Calibrate .................................................................................................. 11

About .................................................................................................................... 12

Save & Edit ........................................................................................................... 12

Supplemental Guide – DOC. 7593C Contents •i

FT-TSC600: FlipTop Touch Screen

Control System

Access the Setup Screens

The

FT-TSC600 Setup

screen is the starting point for configuring the TF-TSC600 FlipTop™

Touch Screen Control System from Crestron®.

NOTE:

If no project has been loaded or if an invalid project has been loaded, the screen

displays the following message: “There is no display project to start. [Touch Screen to Enter

Setup…].”

The setup screens enable basic configuration prior to regular operation of the touch screen.

During regular operation of the touch screen, there are two ways to access the setup

screens:

1. Place a button on the project main page and assign the reserved join number

(17242) that accesses the setup screens.

2. Press hard keys 1, 2, 3, and 4, to the right of the touch screen display in sequence

twice (i.e., press 1, 2, 3, 4, 1, 2, 3, 4) within a 5 second period.

Button Numbering

Supplemental Guide – DOC. 7593C FT-TSC600: FlipTop Touch Screen Control System •1

The

FT-TSC600 Setup

screen is displayed.

FT-TSC600 Setup Screen

The

FT-TSC600 Setup

screen is comprised of buttons for Ethernet setup, audio setup,

display setup, application setup, standby timeout, and diagnostics. In addition, there is an

About

button that provides information about the touch screen and a

Save & Exit

button.

The functions of each are detailed in the following pages of this guide.

Configure the FT-TSC600

Ethernet Setup

On the

FT-TSC600 Setup

screen, tap

Ethernet Setup

to display the

Ethernet Setup

screen.

Ethernet Setup Screen

The

Ethernet Setup

screen displays current settings, such as whether DHCP is on or off,

the touch screen’s hostname, and its IP address. This screen also contains a link indicator

to show the status of the Ethernet connection. Controls on this screen are explained in the

sections that follow.

2•FT-TSC600: FlipTop Touch Screen Control System Supplemental Guide – DOC. 7593C

Edit the Hostname

To edit the hostname, tap

Edit

. The

Edit Hostname

screen opens.

Edit Hostname Screen

Use the keyboard to enter the new name. Tap

Clear

to clear a previous entry,

Save

to save

a new entry, or

Cancel

to return to the previous screen.

Edit the IP Address

To edit the IP address, tap

Edit

. The

Edit IP Address

screen opens.

Edit IP Address Screen

Use the keyboard to enter the new IP address. Tap

Clear

to remove a previous entry,

Backspace

to delete the last digit,

Enter

to save a new entry, or

Cancel

to return to the

previous screen.

Supplemental Guide – DOC. 7593C FT-TSC600: FlipTop Touch Screen Control System •3

Edit Additional Ethernet Parameters

Tap the ellipsis (

…

) at the top of the

Ethernet Setup

screen to display additional Ethernet

parameters and the controls that allow their entry.

Ethernet Setup Screen (Additional Parameters)

To edit the subnet mask, default router, or domain, tap the corresponding

Edit

button and

use the keyboard to enter the new information.

After all new settings have been entered, tap

Reboot

at the bottom of the

Ethernet Setup

screen to reboot the touch screen so the new settings can take effect.

Edit the Advanced Settings

Tap

Advanced Settings

to display the

Advanced Ethernet Setup

screen.

Advanced Ethernet Setup Screen

The

Advanced Ethernet Setup

screen provides controls for enabling or disabling SSL

(Secure Sockets Layer) and for editing the CIP port, secure CIP port, CTP port, and secure

CTP port.

4•FT-TSC600: FlipTop Touch Screen Control System Supplemental Guide – DOC. 7593C

The SSL controls work as follows:

•

Off

disables the SSL capabilities of the FT-TSC600

•

Self

sets up self-signing certificates

•

uses an authority to assign the SSL certificates

NOTE:

For more details on SSL settings, refer to the 3-Series®Control Systems Reference

Guide (Doc. 7150) at www.crestron.com/manuals.

To edit the CIP port, secure CIP port, CTP port, or secure CTP port, tap the corresponding

Edit

button and use the keyboard to enter the new information.

On the

Advanced Ethernet Setup

screen, tap

DNS Servers

to display the

DNS Servers

screen.

DNS Servers Screen

The

DNS Servers

screen provides controls for adding or deleting the IP addresses of DNS

(Domain Name System) registered computers on the network. To add a server’s IP address,

tap

New

to open an on-screen keyboard.

Use the keyboard to enter the IP address of the new DNS server. Tap

Clear

to remove a

previous entry,

Backspace

to delete the last digit,

Enter

to save a new entry, or

Cancel

return to the previous screen.

On the

Advanced Ethernet Setup

screen, tap the ellipsis (

…

) at the top to display the

and

Off

controls, which enable or disable the web server, and controls to edit the web port

and secure web port.

The default web server setting is

. Tapping

Off

disables access to setup from a web

browser.

To edit the web port or secure web port, tap the corresponding

Edit

button and use the

keyboard to enter the new information.

Supplemental Guide – DOC. 7593C FT-TSC600: FlipTop Touch Screen Control System •5

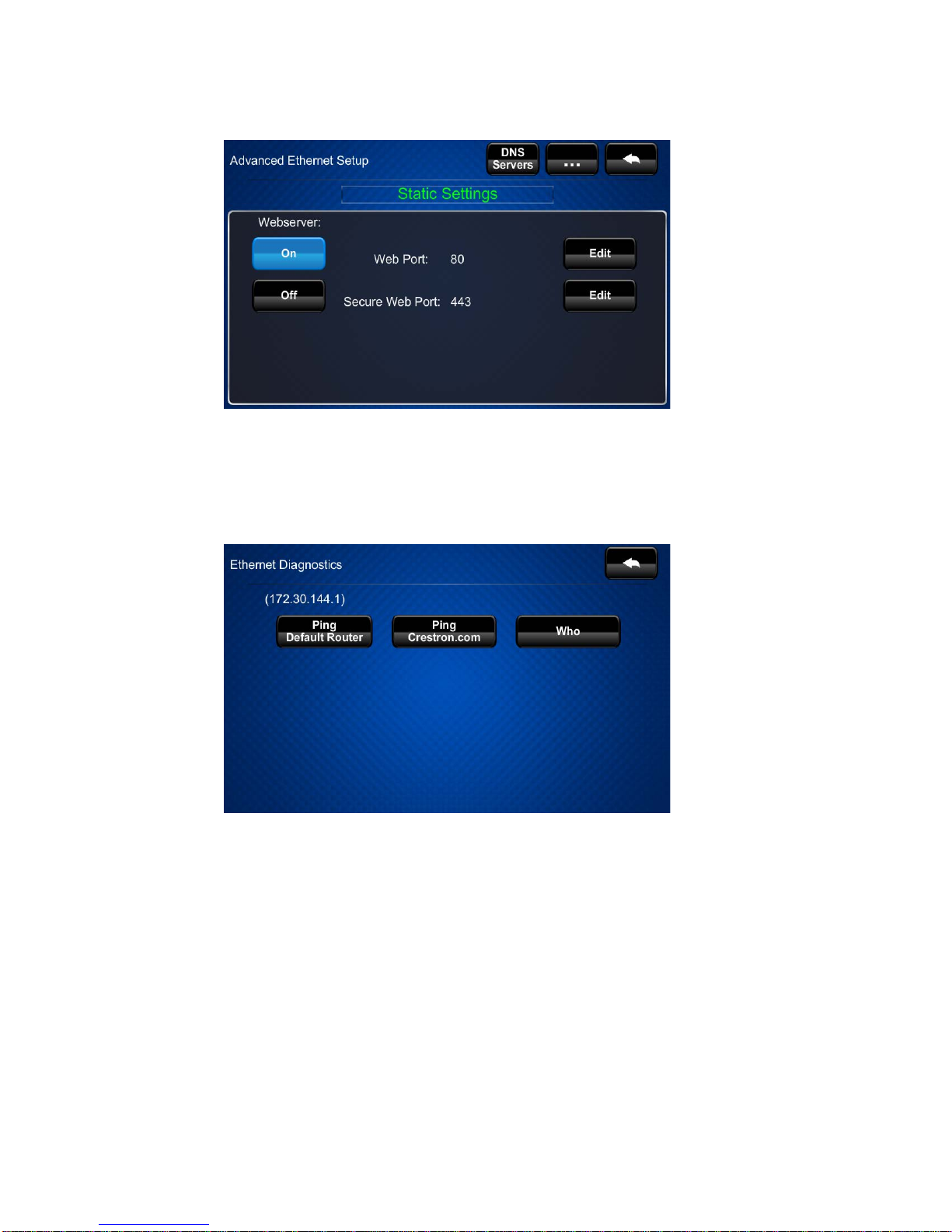

Advanced Ethernet Setup Screen (Web Server)

Edit the Ethernet Diagnostics

On the

Ethernet Setup

screen, tap

Ethernet Diagnostics

to display the

Ethernet

Diagnostics

screen.

Ethernet Diagnostics Screen

The

Ethernet Diagnostics

screen provides controls for verifying connections. Tap

Ping

Default Router

to verify connection to the router. (The screen displays a “Passed” message

to show successful connection.) Tap

Ping Crestron.com

to verify connection to an external

DNS server.

Tap

Who

to display a list of devices connected to the PC via the Ethernet connection.

These devices may be Crestron Ethernet devices, third-party Ethernet devices, or PCs

(including any PC using Crestron Toolbox™ to connect to the processor via Ethernet).

6•FT-TSC600: FlipTop Touch Screen Control System Supplemental Guide – DOC. 7593C
