CTA PAD-ASKB10 Manuale utente
Dual Security Kiosk Stand with Locking Case and Cable
PAD-ASKB10
INSTRUCTION - MANUAL

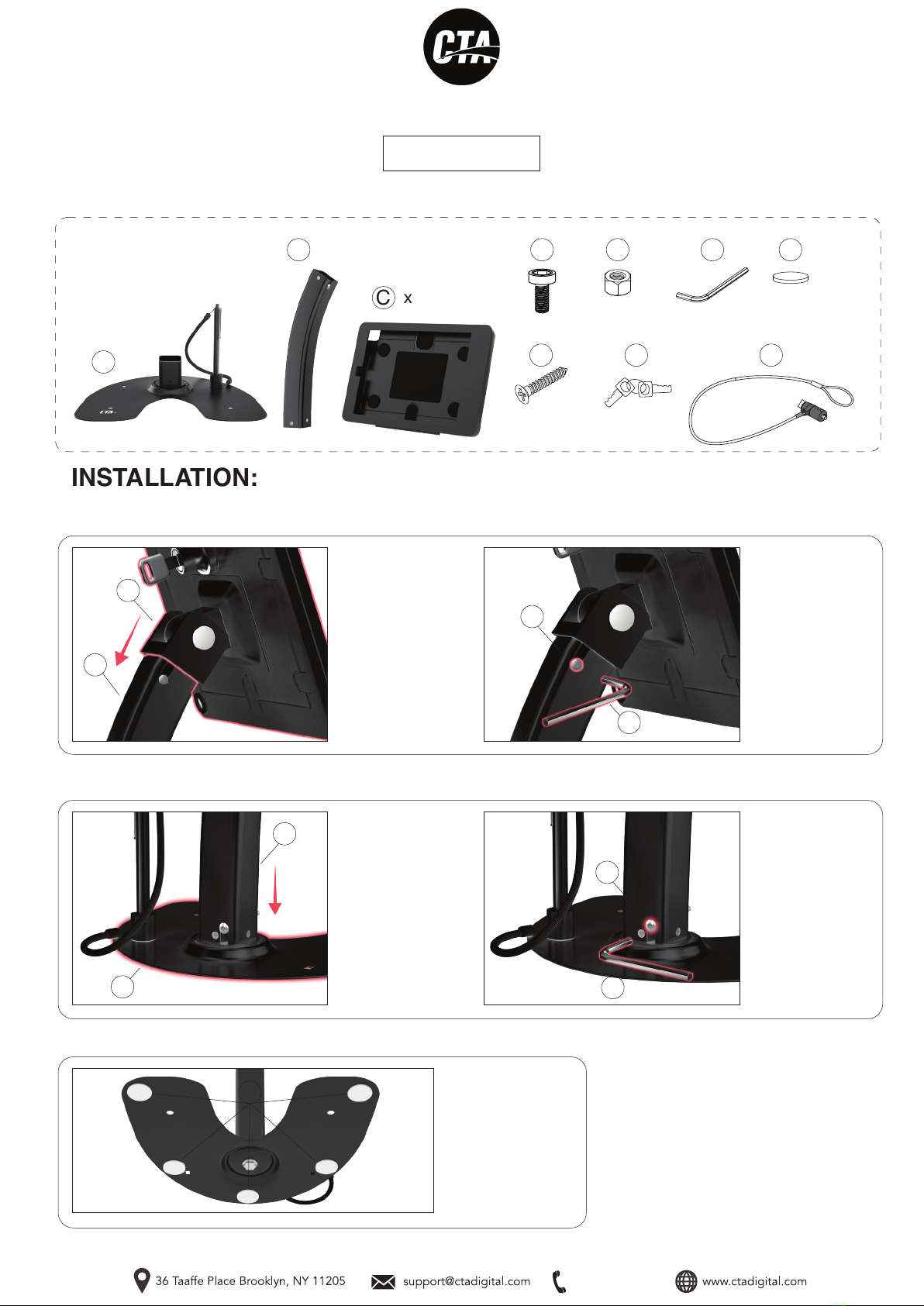

CONTENTS:
INSTALLATION:
888-733-4448
1. Attaching Holder to Body
x2
E
x2
D
x1
A
x1
Cx1
F
I
x1
H
x2
G
x5
x1
J
1A. Insert holder joint (C)
into body joint (B) and
align allen key hole.
1B. Screw the allen
screw (D) into hole and
securely tighten with
provied allen tool (F).
2. Attaching Body to Base
2A. Insert base joint (A)
into body joint (B) and
alling allen key hole.
2B. Insert the allen
screw (D) into hole and
securely tighten with
provided allen tool (F).
3. (Optional) Attaching Base Pads to Base
3A. Stick adhesive pads
(G) to bottom of stand
base (A) for scratch
protection and temporary
mounting.
x1
B
C
B
B
A
G
F
D
F
D
888-733-4448
4. Inserting Tablet into Enclosure
5. (Optional) Bolting to Countertop
6. Cable Management 7. Adjustability 8. Security - Cable Lock
4A. Open the
case (C) with
the stand on
a flat surface.
4B. Place
your tablet
device inside
the tray (C).
5A. Aling the
two screws
(H) with the
holes in the
base (A).
5B. Screw in
screws until
securely
attached to
counter.
4C. Close
the case
door and
turn the key
(I) clockwise
to lock.
4D.
Internal
cable
routing.
6A. Fish the cable wire through the top end of the
kiosk body (B).
6B. Fish the cable wire out the other end as shown
above.
7A. Adjust the joint rotation to the prefered angle.
7B. Adjust the orientation to the prefered view.
8A. Anchor the cable loop of your security cable
lock (J) around an immovable object.
8B. Secure and lock the other end to the kiosk (A)
into the cable lock slot hole as shown.
**Tablet and
cable only shown
for illustration
purposes, not
included.
**Tablet only shown
for illustration purposes,
not included.
**Tablet and cable only
shown for illustration
purposes, not included.
**Tablet only shown
for illustration purposes,
not included.
B
B
B
C
J
C
J
A
C
H
A
C
I
