CH-1107TX
HDMI to Single CAT6 Transmitter
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person to walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 24/11/10 Preliminary Release
VS1 24/02/14 Updated format/diagrams
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................3
7. Connection Diagram ............................ 4
8. Specications ........................................ 5
8.1 Technical Specications .................5
8.2 Compatible Products ......................6
9. Acronyms ............................................... 6
1
1. INTRODUCTION
The HDMI to Single CAT6 transmitter can send High Denition video
(1080p/Deep Color) and audio (Dolby TrueHD, Dolby Digital Plus and
DTS-HD Master Audio) over a single run of CAT6 cable to a compatible
receiver unit.
2. APPLICATIONS
• Distribute HDMI signals over long distances
• Showroom display
• Lecture room display
3. PACKAGE CONTENTS
• HDMI to Single CAT6 Transmitter
• 5 V/1A DC Power Supply Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source device such as a DVD/Blu-ray player and an HDMI
display with HDMI connection cables and industry standard CAT6
cable and a compatible receiver.
2
5. FEATURES
• HDMI, HDCP 1.1 and DVI 1.1 compliant
• Supports digital video formats in 'Deep Color' mode at up to 36-bit
(12-bit/color)
• Supports lossless compressed Digital Audio formats (Dolby TrueHD,
Dolby Digital Plus and DTS-HD Master Audio)
• Uses a single CAT6 cable for Data/DDC transmission
• Equalizes and recovers incoming TMDS data before re-transmitting it
in optimal quality regardless of the incoming signal quality
• Supports HDMI cable distances of up to 20 meters at 1080p/8-bit
and 12-bit resolutions
• Supports CAT6 cable distances of up to 45 meters at 1080p/8-bit
resolution and 10 meters at 1080p/12-bit resolution
• Supports x.v.YCC
Note:
1. This system was tested with CAT6/23AWG/UTP/568B cable, results
may vary with cables of another specifcation.
2. Cable distance tested with Sony Playstation 3 (120 GB model) and
40" Samsung 12-bit LCD TV.
3. The gures provided in this manual are for reference only; actual
performance may depend on the source and display used as well
as the cable specication.
3

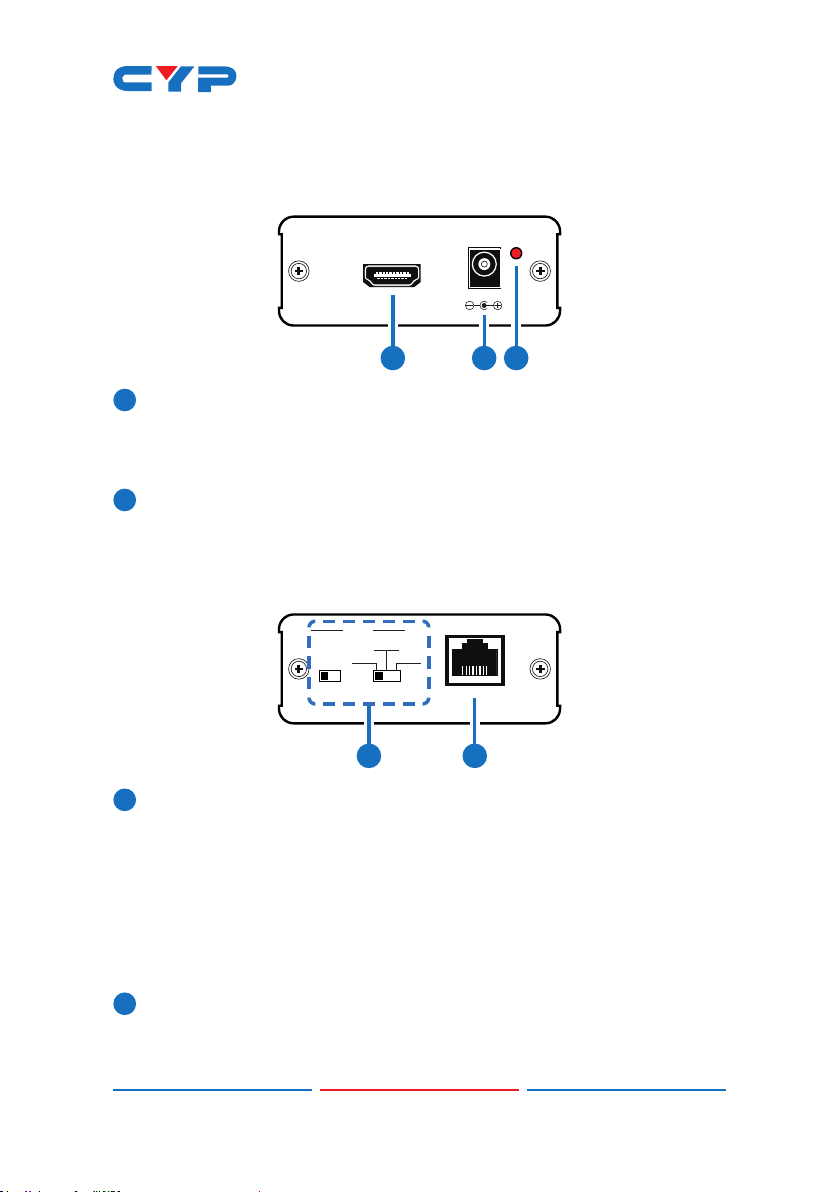

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
DC 5V
HDMI INPUT
1 2 3
1HDMI IN: Connect to the HDMI or DVI output (with a DVI to HDMI
adaptor)of a source device such as a DVD/Blu-ray player or a Set-
top Box with an HDMI cable or cascade to a compatible Receiver
unit (see Section 8.2) to extend the transmission distance.
2DC 5V: Connect the 5V DC power supply to the unit and plug the
adaptor into an AC outlet.
6.2 Rear Panel
TV/STD
10 Bit
CAT6 OUT
EDID
8 Bit 12 Bit
1 2
1EDID Switch: Selects between 'STD' and 'TV' EDID settings. Switch
to 'STD' to use the transmitter's built-in EDID settings or to 'TV' to use
the TV’s EDID settings. The default factory setting is TV, keep in this
setting when the display is functioning normally. When switched
to 'STD' the unit will use its built-in EDID settings which support
1080p@8-bit, 10-bit or 12-bit Video and PCM 2CH Audio.
Note: Power the unit OFF then ON for the EDID selection to be
activated.
2CAT6 OUT: Connect to the CAT6 input of a compatible Single CAT6
to HDMI Receiver unit (see Section 8.2) attached to an display.
4

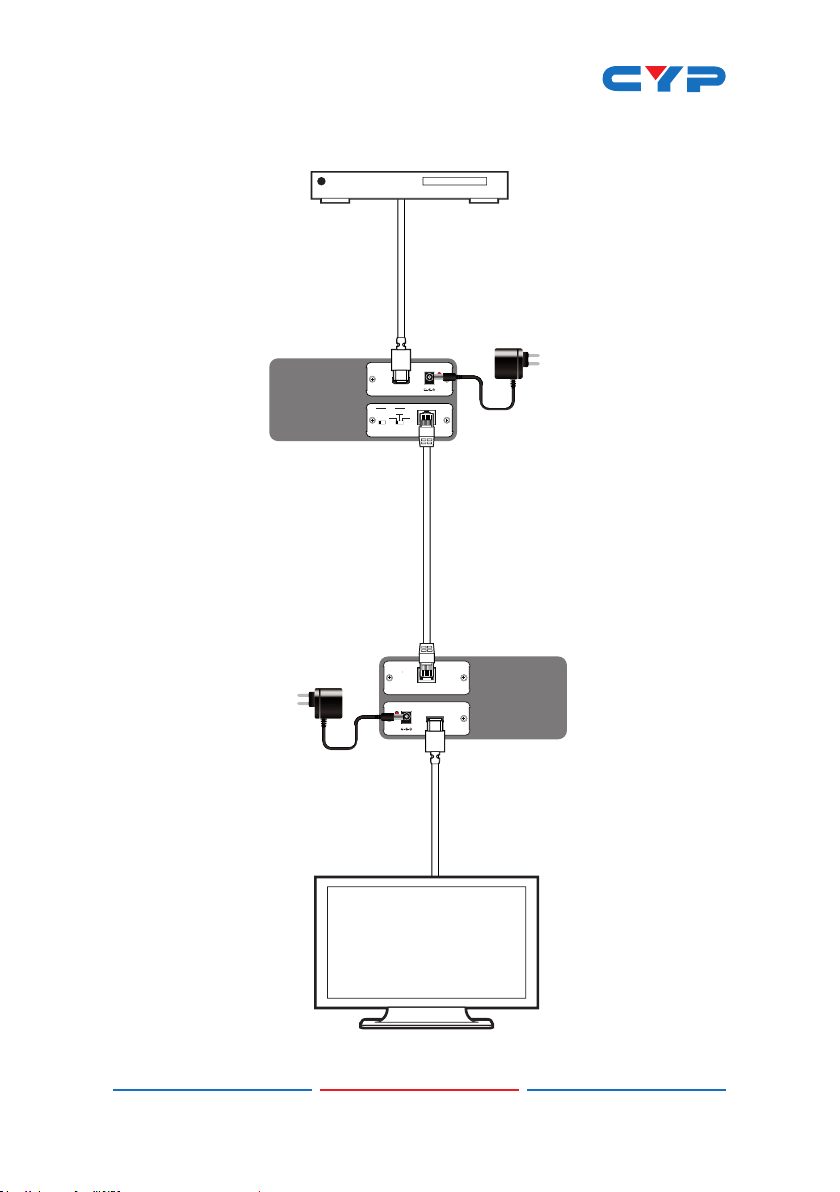

7. CONNECTION DIAGRAM
CAT6 IN
DC 5V HDMI OUT
TV/STD
10 Bit
CAT6 OUT
EDID
8 Bit 12 Bit
DC 5V
HDMI INPUT
DVD or Blu-ray Player
Power
Supply
Power
Supply
HDMI
Output
Display
HDMI
Input
CAT6/7
Cable
(45m/8-bit)
TX
RX
5
8. SPECIFICATIONS
8.1 Technical Specications
Video Bandwidth 2.25 MHz/6.75 Gbps
Input Port 1×HDMI (Female connector)
Output Port 1×RJ45
HDMI Cable Distance 20m@1080p/8-bit or 12-bit
CAT6 Cable Distance 45m@1080p/8-bit or 10m@1080p/12-bit
Power Supply 5 V/1A DC (US/EU standards, CE/FCC/UL
certied)
ESD Protection Human Body Model:
± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions 78.5 mm (W)×102 mm (D)×30 mm (H)
Weight 182 g
Chassis Material Aluminum
Silkscreen Color Silver
Power Consumption 3.5 W
Operating Temperature 0 ˚C ~ 40 ˚C / 32 ˚F ~ 104 ˚F
Storage Temperature −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
