CYP PU-8H8CTXIR Manuale utente

PU-8H8CTXIR

8-Way HDMI HDBaseT™

Transmitter with 8x8 IR Matrix

(inc. POE)

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.0 September 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

RDV1 11/11/2011 PreliMINary Release

CONTENTS

1. Introduction..............................................1

2. Applications.............................................1

3. Package Contents .................................. 1

4. System Requirements.............................. 1

5. Features....................................................2

6. Operation Controls and Functions......... 3

6.1 Transmitter’s Front Panel....................3

6.2 Transmitter’s Rear Panel ....................4

7. Remote Control........................................ 5

8. IR Pin Assignment .................................... 7

9. RS-232 Protocols ...................................... 8

9.1Pin Assignment ....................................8

9.2 RS-232 Commands.............................9

10. Specications ...................................... 11

11. Connection and Installation............... 12

12. Acronyms .............................................14

1. INTRODUCTION

The HDMI over CAT6 transmitter with IR Matrix is an outstanding device

for extending and controlling your HDMI signal. With 8 HDMI input

ports and 8 CAT6 output ports this device allows a great amount of

sources and display to be controlled and display up to 100 meters

away. Moreover, with control systems such as IR, RS-232 and remote

control these easy users with all kinds of control habit and occasion.

Further, the IR matrix makes the distance control over both source and

display even more freely and easily.

2. APPLICATIONS

• Commercial advertising and displaying

• Lecture room display and control

• Hyper market demonstration and control

3. PACKAGE CONTENTS

•HDMI over CAT6 with 8 x8 IR Matrix

•Receiver for HDMI Over CAT6 x8 (Optional)

•IR Extender x9

•IR Blaster x9

•24V/6.25A DC adaptor x1

•5V/6A DC adaptor x1

•Remote control x1

•Operation manual

4. SYSTEM REQUIREMENTS

•Input source equipments with HDMI connection cables

•Industry CAT5e/6/7 cable.

•Output display or audio receiver equipments with HDMI

connection cables.

5. FEATURES

• HDMI, HDCP1.1 and DVI compliant

• Supports HDMI v1.4 features:

• 3D

• Supports Stereo audio input and output, analog and digital audio

signal

• Supports high bit rate audio up to 192kHz

• Supports resolutions to VGA ~ WUXGA and 480i~1080p follow by

output display’s EDID

• Supports extension up to 80 meters through CAT5e or 100 meters

through CAT6/7

• Supports 3D signal display follow by display TV’s EDID

• Supports HDMI input up to 15 meters with 8bits resolution or 10

meters with 12bits resolution

• Supports IR in/out from input and output side

• Supports RS-232, remote control and on panel control

• 2U size design

6. OPERATION CONTROLS AND FUNCTIONS

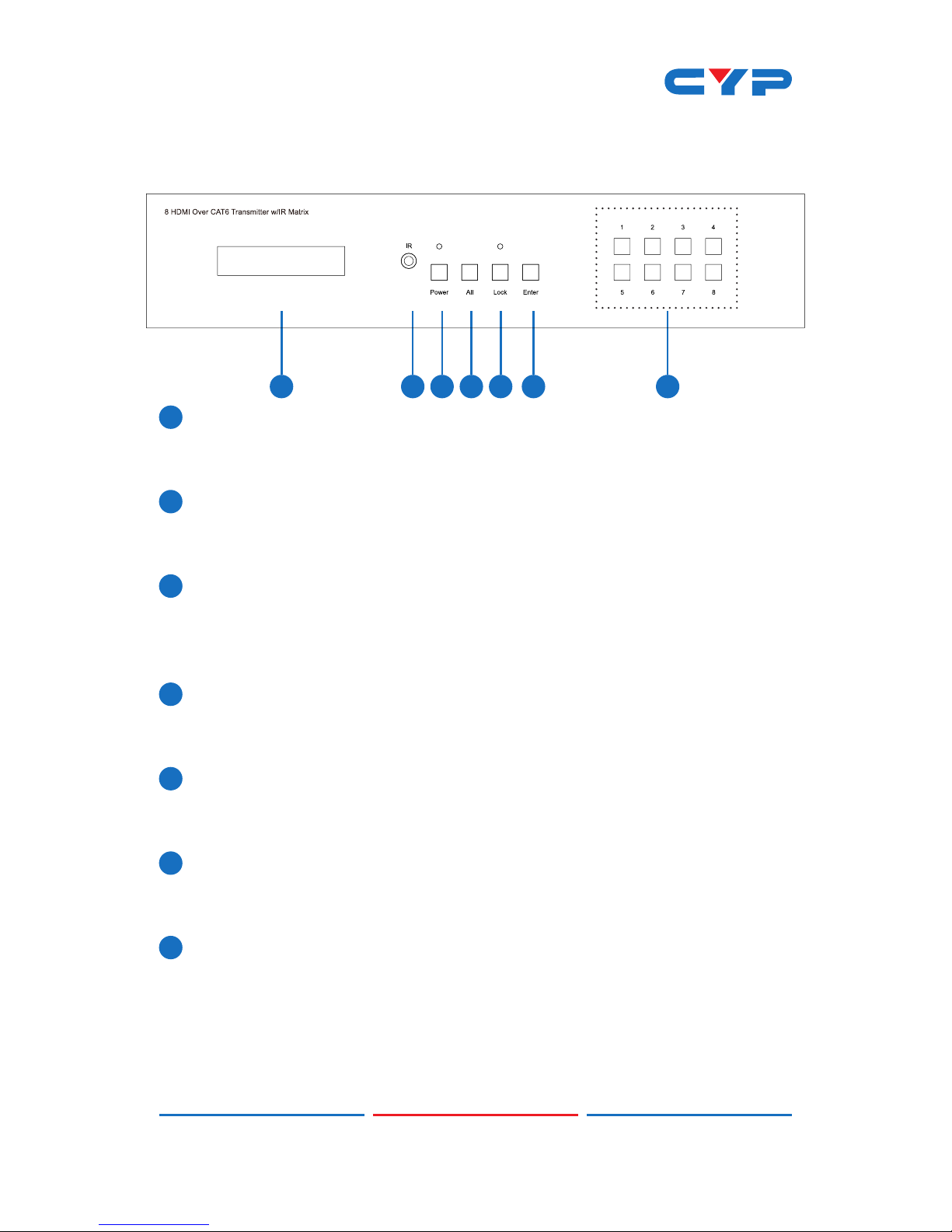

6.1 Transmitter’s Front Panel

1 2 3 4 5 6 7

1LCM:

This monitor displays your setting information of each IR’s input and

output selection.

2IR:

This IR window accepts the remote control signal of this device

and all the source and display equipment’s IR signal.

3Power button and LED:

Press this button to turn on the device or press it again to set it to

standby mode. The LED will illuminate in green when the power is

on and in red when in standby mode.

4All:

Press this button to select all IR output with one IR input signal. The

sequence should be pressing ALL → Number Key → ENTER.

5LOCK button and LED:

Press this button to lock all the buttons on the panel and the green

LED will illuminate. To unlock press it again.

6ENTER:

Press this button every time after the setting or the selection is

made.

7Selection 1~8:

When selecting IR input with IR output press Number Key rst (for

output selection) and then press the Number Key again (for input

selection).

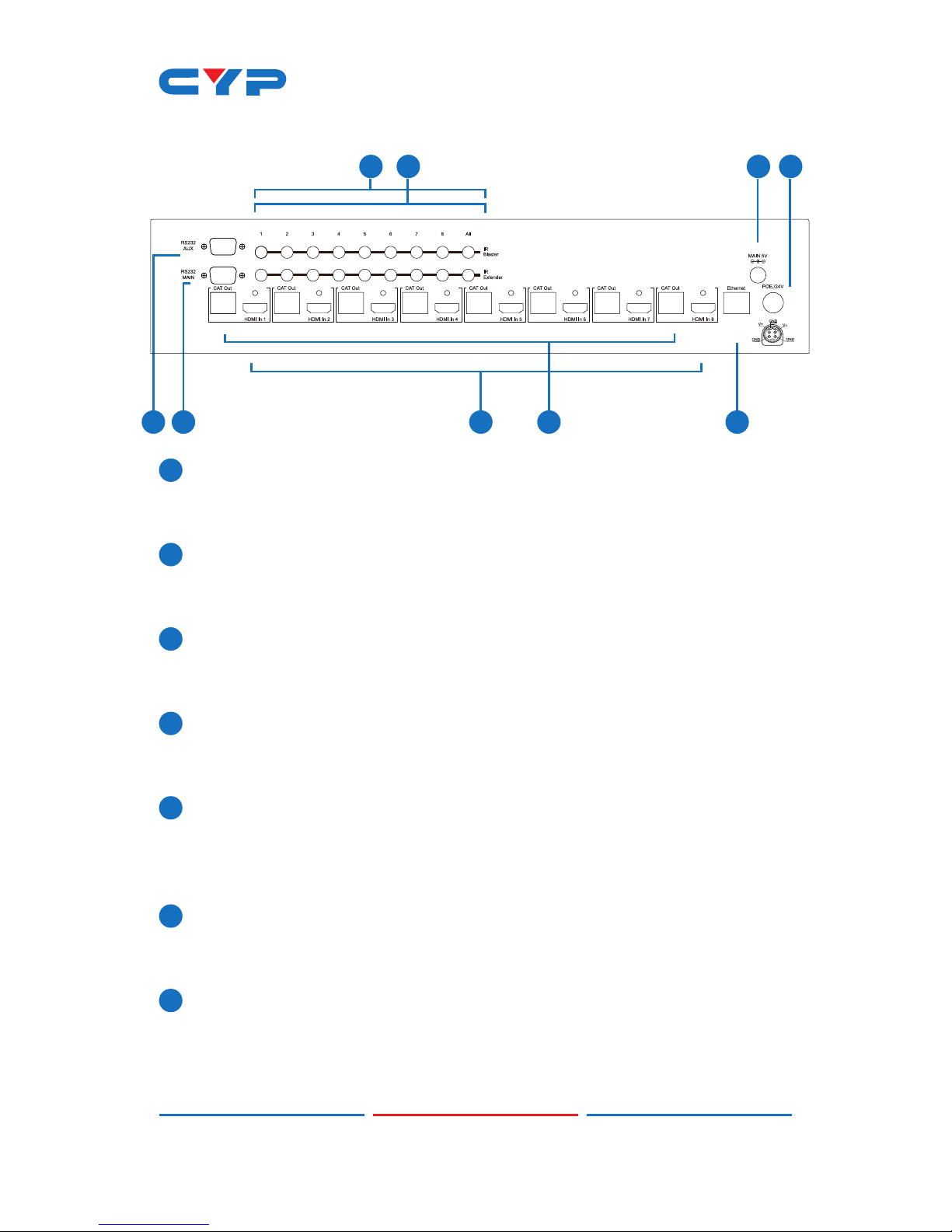

6.2 Transmitter’s Rear Panel

1 2 5 6 7

3 4 8 9

1RS-232 AUX:

This slot is to connect with D-Sub 9pin cable from the third device

for RS-232 signal sending and controlling.

2RS-232 MAIN:

This slot is to connect with D-Sub 9pin cable from PC/NB for RS-232

signal sending to the device and the third device.

3IR Blaster 1~All:

These slots are to connect with IR blaster cables included in the

package for IR signal sending.

4IR Extender 1~All:

These slots are to connect with IR extender cables included in the

package for IR signal receiving.

5HDMI IN 1~8:

These slots are to connect with input source equipment such

as DVD player or Set-Up-Box with HDMI cable or DVI to HDMI

converter cable for input signal sending.

6CAT:

These slots are to connect with CAT5e/6/7 cable from the Receiver

HDMI Over CAT6 side.

7Ethernet:

This slot is to connect with RJ-45 cable from the IP hub or from an

online PC/NB for internet channel subsidize to HDMI port.

8MAIN 5V:

This slot is to plug the power adaptor included in the package and

then connect to the AC wall outlet for power supply.

9POE / 24V:

This slot is where user connect the 24V DC power adaptor

and plug the adaptor to an AC wall outlet for power supply

when the CAT 6 out are not connected with power supply.

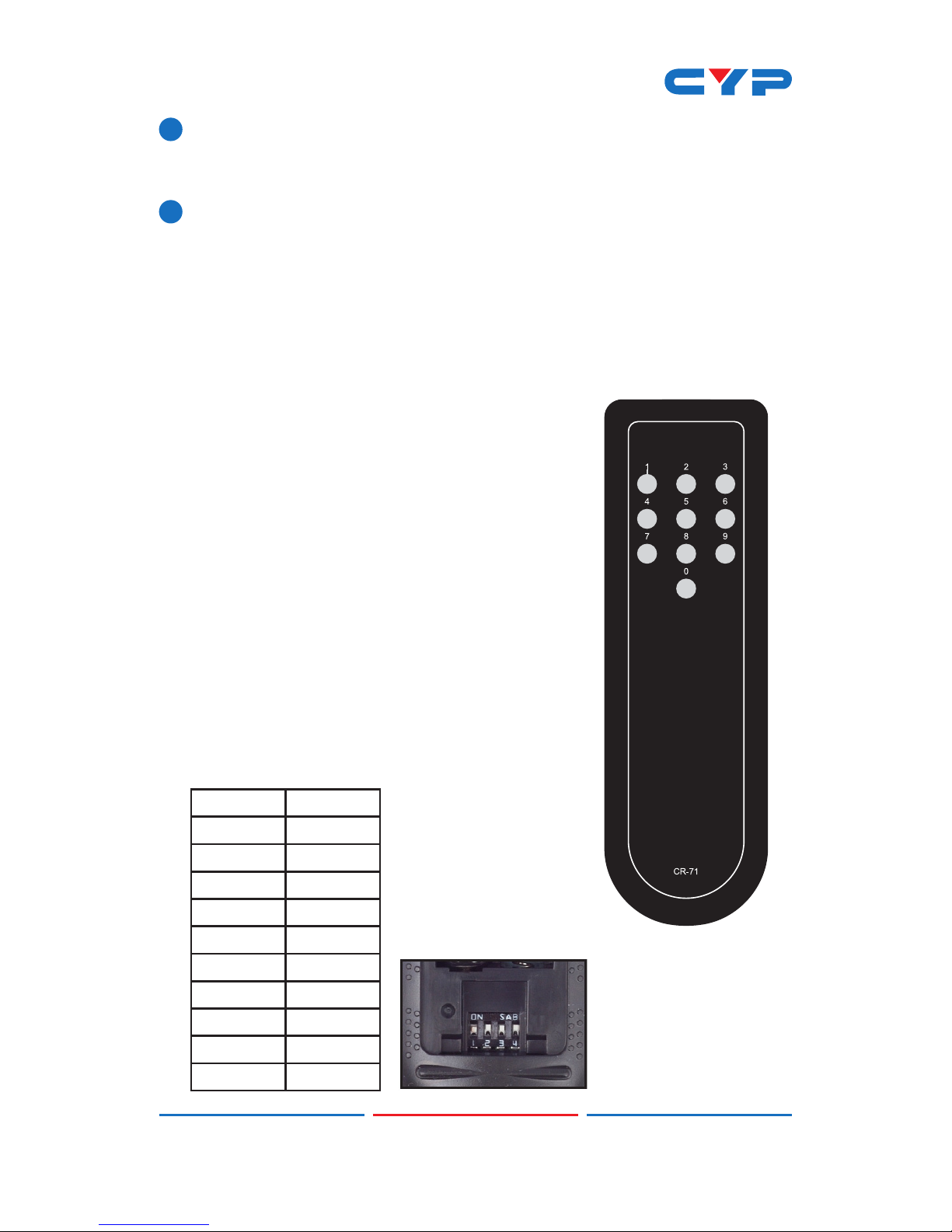

7. REMOTE CONTROL

This remote control can be set with multipal

format according to the dipswitch setting.

There are total of four dipswitches with mainly

two kinds of settings. When dipswitches are

all set to ON/↑ the remote control is able to

control all outputs and all inputs. For example,

when output A wish to select input 5. Press 1

rst and wait for a second then press 5, the

output display A will display input source 5’s

image instantly. Other settings referring to IR

Dip Switch Position with Output Selection. For

example, when all dipswitches are set to OFF/↓

this setting is base on output A and therefore, it

can only control inputs selection. Hence, when

output A wish to selelct input 3 press 3 only will

switch output display A to display input source

3’s contents.7.1 RS-232 Protocols

IR Custom Code

NO. DATA

1 88

2 89

3 8A

4 8C

5 8D

6 8E

7 90

8 91

9 92

0 95

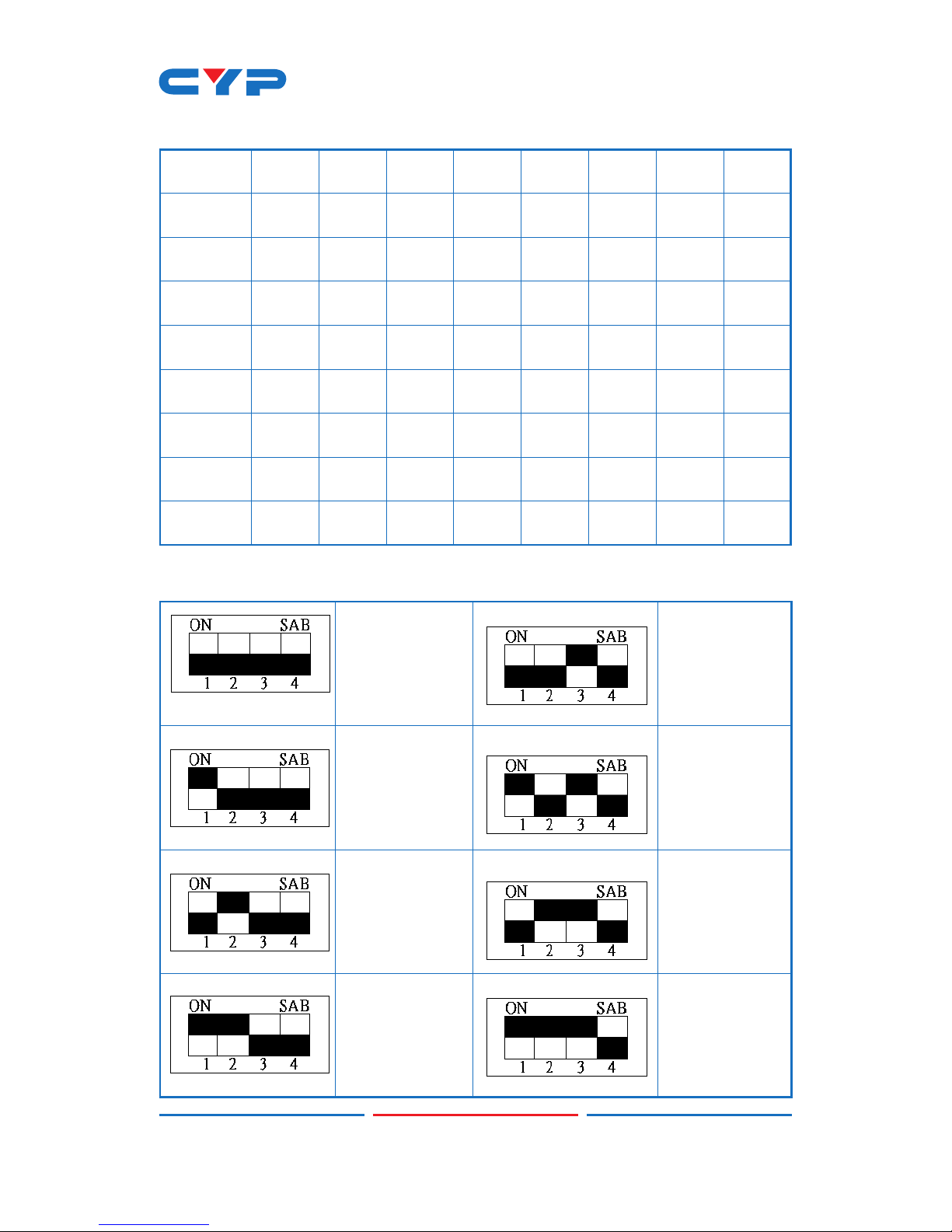

Discrete IR codes for 8x8 IR matrix (IR3)

Select /

Dipswitch input 1 input 2 input 3 input 4 input 5 input 6 input 7 input 8

output A

↓↓↓↓ 0cx88 0x89 0x8A 0x8C 0x8D 0x8E 0x90 0x91

output B

↑↓↓↓ 0x88 0x89 0x8A 0x8C 0x8D 0x8E 0x90 0x91

output C

↓↑↓↓ 0x88 0x89 0x8A 0x8C 0x8D 0x8E 0x90 0x91

output D

↑↑↓↓ 0x88 0x89 0x8A 0x8C 0x8D 0x8E 0x90 0x91

output E

↓↓↑↓ 0x88 0x89 0x8A 0x8C 0x8D 0x8E 0x90 0x91

output F

↑↓↑↓ 0x88 0x89 0x8A 0x8C 0x8D 0x8E 0x90 0x91

output G

↓↑↑↓ 0x88 0x89 0x8A 0x8C 0x8D 0x8E 0x90 0x91

output H

↑↑↑↓ 0x88 0x89 0x8A 0x8C 0x8D 0x8E 0x90 0x91

IR Dip Switch Position with Output Selection

OUTA select OUTE select

OUTB select OUTF select

OUTC select OUTG select

OUTD select OUTH select
