CYP PUV-1605S-TXWP Manuale utente

PUV-1605S-TXWP

HDMI/VGA with Scaling over Single CAT5e/6/7 HDBaseT™

Wallplate Transmitter (Full 5Play™ & Single LAN up to

100m, PoH

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer file, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of fire,

electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.00 20/06/2018 First release

CONTENTS

1. Introduction...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................7

5. Features..................................................7

6. Operation Controls and Functions .......8

6.1 Front Panel................................................... 8

6.2 Rear Panel..................................................... 9

6.3 OSD Menu ..................................................10

6.4 RS-232 Commands..................................15

7. Connection Diagram .......................... 27

8. Specifications...................................... 28

8.1 Technical Specifications ........................28

8.2 Video Specifications................................29

8.3 Cable Specifications ...............................30

9. Acronyms............................................. 31

1. INTRODUCTION

This 4K UHD Wallplate Scaler is an HDMI/VGA switch with audio

embedding and scaled HDBaseT output. The wall plate is designed for

use with UK two-gang sized enclosures. This Transmitter can send high

definition uncompressed audio/video along with Ethernet over a single

cable up to a distance of 100 metres at 1080p@60Hz.

The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The

VGA input supports resolutions up to WUXGA (RB) and with the use of the

associated 3.5mm audio input, stereo audio may be embedded as well.

To provide maximum compatibility with a wide range of display types,

all sources are scaled to a user-selected resolution and timing (up to

4K@30Hz) for transmission over HDBaseT.

This unit also supports automatic input selection between the HDMI

and VGA inputs, with hot plug detection, enabling hands-free operation.

Additionally, the unit may be powered locally or via 48V PoH (Power over

HDBaseT) from a compatible HDBaseT Receiver, which allows for greater

flexibility in installations. The unit is controllable via front panel controls

with an OSD or RS-232 (via the RS-232 port on a compatible Receiver).

2. APPLICATIONS

Household entertainment sharing and control

Lecture halls, auditoriums and classroom

Houses of worship

Conference rooms and boardrooms

Hotel event spaces

3. PACKAGE CONTENTS

1×HDMI/VGA over HDBaseT Wallplate Scaler

1×Operation Manual

4. SYSTEM REQUIREMENTS

HDMI source equipment such as a media player, video game console

or set-top box.

HDMI receiving equipment such as an HDTV, monitor or audio

amplifier.

The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly

recommended.

The use of “Premium High Speed HDMI”cable is highly recommended.

5. FEATURES

HDMI 2.0 and DVI 1.0 compatible

HDCP 2.2 and HDCP 1.x compliant

1 HDMI input

1 VGA input with 3.5mm mini-jack audio input

Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit)

Supports VGA input resolutions up to WUXGA (RB)

Simultaneous transmission of uncompressed video, audio and data

over a single 100m Cat.5e/6/7 cable at 1080p and 70m at 4K

Scaled HDBaseT output supports resolutions up to 4K@30Hz (4:4:4,

8-bit)

Automatic input selection with hot plug detection enabling hands-

free operation

Unit may be powered locally or via 48V PoH (PD) from a compatible

HDBaseT Receiver (PSE)

Wall plate is designed for UK two-gang sized enclosures

Front panel LEDs indicate input selection, power and link status

Controllable via front panel controls with an OSD or RS-232 (via the

RS-232 port on a compatible Receiver)

Note: The 48V PoH function is designed to receive power from compatible

Receiver units only. PoH from other Receiver brands may not be compatible.

6. OPERATION CONTROLS AND FUNCTIONS

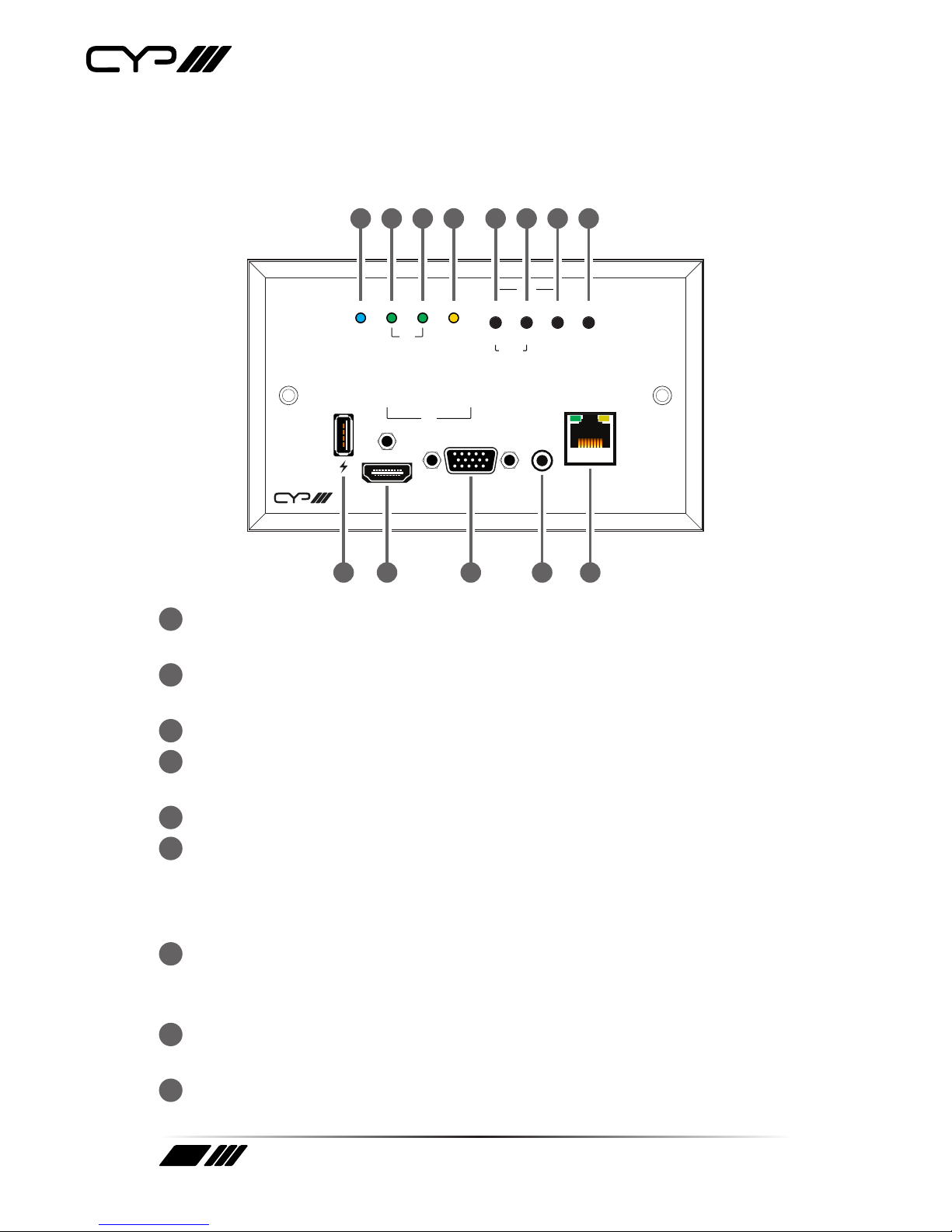

6.1 Front Panel

HDMI VGA

AUTO

ADJUST

IN SEL

ENTER

XGA

1080P

MENULINKVGAHDMIPOWER

SERVICE LAN

AUDIO

−

PUV-1605S-TXWP

1 2 3 4 65 7 8

10 11 12 13

1POWER LED: This LED will illuminate to indicate the unit is on and

receiving power.

2HDMI IN LED: This LED will illuminate when HDMI is the selected

source.

3VGA IN LED: This LED will illuminate when VGA is the selected source.

4LINK LED: This LED will illuminate when both Transmitter and

Receiver are connected and communicating with each other properly.

5MENU: Press to enter the OSD menu, or to back out from menu items.

6−/IN SEL: Press to move down or adjust selections within OSD menus.

When not in a menu press this button to switch between the available

inputs. The LED will illuminate to indicate which source is currently

selected.

7+/AUTO ADJUST: Press to move up or adjust selections within

OSD menus. When not in a menu press this button to optimise the

positioning of the picture (VGA sources only).

8ENTER: Press to confirm a selection within the OSD or to go deeper

into a menu item.

9SERVICE: This slot is reserved for firmware update use only.

10 HDMI IN: Connect to HDMI source equipment such as a media player,

game console or set-top box.

11 VGA IN: Connect to VGA source equipment such as a PC or laptop.

12 AUDIO IN: Connect to the stereo analogueue output of a device such

as a CD player or PC for embedding into the HDBaseT output.

13 LAN: Connect to an Ethernet supporting device or to your local

network, as appropriate, to extend the network to both ends of the

HDBaseT connection.

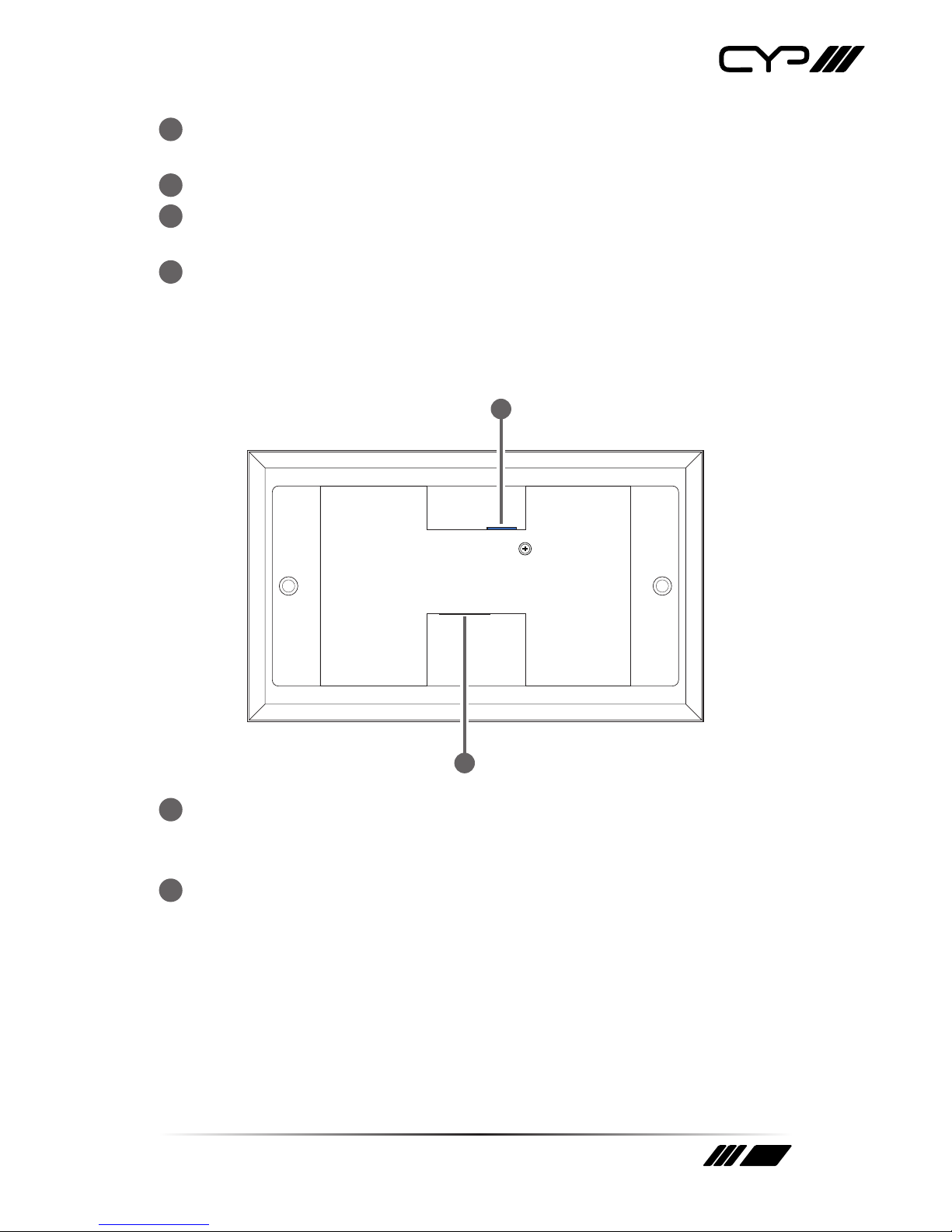

6.2 Rear Panel

DC 12V

−

CAT5e/6/7 OUT

1DC 12V: Connect a 12V DC power adapter to the twin terminal block

and connect it to an AC wall outlet for power. (Optional, not required

when powered by PoH from the Receiver.)

2CAT5e/6/7 OUT: Connect to the Receiver unit with a single Cat.5e/6/7

cable for transmission of all data signals.

6.3 OSD Menu

LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4

Video Video HDMI

Output NATIVE

640×480@60

800×600@60

1024×768@60

1280×720@60

1280×768@60

1280×800@60

1280×1024@60

1360×768@60

1440×900@60

1400×1050@60

1600×1200@60

1680×1050@60

1920×1080@60

1920×1200@60RB

2048×1080@50

2048×1080@60

2560×1440@60RB

2560×1600@60RB

720×480p@60

720×576p@60

1280×720p@50

1280×720p@60

1920×1080p@24

1920×1080p@25

1920×1080p@30
