CYP CSI-8H8CV2IR Manuale utente

CSI-8H8CV2IR

8 HDMI over CAT6 Point-to-Point Transmitter

(with IR Matrix)

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VR0 11/07/12 Preliminary Release

VR1 17/02/13 Add CAT5e/6/7 Cable Spec.

CONTENTS

1. Introduction...............................................................1

2. Applications..............................................................1

3. Package Contents ...................................................1

4. System Requirements...............................................1

5. Features.....................................................................2

6. Operation Controls and Functions..........................3

6.1 Front Panel .........................................................3

6.2 Rear Panel..........................................................4

6.3 Remote Control for IR Matrix............................5

6.4 IR Custom Code................................................5

6.5 Discrete IR Codes..............................................6

6.6 IR Dip Switch Position with Output Selection..6

6.7 IR Cable Pin Assignment...................................7

6.8 RS-232 Pin Assignments.....................................8

6.9 RS-232 Commands for IR Matrix.......................9

7. Connection Diagram .............................................11

8. Specications .........................................................13

9. Acronyms ................................................................14

1. INTRODUCTION

The 8 HDMI over CAT6 Point-to-Point Transmitter (with IR Matrix)

supports the transmission of Video (up to 1080p Full HD/1920×1200@60

Hz) with multichannel digital audio, up to eight pairs of high denition

source and CAT5e/6 output. It supports digital audio formats such

as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Mater

Audio. 3D content can be displayed when connecting a 3DTV and 3D

source. The Transmitter allows the point-to-point connection between

source equipment and output display, over distances up to 100

meters along with PoE (Power over Ethernet) feature. There is a built-

in crosspoint IR matrix providing additional control over 8-in-8-out IR

channels.

2. APPLICATIONS

• Commercial advertising and display

• Lecture room display and control

• Hyper market demonstration and control

• Any Smart AV Installation

3. PACKAGE CONTENTS

• HDMI over CAT6 Transmitter with 8×8 IR Matrix

• 8×Receiver for HDMI over CAT6 (Optional)

• 2×IR Extender

• 2×IR Blaster

• 24 V/6.25 A DC Adaptor

• Remote Control with 3V battery

• Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI equipped input source devices with HDMI cables

• HDMI equipped output displays (TVs or monitors) or HDMI equipped

AV receivers with HDMI cables

• Industry standard CAT5e/6/7 cables

5. FEATURES

• HDMI, HDCP1.1 and DVI compliant

• Supports HDMI 3D, 4k x 2k features

• Supports Stereo digital audio signal input and output

• Supports high bit-rate audio up to 192 kHz

• Supports resolutions VGA~WUXGA and 480i~1080p dependent upon

the output display’s EDID settings

• Supports extension up to 100 meters through CAT5e/6

• Supports 3D signal display dependent upon the output display's

EDID settings

• Supports HDMI input up to 10 meters at 8-bit resolution or 3 meters at

12-bit resolution

• Supports bi-directional IR from input and output locations

• Supports RS-232, remote control and on-panel control

• Supports PoE (Power over Ethernet) on compatible receivers only

• 2U size design

Note: The PoE function is designed for powering compatible receiver

units only—non-PoE receivers will need their own power supply.

Receivers of another brand may not be compatible.

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

Power All Lock Enter

5678

8 HDMI Over CAT6 Transmitter w/IR Matrix

2 3 4 5 6 71

LCM: Displays the information for each IR input and output setting.

IR: IR Receiver window (accepts the remote control signal of this

device and all output displays or source devices).

Power: Press this button to power the device on/off. The LED will

illuminate green when the power is on, red when it is in 'Standby'

mode.

All: Press this button to select all IR output with one IR input signal.

The sequence should be pressed ALL → Number Key → ENTER.

Lock: Press this button to lock all the buttons on the panel; press

again to unlock. The LED will illuminate in green when locked.

Enter: Press this button to conrm when changing a setting.

Selection 1~8

When selecting the IR input for a specic IR output, press the

Number Key rst to select the output and then press the Number

Key again to select the input.

6.2 Rear Panel

RS232

MAIN

RS232

AUX

CAT Out CAT Out CAT Out

HDMI In 1 HDMI In 2 HDMI In 3

CAT Out

HDMI In 4

CAT Out

HDMI In 5

CAT Out

HDMI In 6

CAT Out

HDMI In 7

CAT Out

HDMI In 8

DC 24V

V+

GND

V+

GND

12345678All

IR Extender

IR Blaster

43 6

RS-232 AUX: Connect to a device that can be controlled (via D-Sub

9-pin male cable) by RS-232 commands.

RS-232 MAIN: Connect to a PC or laptop with D-Sub 9-pin male

cable for the transmission of RS-232 commands.

IR Blaster 1~All: Connect the supplied IR blasters (included in the

package) for IR signal transmission, IR signals will be relayed from the

designated output IR extender. For the "All" port, the IR signals will be

relayed from all output at the same time. Place the IR blaster in direct

line-of-sight of the equipment to be controlled.

IR Extender 1~All: Connect the supplied IR extenders (included in

the package) for IR signal reception the signal will be relayed to the

designated output device via the IR blaster. For the "All" port, the

signal will be relayed to all outputs. Ensure that remote being used is

within the direct line-of-sight of the IR extender.

HDMI In 1~8: Connect to the HDMI input source devices such as a

DVD player or a Set-top Box with HDMI cables or DVI to HDMI cables.

CAT Out 1~8: Connect to the CAT in port of receiver units with a

single CAT5e/6/7 cable for HDMI Audio/Video and IR/RS-232 control

signal sending.

Note: Do NOT connect these CAT outputs to the LAN port of

receiver units—this will cause serious damage to the receiver unit.

DC 24V: Plug the 24 V DC power supply (included in the package)

into the unit and connect the adaptor to an AC outlet. This unit will

also power PoE (Power over Ethernet) capable receiver units.

6.3 Remote Control for IR Matrix

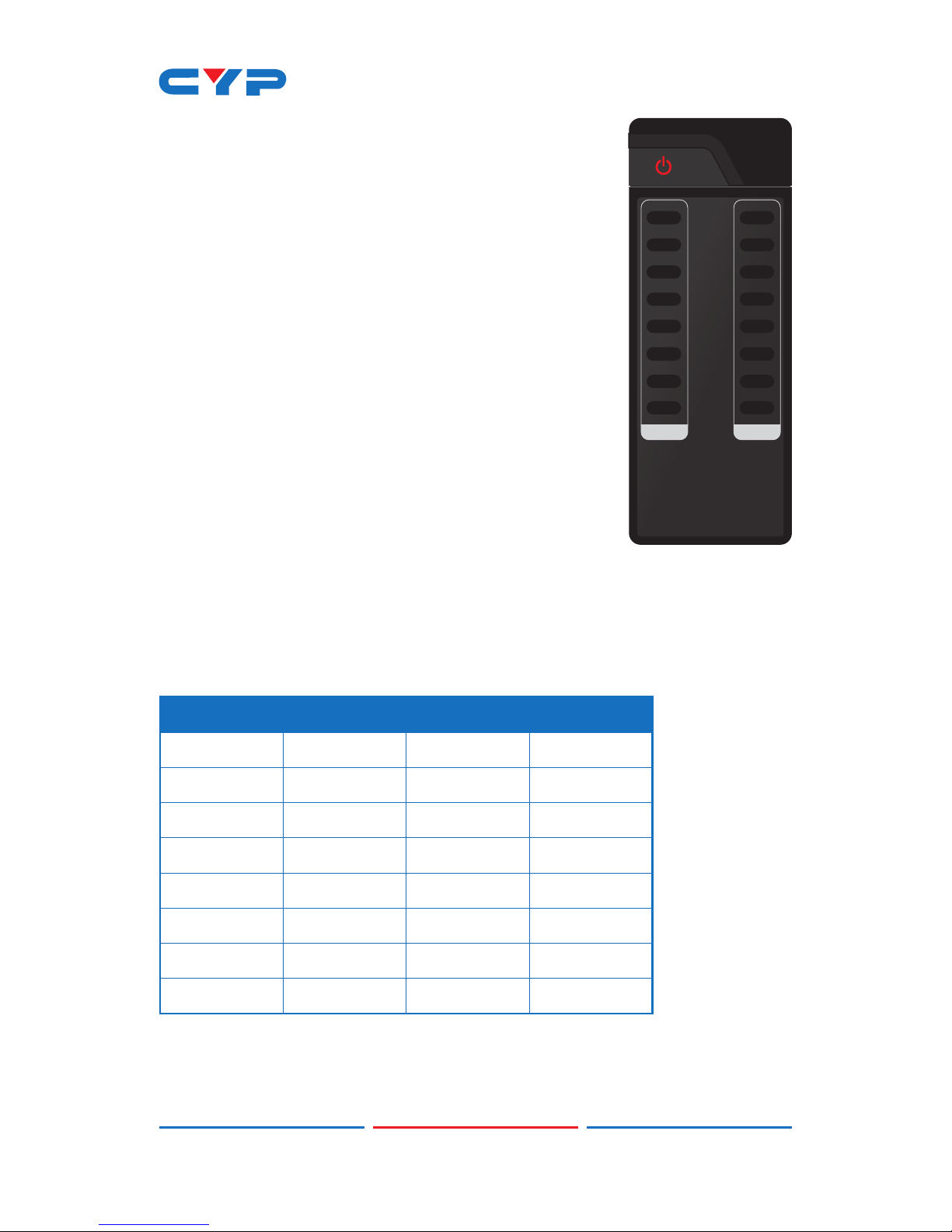

The remote control unit included in the package is

for IR Matrix only, and can be used to control the

IR channel mapping of individual or all receivers,

depends on the dipswitch setting.

There are total of four dipswitches, when all of

them are set to ON/↑, the remote control unit is

able to control the IR routing of all receivers. For

example, if you want to set up the bi-directional IR

channel between Output A receiver and Input 5,

simply press A rst and then press 5.

You can set the remote control unit to control the

IR routing of single receiver only, please refer to

the dipswitch settings in section 6.6. For example,

when all dipswitches are set to OFF/↓, only the IR

channel of Output A receiver can be selected,

when you want to set up the bi-directional IR channel between

Output A receiver and Input 3, simply press 3.

6.4 IR Custom Code

NO. DATA NO. DATA

1 88 A 8A

2 8C B 8E

3 90 C 92

4 85 D C6

5 C2 E 99

6 9C F 98

7 D8 G 84

8 87 H 97

CR-110

IN OUT
