CYP CH-103TX Manuale utente
CH-103TX
HDMI v1.3 to
CAT6 Transmitter
Operation Manual
CH-103TX
TABLE OF CONTENTS
1. Introduction.................................................................................1
2. Main Features............................................................................. 1
3. Package Contents..................................................................... 1
4. Operation Controls and Functions............................................1
4.1 Front Panel.............................................................................1
4.2 Rear Panel..............................................................................2
5. Connection and Installation...................................................... 2
6. Specifications............................................................................. 2
1. Introduction
This is the transmitter (Tx) unit of HDMI to CAT6 Solution that can extend
HDMI digital signal through CAT-6 cables. This is compatible to HDMI v1.3
specifications, a cutting-age technology which defines the support to
transfer Deep Color (12 bits/color) video and new lossless compressed
(Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio,
with a bandwidth up to 225MHz. The installation of HDMI to CAT6 is easy
and quick, simply place transmitter side next to your HDTV source such as
a DVD player, then place the receiver side next to your CAT 6 to CAT6
repeater unit and get all necessary cables connected and enjoy.
2. Main Features
●Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards.
●Supports digital video formats in Deep Color Mode at up to 36 bits
(12bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital
Plus and DTS-HD Master Audio) Digital audio .
●Supports CAT-6 cables for data/DDC transmission.
●Supports equalize and recover incoming TMDS data before re-transmitting
them with optimal quality regardless of the incoming signal quality.
●Supports high definition resolution, the cable distance test with 1080p/8bits
resolution the Input/Output source can run up to 30/45 meters. If
1080p/12bits resolution the Input/Output source can run up to 15/15
meters.
●Support CEC bypass.
●Support xvYCC.
3. Package Contents
●HDMI to CAT6 Transmitter.
●5V DC power supply adaptor.
●Operation Manual.
4. Operation Controls and Functions
4.1. Front Panel

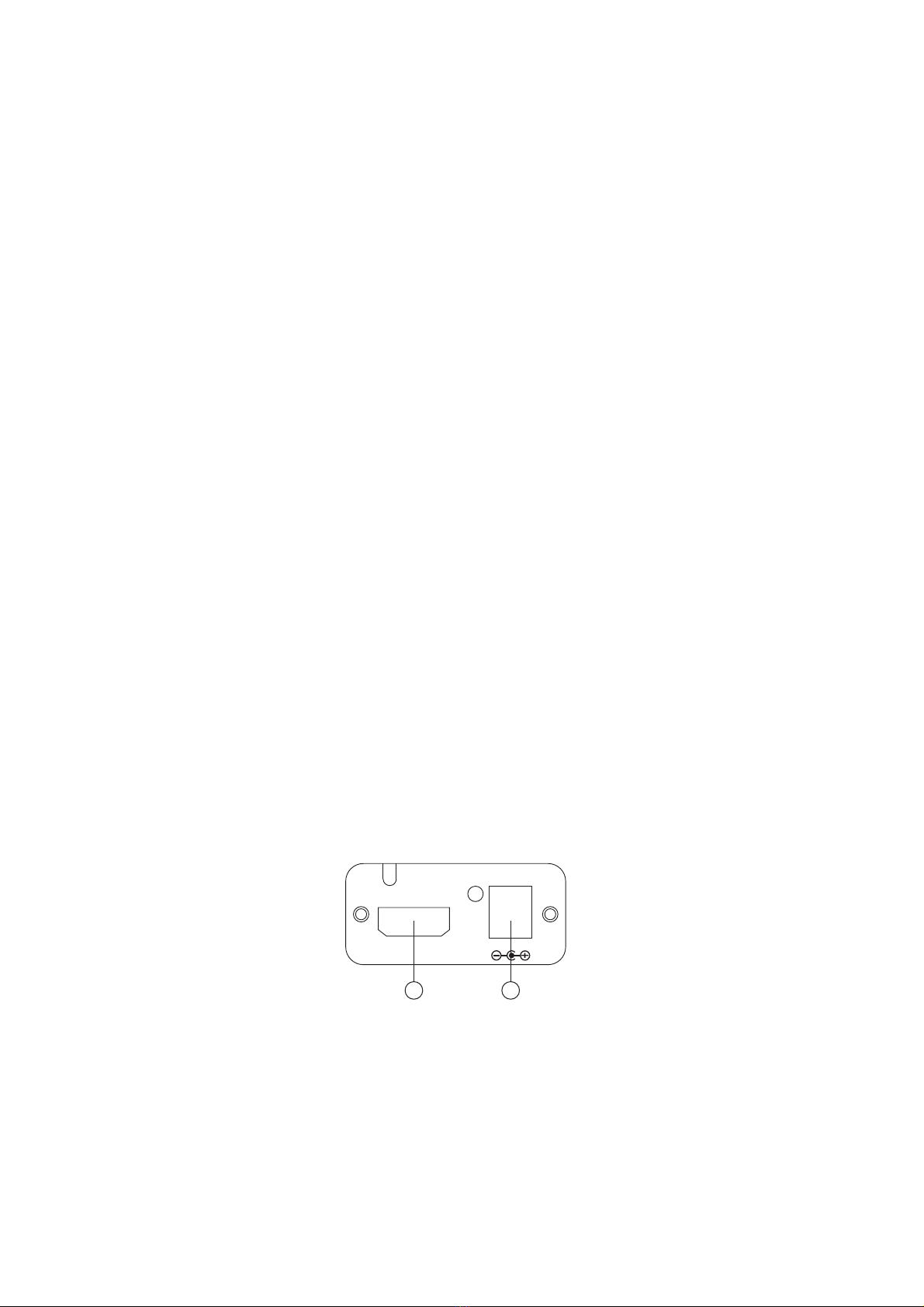

1
DC 5V
POWER
HDMI INPUT
1 2
2
1 HDMI input: Connect the HDMI input port to the HDMI or DVI output of your
source equipment such as DVD player or set-top-box.
2 Power: Plug the 5VDC power supply into the unit and connect the
adaptor to AC wall outlet.
4.2. Rear Panel

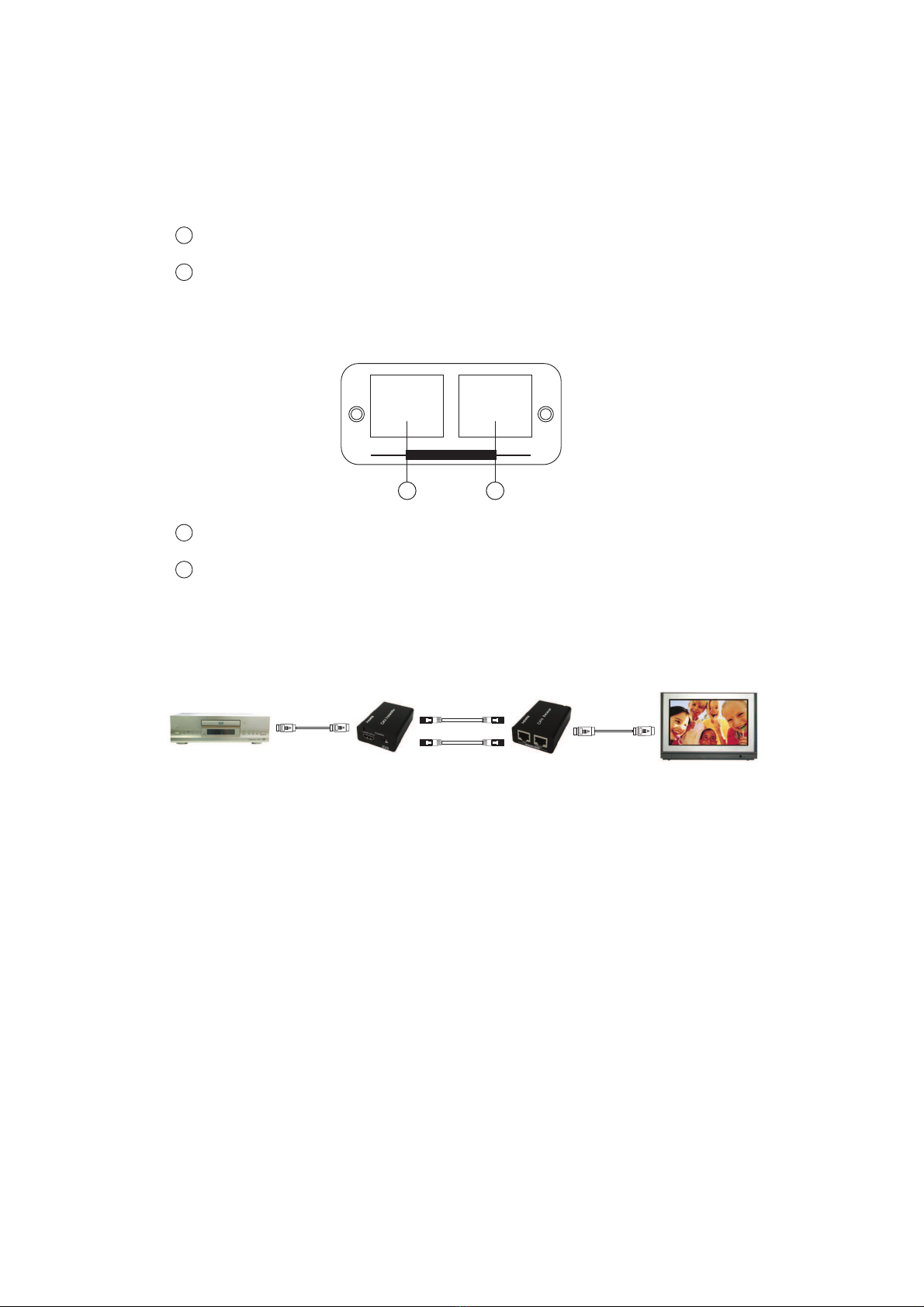

1 DDC output: Connect the DDC output to the DDC input of the receiver
unit using CAT-6 cable.
2 Video output: Connect the video output to the video input of the receiver
unit using CAT-6 cable.
5. Connection and Installation
6. Specifications
Input port 1 x HDMI
Output ports 1 x CAT-6 output for Video,
1 x CAT-6 output for DDC
Power Supply 5V/2.6A DC (US/EU standards,
CE/FCC/UL certified)
Dimensions (mm) 50(W) x 62(D) x 23(H)
Weight(g) 90
Chassis Material Aluminum
Silk Skin Color Black
Operating Temperature Operating from 0°C ~ 40°C
1 2
VIDEODDC
CAT6 OUTPUT
HDMI
HDMI
HDMI LCD TV
CH-103TX CH-103RX
DVD PLAYER
HDMI
Cable
DDC
VIDEO
HDMI
Cable
HDMI
HDMI
