CYP CH-107TX Manuale utente

CH-107TX

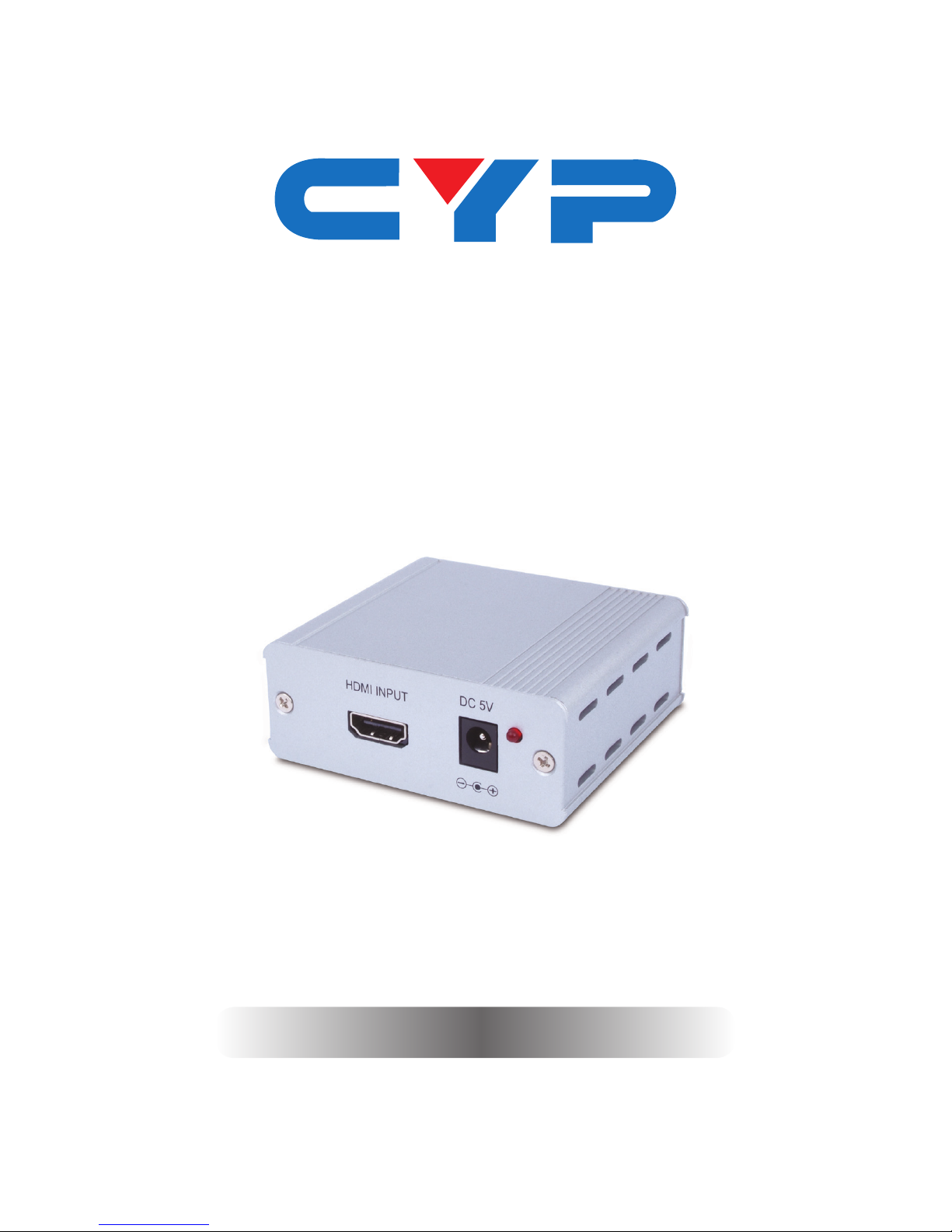

HDMI to Single CAT6 Transmitter

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person to walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

V1 17/03/10 Preliminary Release

VS2 05/01/11 CAT6 Cable Distance

VR3 16/04/12 CAT6 Type Error

VS4 21/12/12 Removed HDMI Version Numbers;

Changed Front and Rear Panel

Diagrams

VS5 24/02/14 Updated format/diagrams

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel.........................................3

7. Connection Diagram ............................ 4

8. Specications ........................................ 5

8.1 Technical Specications .................5

8.2 Compatible Products ......................6

9. Acronyms ............................................... 6

1. INTRODUCTION

The HDMI to Single CAT6 transmitter can send High Denition video

(1080p/Deep Color) and audio (Dolby TrueHD, Dolby Digital Plus and

DTS-HD Master Audio) over a single run of CAT6 cable to a compatible

receiver unit.

2. APPLICATIONS

• Distribute HDMI signals over long distances

• Showroom display

• Lecture room display

3. PACKAGE CONTENTS

• HDMI to Single CAT6 Transmitter

• 5 V/1 A DC Power Supply Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

HDMI source device such as a DVD/Blu-ray player and an HDMI

display with HDMI connection cables and industry standard CAT6

cable and a compatible receiver.

5. FEATURES

• HDMI, HDCP 1.1 and DVI 1.1 compliant

• Supports digital video formats in 'Deep Color' mode at up to 36-bit

(12-bit/color)

• Supports lossless compressed Digital Audio formats (Dolby TrueHD,

Dolby Digital Plus and DTS-HD Master Audio)

• Uses a single CAT6 cable for Data/DDC transmission

• Equalizes and recovers incoming TMDS data before re-transmitting it

in optimal quality regardless of the incoming signal quality

• Supports HDMI cable distances of up to 10 meters at 1080p/8-bit

and 12-bit resolutions

• Supports CAT6 cable distances of up to 45 meters at 1080p/8-bit

resolution and 15 meters at 1080p/12-bit resolution

• Supports x.v.YCC

Note:

1. This system was tested with CAT6/23AWG/Solid cable, results may

vary with cables of another specifcation.

2. Cable distance tested with Sony Playstation 3 (120 GB model), 37"

Philips 8-bit LCD TV and 40" Samsung 12-bit LCD TV.

3. The gures provided in this manual are for reference only; actual

performance may depend on the source and display used as well

as the cable specication.

6. OPERATION CONTROLS AND FUNCTIONS

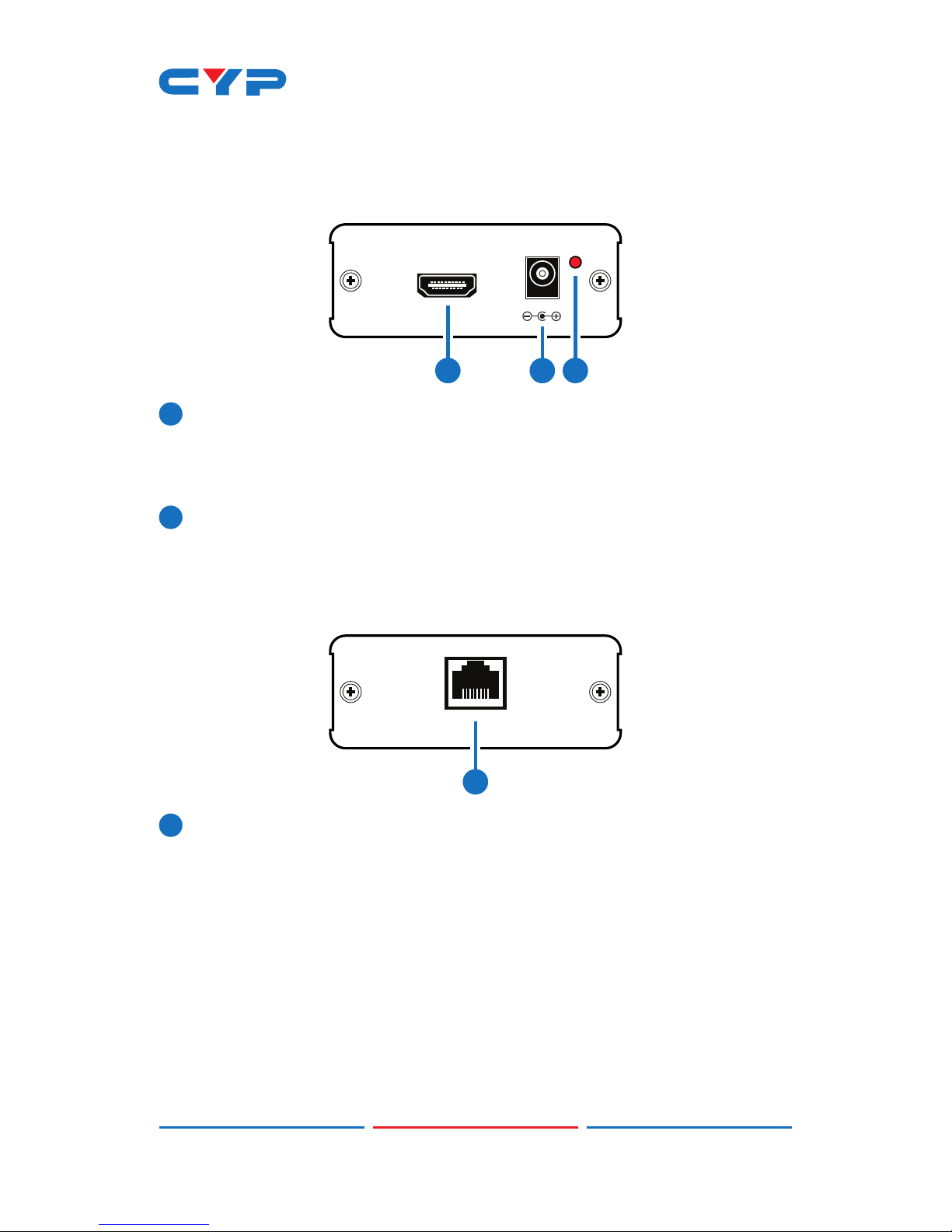

6.1 Front Panel

DC 5V

HDMI INPUT

1 2 3

1HDMI IN: Connect to the HDMI or DVI output (with a DVI to HDMI

adaptor)of a source device such as a DVD/Blu-ray player or a Set-

top Box with an HDMI cable or cascade to a compatible Receiver

unit (see Section 8.2) to extend the transmission distance.

2DC 5V: Connect the 5V DC power supply to the unit and plug the

adaptor into an AC outlet.

6.2 Rear Panel

CAT6 OUT

1CAT6 OUT: Connect to the CAT6 input of a compatible Single CAT6

to HDMI Receiver unit (see Section 8.2) attached to an display.

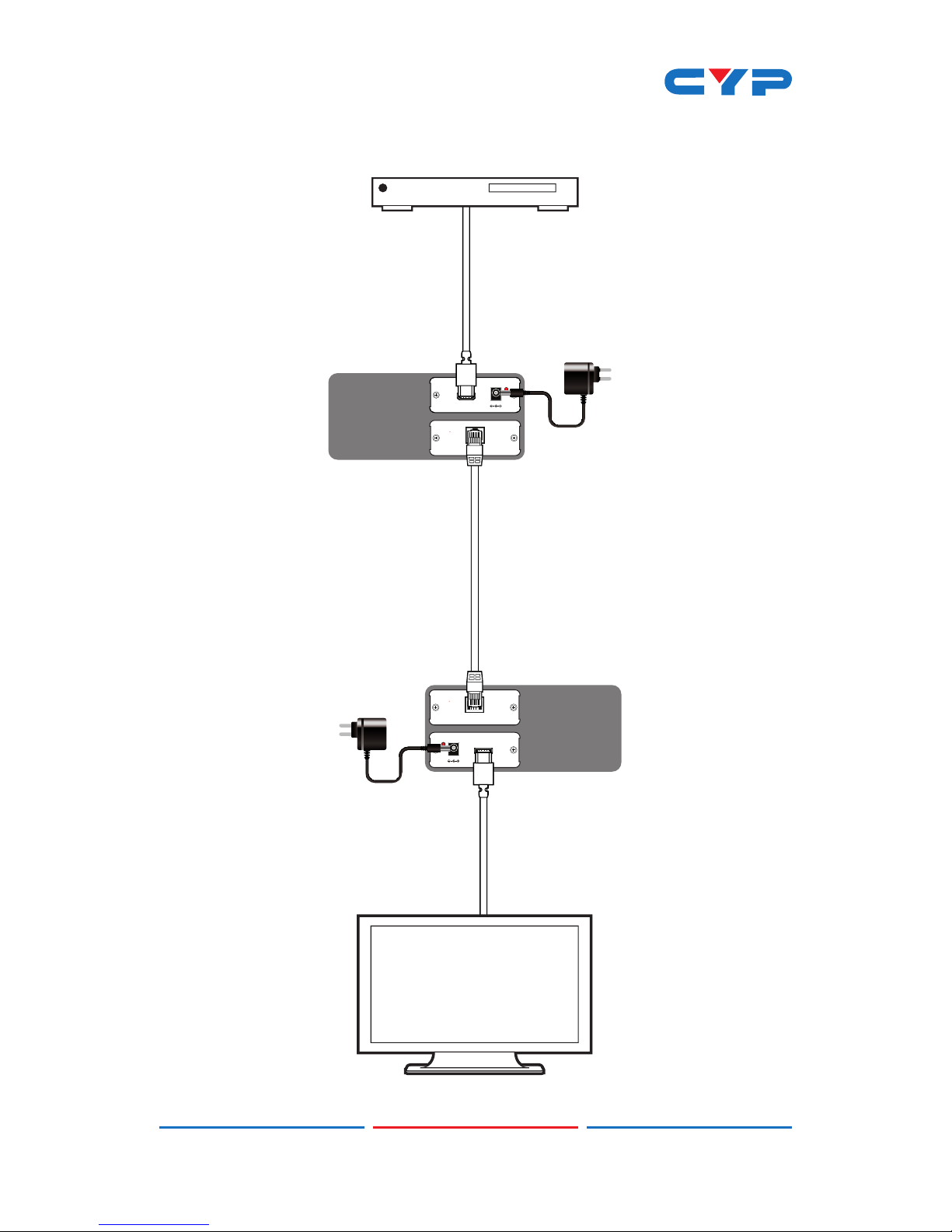

7. CONNECTION DIAGRAM

CAT6 IN

DC 5V HDMI OUT

TV/STD

10 Bit

CAT6 OUT

EDID

8 Bit 12 Bit

DC 5V

HDMI INPUT

CAT6 OUT

DVD or Blu-ray Player

Power

Supply

Power

Supply

HDMI

Output

Display

HDMI

Input

CAT6/7

Cable

(45m/8-bit)

8. SPECIFICATIONS

8.1 Technical Specications

Video Bandwidth 2.25 MHz/6.75 Gbps

Input Port 1×HDMI (Female connector)

Output Port 1×RJ45

HDMI Cable Distance 10m@1080p/8-bit or 12-bit

CAT6 Cable Distance 45m@1080p/8-bit or 15m@1080p/12-bit

Power Supply 5 V/1 A DC (US/EU standards, CE/FCC/UL

certied)

ESD Protection Human Body Model:

± 8kV (air-gap discharge)

± 4kV (contact discharge)

Dimensions 78.5 mm (W)×72 mm (D)×30 mm (H)

Weight 90 g

Chassis Material Aluminum

Silkscreen Color Silver

Power Consumption 3.5 W

Operating Temperature 0 ˚C ~ 40 ˚C / 32 ˚F ~ 104 ˚F

Storage Temperature −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F

Relative Humidity 20~90 % RH (non-condensing)
