CYP CA-HDMIAT Manuale utente
HDMI Over CAT5
Transmitter
Operation Manual
CA-HDMIAT
TABLE OF CONTENTS
1. Introduction................................................................................ 1
2. Features...................................................................................... 1
3. Package Contents.................................................................... 1
4. Operation Controls and Functions........................................... 2
4.1 Front Panel........................................................................... 2
4.2 Rear Panel........................................................................... 2
5. Specifications............................................................................ 3
6. Connection and Installation.................................................... 4
1
1. Introduction
2. Features
1. Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 specifications.
2. Supports CAT-5/CAT-5E/CAT-6 cables of variable types.
3. Supports high definition input up to 1080P, output resolution follows input.
4. Easy to install and simple to operate.
3. Package Contents
1. HDMI Over CAT5 Transmitter
2. 5VDC Power Supply Adaptor
3. Operation Manual
This is the transmitter (Tx) unit of HDMI over CAT5 Tx/Rx solution, depends on the
type of receiver (Rx) unit used, this HDMI over CAT5 transmitter can extend
HDMI signal through CAT-5 cables for a distance up to 50/100/150/250 meters.
The installation of HDMI Over CAT5 is easy and quick, simply place transmitter
next to your HDTV source such as a DVD player, then place the receiver unit
next to your display, and get all necessary cables connected to complete and
enjoy.
2
VIDEO DDC DC 5V
CAT5 OUTPUT
1 2 3

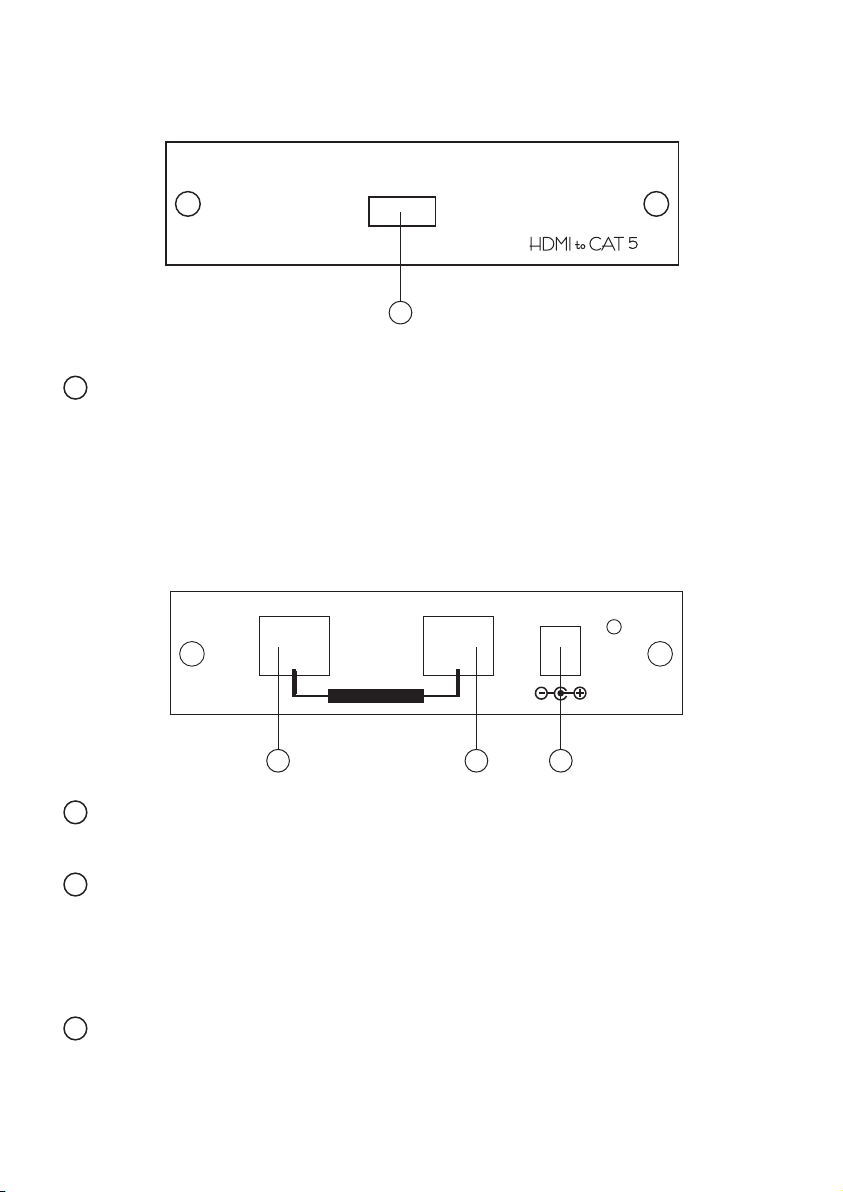

4.2 Rear Panel
1 VIDEO OUTPUT:
Connect the VIDEO output to the VIDEO input of the receiver unit using
CAT-5/CAT-5E/CAT-6 cable.
2 DDC OUTPUT:
Connect the DDC output to the DDC input of the receiver unit using CAT-
5/CAT-5E/CAT-6 cable.
Note: For advanced user only, if it's known that the DDC or HDCP data are
required for the source and the display, you can use a single CAT-5 cable
to connect the VIDEO ports of transmitter and receiver.
3 Power:
Plug the 5VDC power supply into the unit and connect the adaptor to AC
wall outlet.

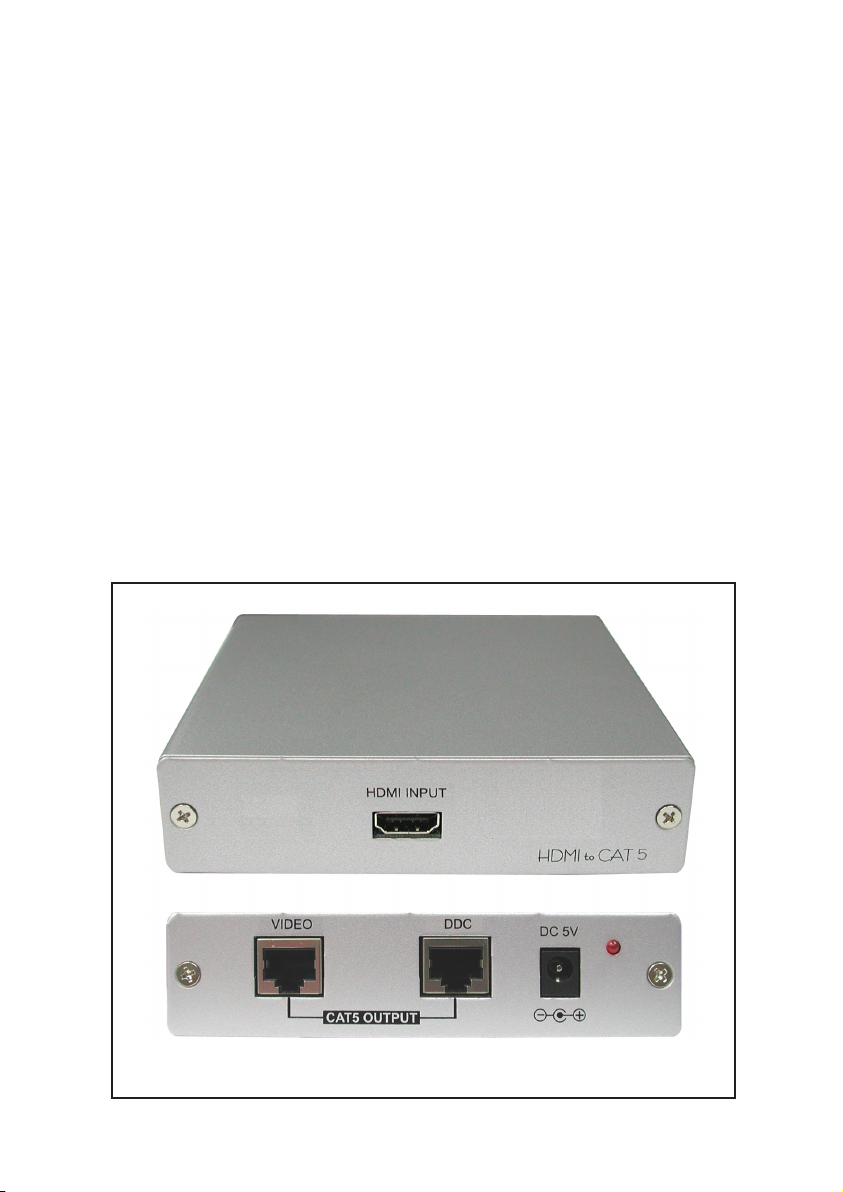

4. Operation Controls and Functions
4.1 Front Panel
1
HDMI INPUT
1 HDMI INPUT:
Connect the HDMI input port to the HDMI or DVI output of your source
equipment such as DVD player or set-top-box.
5. Specifications
1. Supported resolutions: HDMI - 480i/480p, 576i/576p, 720P@50/60Hz,
1080i@50/60Hz, 1080p@50/60Hz
2. Input: 1* HDMI female port
3. Output: 1* CAT-5 output for VIDEO, 1* CAT-5 output for DDC
4. Power: 5V / 2.6A DC power supply
5. Dimensions: 123(W) x 125(D) x 30(H)mm
6. Weight: 700g
3
4

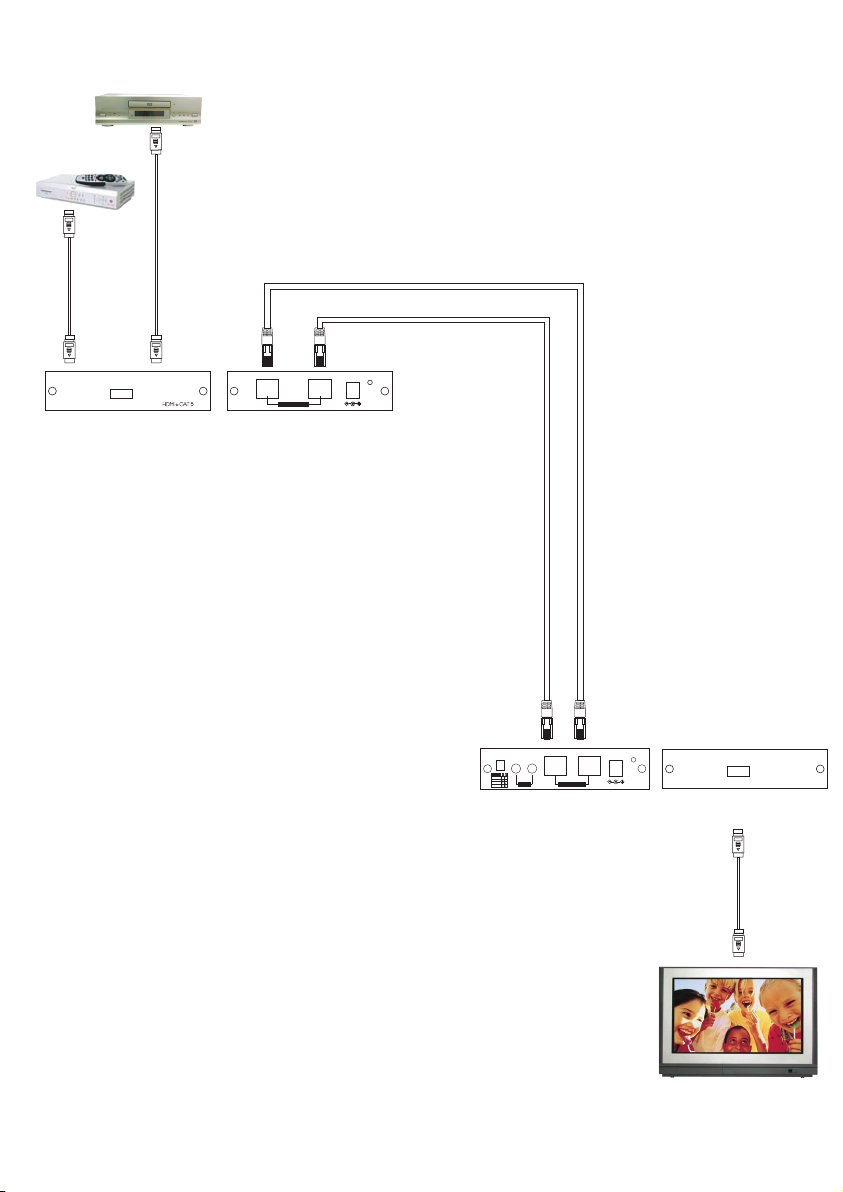

6. Connection and Installation
DVD Player
HDMI
Cable
OR
HDMI
HDMI
HDMI
Cable
HDMI
Display
HDMI
HDMI
DDC (CAT-5 Cable)
50 Meters
100 Meters
150 Meters
250 Meters
VIDEO (CAT-5 Cable)
Transmitter unit Transmitter unit
Front
Receiver Unit
Front
Rear
Receiver Unit
Rear
VIDEO DDC DC 5V
CAT5 OUTPUT
HDMI OUTPUT
HDMI INPUT
DDC VIDEO DC 5V
EQUALIZER1 2
GAIN
ADJUST
CTI
250
150
100
50
MIN
MAX
CAT5 INPUT
STB
HDMI
Cable
HDMI
HDMI
Cypress HDMI Over CAT5 Series:
Product
CA-HDMIAT
CA-HDMI 50R
CA-HDMI 100R
CA-HDMI 150R
CA-HDMI 250R
Description
HDMI Over CAT5 Transmitter
HDMI Over CAT5 Receiver at 50 meters
HDMI Over CAT5 Receiver at 100 meters
HDMI Over CAT5 Receiver at 150 meters
HDMI Over CAT5 Receiver at 250 meters
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
20070727 MPM-CAHDMIAT
