D-Link DVX-3500 Manuale utente

DVX-3500 IPPBX

Review Package Contents

Make sure that the package contains the following items.

•DVX-3500

•1 Straight

Ethernet cable

•1 RJ-45 to DB-9

Cable

•2 Power cords

•1 User Manual CD

Before You Begin

The default IP address for the DVX-3500 is 10.0.0.1 with a

Subnet Mask of 255.0.0.0.You will need to assign your

computer a static IP address within the same range as the DVX-

3500 IP address (10.0.0.x), e.g. 10.0.0.2 to configure it. To

restore DVX-3500 to factory default, Press the reset switch

placed at the front side of the unit.

The product is equipped with Redundant Power Supply (RPS),

which will keep the unit ON in case of failure of either of the

Power Supply modules (PSU1 & PSU2). These Power Supply

units can be replaced without powering the System down.

•Clamps and

screws

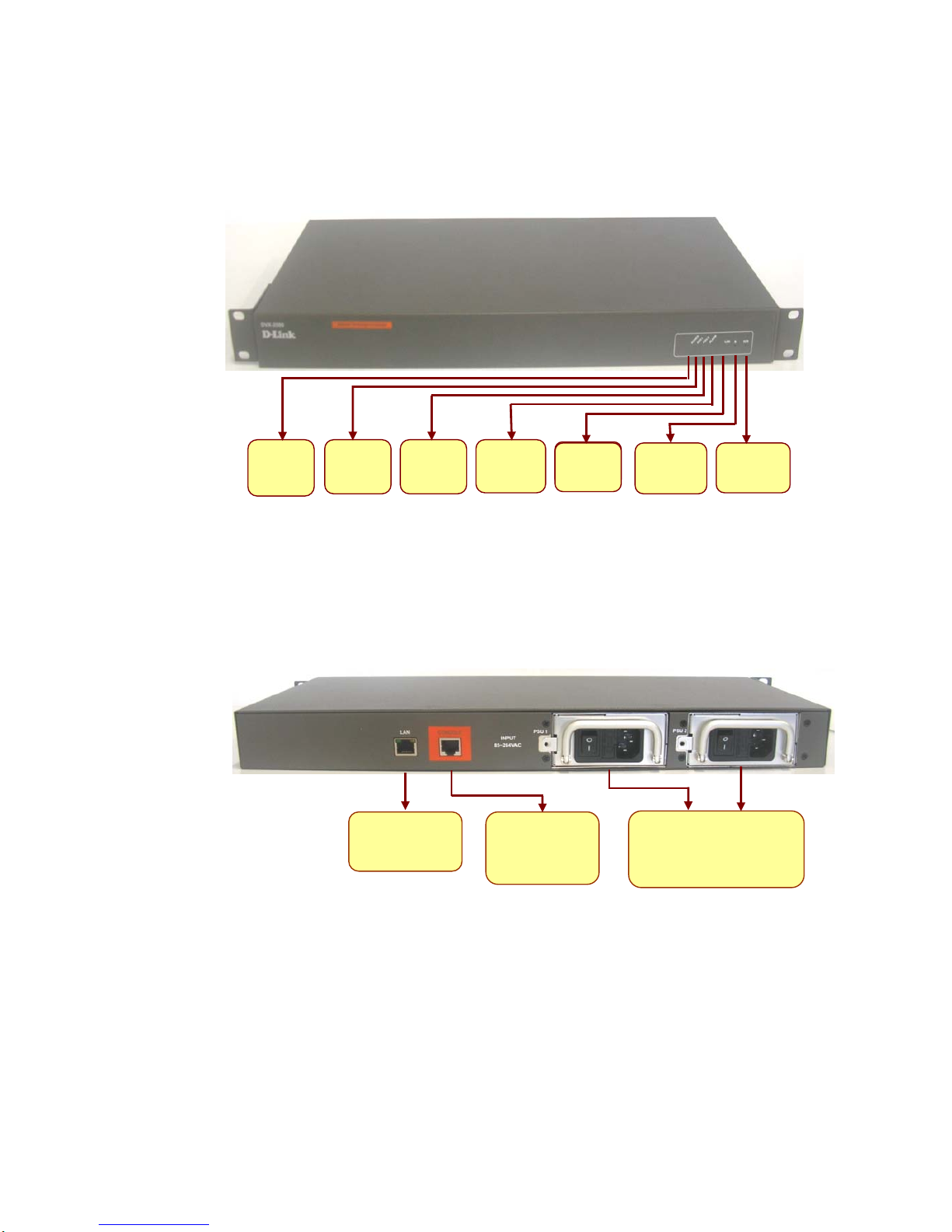

Front View

Rear View

10/100Tx

LAN Port CONSOLE

Port

Power

LED PSU 1

LED PSU 2

LED Alarm

LED LAN

Reset

Switch Buzzer

Switch

LAN

LED

Dual 220V AC

Power Supply

Connecting DVX-3500

A.Connect two Power cords to the two Power Supply modules

of DVX-3500 and power ON the unit. The Power Led

will turn ON.

B. Connect the LAN interface to the hub or switch connected

to your internal network using ethernet cable.

C.The LAN indicator Led should glow, if the LAN port is

connected to the local network.

D. Connect the RJ-45 to DB-9 Console Cable from the unit to

the Com Port of the PC

DVX-3500 IPPBX Connection Diagram

Configuring DVX-3500

A computer connected on your LAN network must be assigned

an IP address and subnet mask from the same range as the IP

address and Subnet mask assigned to DVX-3500. The IPPBX

by default is assigned an IP address of 10.0.0.1 with a subnet

mask of 255.0.0.0. It can be configured in 2 ways, Web page

and Command Line Interface (CLI).

1. Connect a console cable from the console Port of IPPBX

to ‘Com’ port of your PC and open the hyper terminal.

The terminal settings should be 115200 8-N-1-N.

After the board boots up fully, the

message ‘Please press enter to

activate this console’ will be

displayed on the console.

Press Enter to login

Username: ‘ippbx’

Password: ‘ippbx’

‘DVX#’ prompt will

appear

2. To change the IP use the following command

Set ip < IP address> <netmask>

Use the following command to change

the ip address

3. Connect to http://<IP address> using

Internet Explorer.

Check whether the PC is in the same IP range and the Proxy

is disabled.

The Security Alert

window will appear.

Click on ‘yes’

4. Login page will appear

User Extension: ‘ippbx’

Password: ‘ippbx’

e: Admin

Click on login

5. D-Link welcome page will appear and you can browse

through it.

CONFIGURATION SETTINGS TO ADD USERS IN DVX-3500

The above figure explains the setup on how to add users in

DVX-3500. Use preconfigured IP phones which are in the same

subnet as that of DVX-3500. The gateway of the IP phones

should be that of the IPPBX. Settings which are to be made on

the Device Manager web page are shown below.

IP PHONE

111

Hub or Switch

DVX

3500

IP PHONE

222

IP : 192.168.100.20

SIP Proxy Server :192.168.100.254 IP: 192.168.100.21

SIP Proxy Server:192.168.100.254

IP: 192.168.100.254

IP: 192.168.

100.1
