DWC1534BLS

OWNER’S MANUAL

GUIDE DU PROPRIÉTAIRE

MANUAL DEL USARIO

Important Safety Information

Safety Precautions 3

Grounding Instructions 4

Leveling Instructions 4

Operating Instructions

Note on Door Swing 5

Features of Your Wine Cooler 5

The Controls of Your Wine Cooler 6

Setting the Temperature 6

Wine Storage 7

Shelf Instructions 7

Installation Instructions

Tools You Will Need 8

Preparing the Enclosure 8

Care and Cleaning

Helpfull Hints 9

How to Clean the Inside 9

How to Clean the Outside 9

Trouble Shooting

Before Your Call For Service 10

Warranty 11

TABLE OF CONTENTS

WELCOME

NEED HELP?

Welcome to the

Danby family. We’re

proud of our quality

products and we

believe in dependable

service.

You’ll see it in this

easy-to-use manual

and you’ll hear it in the

friendly voices of our

consumer service

department.

Tel:1-800-26-

Best of all, you’ll

experience these

values each time you

use your wine cooler.

That’s important,

because your new

appliance will be part

of your family for a

long time.

Before you call for service,

there are a few things you

can do to help us serve

you better...

Read this manual

It contains instructions to

help you use and maintain

your wine cooler properly.

If you received a

damaged appliance

Immediately contact the

dealer (or builder) that sold

you the wine cooler.

Save time and money

Check the Trouble Shooting

section before calling. This

section helps you solve

common problems that may

occur.

If you do need service, you

can relax knowing help is

only a phone call away.

Tel: 1-800-26-

Write down the model and serial

numbers here. They are on a label

located on the back of the wine

cooler.

Model number DWC1534BLS

Serial number

Date purchased

Staple your receipt to the inside

back cover of this manual. You will

need it to obtain service under

warranty.

Start Here!…Before using your Wine Cooler

READ ALL SAFETY INFORMATION BEFORE USING

IMPORTANT SAFETY INFORMATION

WARNING

SAFETY

PRECAUTIONS

•This appliance must be

grounded. Connect only to a

properly grounded outlet.

See “Grounding Instructions”

section on page 4.

•Do not operate this appliance

if it has a damaged power cord

or plug, if it is not working

properly, or if the appliance has

been damaged or dropped.

•Do not splice the power cord

that is equipped with this appli-

ance.

•Keep power cord away from

heated surfaces.

•Do not immerse power cord,

plug or the appliance itself in

water.

•Do not use this product near

water-for example, in a wet

basement, near a swimming

pool or near a sink.

•Do not use corrosive

chemicals or vapors in this

appliance.

•Use this appliance only for

it’s intended use, asdescribed

in this manual.

•Do not store perishable food

items such as (but not limited

to) meats and dairy products

in your wine cooler.

•Store wine in sealed bottles

only.

•See door surface cleaning

instructions in the Care and

Cleaning section(s) of this

manual.

•Do not cover or block any

openings on the appliance.

•This appliance is intended for

household use only. Do not

attempt to operate or store this

appliance outdoors.

•This appliance should be

serviced only by qualified serv-

ice personnel. Contact the

nearest authorized service

facility for examination, repair

or adjustment.

SAVE THESE INSTRUCTIONS

CAUTION

To avoid installation/operation difficulties, read these instructions thoroughly.

DANGER, RISK OF CHILD ENTRAPMENT!

An empty wine cooler is a very dangerous attraction to children. Remove either the

gasket, latches, lids, lock and/or doors from unused or discarded appliances, or take

some other action to guarantee it harmless.

DON’T WAIT, DO IT NOW!

This appliance must be

grounded. In the event of an

electrical short circuit, ground-

ing reduces the risk of electric

shock by providing an escape

wire for the electric current.

This appliance is equipped

with a power cord having a

grounding wire with a ground-

ing plug. The plug must be

plugged into an outlet that is

properly installed and ground-

ed.

Consult a qualified electrician

or service technician if the

grounding instructions are not

completely understood, or if

doubt exists as to whether the

appliance is properly ground-

ed.

If the outlet is a standard 2-

prong wall outlet, it is your per-

sonal responsibility and obliga-

tion to have it replaced with a

properly grounded 3-prong

wall outlet.

For best operation, plug this

appliance into its own electri-

cal outlet to prevent flickering

of lights, blowing of fuse or

tripping of circuit breaker.

Do not under any circum-

stances cut or remove the

third (ground) prong from the

power cord.

Do not use an adapter plug

with this appliance.

Do not use an extension

cord with this appliance. If the

power cord is too short, have

a qualified electrician or serv-

ice technician install an outlet

near the appliance.

GROUNDING

INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

WARNING!

Improper use of the grounding

plug can result in a risk of

electrical shock.

WARNING!

Extreme Weight Hazard

Use two or more people when

moving the wine cooler.

Beneath the wine cooler there

are two leveling legs that are

located on either side of the

vent. It is important that your

wine cooler is level. To level the

wine cooler:

1. Move the wine cooler to

its final location.

2. Have someone gently lean

against the front of the wine

cooler to take some of the

weight off of the leveling

legs.

3. Turn the leveling legs clock-

wise to raise the wine

cooler, or counter-clockwise

to lower it. Continue in this

manner until the wine

cooler is level. See Fig. A.

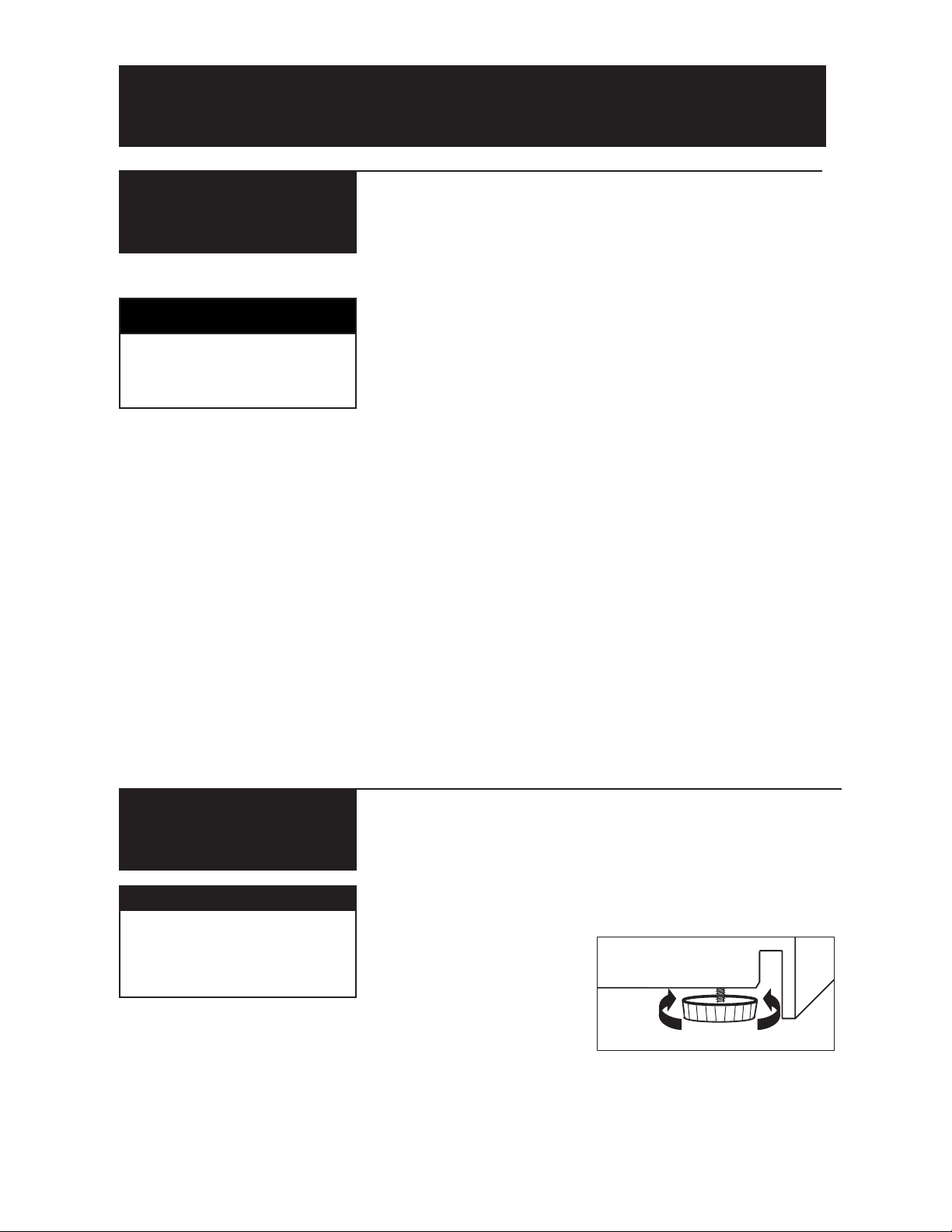

Leveling

Instructions

Fig. A

Raises

Lowers

Operating Instructions

Features of your

Wine Cooler

1. Tempered Glass Door: Tinted for UV

protection while still allowing for easy

interior viewing.

2. Child Proof Lock with Key

3. Magnetic Door Gaskets: Tight fitting seals

retain all the cooling power and humidity

levels.

4. Slide-out shelves with stainless steel

trim.

5. Front Mounted Exhaust: Allows for

integrated (built-in) applications.

6. Leveling Legs

7. Interior Lights (not shown):Illuminate

both compartments of the wine cooler.

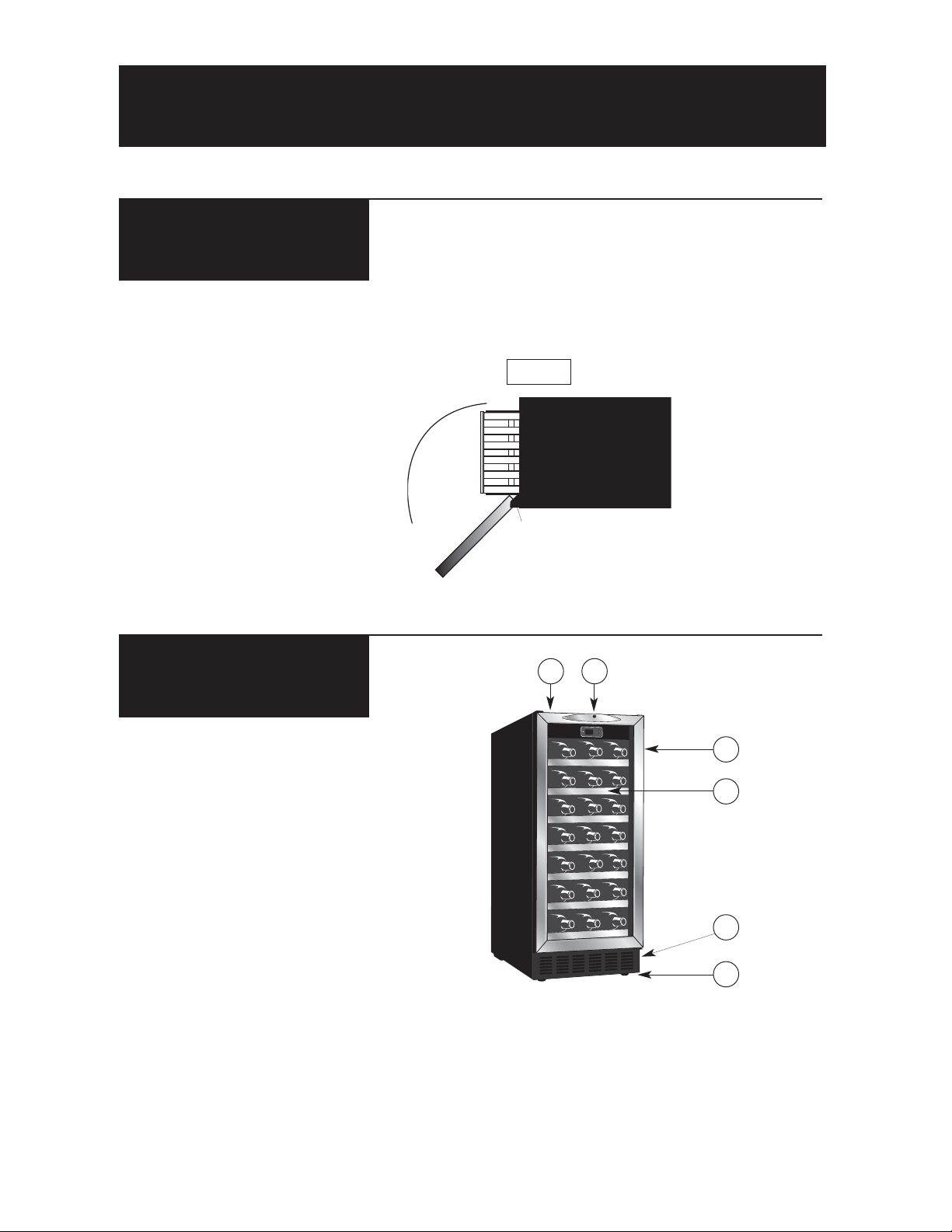

Door Swing

130°

Before Operating:

• Ensure the door has clearance

to open 130° (see Fig 1).

• If necessary move any

obstacles to accommodate

door swing.

Fig 1

1Extended shelf

2Door hinge

3Door

2412 /

62,9cm

Operating Instructions

Setting the

Temperature

•To switch the display

between the Fahrenheit (°F)

and Celsius (°C) scale,

depress the UP ( ) and

DOWN ( ) control buttons

simultaneously for approxi-

mately five (5) seconds

•The temperature range for

both compartments can be set

as low as 39°F(4°C) or as

high as 64°F (18°C) to suit

your specific wine storage

requirements. Each depres-

sion of the UP ( ) or DOWN

( ) button will allow you to

adjust the temperature in 1°

degree increments within the

aforementioned range.

•You may view your ‘set’

temperature at any time by

briefly depressing either the

UP ( ) or DOWN ( ) but-

ton. The

set

temperature will

flash in the display area for 5

seconds before the display

resumes showing the

current

cabinet temperature.

Please note: In the event of a

power failure or interruption,

all modified settings are lost

and the default settings are

used once power resumes.

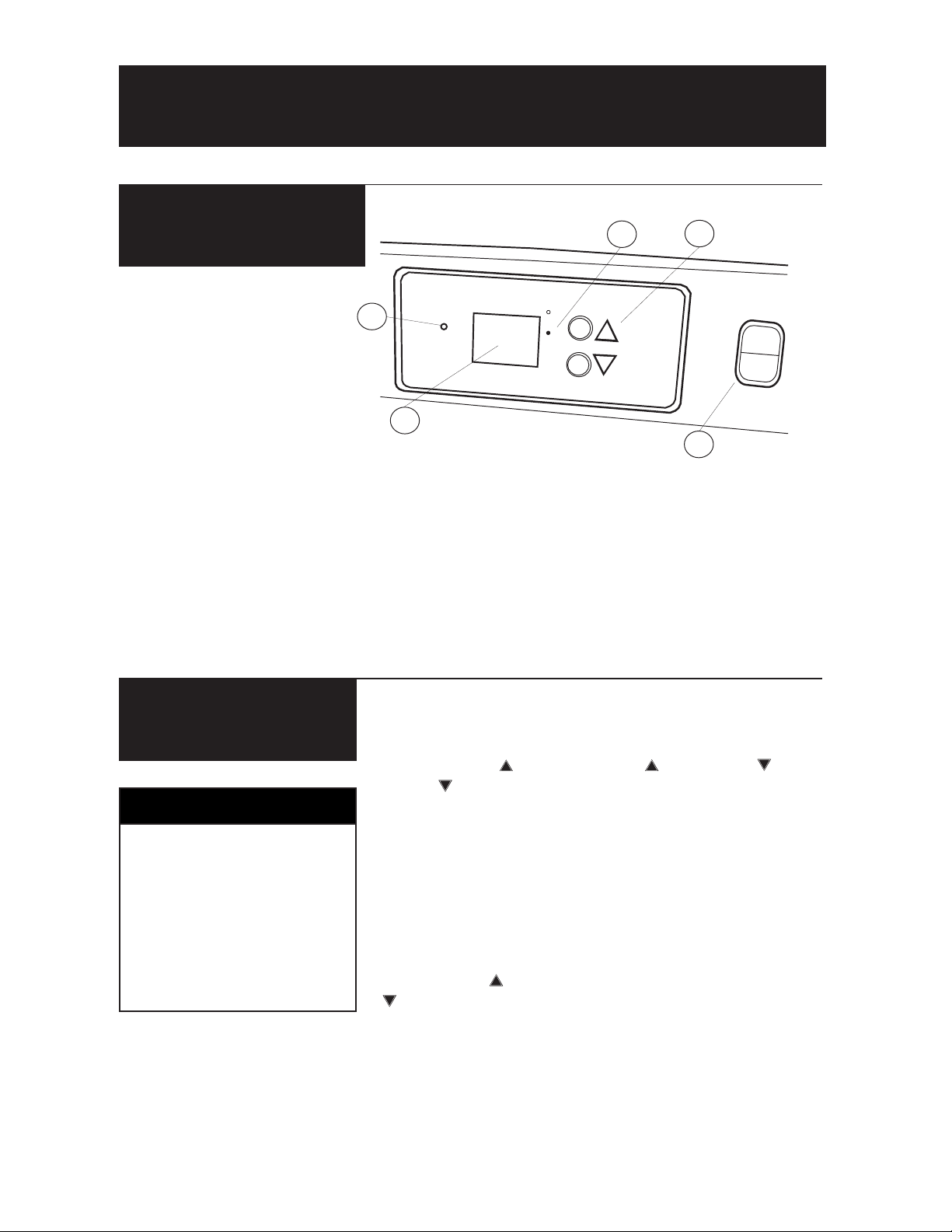

The Controls of

your Wine Cooler

1. Run

Indicator light illuminates to

signify the cooling mode is

currently in operation.

2. Electronic Display

Dispay screen shows current

cabinet temperature and set

temperature. (see ‘Setting the

Temperature’ below)

3. C° / F°

Adjacent indicator light denotes which

scale of temperature is displayed.

4. ‘UP’ Button

Used to raise (warm) the temperature

in 1° degree increments.

‘DOWN’ Button

Used to lower (cool) the temperature

in 1° degree increments.

5. Interior lights on/off switch

AFFICHAGE

DISPLAY

RUN

Activation

HAUT

BAS

DOWN

LIGHT

LAMPE

NOTE

When you plug in your wine

cooler for the first time, the

temperatures will automatical-

ly be set to 45°F (7°C) and

54°F (12°C) in the left and

right compartments respectively

and will be displayed in the

Fahrenheit scale (°F).

Operating Instructions

In order to achieve the

maximum storage capacity of

thirty-four (34) bottles, it will be

necessary to position the

bottles alternately on the

upper six shelves, as shown in

Fig B. This will allow for the

storage of five (5) 750 ml

bottles per shelf in each of the

top six shelves. The bottom

shelf can hold an additional

four (4) bottles.

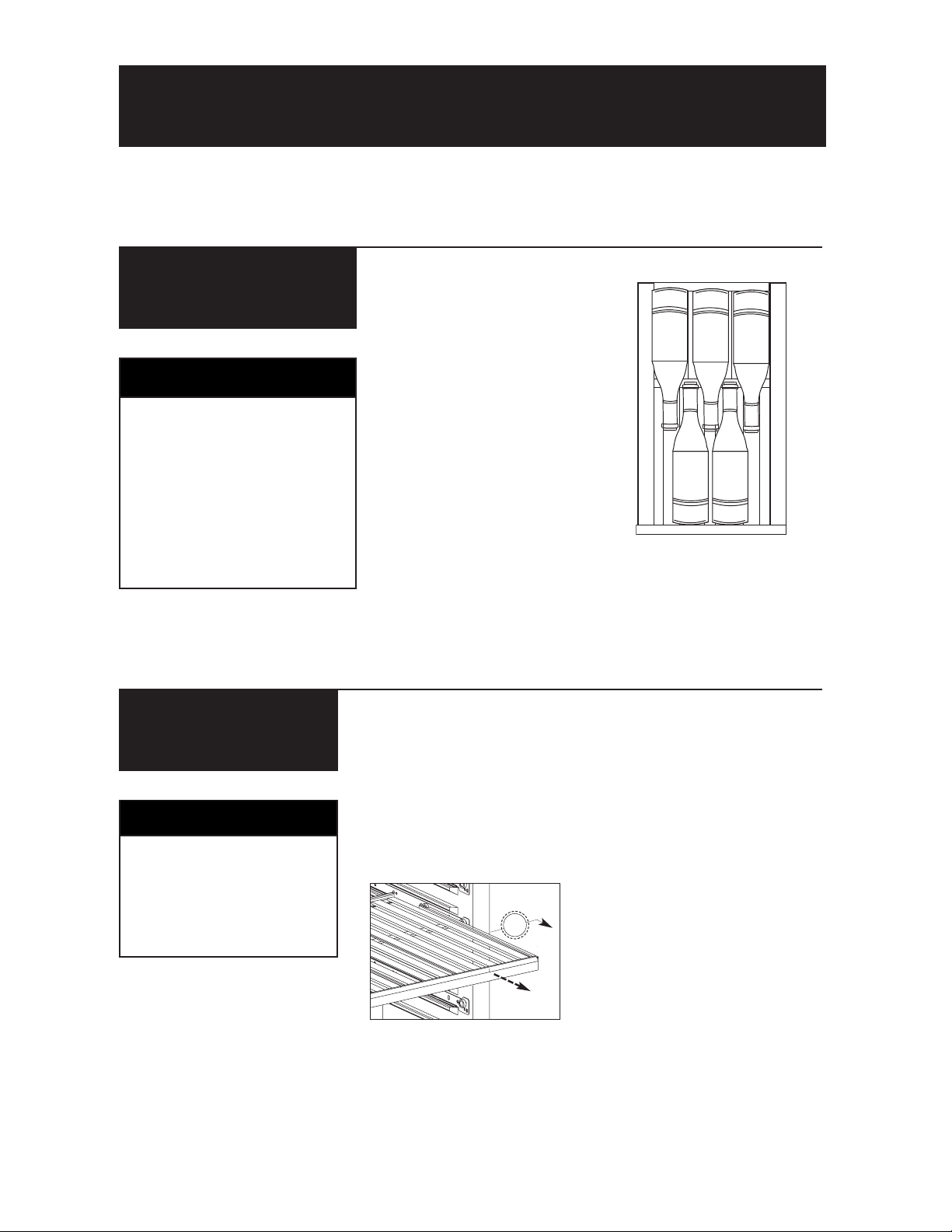

Wine

Storage

Fig B

IMPORTANT!

• The maximum* capacity of

the DWC1534BLS is 34

(750 ml) wine bottles.

• Store wine in sealed bottles

only.

* When stocked as per

instructions.

To remove a roller-shelf

(Fig.C):

1. Gently slide the shelf outward

until it meets resistance.

2. Tilt the shelf slightly upwards

(approximately 15°) and

carefully remove the shelf by

sliding it outward from the

cabinet.

To reinstall a roller-shelf:

1. Set the shelf’s wheels upon

the front of the wheel track.

2. Tilt the front of the shelf

slightly upwards (approxi-

mately 15°), and begin to

gently slide the shelf into the

cabinet until the shelf’s roller-

wheels slide naturally within

the wheel track.

Note: The bottom wine rack is

not secured in place (locked).

Do not attempt to pull on the

rack when it is stocked.

Shelf Instructions

IMPORTANT!

Do not cover shelves with

aluminum foil or any other

material that will prevent

adequate air circulation

within the cabinet.

Fig. C

15°

Installation Instructions - Intergrated Application

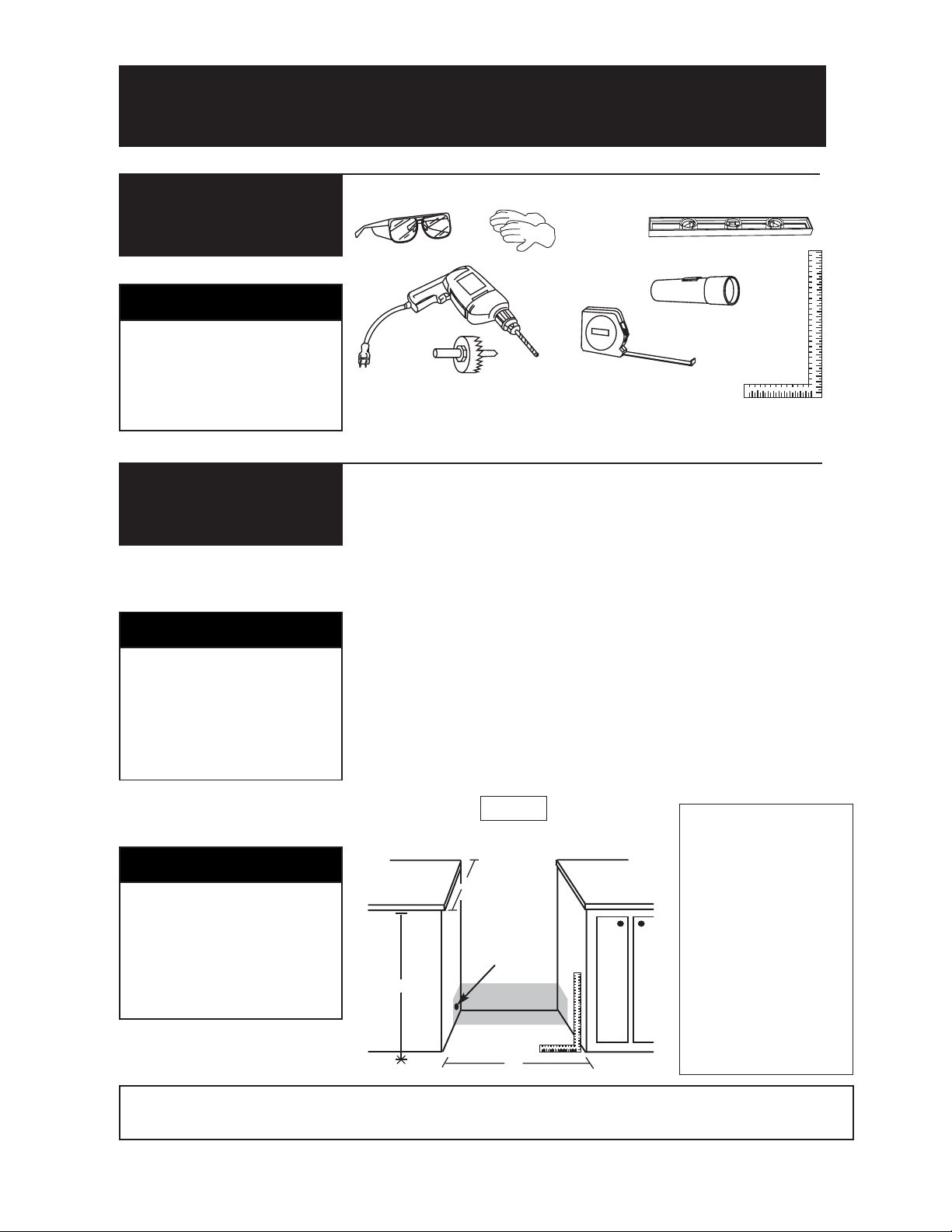

Preparing the

Enclosure

Tools You Will

Need

Carpenter’s

Square

Measuring

Tape

Level

Drill & Hole Saw set

Gloves

Safety Glasses

Flashlight

•It is recommended that you do

not install the wine cooler into a

corner (i.e. directly beside a

wall). This is to allow the door to

have a greater than 90° opening

swing. A limited door swing will

prevent the shelves from sliding

out as intended, and may lead to

damaging the door gasket.

•The rough cabinet opening

must be on a level floor area

and at least 237/8” (60.64cm)

deep*by 15” (38.1cm) wide.

The opening should also have a

height of at least 341/16”

(86.52cm).

• The electrical outlet may be

positioned from within either

side of the adjacent cabinetry, or

the rear of the shaded area (as

shown in Fig. D).

Important: If the electrical out-

let is surface mounted (not flush)

within the enclosure, the

depth

requirement for the installation

may be affected.

•If the electrical outlet is located

inside the adjacent cabinetry, cut

a 11/2” (3.81cm) diameter hole to

admit the power cord.

WARNING!

While performing the

installations described in

this section; gloves, safety

glasses or goggles should

be worn.

Electrical Requirements

The appliance must be con-

nected to an individual and

properly grounded electrical

outlet, protected by a 15 or

20 ampere circuit breaker

or time delay fuse.

*The listed depth requirement for the installation is assuming that the electrical outlet is located in the

adjacent cabinetry or is flush mounted in the rear wall, not surface mounted in the enclosure.

IMPORTANT!

Door Swing

Do not include the door

within the enclosure; leave

it outside of the enclosure

to prevent the door swing

from being obstructed.

}

Fig D

Electrical

Access*

Fig D

1237/8” min. depth

2341/16” from under-

side of countertop

to floor.

315” min. width

42” of depth given

for Elec. Access*

51 1/2” dia. hole (if

outlet is in

adjacent cabinetry).

6Cabinets square

and plumb

Helpful Hints Allow the wine cooler door to

remain open for a few minutes

after manual cleaning to air out

and dry the inside of the wine

cooler cabinet

How to Clean

the Inside Walls, Floor, Inside

Window, and Shelves

Water deposits and dust can be

removed with a damp cloth.

Care and Cleaning

How to Clean

the Outside Outer Case

It’s important to keep the area

clean where the door seals

against the cabinet. Clean this

area with a sudsy cloth. Rinse

and then dry.

Door Frame

Use only mild, non-abrasive

detergents applied with a clean

sponge or soft cloth. Rinse well.

Control Panel and

Door Glass

Wipe with a damp cloth and dry

thoroughly. Do not use cleaning

sprays, large amounts of soap

and water, abrasive or sharp

objects on the panel, they can

damage it. Some paper towels

may also scratch the control

panel and door glass.

WARNING!

Be certain the power is off before cleaning any part of this appliance.

IMPORTANT!

Never use any commercial or

abrasive cleaners or sharp

objects on any part of the

wine cooler.

IMPORTANT!

Do not use cleaners contain-

ing ammonia or alcohol on

the wine cooler.

Ammonia or alcohol can dam-

age the appearance of the

appliance.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Danby Elettrodomestico da cucina

Danby

Danby DWC032A2BDB Manuale utente

Danby

Danby Designer DWC3509EBLS Istruzioni per il montaggio

Danby

Danby DBC122KD1BSS Manuale utente

Danby

Danby DUF808WE Manuale utente

Danby

Danby Maitre'D DWC1233BL-SC Manuale utente

Danby

Danby DBC057A1BSS Manuale utente

Danby

Danby Designer DWC114BLSDD Manuale utente

Danby

Danby Silhouette PROFESSIONAL DBC031D3BSSPR Istruzioni per il montaggio

Danby

Danby DWC033KA1BDB Manuale utente

Danby

Danby Maitre'D DWC620BL-SC Manuale utente

Danby

Danby DWC350BLP Manuale utente

Danby

Danby DWC94L1B Manuale utente

Danby

Danby Silhouette SWC057D1BSS Manuale utente

Danby

Danby DBC117A1BSSDB Manuale utente

Danby

Danby Silhouette DBC514BLS Manuale utente

Danby

Danby DWC106A1BPDD Manuale utente

Danby

Danby DWC018A1BDB Manuale utente

Danby

Danby Designer DWC458BLS Istruzioni per il montaggio

Danby

Danby Silhouette SBC051D1BSS Manuale utente

Danby

Danby DWC93BLSDB-3 Manuale utente

Danby

Danby DWC134KD1BSS Manuale utente

Danby

Danby Silhouette Professional DBC056D4BSSPR Istruzioni per il montaggio

Danby

Danby DWC94L1B Manuale utente

Danby

Danby Silhouette SBC057D1BSS Manuale utente

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
